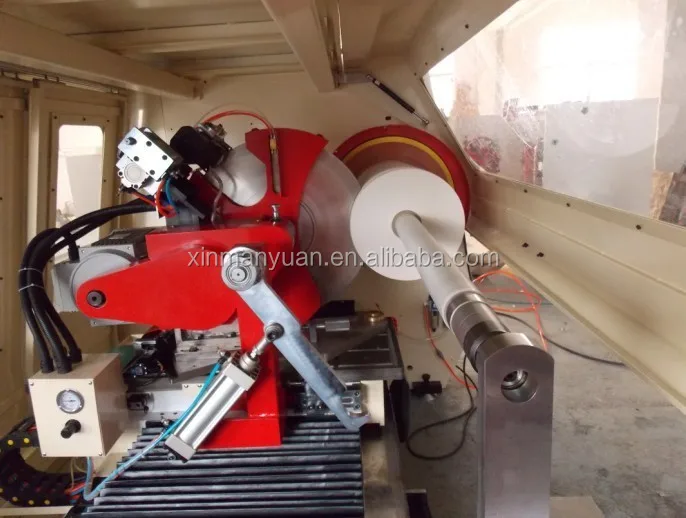

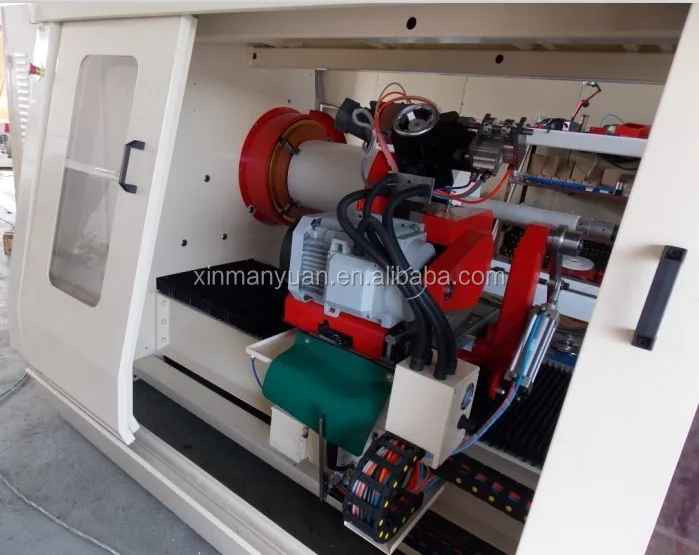

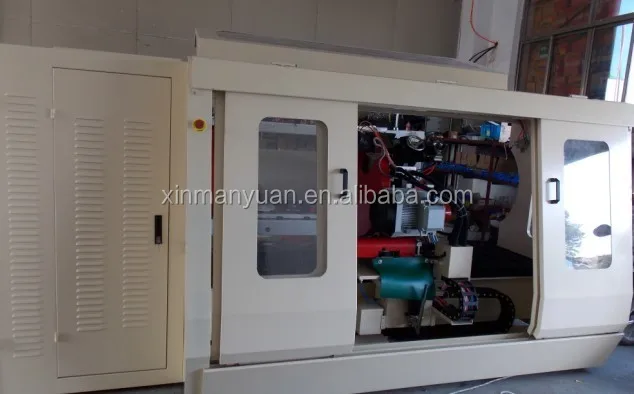

Single Shaft Automatic BOPP/PVC/PE/OPP Roll Cutters

1. Main driving part

Taiwan AC motor with inverter is employed.

2. Central control unit

Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.

 3. Operating panel

All functions are operated on the 10" LCD touch panel.

4. Motor control system

The central control system is PLC programmable controller.

5. Cutting positioning system:

Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

6. Blade feeding positioning system

Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.

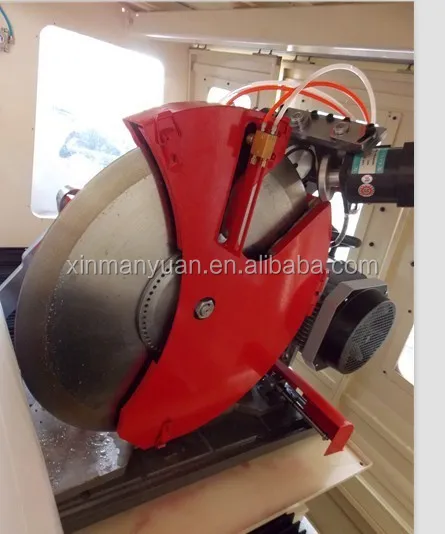

7. Auto angle adjustment of circular blade

Mitsubishi servo motoris used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).

8. Quick shaft change system:

Three kinds of shafts are available and quick change of shafts is applied for different materials.

1. Auto blade grinder

It can keep the blade sharp for easy operation.

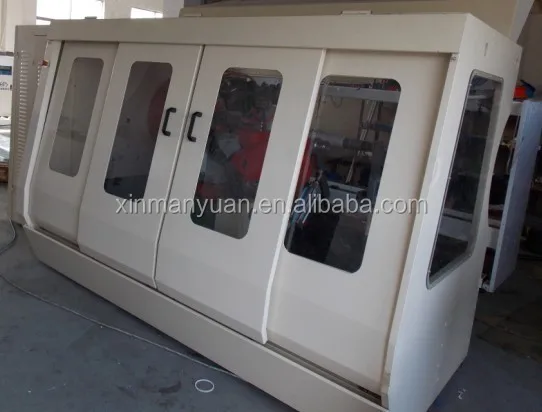

2. Safety cover

To protect operator during the production which is compliant to the CE regulation.

Machine width

1.3M 1.6M

Cutting precision

+/-0.1mm

Max. Cutting O.D.

550mm=21.6"

Min. Cutting width

1mm

Inner core I.D.

3"
