ABB high medium voltage electrical panels

Product Overview

Description

ABB high medium voltage electrical panels



1)General application

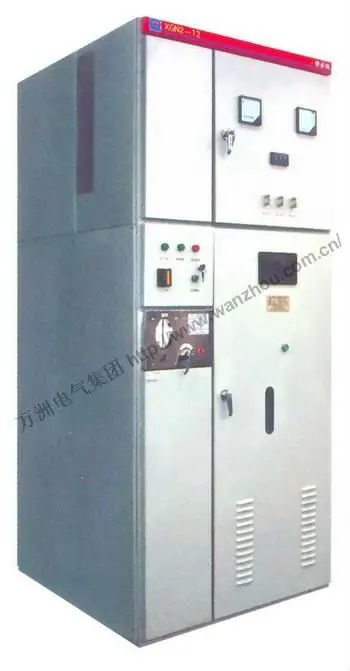

1:XGN2-12 is mainly used for power reception and distribution of 3-6KV-12KV 3 phase AC 50HZ indoor electric system

Specially suitable for working conditions where frequent operations



2:the production is strictly designed according to I standard,also suitable for  frequency Shizuku and dirty  working conditions.



3:Successfully widely used by Three Georges project, national engineering designing institute, mining company, cement mill, stell mill,sugar factory,wood industry, chemical industry, city planning, and other place with big power motor and high electric consume place.



2)Structure feature:

1:It is full-closed metal cabinet, meet standard GB3906 AND IEC298,

Full-closed structure can provent foreign matters get into cabinet and cause circuit short-cut; Also provent human body touch to electrified body and moving parts.



2:The cabinet seperate into following main house: breaker house, generatrix house, cable house, sensor parts house, each house were seperated individually



1)breaker house: on bottom of cabinet,  with pressure release channel, for gas release  if electric arc happened

2)generatrix house:  with over 8000N anti-bending epoxy resin support  insulator

3)cabinet can operate and maintain in two open side



 3)Working condition:



relative humidty: daily average value < 95%, monthly average value <90%

No explosion, serious pollution, chemica erosion, excessive vibration

earthquick intensity no over 8 degree



4)Main technical parameter

no	name	unit	data
1	rated voltage	kv	3, 6,10
2	ratd current	A	630,1000,1250,1600,2000,2500,3150
3	rated frequency	HZ	50
4	rated short circuit drop out current(effective value)	KA	20.25;  31.5;  40
5	rated thermo stable current( peak value)	KA	20.25;  31.5;  40
6	rated dynamic current( peak value)	KA	40;    80;  100
7	rated power frequency withsand voltage(1min)	KV	inter-electrode and earth 42; inter -fractures 48
8	ratd thunder impulse withstand voltage	KV	inter-electrode and earth 75; inter -fractures 85
9	rated thermo stable time	KV	4
10	degree of protection		IP2X

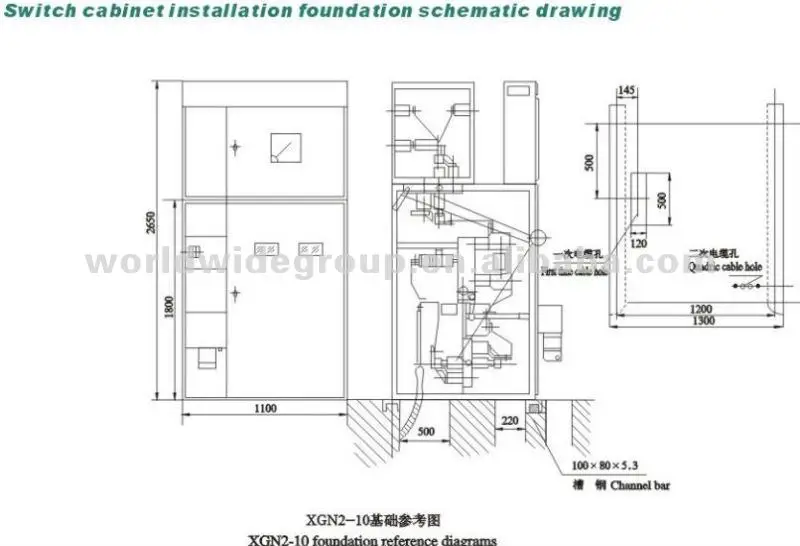

11	externam dimension(WXDXH)	MM	1100x1200x2650( can design according to demand)



5)Service:

Install and guide user in free of charge

Whole life service

Professional after-sale service team
