HSQ Series of Electromagnetic Retarder

Product Overview

Description

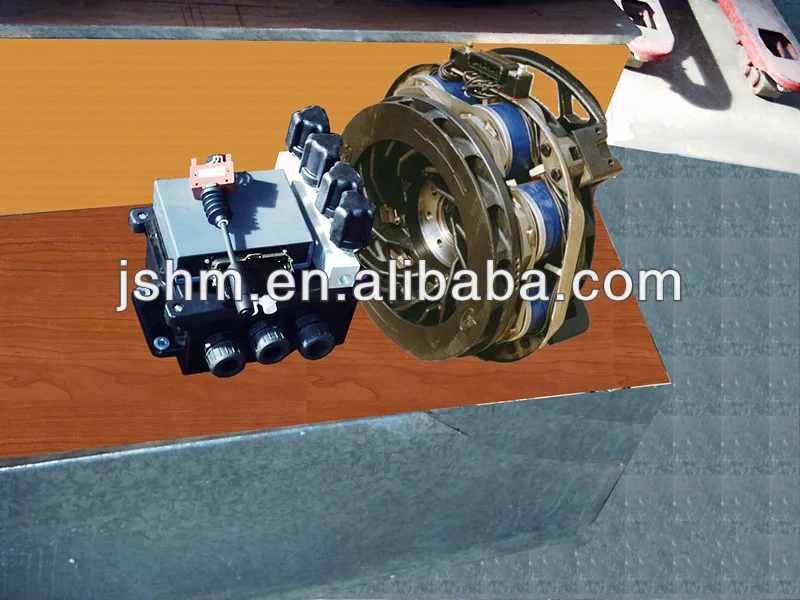

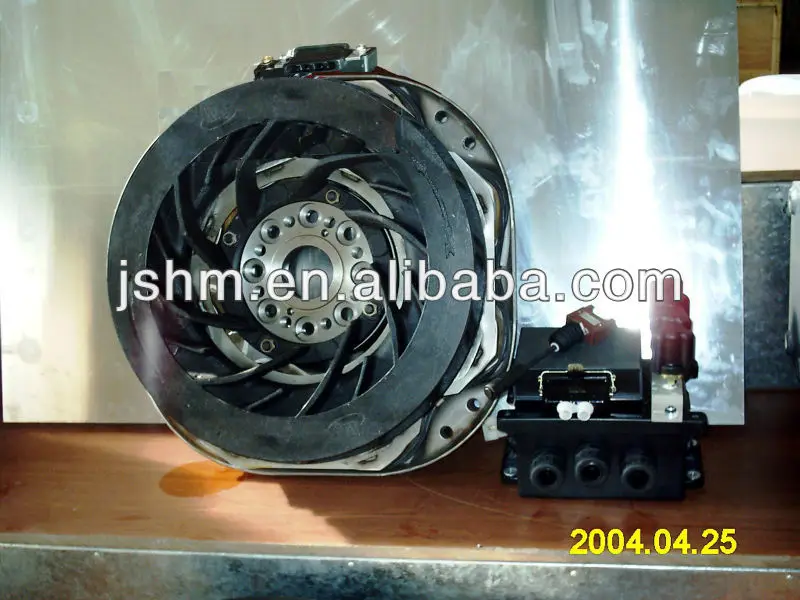

HSQ Series of Electromagnetic Retarder



Application:

HSQ series of automobile electromagnetic retarders are the environment-protective hi-tech products, designed upon the principle of electromagnetic mechanics, which are used as a necessary supplement for the brake system, offering auxiliary braking force to the brake system. As a result of this, the easement and security of vehicle running have been promoted greatly and for the brake disks, tires and braking system, wear and tear have been reduced so as to prolong their service lives. Furthermore, the maintenance fee can be saved a lot. In the meantime the noise and powder causing pollution have been reduced a great deal owing to the use of the retarder. The ratarder is specially applied to medium and heavy cargo trucks,and top-graded passenger cars.





(1)Operation and maintenance



1.HSQ series rearder have five shifts:



0 shift	NO effect in reducing the speed
1 shift	The speed will be reduced by 25%
2 shift	The speed will be reduced by 50%
3 shift	The speed will be reduced by 75%
4 shift	The speed is to be reduced to 100%%

The lighted lamp on the instrument the speed panel indicates that the retarder is working in service, when there is no need for the service of retarder, the gear may reverse to 0 position, then the lamp is not light at this moment.



2. It is recommended that the retarder and the brake system be used comprehensively so as to prolong the service life of tires and brake system.



3. The ratarder is to be checked and cleaned once after it has covered 5000km(cooled first). The dust on the Surface of rotator can be removed with high pressure cleaner, the stator(especially for the stator wiring post)may be washed with low pressure cleaner.





(2)

B Series(Mounted on the gearbox or the bridge)	Model	Size(mm): WidthXHeightXThickness	Troque(N.m)	Fitting Vehicle Weight(T)
	HSQ2400	534X580X295	2400	22-30
	HSQ2000	534X580X295	2000	18-25
	HSQ1900	534X580X 295	1900	13-18
	HSQ1700	534X580X295	1700	11-16
	HSQ1500	476X512X270	1500	9-14
	HSQ1100	476X512X250	1100	8-12
	HSQ800	476X512X250	800	8-10
	HSQ500	476X512X250	500	7-9





(3)



Main advantages



1.Safe and comfortable: It can bear 30%-80%braking when bus is speeding down.Protect bus against running aside due to uneven wear or improper adjustment of the brake. Avoid ineffective braking due to overheating of brake. Project the tires against bursting caused by overheating of brake hub.

2. Economical and protection: Prolong the service life of brake system and save the maintenance time. Reduce the cost.

3. Green environment protection: Reduce the eliminate the noise and dusts caused by brake friction.

4. Easy operation: Independent auto control and hand operation satisfy the driver’s habit.

5. The tires’s service life to be prolong 30%~50% in average

6. The maintenance fee for brake system and tires reduced by 5-8times

7. Even driving on express way, the service life of brake disk can be prolonged by 4-10 times in average.
