Wenzhou Jiamao offer JM 1000mm high quality BOPA film laminated Machine

Product Overview

Description

1.Usage:

This series of Laminating Machines are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic and aluminum-plastic compositions.


2.Main Features :
1. Double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation.
2. Two means of glue applying, cobwebbing roll sizing and rubber roll gluing.
3. Oil warming system for composite reel, constant temperature control.
4. Double reeling and double unreeling, tension magnetic powder for reeling and unreeling, photoelectric error correction for unreeling.
5. 4-sect heating in drying tunnel, possible to control temperature by segments.

6. Photoelectric error correction for unreeling,with automatic tension.



3.Main Technical Parameter :

Model	JM-B 600	JM-B 800	JM-B 1000
Width of laminating	600mm	800mm	1000mm
Laminating stratification	2 layers	2 layers	2 layers
Laminating speed	10-120m/min	10-120m/min	10-120m/min
Roll material Diameter	600mm	600mm	600mm
Oven temperature	120°c	120°c	120°c
Total power	44kw	48kw	52kw
Weight	7500kg	8200kg	8900kg
Overall dimenson	9600X2400X3300mm	9600X2650X3300mm	9600X2850X3300mm

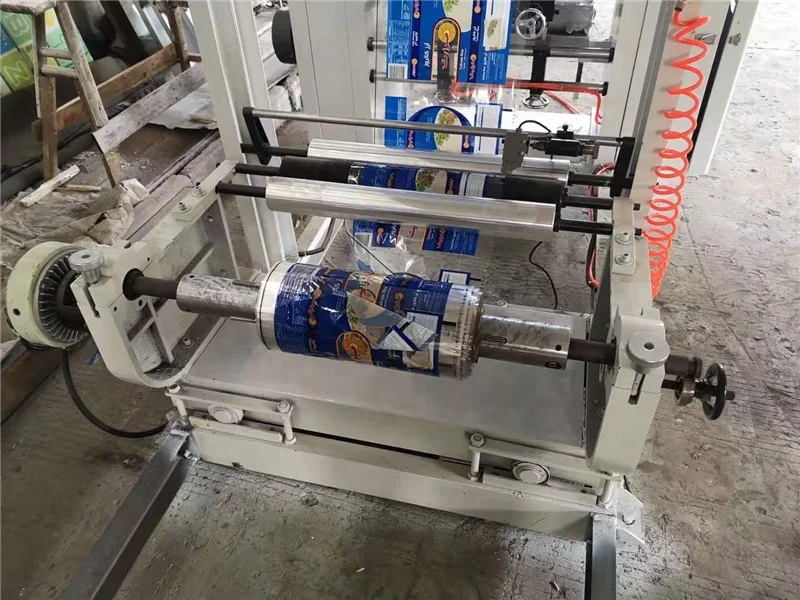

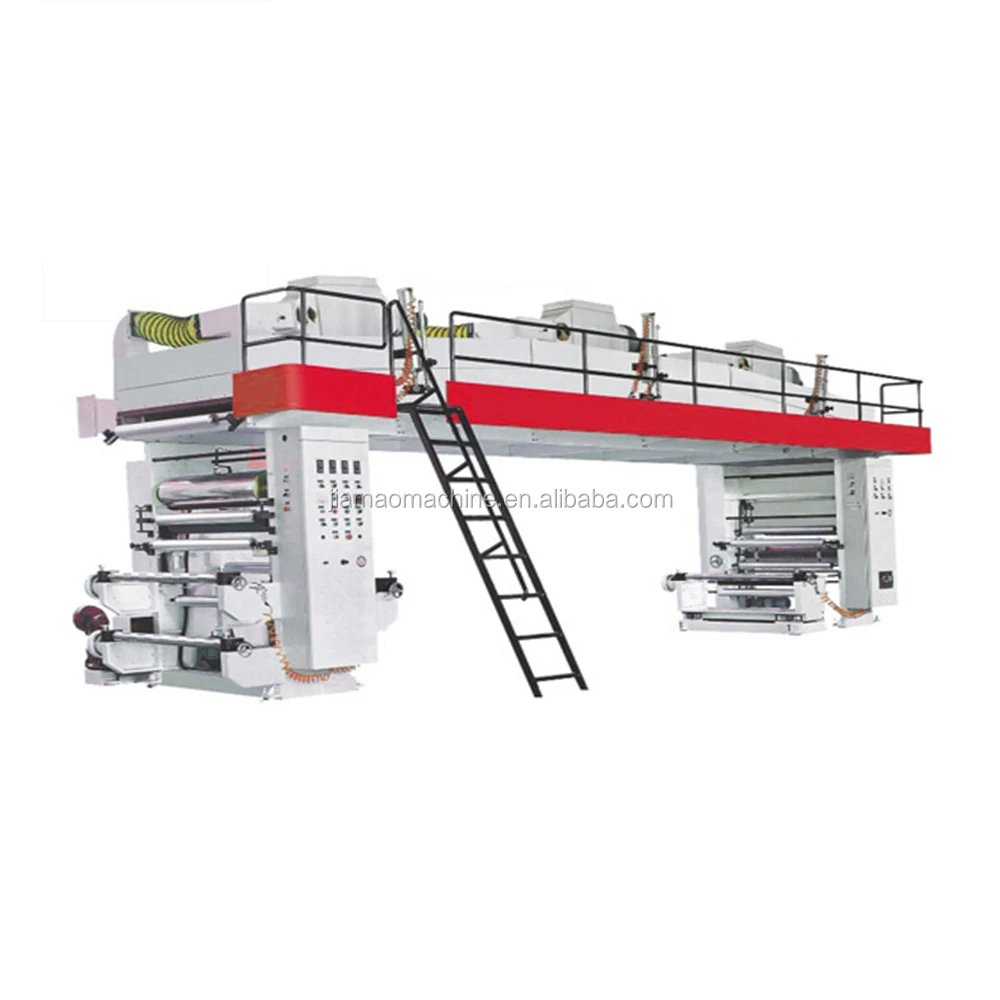

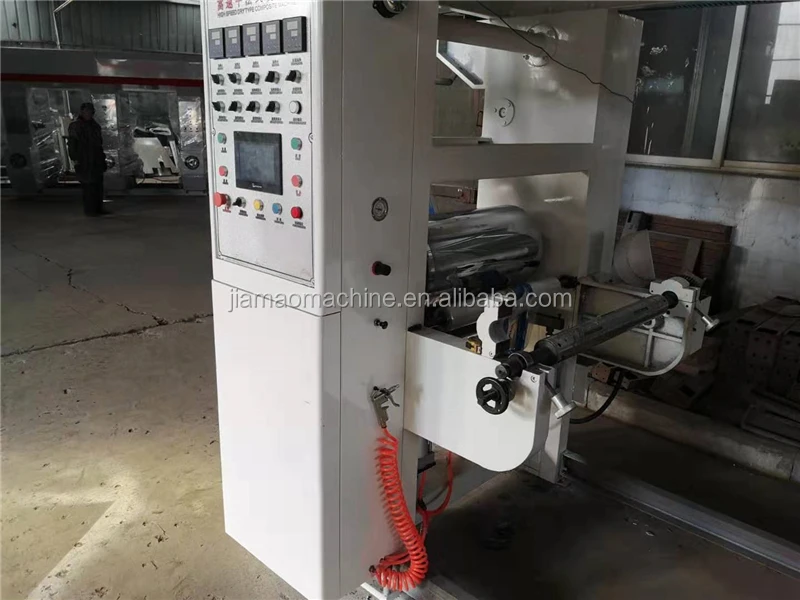

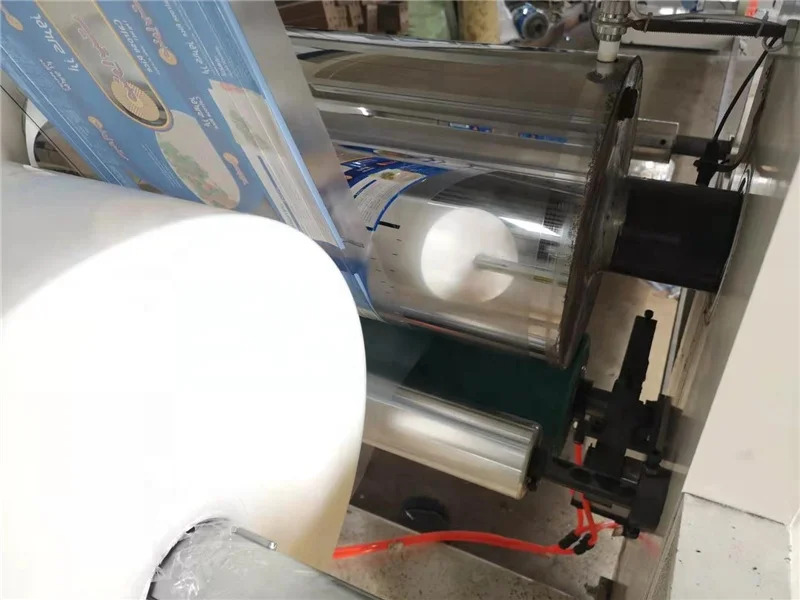

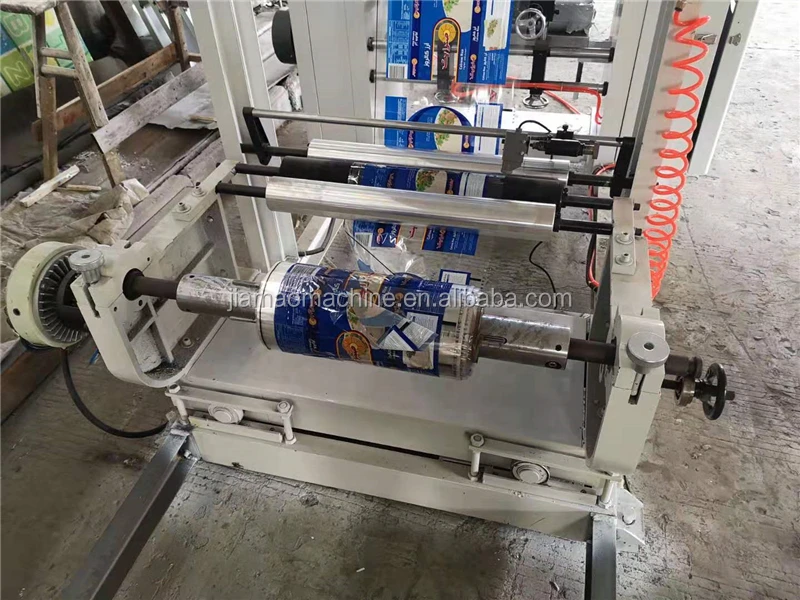

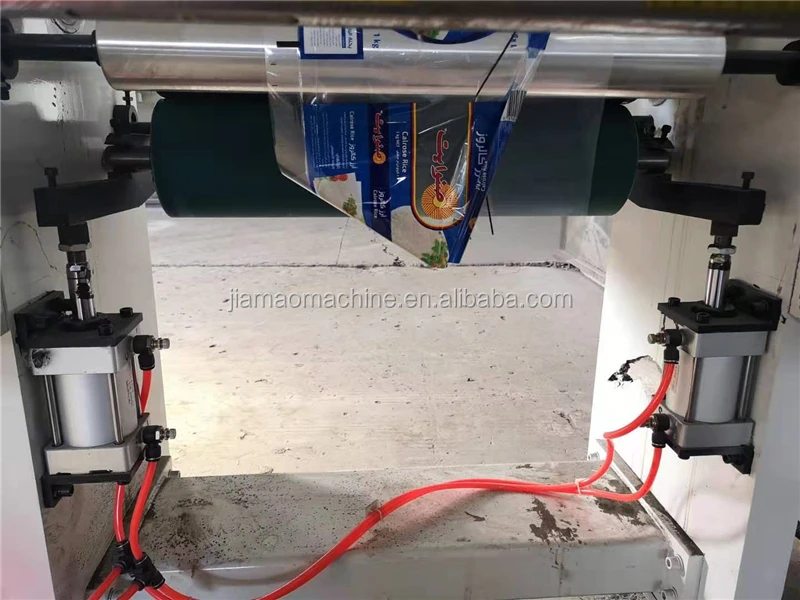

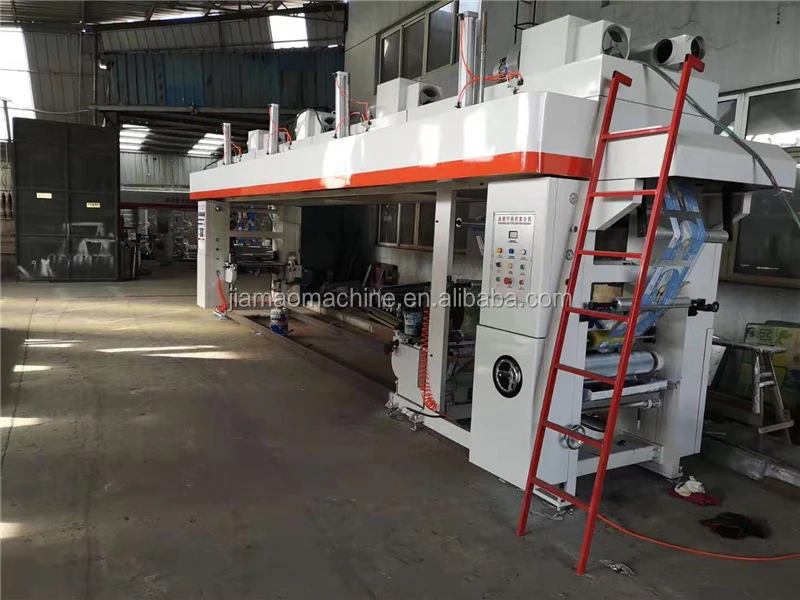

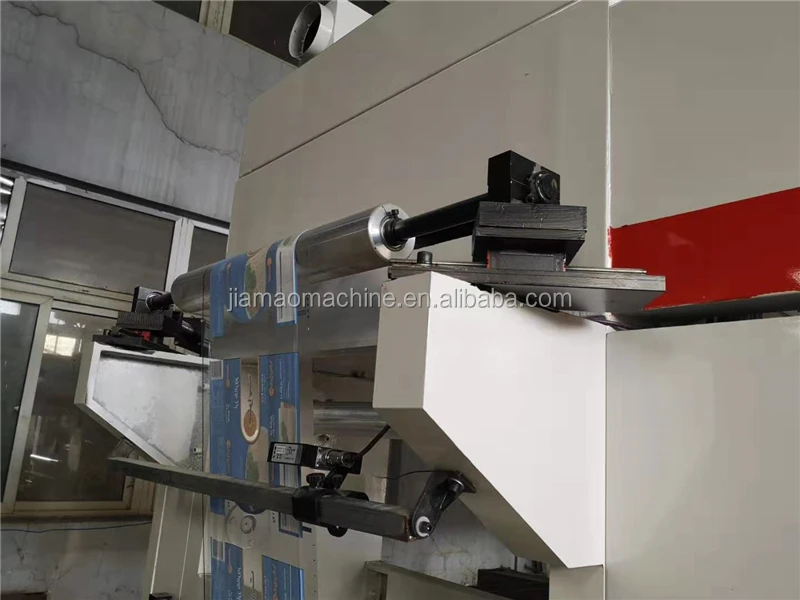

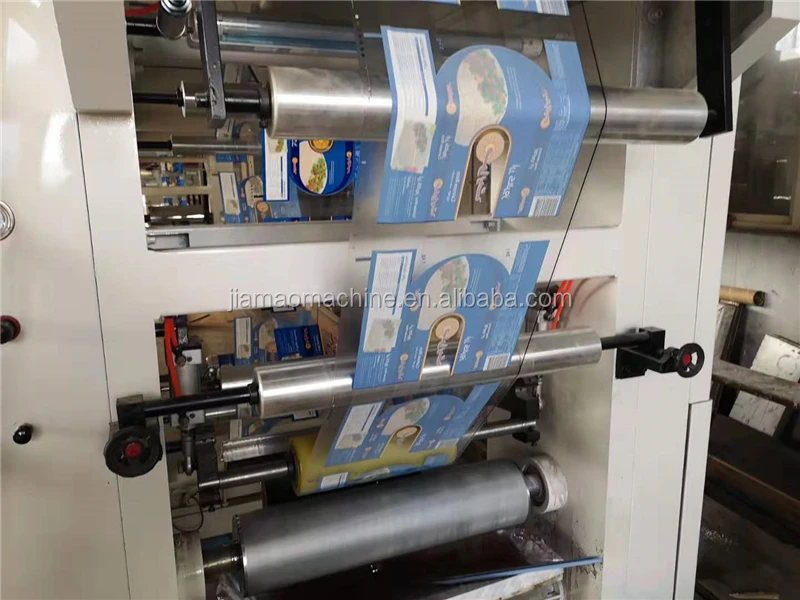

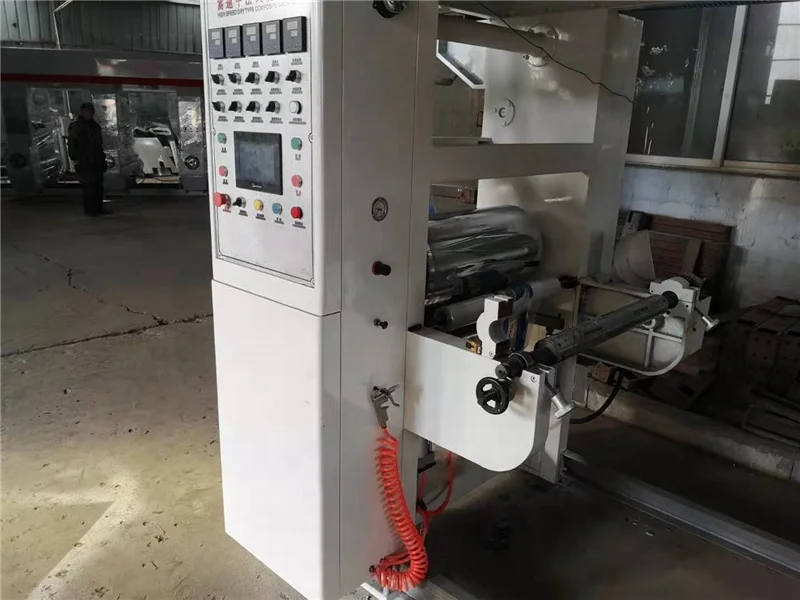

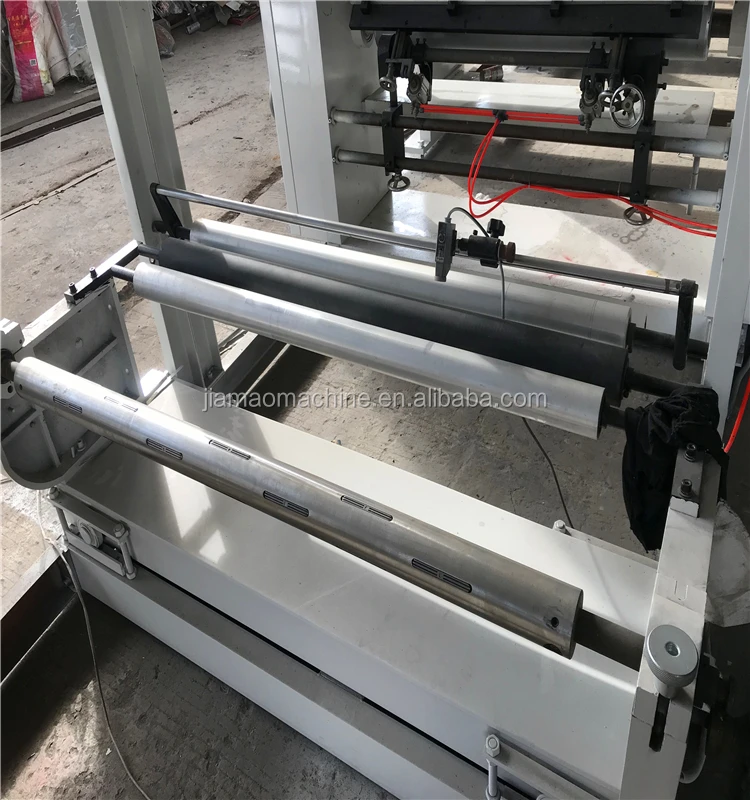

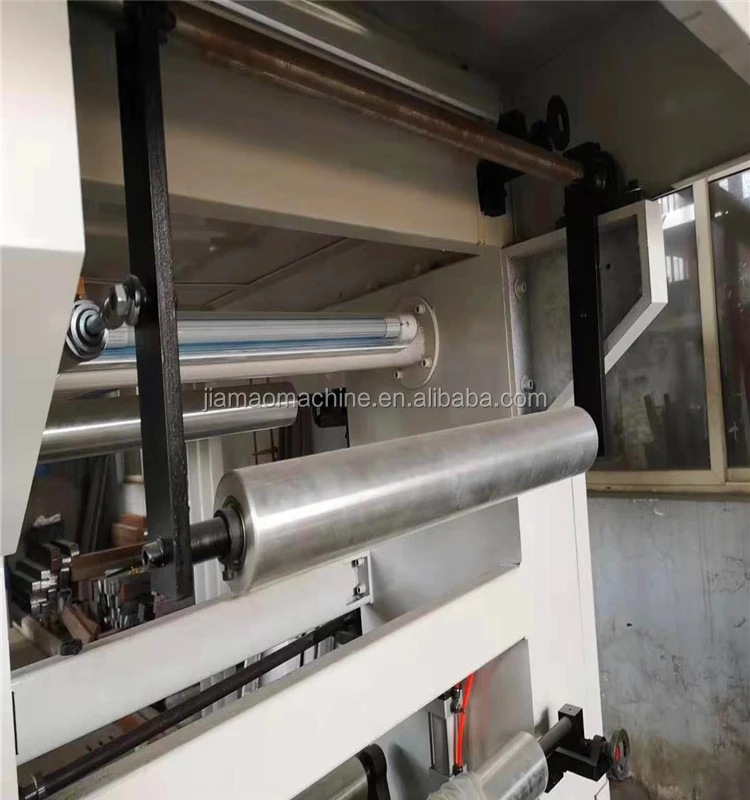

B.Pictures Show
