Universal dividing head and Horizontal & vertical rotary table

Product Overview

Description

Universal dividing head and Horizontal & vertical rotary table

F11 SERIES UNIVERSAL DIVIDING HEAD



Features:

1. The universal dividing head, Type F11100A,F11125,F11160A,F11200A is one of the most important attachment for milling machine. With the help of this dividing head the workpiece held between centers, or on a chuck can be rotate to any angle as esired and the periphery of a workpiece can be divided into any divisions of equal parts. By means of all kinds of cutters, the dividing head can also help milling machine to perform the milling operation for flute spur gear, spiral gear, spiral flute, Archimedean cam, helical flute and etc.

2. The dividing head, is equipped with a face plate that can be mounted onto the spindle nose. The workpiece can be mounted on the face plate, thus, cutting can be carried out on 4-sides of a workpiece.

3. F11125C,F11160C is designed for the customers special needed, the shafting is improved to support heavy load.

4. The universal dividing head, type F11100AL, F11125AL, F11160AL is the same as of the structures and the operation handle is setted on the left.

Specifications                                                           Items		F11100A	F11125A	F11160A	F11200A
Center hight mm		100	125	160	200
Swivel angle of spindle from horizontal to upward		≤95°
Horizontal position(downward)		≤5°
Rotating angle of spindle for one complete revolution of dividing handle		9°(540grad.,1'each)
Min.reading of vernier		10''
Worm gear ratio		1:40
Taper of spindle bore		MT3	MT4
Width of locating key.mm		14	18
Diameter of short taper of spindlenose for mounting flange mm		41,275	53,975	53,975	53,975

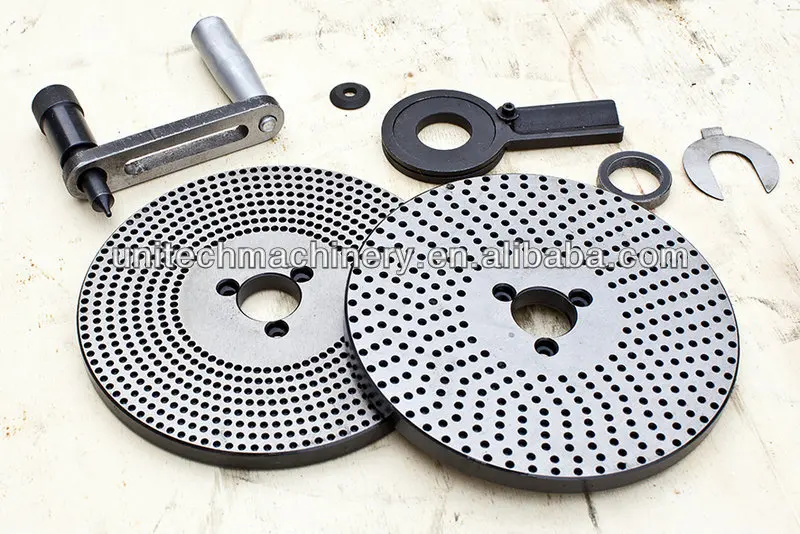

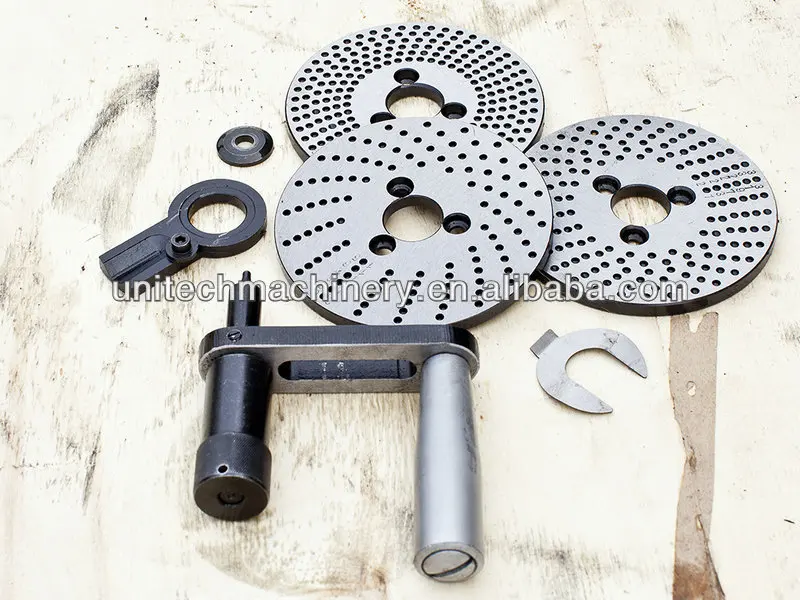

Numbers of hole in dividing plate	1st plate	24,25,28,30,34,37,38,39,41,42,43
	2nd plate	46,47,49,51,53,54,57,58,59,62,66
Change gear	Module	1.5	2
	Teeth numbers	25,30,35,40,50,55,60,70,80,90,100
Individual indexing error of the spindle for one complete revolution of dividing handle		±45‘’
Cumulate error at any 1/4 periphery of spindle		±1‘’
Max.bearing kg		100	130	130	130
Net weight kg		67	101.5	113	130
Gross weight kg		79	111.5	123	140
Overall dimensions mm		616×465×265	635×530×530	710×535×342	710×535×342

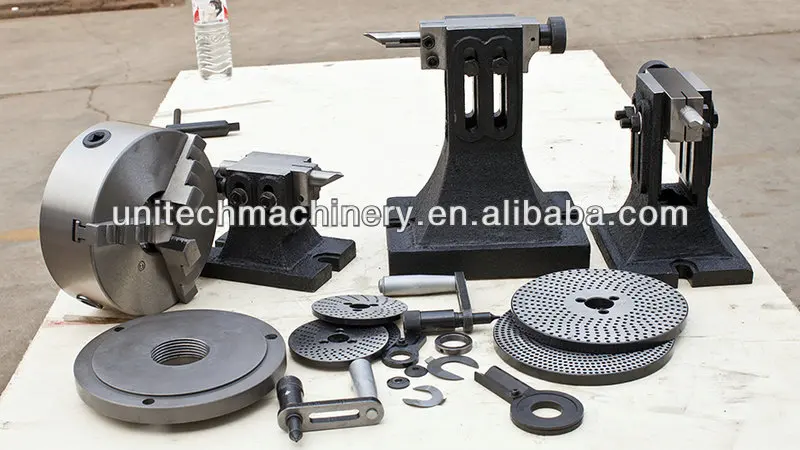

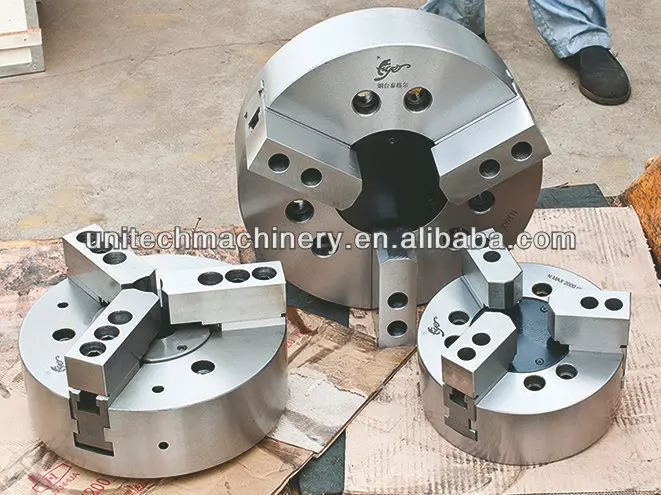

Standard accessories:     Tailstock, Change gear bracket, 12X Change gear, Jack, Center, Dividing plate, Flange, 3-Jaw chuck, Round table (optional)

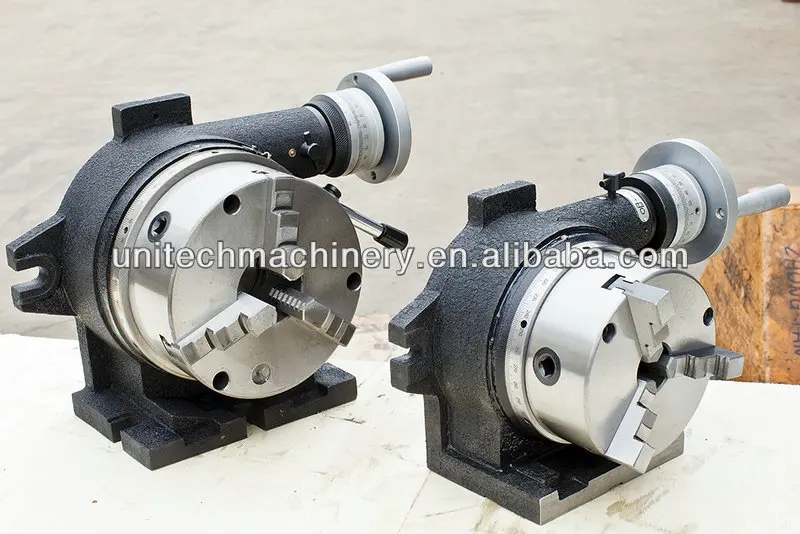

TSL series Horizontal and vertical Rotary table



Features:



1. TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on milling machine.

2. Rotary table in vertical with tailstock working together, it can used on complex work for circle index boring and milling.

3. As clients’ special requirements the TSL with left handwheel can be offered.



Items	TSL100	TSL160	TSL200	TSL250	TSL320	TSL400
Diameter of table mm	100	160	200	250	320	400
Morse taper of center hole	MT2		MT3		MT4
Dia.of center hole	Φ20X8	Φ25X6	Φ30X6		Φ40X10
Center height for Vert. Mounting  mm	70	125	150	170	210	260
Width of T-slot  mm	6	10	12		14
Adjacent angle of T-slot	90°			60°
Width of locating key  mm	10	12	14		18
Transmission radio of worm gear	1:72	1:90
Readout of handwheel	2'	1'
Min.value of vernier	10"
Indexing accuracy	120"	80"	60"
Max.workload (Hor.)  kg	20	100	150	200	250	300
Max.workload (Vert.)  kg	10	50	75	100	125	150
N.W.  kg	7	23	31.5	46	77	150
G.W.  kg	8	30	42	57	92	175
Case dimensions  mm	245X165X112	432X432X220	450X440X235	510X460X240	590X580X250	750X684X286
