48V poe surge voltage protector rj45

Product Overview

Description

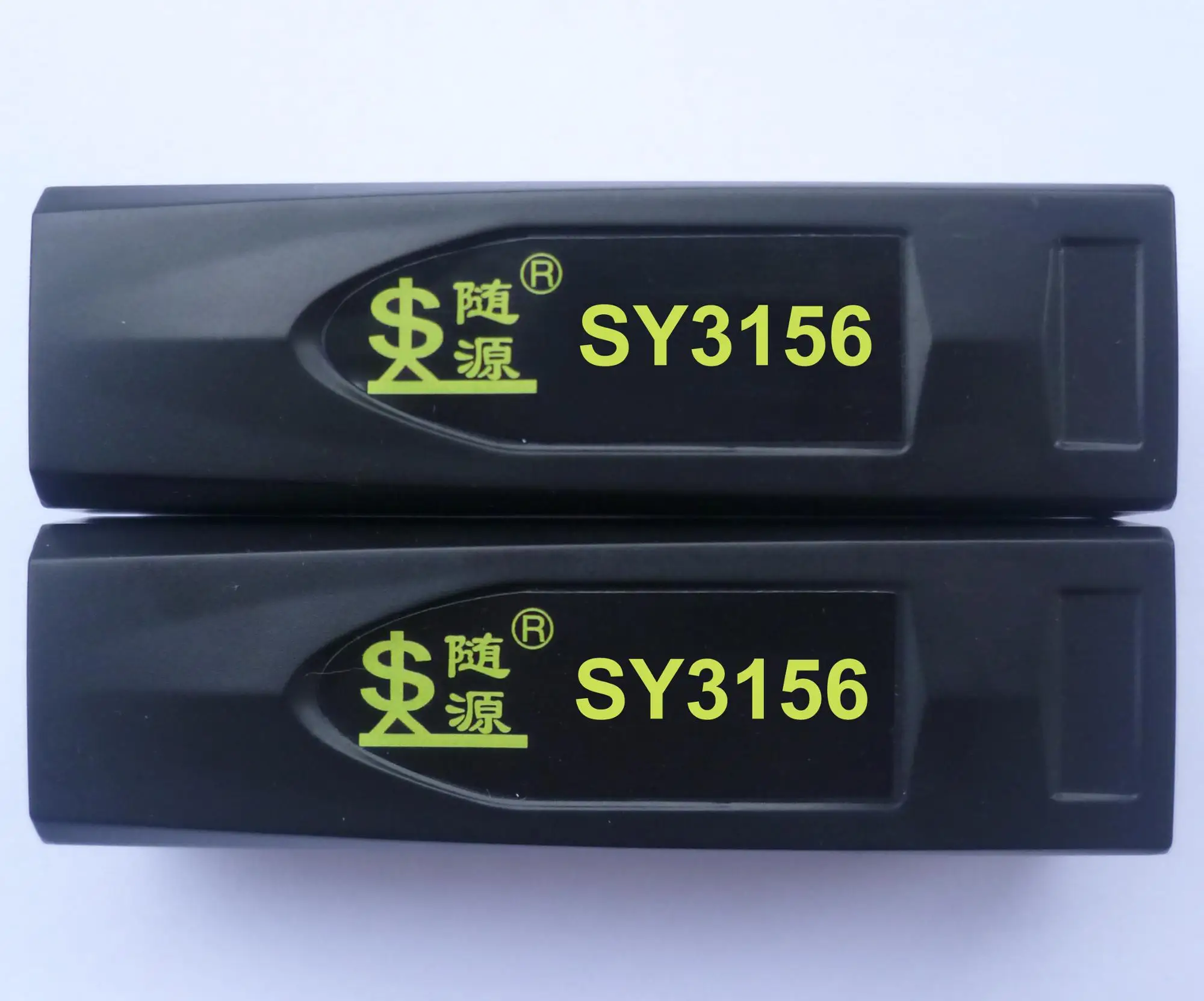

SY3156 poe surge voltage protector rj45

1. Specification details

Model	SY3156
Interface	Ethernet ,RJ45 Cat6, with POE
Data rate	10/100/1000Mb/s
Line voltage	5V, POE48V
Max operating voltage	6V, 60V DC power
Max surge discharge current	5KA(8-20 μ s)
Protected pins	All pins
Mounting	Grounding clip & Grounding terminal
Shell material	ABS
Weight	70g
Size	26*26*95mm
Package inch	40*27*105mm



2.Dimensions



3. Main feature:

--ABS material profile shell, attractive and durable, good shielding effect;

--RJ 45 convenient to use, reliable connection;

--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.

4.Package

Surge protector x 1

Grounding terminal/ Grounding clip x 1

Manuals/ Instructions x 1

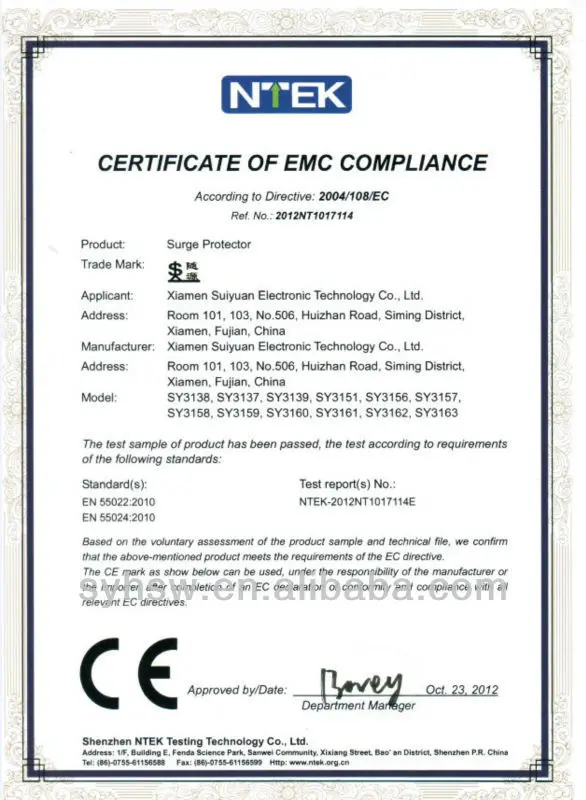

5.Certificates

 CE certificate

 Compliant to ROHS

 Lead-free
