Aluminum Coil Annealing Furnace Trolly Type Industrial Furnace Electric Furnace

Product Overview

Description

steel strips steel coil heating equipment, steel coil transporting equipment

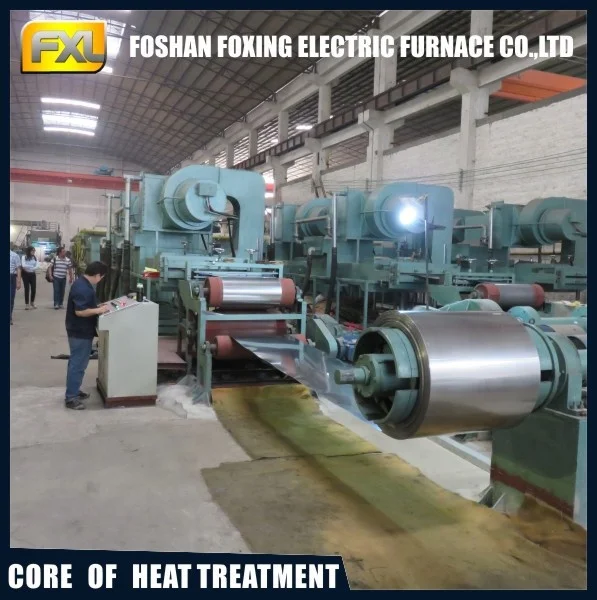

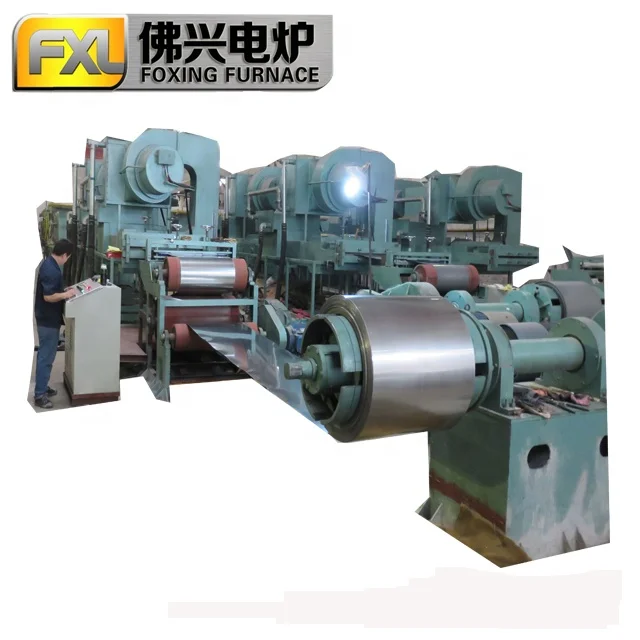

(1)FXL series traction type stainless steel strip continuous bright annealing furnace (gas cooled)

Application and characteristic:

1. It is continuous type resistance furnace, especially suitable for the thin strip of stainless steel cold rolling industry. Use for stainless steel with continuous bright annealing

 2. Together with the stainless steel strip rolling bodies, winding strip does not appear the phenomenon of running side.

 3. Together with the ammonia decomposition protective atmosphere, a decomposition of ammonia gas cooling chamber and circulating heat exchanger device. Stainless steel with a baked dropped to the technological requirements of conditions to ensure a bright annealed stainless steel surface, no oxidation, no scratches phenomenon.

 4. Heating element used hair tropical distribution, maintenance is convenient.

 5. The transformer step-down technology, improve the service life of heating element, and increase productivity.



type	rating power(KW)	Rating temperature(°C)	Rating voltage(V)	phase	Muffle tank length(mm)	Muffle tank width(mm)	Output(T/24h)
FXL-180-11	180	1150	380	3	7000	500	12
FXL-200-11	200	1150	380	3	8500	500	14
FXL-250-11	250	1150	380	3	10000	500	17
FXL-320-11	320	1150	380	3	10000	600	20
FXL-360-11	360	1150	380	3	10000	700	24
FXL-450-11	450	1150	380	3	10000	900	30
FXL-720-11	720	1150	380	3	10000	1400	40

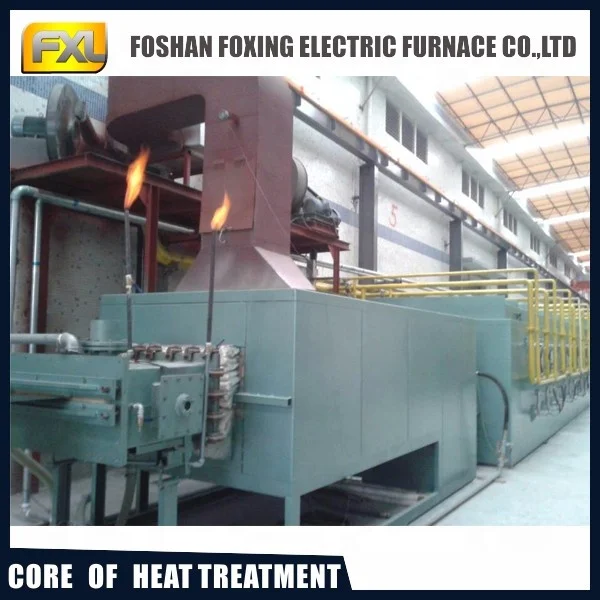

 (2)FXL series traction type carbon-steel belt continuous bright annealing furnace (gas cooled)

 Application and characteristic:

 2. Together with Carbon-steel volume release mechanism, winding strip does not appear the phenomenon of running side.

 3. Together with the ammonia decomposition protective atmosphere, a decomposition of ammonia gas cooling chamber and circulating heat exchanger device. Carbon-steel belt with a baked dropped to the technological requirements of conditions to ensure a bright annealed stainless steel surface, no oxidation, no scratches phenomenon.

 4. Carbon steel go through the heating zone, the slow cooling zone, water jacket cooling zone, the quench zone after treatment, to reach deep drawing requirements



type	rating power(KW)	Rating temperature(°C)	Rating voltage(V)	phase	Heating zone effective size(mm)	Muffle tank width(mm)
FXL-180-8	180	850	380	3	7000	500
FXL-200-8	200	850	380	3	10000	600
FXL-300-8	300	850	380	3	10000	800
