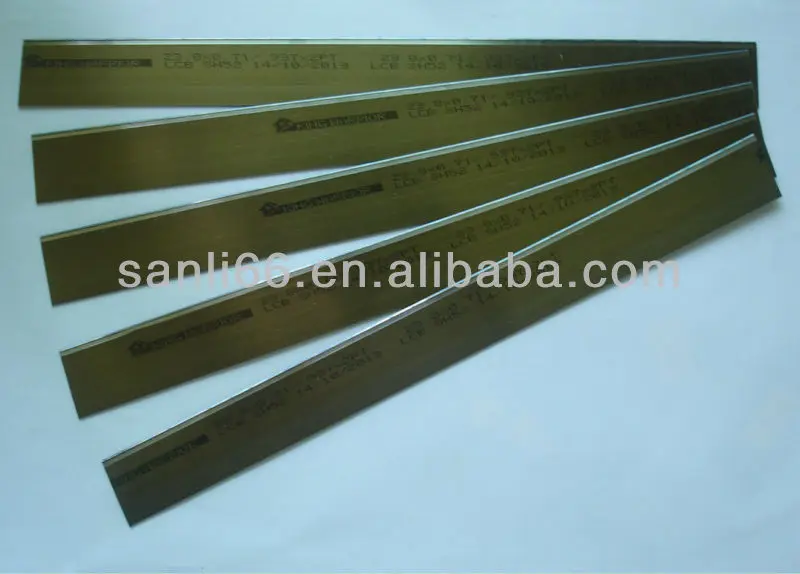

Excellent Die Cutting Blade Knife 2pt 3pt 4pt Steel Rule

Product Overview

Description



Excellent Die Cutting Blade Knife 2pt 3pt 4pt Steel Rule





Raw Material

Premium Steel (imported steel), offering much higher precision of +-0.02mm

Users can increase the productivity and get a better cutting effect with higher precision steel rules, the machine also will enjoy the less machine-wear

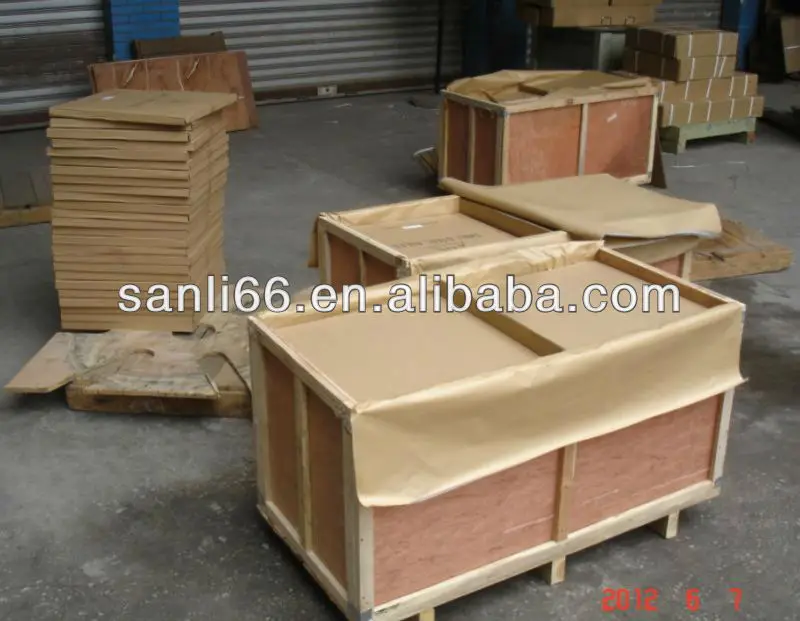

Size and Packing

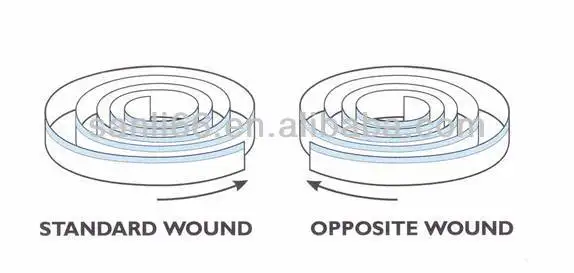

size	strips	coils
0.71*23.30*1000mm, 2pt	100pcs/box	100m/coil
0.71*23.60*1000mm, 2pt	100pcs/box	100m/coil
0.71*23.80*1000mm, 2pt	100pcs/box	100m/coil
1.05*23.80*1000mm, 3pt	70pcs/box	70m/coil
1.42*23.80*1000mm, 4pt	50pcs/box	unavailable

 Note: 762mm length is available, for those who don't need 1 meter length, also economical.









Body Hardness

• HRC 34~36 (soft)
• HRC 37~39 (medium hard)--Standard Hardness
• HRC 40~45 (hard)





Tip Hardness

HRC 52~56









Tip Hardening Method

High Frequency Induction, which is the most advanced technology in the world.



A steel rules with this hardening method can offer a much more durable edge than those by other hardening methods like fire hardening, laser hardening. Users can greately reduce the rule's repalcements when cutting, to obtain a better cutting effect.





 The new style of High Frequency Induction Hardening Machine introduced from Sweden





Cutting Bevel

• Center Bevel (CB) / Center Face (CF) / single blade / A
• Side Bevel (SB) / Side Face (SF) / B
• Long Center Bevel (LCB) / Center Face Double Bevel (CFDB) / bi-blade / AA
• Long Side Bevel (LSB) / Side Face Double Bevel (SFDB) / BB







Tip Type

• Shaved edge
• Ground edge





Tip Angle

• 52 degree, standard angle
• 42 degree, more sharp



Application

die cutting cardpaper, box, carton, corrugated box and so on...
