Touch screen Constant Moisture Testing Oven

Product Overview

Description

Touch screen Constant Moisture Testing Oven



Purpose of  Touch screen Constant Moisture Testing Oven

Touch screen Constant Moisture Testing Oven also called environmental testing chamber, which is able to accurately simulate such complicated natural environments as low temperature, high temperature, high temperature and humidity, low temperature and humidity etc., applicable to the QC inspection in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..



Applicable standards of  Touch screen Constant Moisture Testing Oven

The performance index conforms to the requirements of GB5170,2,3,5,6-95 ‘Inspection Methods for Basic Parameters of Environmental Test Equipment for Electric and Electronic Products—Low Temperature, High Temperature, Constant Temperature & Humidity and Alternating Temperature & Humidity Test Equipment’.



(1) Basic Environmental Test Procedures for Electric and Electronic Products Test A: Low Temperature Test Method GB 2423.1-89 (IEC68-2-1)

(2) Basic Environmental Test Procedures for Electric and Electronic Products Test B: High Temperature Test Method GB 2423.2-89 (IEC68-2-2)

(3) Basic Environmental Test Procedures for Electric and Electronic Products Test Ca: Constant Temperature & Humidity Test Method GB/T 2423.3-93(IEC68-2-3)

(4) Basic Environmental Test Procedures for Electric and Electronic Products Test Da: Alternating Temperature & Humidity Test Method GB/T423.4-93(IEC68-2-30)



Performance of  Touch screen Constant Moisture Testing Oven

Model		BE-TH-408M8
Internal material (mm)WXHXD		600 X850X800
External dimension (mm)WXHXD		1180X1950X1350
Power supply		3ψ 380V 50HZ 7.0KW
Temperature range		-40°C~ +150°C
Humidity range		20%RH~98%RH
Fluctuation	temperature	±0.5°C
	humidity	±2.0%R.H
Distribution deviation	temperature	±1.5°C
	humidity	+3.0%RH,-2.0%RH
Internal material		stainless steel plate of mirror surface (SUS #304, 1.0mm thick)
External material		stainless steel of yarn surface or cold steel senior plastic spraying processing (SUS #304, 1.0mm thick)
Heating rate		Average 3°C/min   nonlinear and no-load, can be customized non-standard specifications as required
Cooling rate		Average 1°C/min   nonlinear and no-load, can be customized non-standard specifications as required
Refrigeration system		The original French Taikang compressor, environmentally friendly refrigerant R404A and R23A, fin chip condenser with cooling evaporator, evaporator: fin chip and multistage type, automatic load, capacity adjustment
Control System		TEMI880 color touch controller, or TEMI300 English button type controller, imported from South Korea
Safety Protection System		Over-temperature protector, High-tension protection switch and Overheat protection switch for the compressor, Over-current protection switch, Non-fuse switch, Fast-blow ceramic fuse, Buzzer
Standard configuration		Observation window, Test hole, Shelves inside the chamber, Lighting, Chamber casters
On-line function		RS-485 and RS-232 computer on-line function and on-line software, with the software CD and a set of connected data line, optional USB interface

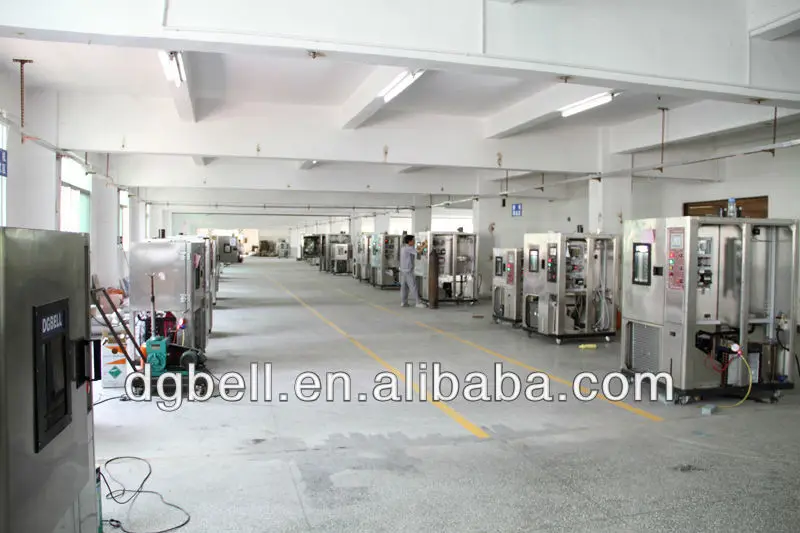

Touch screen Constant Moisture Testing Oven Pictures for Reference
