Product Overview

Description

The unique advanced long life heating system

1.The heating system adopt the Swedish nickel flipping pipe which with high efficiency and energy saving. The peak wave length of radiation power is 4UM with curved surface reflector to accelerate the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the “shadow effect” completely.

2.Special high temperature resistant protection system(the United States of America’s high density insulation rock wool in heat preservation system and special iron in furnace. It suit for lead free welding and the welding area with rosin flux recovery system to protect environment.

3.ing imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe: Model design ,no noise, shock less and

4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB. The whole top oven can open completely easy to clean oven inside.



Smooth and reliable transmission system

1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth and to speed 0-1200mm/min frequency stepless speed regulation.

2.Independent wheel structure and support and match with accompany stainless belt to make the running smooth and the speed precision is up to ±20mm/min.

3. Special stainless belt: durable and wear-resistant, not easy to deform by long time use.



The Electrical control system is stable and reliable.

1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system. It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heat.

2.Using Fanda thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone.

3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the service time effectively. No contact output and the fuzzy control function by thermostat, can monitoring the changes in the outside temperature and calorific value, controlling the heating device by the minimum pulse, ensuring the high precision of temperature control & the uniform temperature in internal and the length,direction, temperature distribution ,all of these meet IPC standard.

4. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.

5 .Failure diagnosis and sound and light alarm.



6.Delay shutdown protection function, uniform cooling after the shutdown: prevent component deformation .

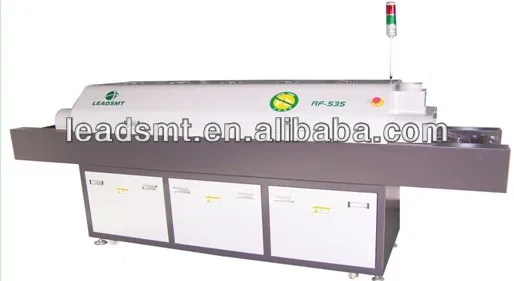

Model	RF-535
Heating zone number	UP 5/BOT5
Heating length	1800MM
Heating method	Hot air cycle
Cooling zone	1
PCB max width	300MM
Transport direction	L—R(or R—L)
Transport belt height	880±20mm
Transport method	Net transmission
Transport speed	0-1500mm/min
Start power	12kw
Run power	3.5KW
warm up time	About 15min
Temperature control range	Room temperature~400°C
Temperature control method	Temperature instrument closed-loop control
Temperature precision	±1°C
Temperature direction on PCB	±2°C
Abnormal alarm	Temperature abnormal
Dimention	3000×660×1220
Weight	300KG
Power	3 phase 380V 50/60Hz











Temperature instrument closed-loop control
