Product Overview

Description


                                                                     Features
CMOS image sensor: reads 1D & 2D barcodes
Omnidirectional: 360° scanning
Fast global shutter technology: exceptional motion tolerance for moving applications.
Adjustable illumination: easily scan any surface
Green bar LED targeting: laser-free aiming, no laser class required
Robust and programmable, image capture software available
Integrated decoder: complete unit, small footprint
USB or RS232 interface selectable
3.3V or 5V powered: low power consumption, increase your design flexibility

                                                          Application and Solution
Easily to integrate into mobile computer, handheld barcode scanner, financial and insurance equipment, warehouse management equipment, industrial automatic production device, etc.



Communications12 pin FFC Connector:serial CMOS, USB-VCP, USB-HID

Power
Voltage Requirements		3.3V or 5V

Current Consumption		3.3V: Typ: 240mA, Max: 390mA
5.0V: Typ: 160mA, Max: 260mA

2D Imager Optics  		Light source(2) super-bright Red LEDs
AIM light sourceGreen LED bar
Scan methodCMOS array sensor
Sensor Resolution752x480 pixels
Scan rate Up to 60 fps

Reading angle		(pitchj)-50 to 0°, 0 to +50°
(skew)-50 to 0°, 0 to +50°
(tilt)360°
Fixed Focus distancSR(M10): 130mm      HD(M11): 70mm
Motion Capability SR(M10): <= 2M/s    HD(M11): <= 1M/s
Image save format Bitmap, JPEG
Min. resolution, C39 at PCS 0.9 SR(M10): 5mil (0.127mm)     HD(M11): 3mil (0.076mm)
Min. PCS value0.3
Field of View41º (H), 26º (V)
PhysicalDimensionsSR(M10): 25.3 x 12.4 x 21.2 mm (0.99 x 0.49 x 0.83 in)
HD(M11): 25.3 x 12.4 x 21.0 mm (0.99 x 0.49 x 0.83 in)
Weight8 g (0.28 oz)
DurabilityTemperature-30 to 60 °C / -22 to 140 °F(operation)
-40 to 70 °C / -40 to 158 °F (storage)
Humidity5 - 90% (operation), 5 - 90% (storage)(non-condensing, non-freezing)
Ambient light immunityFluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
Drop test1.8 m / 6 ft drop onto concrete surface (packaged in generic prototype casing)
MBTF53,310hours
Regulatory&SafetyProduct complianceRoHS Compliant, IEC62471:2006 Exempt Group
Supported Symbologies 1DJAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal codeChinese Post, Intelligent Mail Barcode, Korean Postal Authority code
2DAztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417

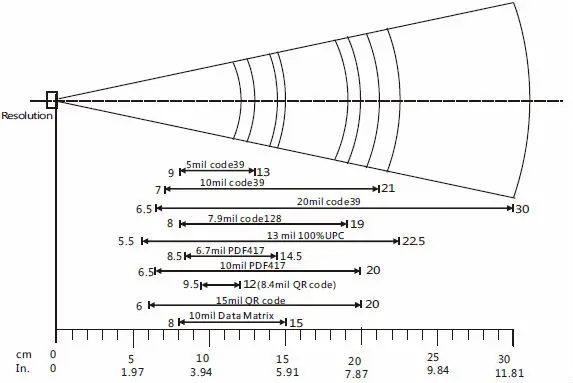

SR
(M10)		Symbology         Resolution             Depth of Field @ PCS 0.9
Code 39       0.127 mm (5 mil)      90 - 130 mm (3.54 - 5.12 in)
Code 39       0.254 mm (10 mil)    70 - 210 mm (2.75 - 8.27 in)
Code 39      0.508 mm (20 mil)     65 - 300 mm (2.56 - 11.81 in)
Code 128     0.20 mm (7.9 mil)      80 - 190 mm (3.15 - 7.48 in)
UPC             0.33 mm (13 mil)       55 - 225 mm (2.16 - 8.86 in)
PDF417        0.169 mm (6.7 mil)    85 - 145 mm (3.35 - 5.71 in)
PDF417        0.254 mm (10 mil)     65 - 200 mm (2.56 - 7.87 in)
QR Code     0.212 mm (8.4 mil)     95 - 120 mm (3.74 - 4.72 in)
QR Code     0.381 mm (15 mil)      60 - 200 mm (2.36 - 7.87 in)
Data Matrix 0.254 mm (10 mil)      80 - 150 mm (3.15 - 5.91 in)		 SR.jpg

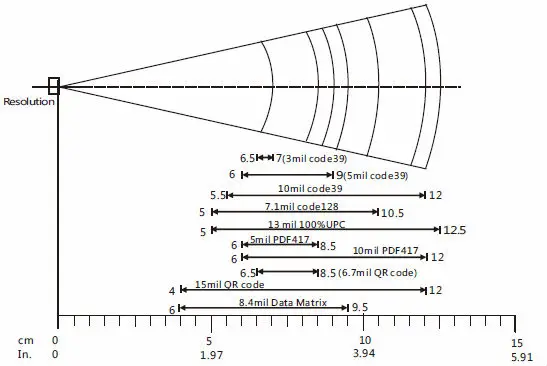

HD
(M11)		Symbology         Resolution             Depth of Field @ PCS 0.9
Code 39      0.076 mm (3 mil)    65 - 70 mm (2.56 - 2.75 in)
Code 39      0.127 mm (5 mil)    60 - 90 mm (2.36 - 3.54 in)
Code 39      0.254 mm (10 mil)   55* - 120 mm (2.16 - 4.72 in)
Code 128    0.18 mm (7.1 mil)    50* - 105 mm (1.97 - 4.13 in)
UPC             0.33 mm (13 mil)      50* - 125 mm (1.97 - 4.92 in)
PDF417       0.127 mm (5 mil)      60 - 85 mm (2.36 - 3.35 in)
PDF417       0.254 mm (10 mil)    60 - 120 mm (2.36 - 4.72 in)
QR Code     0.169 mm (6.7 mil)   65 - 85 mm (2.56 - 3.35 in)
QR Code      0.381 mm (15 mil)   40 - 120 mm (1.57 - 4.72 in)
Data Matrix 0.212 mm (8.4 mil)  60 - 95 mm (2.36 - 3.74 in)		 HD.jpg

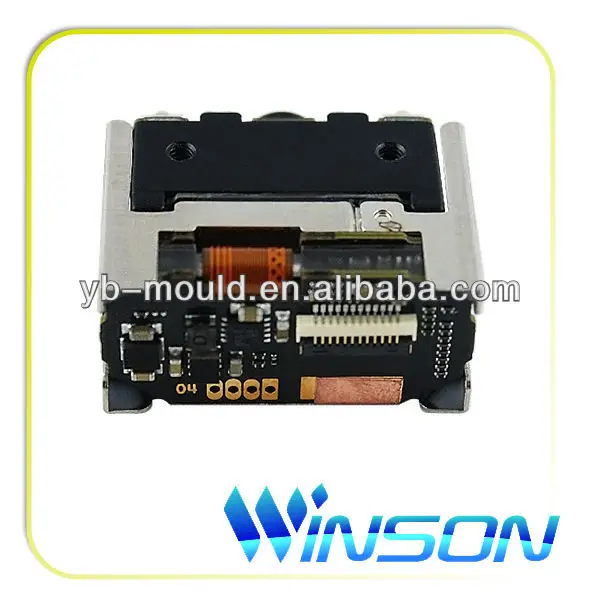

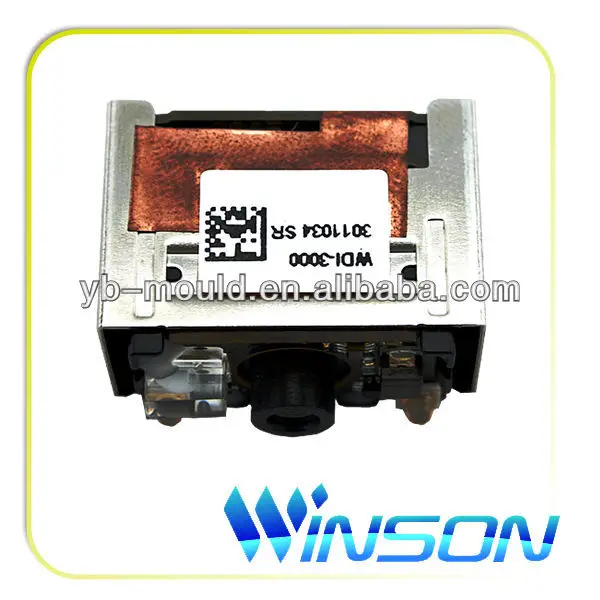

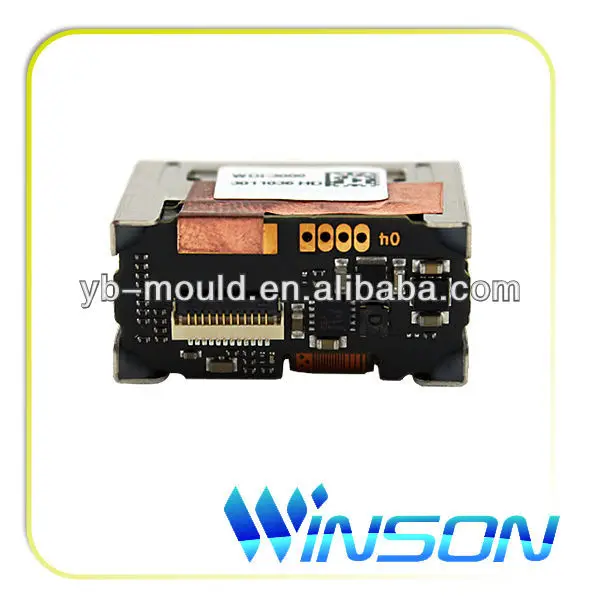

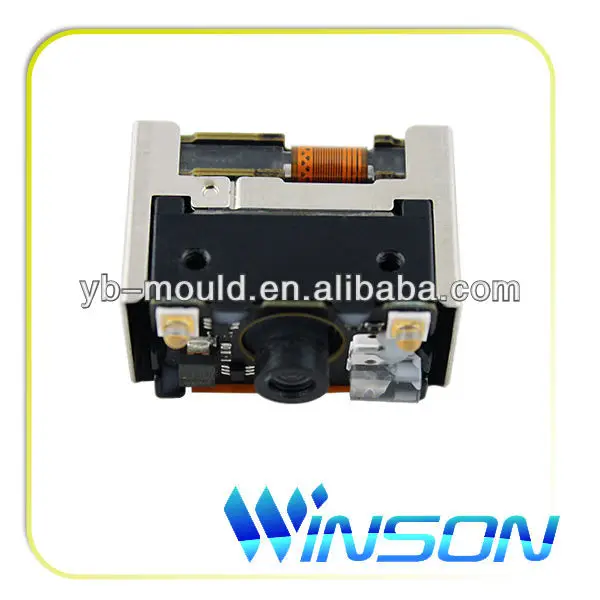

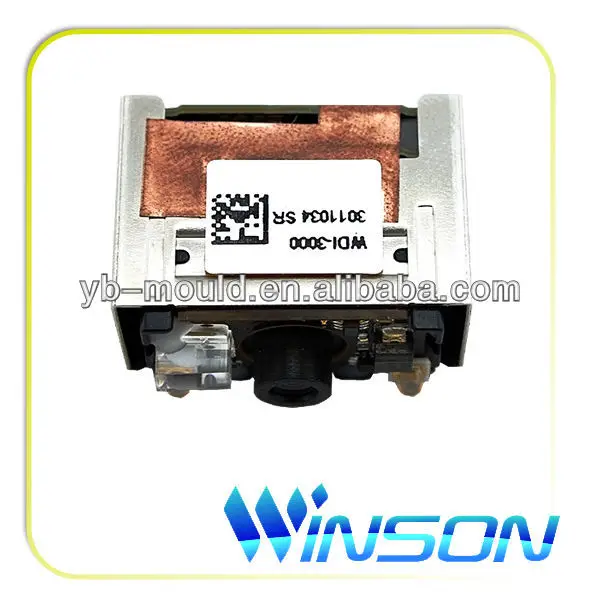

WDI3000 Winson 2D Barcode Scanner1.jpgWDI3000 Winson 2D Barcode Scanner2.jpgWDI3000 Winson 2D Barcode Scanner3.jpgWDI3000 Winson 2D Barcode Scanner4.jpgWDI3000 Winson 2D Barcode Scanner5.jpg




4.jpg 5.jpg




Pproduct Overall2.jpg
