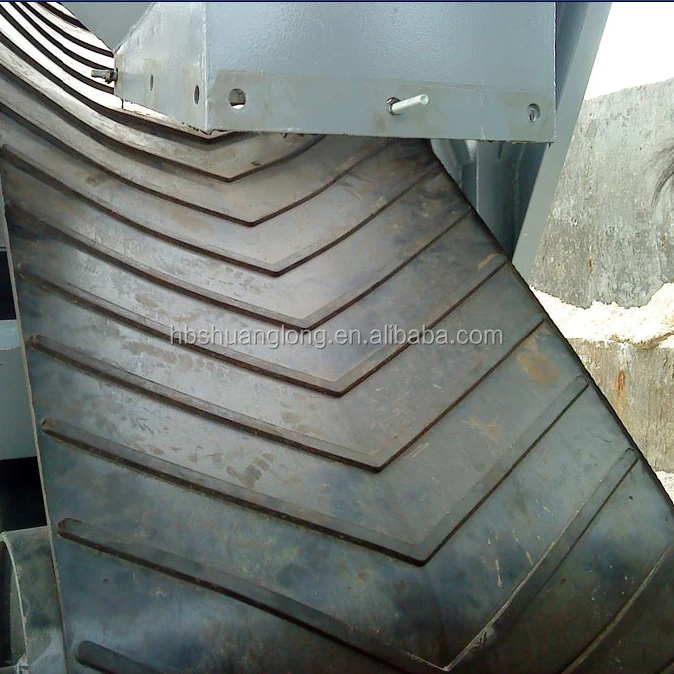

chevron V shape rubber conveyor belt
chevron V shape rubber conveyor belt is composed of the chevron V shape patterned working side and the flat plain non-working side.
Feature: Suitable for bulk, material packed in bag conveying up to 45,
Slide resistant and high conveying capacity.
Formats: Chevron shape, cleat shape, U shape, herringbone shape, cylinder Pattern.
Width of belt: 300mm–1600mm.
Belt carcass material:cotton canvas(CC),nylon(NN) canvas,polyester(EP) canvas.
Number of fabric layer:2-8ply
Height of Pattern: 5, 10, 15, 20, 25, 30(mm).
Pattern pitch: 125, 200, 250, 330, 400, 500(mm)
Note: Pattern can be designed according to user’s requirements.

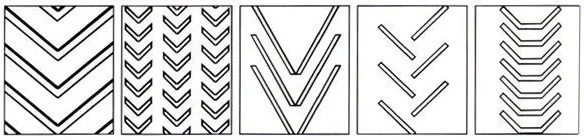

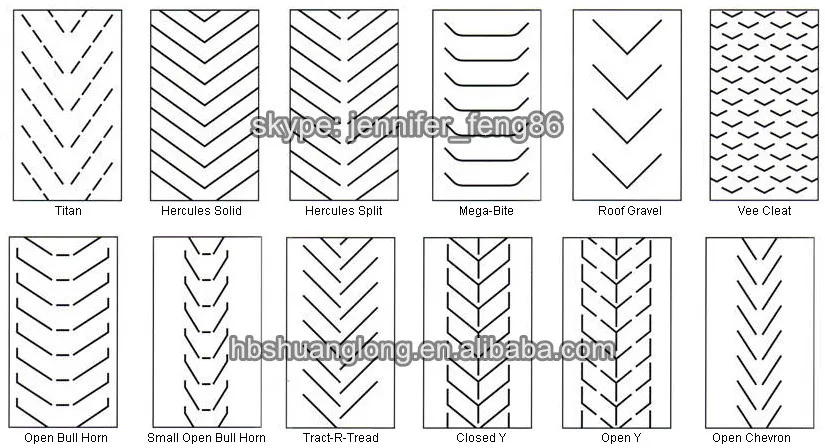

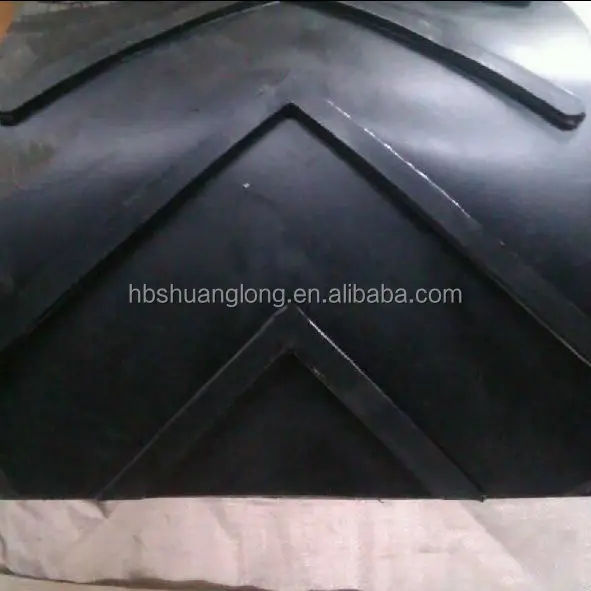

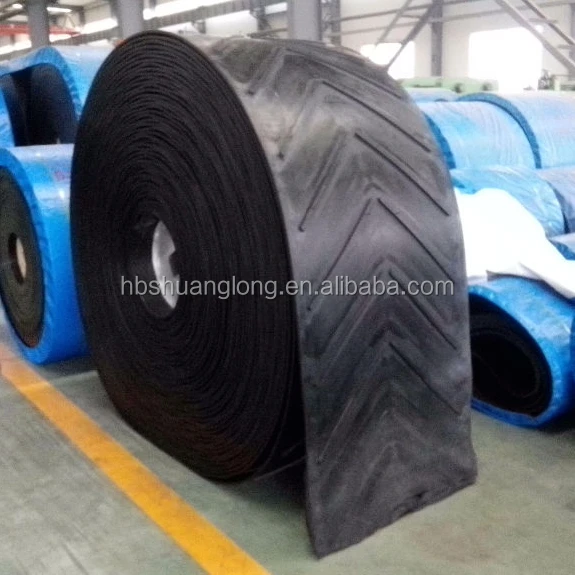

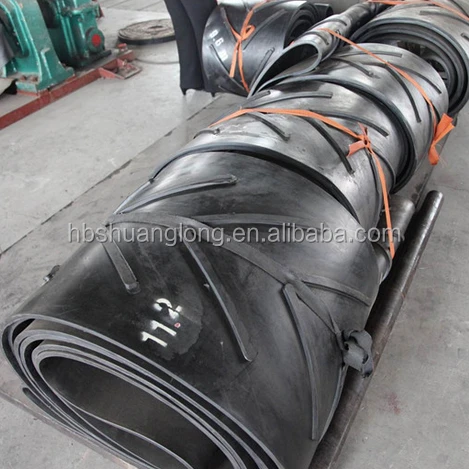

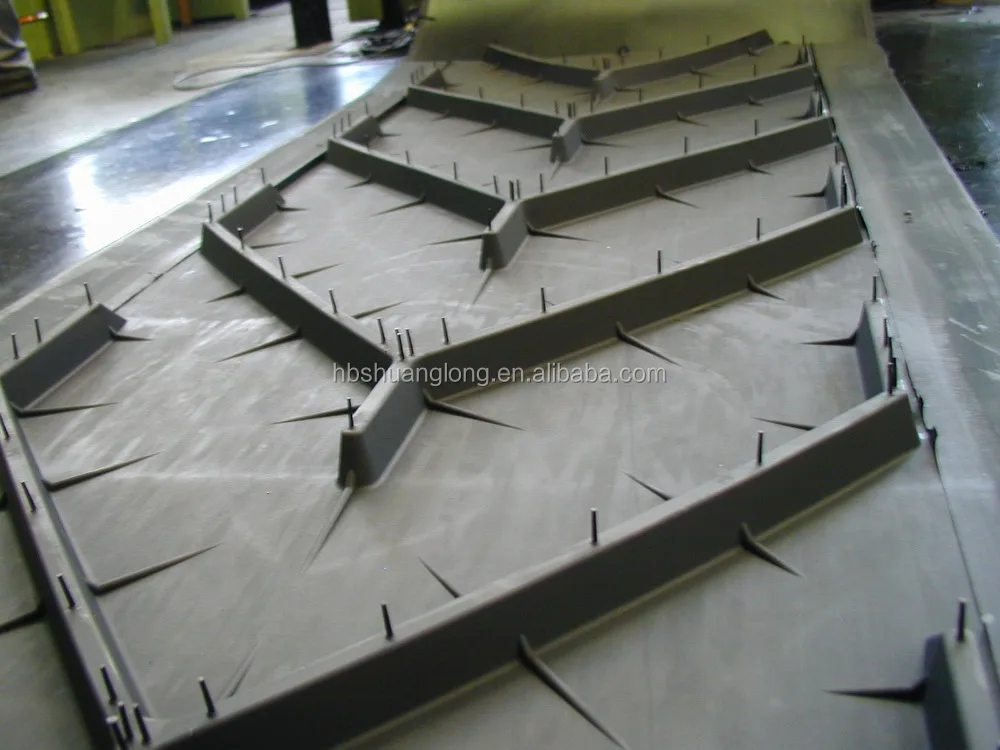

shapes of the V shape patterns:
chervon,open and closed V shape,Y and U pattern,stripes,granulous,fan-shaped,etc.also can be made by customer's design.
Because of the difference of the materials and the transporting inclination angle, the shape and height (depth) requirements of the pattern is also different.
Usage of chevron V shape rubber conveyor belt:
Indications for the conveying angle:
Approx.30 for slightly rolling materials,such as gravel,coal,etc.
Approx.40 for sticky materials,such as wet sand,earth,etc.
Approx.25 to 35 for packages,such as sackes,bales(paper hessian),etc.
Specifications of chevron V shape rubber conveyor belt:
| belt width(mm) | number of fabric layer | thickness of covering glue(mm) | |
| working side | non-working side | ||
| 400 | 3-4 | 4.5 3.0 | 3.0 1.5 |
| 500 | 3-6 | 4.5 3.0 | 3.0 1.5 |
| 600 | 3-5 | 6.0 4.5 | 3.0 1.5 |
| 650 | 3-5 | 6.0 4.5 3.0 | 4.5 3.0 1.5 |
| 800 | 3-6 | 6.0 4.5 3.0 | 4.5 3.0 1.5 |
| 1000 | 3-7 | 6.0 4.5 3.0 | 4.5 3.0 1.5 |
| 1200 | 4-7 | 6.0 4.5 | 4.5 3.0 |
| 1400 | 4-7 | 6.0 4.5 | 4.5 3.0 |
| 1500 | 4-7 | 6.0 4.5 | 4.5 3.0 |
Interlaminar bonding strength:
| Item | between the fabric layer | between cover and the belt core | |
| cover thickness 0.8-1.5mm | cover thickness>1.5mm | ||
| average value of all samples,N/mm≥ | 4.5 | 3.2 | 3.5 |
| lowest peak value of all samples,N/mm≥ | 3.9 | 2.4 | 2.9 |
| Remark:highest peak value of all samples shall not exceed 20N/mm | |||
The cover rubber layer's physical properties :
| grade of cover rubber | Tensile strength, Mpa,≥ | Elongation at break,% ≥ | abrasion loss, mm3≤ | Change rate of tensile strength and elongation at break after 70°Cx168h aging | ||||
| laceration resistant type(H) | 24 | 450 | 120 | -25 ~ +25 | ||||
| abrasion resistant type(D) | 18 | 400 | 100 | -25 ~ +25 | ||||
| ordinary type(L) | 15 | 350 | 200 | -25 ~ +25 | ||||
Hebei Ssangyong Rubber Co.,Ltd. workshop
Precision testing equipments:
Safety certificate of approval for mining products and Certificate of ISO9001:2008 Standard:
With strong technology strength, advanced production technique and complete inspection equipments, our company manufactures qualified products up to national and international standards.Depending on the strict management system and consummate After-sales service system,we provide our customers with high quality and low price conveyor belts,also a warm service.
conveyor belt catalogue of our company:
ordinary type for general usage
integral core flame retardant type
heat/cold resistant type
abrasion resistant type
oil resistant type
chemical/acid and alkali resistant type
polyester(EP) core type
nylon(NN) core type
cotton canvas(CC) core type
corrugated sidewall type
circular/endless type
chervon/V-shaped patterned type
Samples can be customized according to buyer's requirements and free samples can be sent for evaluations.
Any inquiry about chevron V shape rubber conveyor belt ,please feel free to contact us. skype:jennifer_feng86
