Underground PVC/PVG solid woven coal mine rubber conveyor belt

Product Overview

Description

Underground PVC/PVG coal mine rubber conveyor belt



Construction features and applications:



• The belt has good flame resistant and anti-static properties. It can fully satisfy the requirements of MT-914 and is especially suitable for material conveying at inflammable of underground coal mines.

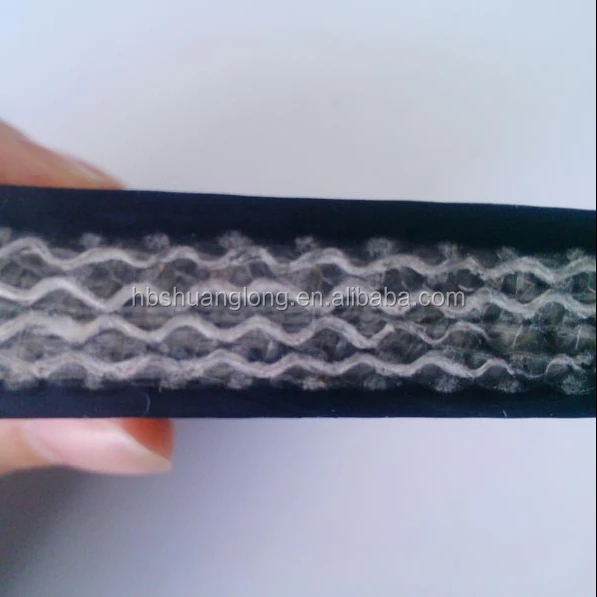

• The solid woven fabric uses high tensile strength and low elongation polyester long filament as warp fiber, for weft fiber, it uses high tensile and medium modulus nylon filament. The fabric is high in strength, low in elongation, light in carcass, free of separation of plies, shock resistant, anti-tear and good in trough ability.

• Non pressed PVC type is suitable for applications in dry conditions at a slope angle of no greater than 16 degrees.PVG tapes is suitable for applications at a slope angle of less than 20 degrees.

• PVG type is covered with covers mainly composed of rubber, which further improves the trough ability, resistance to wetness and slip, resistance to low temperature, elongation and wear resistance of the belt. Thus it can not only enhance the slope angle of conveying but also elongate life of belt.



Advantages:



High impact resistance

Exceptional resistance to longitudinal tear

Excellent mechanical fastener holding strength

No carcass delamination

Good troughability

Low elongation at normal working loads

High elongation at break



Application areas:

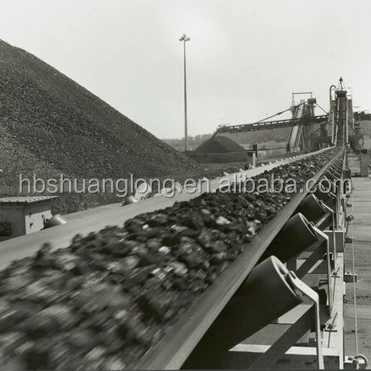

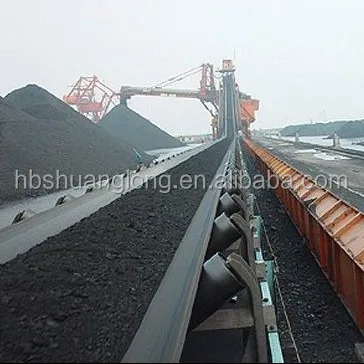

This conveyor belt is applicable in all areas, especially areas with high impact conditions and low maintenance requirements,such as coal mining,power plant,chemical factory,metallurgy industry,etc.

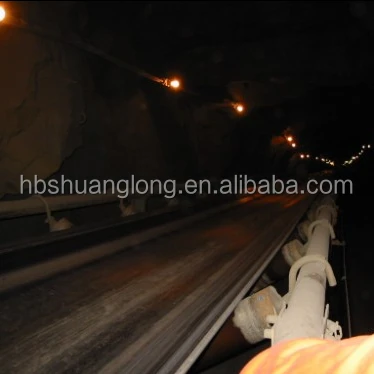

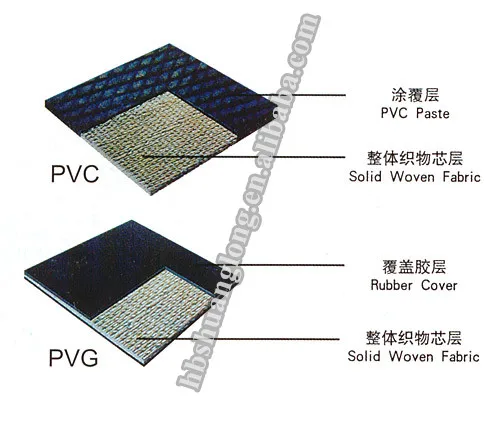

Underground coal mine rubber conveyor belt can be divided into PVC type and PVG type.



• Both of the top and bottom covering layer of PVC conveyor belt is PVC plastic cover, single cover thickness  ≥ 1mm,


• Both of the top and bottom covering layer of PVG conveyor belt is the mixture of nitrile rubber and PVC, single cover thickness is 1.5mm-4.5mm.



The angle of conveying for PVC conveyor belt is <16 °, and for PVG conveyor belt is <20 °, both of PVC and PVG type can be used in coal mine transportations underground or on the ground.

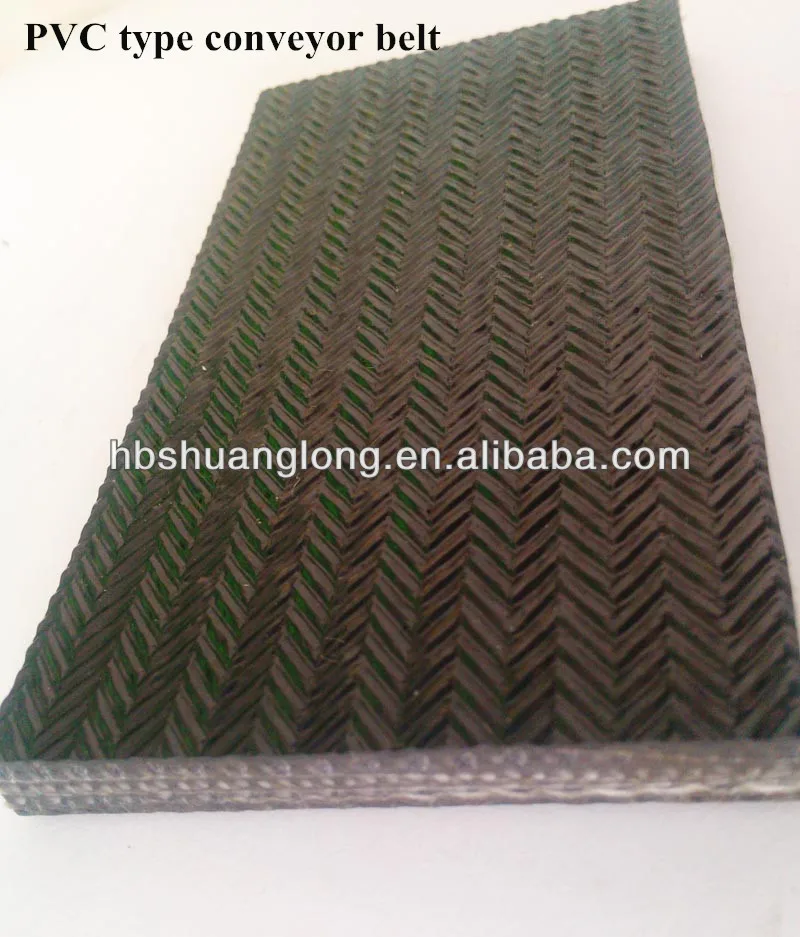

Non pressed  PVC type



 After dipping with PVC paste on the solid woven fabric, add PVC cover on the solid carcass to form the belt.

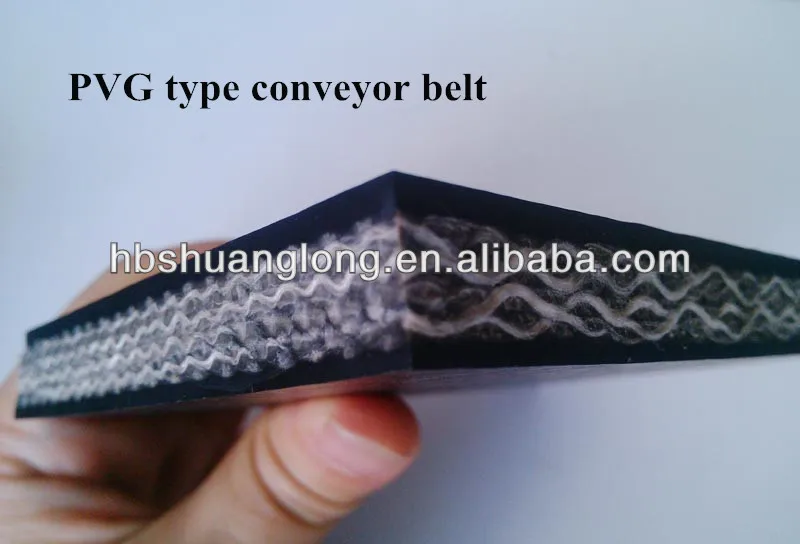

PVG type



Based on the non pressed PVC type, the carcass is covered with top and bottom covers composed mainly of rubber. The belt is then formed after being pressed.









Underground PVG/PVC coal mine rubber conveyor belt:





Underground PVC coal mine rubber conveyor belt models and technical datas:



Executive standard of the product MT914-2008						Safety parameter 10(breaking strength*1/10)
Conveying inclination<16°C
Standard model No.	Corresponding grade	Breaking strength≥,Nmm		Elongation at break≥,%		Thickness mm	Recommended minimum diameter of the roller
		Vertical	Horizontal	Vertical	Horizontal
680s	Four	680$3C/span>	265	15	18	8	320
800s	Five	800	280			8.5	400
1000s	Six	1000	300			9	500
1250s	Seven	1250	350			10.1	500
1400s	Eight	1400	350			10.5	630



Underground PVG coal mine rubber conveyor belt models and technical datas:



Executive standard of the product MT914-2008 BS3289 HG2805						Safety parameter 10(breaking strength*1/10)
Conveying inclination<20°C
Standard model No.	Corresponding grade	Breaking strength≥,Nmm		Elongation at break≥,%		Recommended minimum diameter of the roller
		Vertical	Horizontal	Vertical	Horizontal
680s	Four	680	265	15	18	400
800s	Five	800	280			500
1000s	Six	1000	300			630
1250s	Seven	1250	350			750
1400s	Eight	1400	350			750



Safety performance of Underground PVC/PVG coal mine rubber conveyor belt :



Performance name	alcohol combustion				propane combustion	antistatic property	roller friction
Standard value	average value≤3S,unit value≤10S(has covering glue)				≥250mm	≤3X108Ω	≤325°C
	average value≤5S,unit value≤15S(no covering glue)						no spark



  Hebei Ssangyong Rubber Co.,Ltd.  workshop

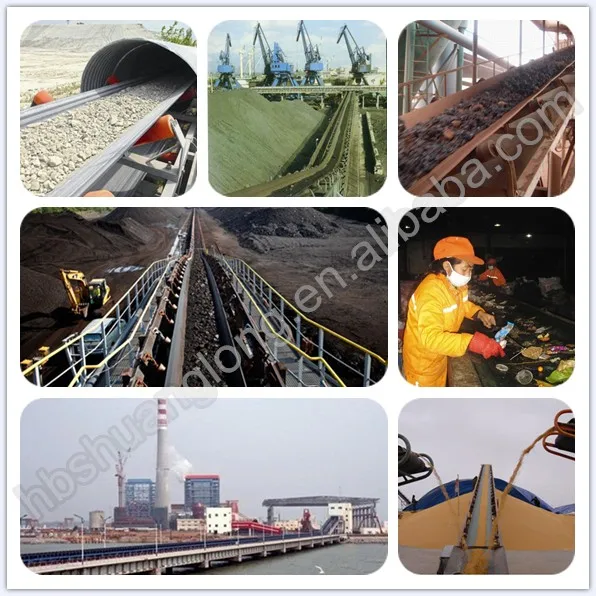

 Applications of all kinds of conveyor belt:



 Safety certificate of approval for mining products and certificate of ISO9001:2008 Standard:



With strong technology strength, advanced production technique and complete inspection equipments, our company manufactures qualified products up to national and international standards.

Depending on the strict management system and consummate After-sales service system,we provide our customers with high quality and low price conveyor belts,also a warm service.



conveyor belt catalogue of our company:



1).ordinary conveyor belt for general usage

2).solid woven flame retardant conveyor belt

3).heat/cold resistant conveyor belt

4).abrasion resistant conveyor belt

5).oil resistant conveyor belt

6).chemical resistant conveyor belt

7).polyester(EP) core conveyor belt

8).nylon(NN) core conveyor belt

9).cotton canvas(CC) core conveyor belt

10).corrugated sidewall conveyor belt

11).endless/annular conveyor belt

12).patterned conveyor belt

13).steel cord conveyor belt
