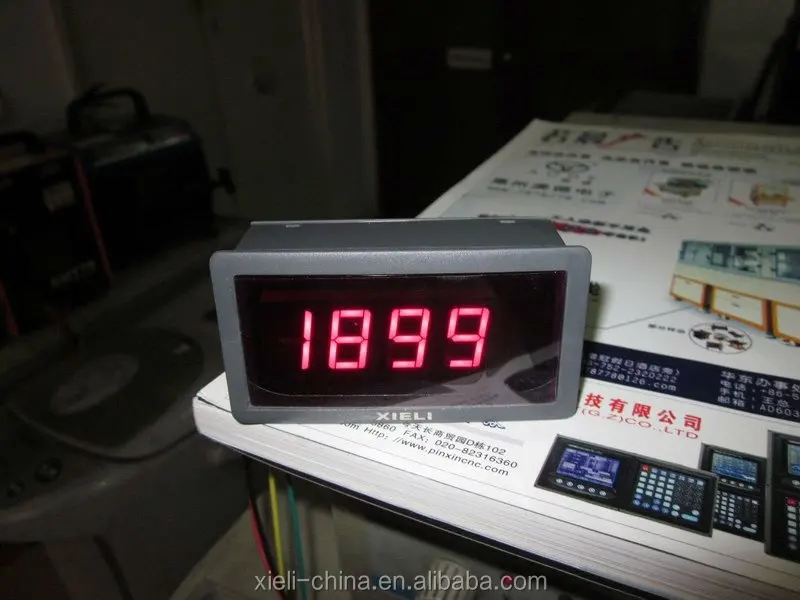

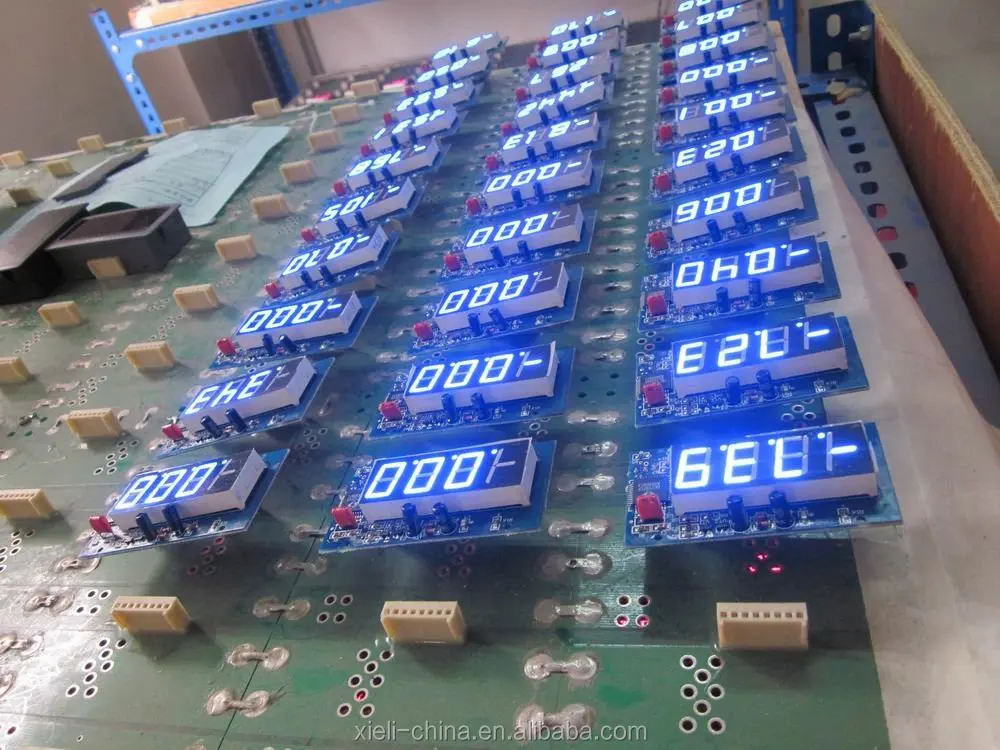

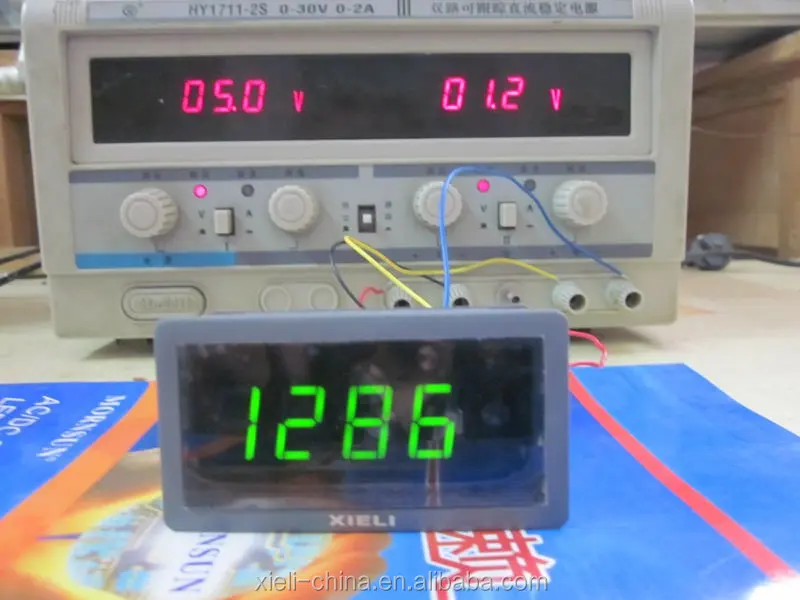

XL5135 Series  AC Ammeter  3 1/2 digit, 0.56” LED display

Model	Range	Accuracy	Resolution	Impedance	Momentary Max. Input	Power Supply
XL5135A-1(AC2/AC)	AC199.9uA	±0.75%+3digit	100uA	1KΩ	AC15mA	120VAC/220VAC
XL5135A-2(AC2/AC)	AC1.999mA	±0.75%+3 digit	1uA	100Ω	AC50mA	120VAC/220VAC
XL5135A-3(AC2/AC)	AC19.99mA	±0.75%+3 digit	10uA	10Ω	AC150mA	120VAC/220VAC
XL5135A-4(AC2/AC)	AC199.9mA	±0.75%+3 digit	100uA	1Ω	AC500mA	120VAC/220VAC
XL5135A-5(AC2/AC)	AC1.999A	±1%+3 digit	1mA	0.1Ω	AC3A	120VAC/220VAC



NOTE:

1.     Power Supply:  5vdc,150mA common ground * Default power style

               12vdc, 9v/12vAc common ground power style available

               5v/12v/24v isolation power style available, 9-18v/18-36v wide range isolation power module style

               110V/120V/ 220V/240VAC power style available

2.     Data transfer display: Input 75mV/5v/10v volt, or 4-20mA, 1A/5A amp signal display appointed value, max. 1999

3.     LED Display Color:  Red/Blue/Green color Available

4.        DC polarity: Automatic,  “-” display  negative DC Volt/Amp,  default will be Positive DC signal

5.        Dimension:  w79 x h42 x d26mm[d55mm when the power supply is wide range power module or 110V/120V/ 220V/240VAC]

Panel mounting size: w76 x h39mm          Mounting method: Snap-i
