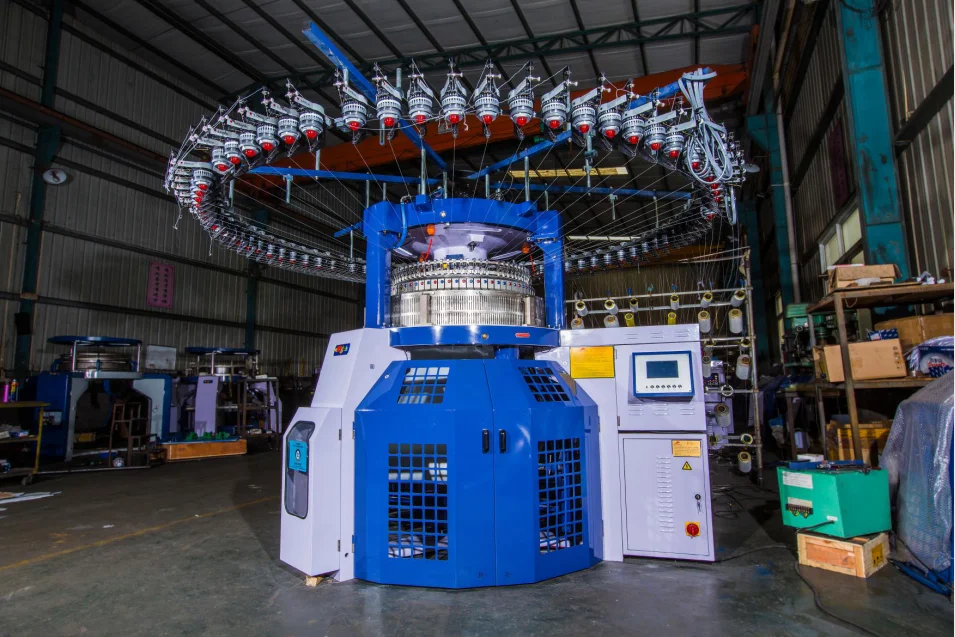

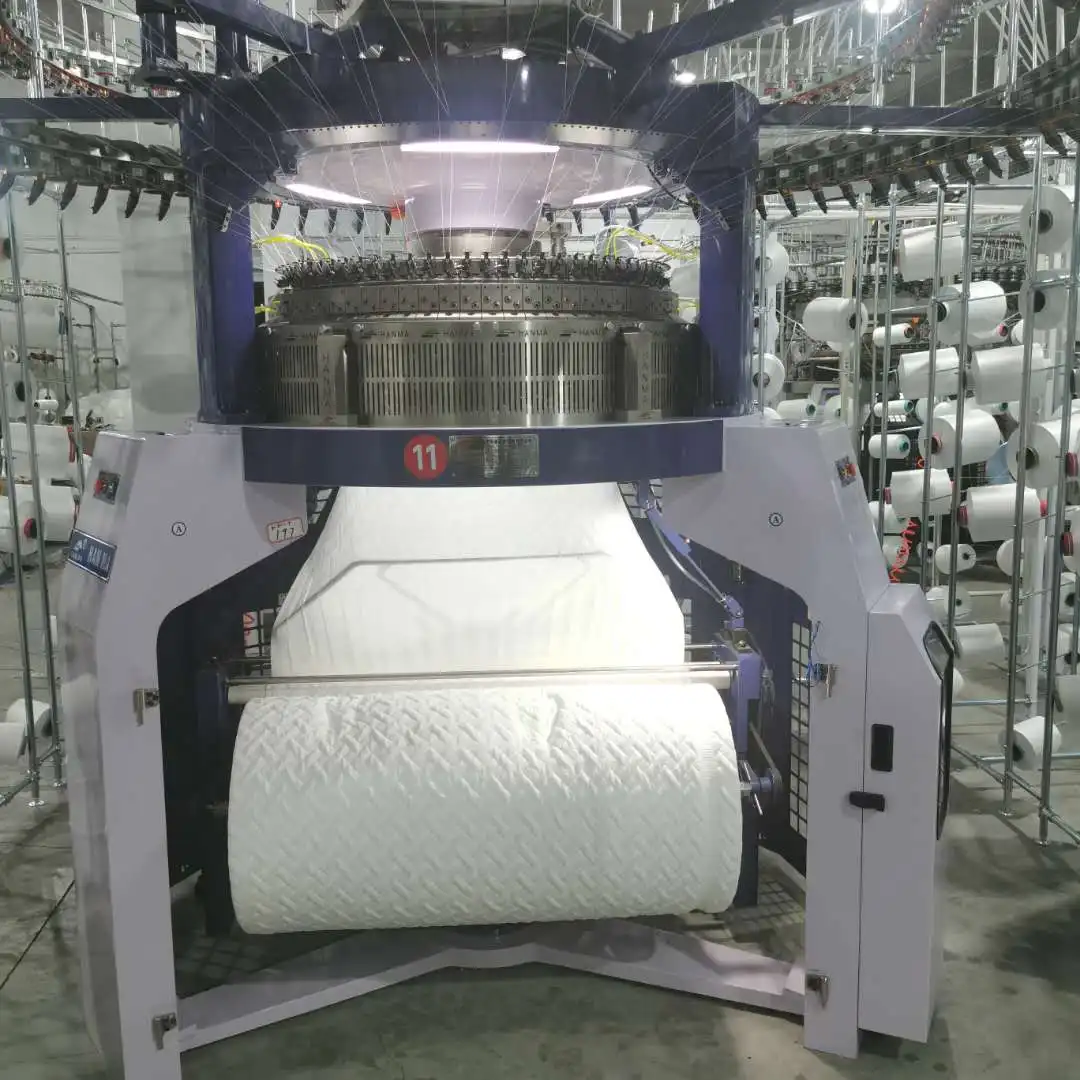

Computerized Jacquard circular Knitting Machine

Product Overview

Description





Computerized Double Jacquard Knitting Machine38"72F20G



Cam system which is specially developed has less needle loss and high rotating speed.

specification

Model: HM/1.6F-SCMJ,  HM/2.1F-SCMJ

Nozzle diameter: 38’’,  30’’-38’’

Needle distance: 12G-28G

Oral pore number: 48F-60F,  64F-80F



•  features

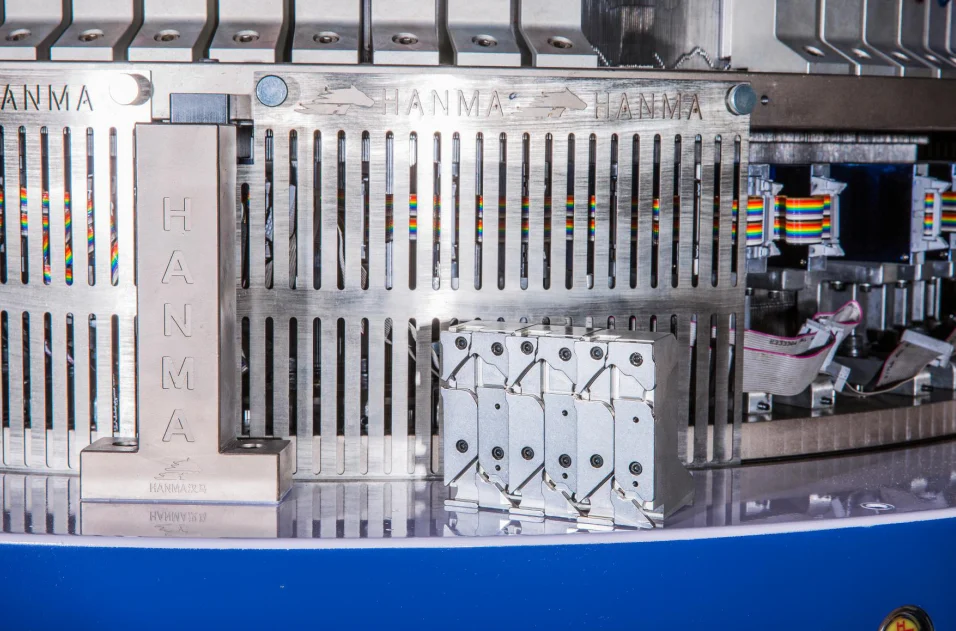

1. The machine selects needle in needle cylinder by using computer needle selector, the computer needle selector makes Draw-down cam,Tuck cam . Floating threads cam, any complex texture structure and process designs are converted into control procedures through the computer system flower-shaped system, and save into flash drive or disk input control system, in so doing, the jacquard fabric without limit can be weaved in flower-type scope, saving the time of change flower-shape.



2. The use of advanced Japan WAC computer needle selection system will keep machine more stable, easy to operate and repair.

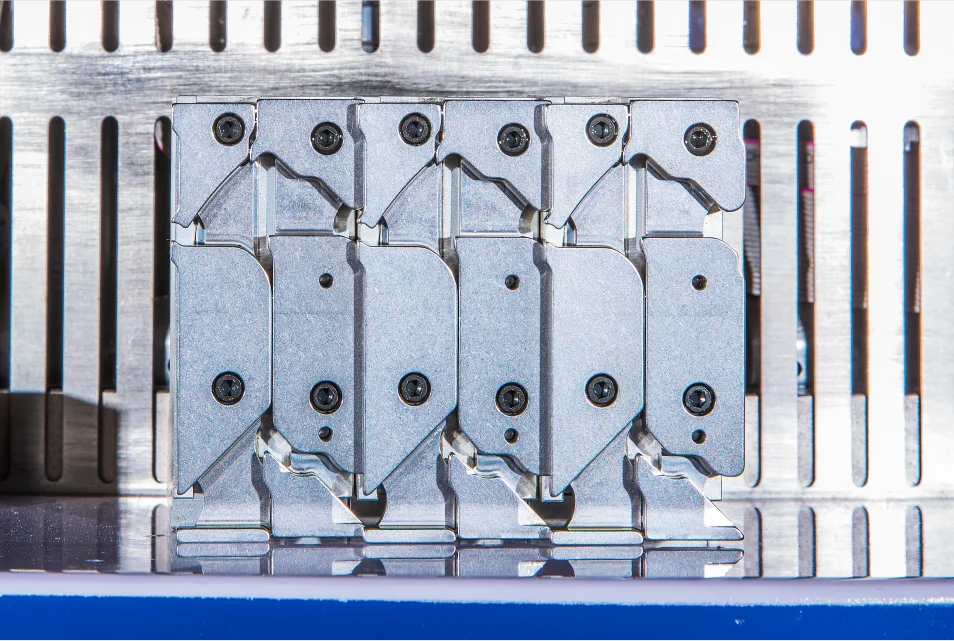

3. Cam system which is specially developed has less needle loss and high rotating speed.



• parts list :



1. Croz-Beckert Needles(Germany)

2. Germany Kern-Libers Sinkers (Germany)

3. Invertor (Taiwan &Chinese Brand)

4. Electronic Motor(Taiwan&Chinese Brand)

5. Fabric taken down system(2 way rolling &Folding)

6. Centeral Control Panel(Taiwan&Chinese Brand)

7. Oiler or lubricator(Taiwan &Chinese)

8. Positive yarn feeder(Germany Memminger &Chinese Brand)

9. Lycra yarn feeder(Germany Memminger & Chinese Brand)

10. Floor Creel & Tube Creel

11.360 degree radar cleaning system(Taiwan)

12. Full set of cams (for each track)

13. Anti-Dust Device

14. A well equipped standard tool box

II. Spare Parts For Each Machine
1. Needle - 50 pcs

2. Sinkers-100 pcs

3. Cams-1pc for each model of cam

4. Yarn guider-2pcs

5. Feeder- 2 pcs
