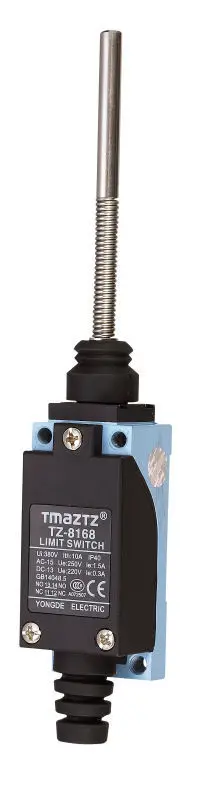

TMAZTZ limit Switch 8168 CE & RoHS approved Wobble Stainless Steel Cat Whisker Spring Wire
- Category: >>>
- Supplier: Yueqing Yongde Electric Co. Ltd.
Share on (1500799793):
Product Overview
Description
Product categories
SWITCH FEATURES
| Model No. | TZ-8168 |
| Name | Limit switch |
| Operation speed | 0.5mm-50cm/sec |
| Operating frequency | Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
| Contact resistance | 25mΩ max.(initial value) |
| Insulation resistance | 100mΩ min.(at 500VDC) |
Dielectric strength | 1000VAC,50/60HZ for 1 minute between terminals of the same polarity |
1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts | |
| 1500VAC,50/60 HZ for 1 minute between each terminal and ground | |
| Vibration | 10-55HZ,1.5mm double amplitude |
Shock | Mechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S) |
| Life | Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above |
| Weight | About 130-190g |
| Humidity | <95% RH |
| Degree of protection | IP65 |
| Model | TZ-8104 | TZ-8107 | TZ-8108 | TZ-8111 | TZ-8112 | TZ-8122 | TZ-8166 | TZ-8167 | TZ-8168 | TZ-8169 |
| OF (Max) | 5.88N | 5.88N | 7.84N | 9.8N | 9.8N | 9.8N | 0.88N | 0.88N | 0.88N | 0.88N |
| RF (Min) | 0.49N | 0.69N | 0.49N | 2.94N | 2.94N | 2.94N | - | - | - | - |
| PT (Max) | 20° | 20° | 20° | 1.5mm | 1.5mm | 1.5mm | 30mm | 30mm | 30mm | 30mm |
| OT (Min) | 75° | 75° | 75° | 4mm | 4mm | 4mm | - | - | - | - |
| MD (Max) | 10° | 10° | 10° | 1.2mm | 1.2mm | 1.2mm | - | - | - | - |
| TT (Min) | 95° | 95° | 5.5mm | 5.5mm | 5.5mm | - | - | - | - | |
| OP | - | - | - | 26±0.8mm | - | - | - | - | - | - |
