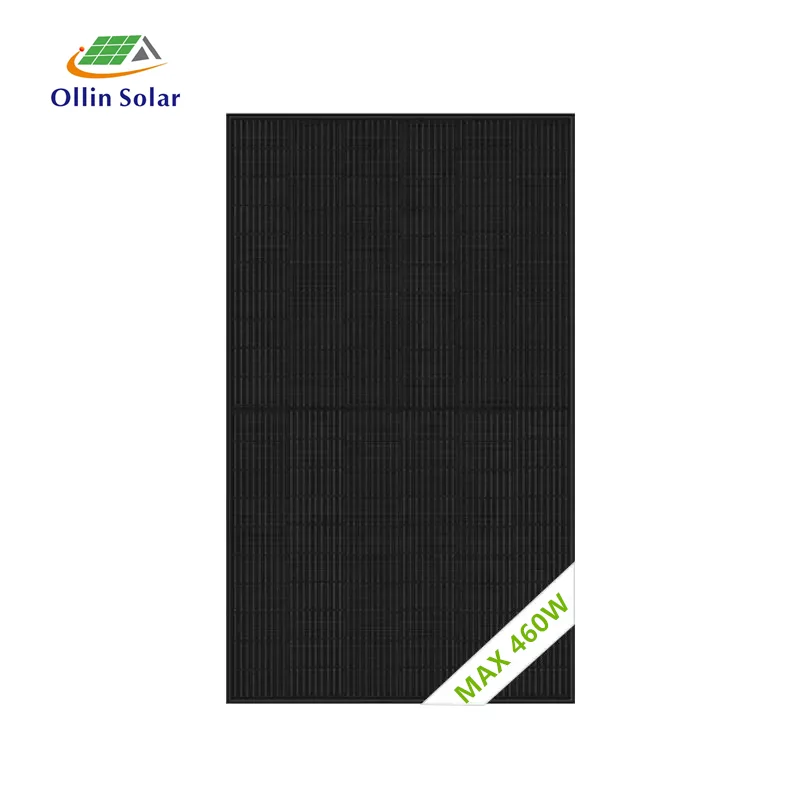

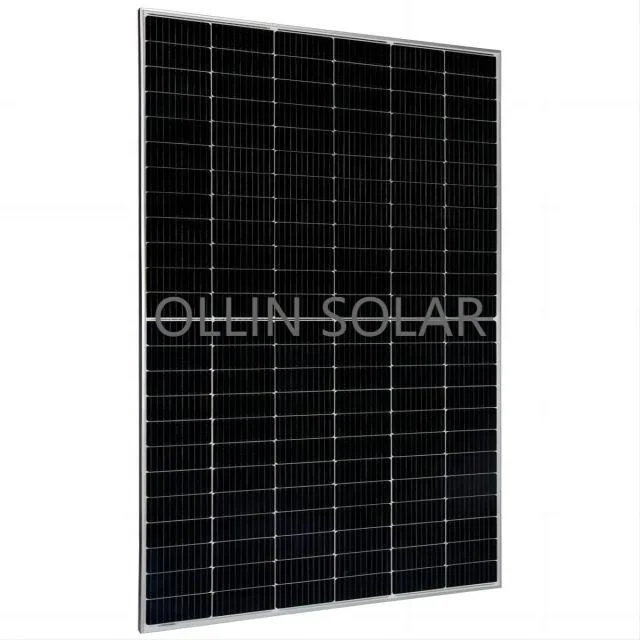

Cheap 400watt 410watt 420watt Half Cell Mono Solar Module for Commercial and Home Solar System Use
- Category: >>>
- Supplier: Yuyao Ollin Photovoltaic Technology Co. Ltd.
Share on (1501252004):
Product Overview
Description
| MECHANICAL SPECIFICATION | |||||
| Format | 1722 X1134 X30 mm | ||||
| Weight | 21.3kg +/-5% | ||||
| Cell | 108 monocrystalline half cell | ||||
| Junction Box | IP68, 3 bypass diodes | ||||
| Cable | 4 mm2 (IEC), 12 AWG (UL) | ||||
| Connector | T6 or MC4 or MC4-EVO2 | ||||
| ELECTRICAL DATA | STC* | |||||
| CS6R | 400MS | 405MS | 410MS | 415MS | 420MS |
| Nominal Max. Power (Pmax) | 400W | 405W | 410W | 415W | 420W |
| Opt. Operating Voltage (Vmp) | 30.8V | 31.0V | 31.2V | 31.4V | 31.6V |
| Opt. Operating Current (Imp) | 12.99A | 13.07A | 13.15A | 13.23A | 13.31A |
| Open Circuit Voltage (Voc) | 36.8V | 37.0V | 37.2V | 37.4V | 37.6V |
| Short Circuit Current (Isc) | 13.85A | 13.93A | 14.01A | 14.09A | 14.17A |
| Module Efficiency | 20.50% | 20.70% | 21.00% | 21.30% | 21.50% |
| Operating Temperature | ‘-40℃ ~85℃ | ||||
| Max. System Voltage | 1500V or 1000V | ||||
| Module Fire Performance | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) | ||||
| Max. Series Fuse Rating | 25 A | ||||
| Application Classification | Class A | ||||
| Power Tolerance | 0 ~ + 10 W | ||||
| * Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25℃. Measurement | |||||
| uncertainty: 3 % (Pmax). | |||||
| PACKAGING | |||||
| Model | 400-420 MS | ||||
| Model per Pallet | 35 pieces | ||||
| Note: The above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests. | |||||

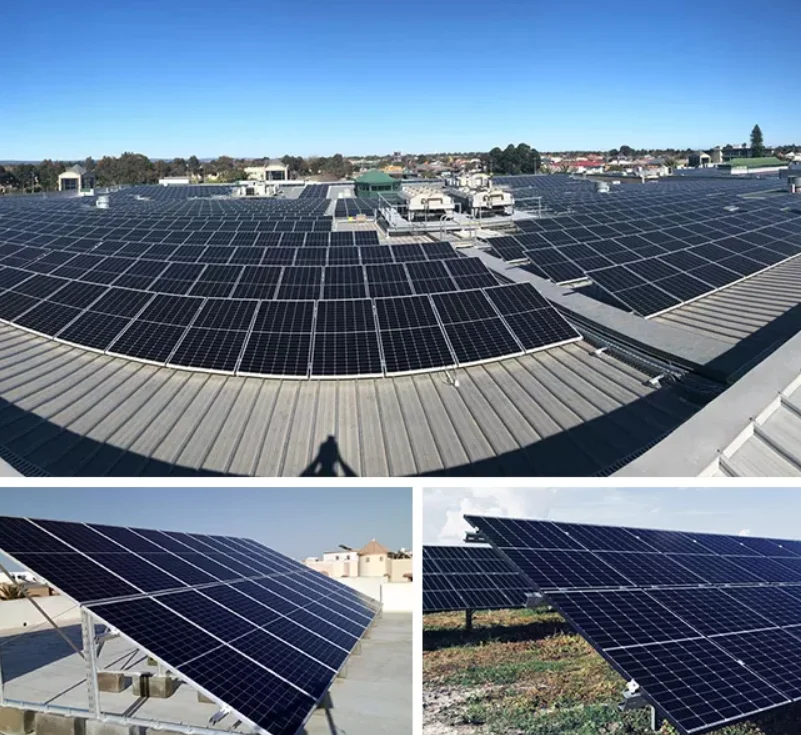

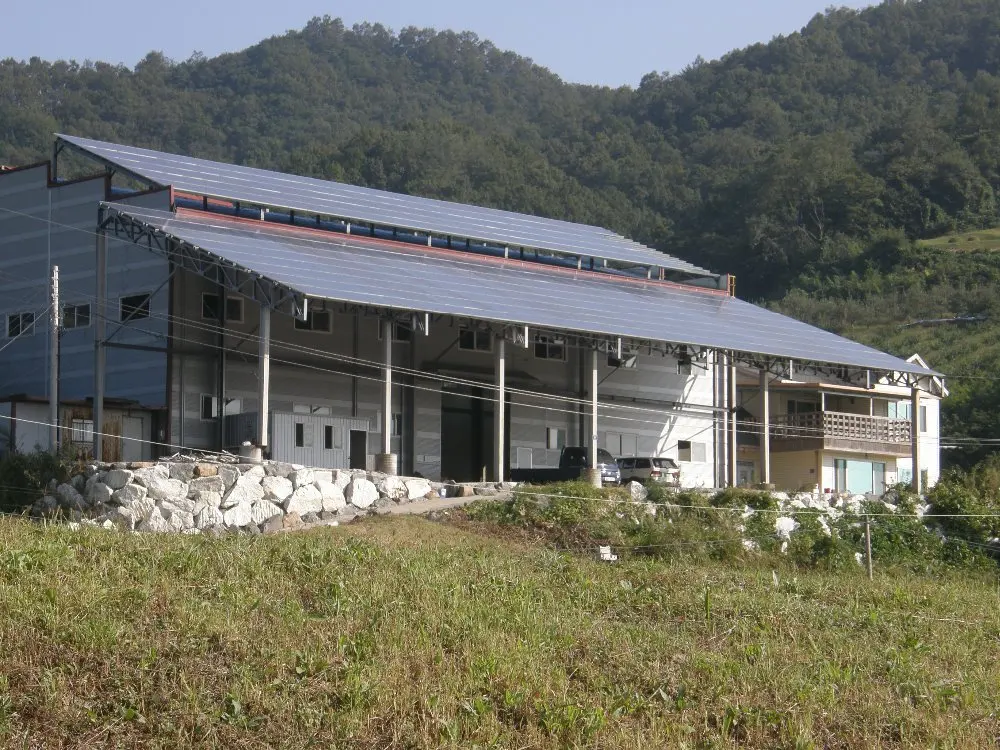

Our Projects
