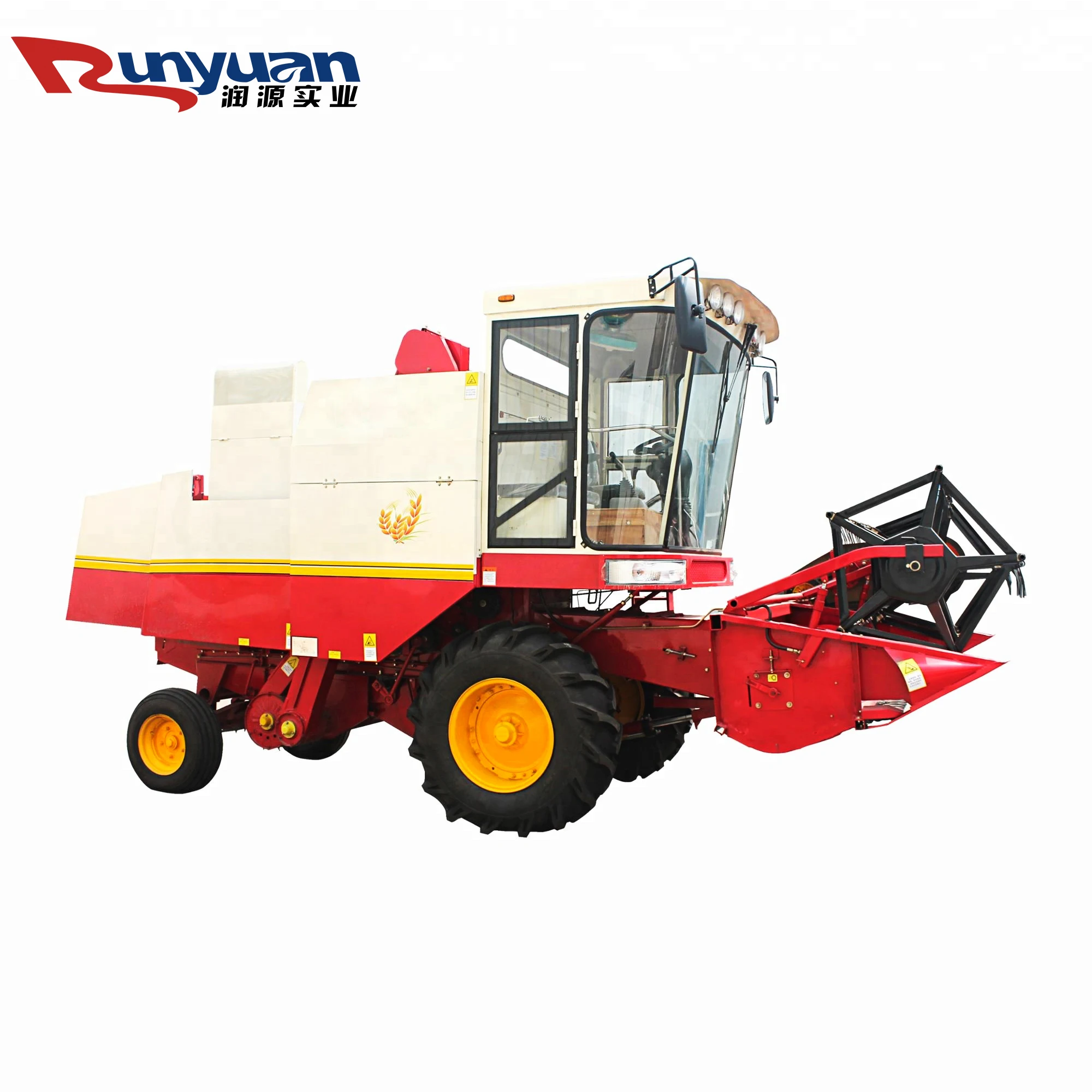

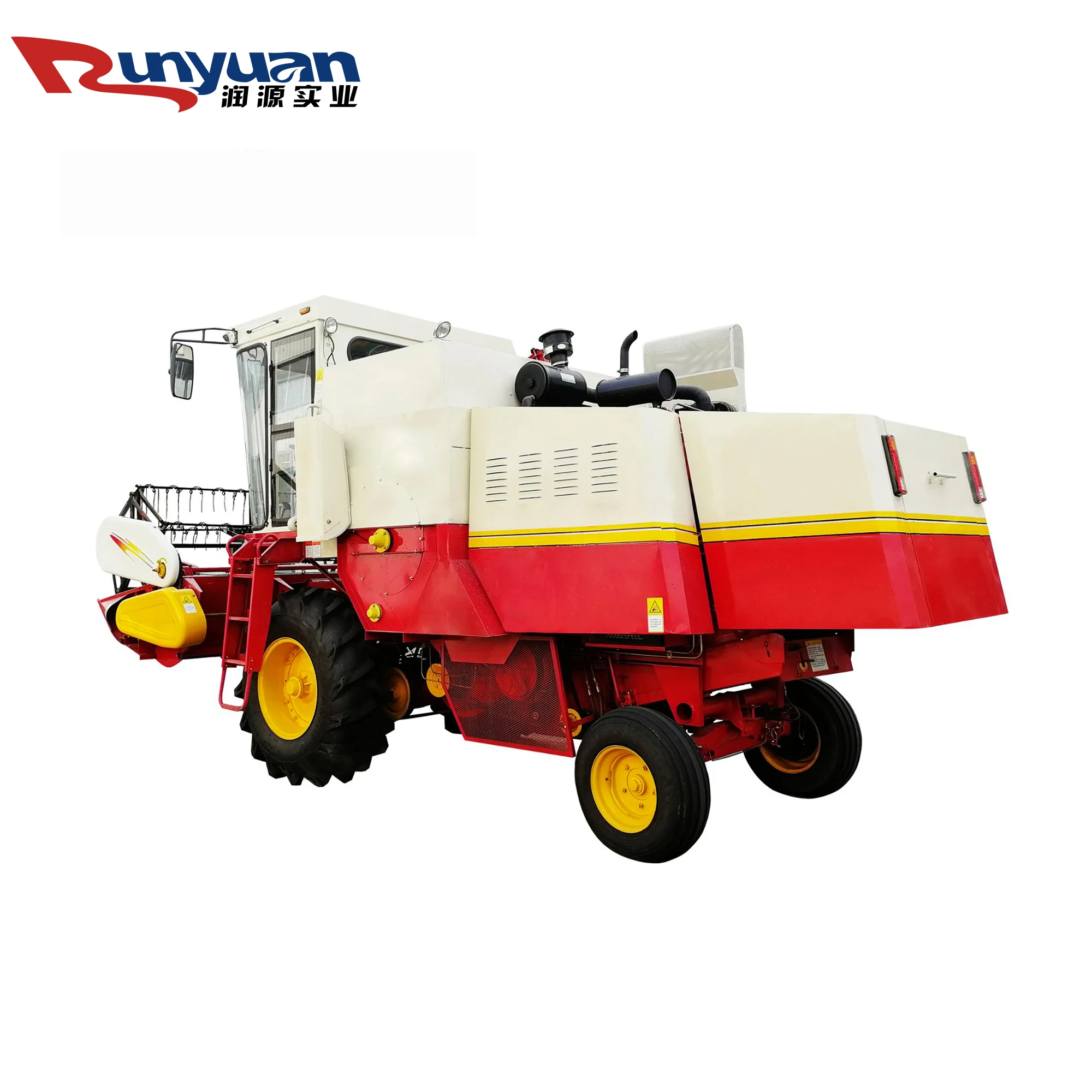

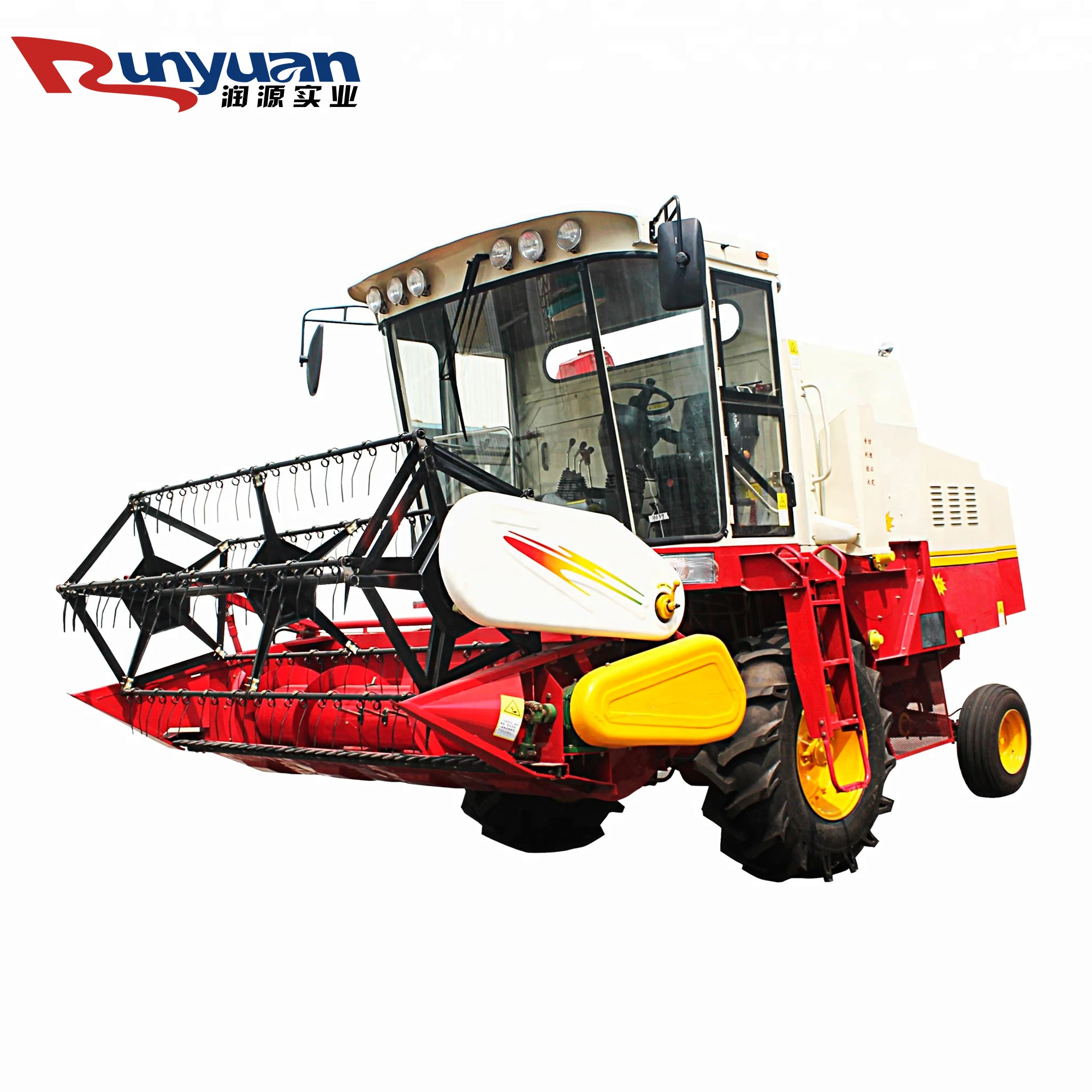

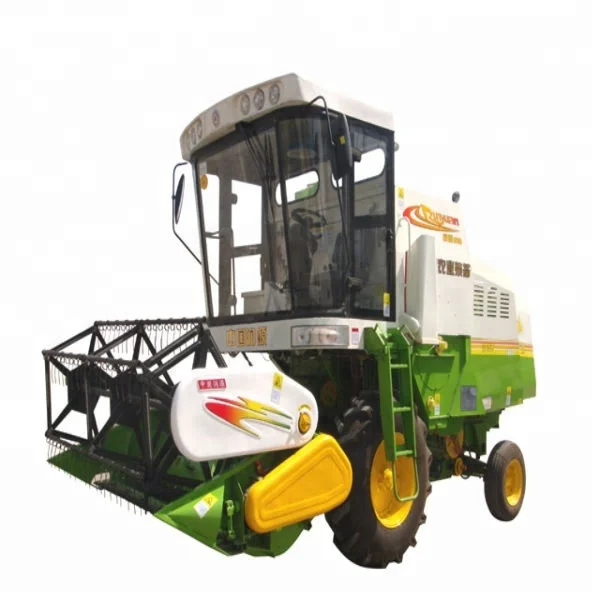

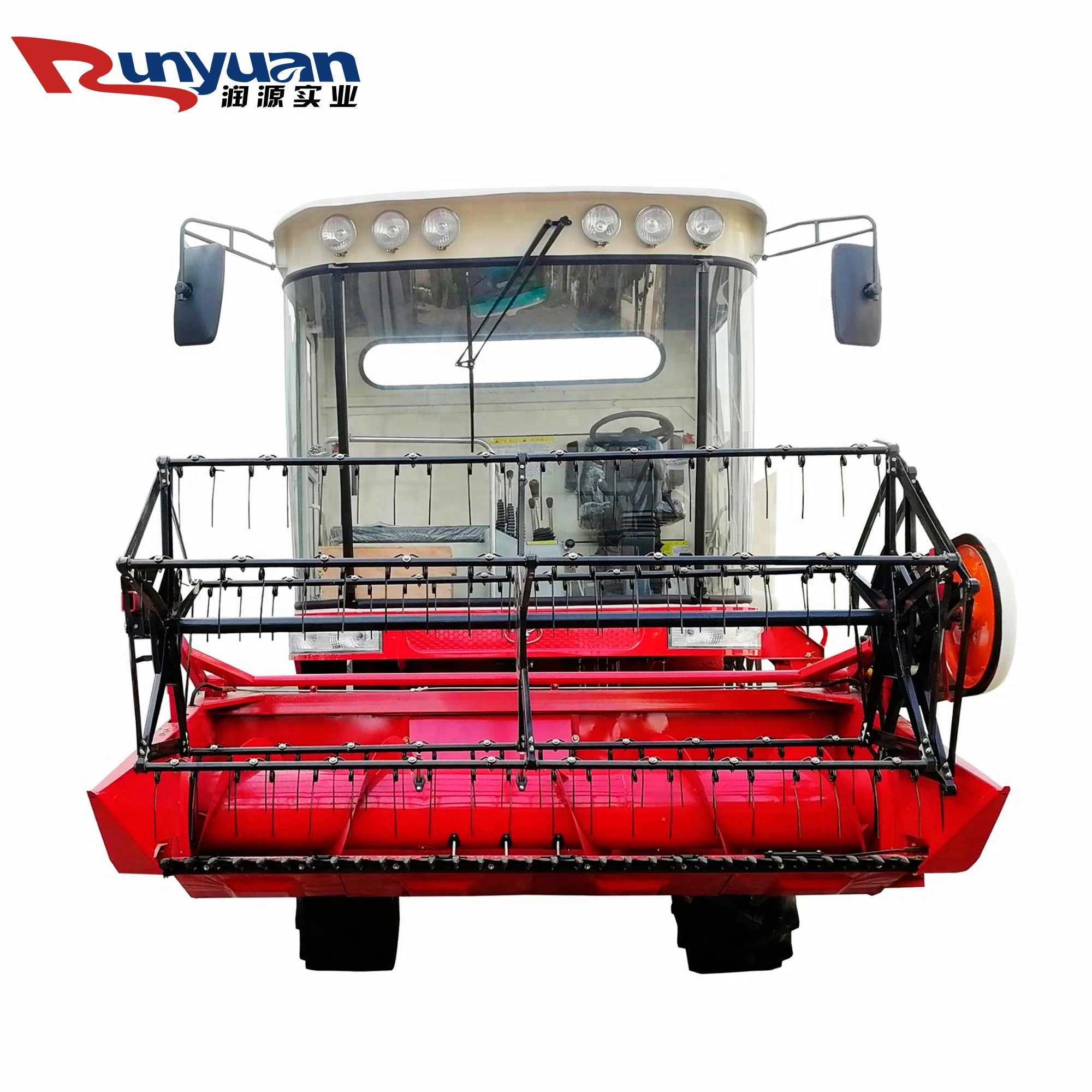

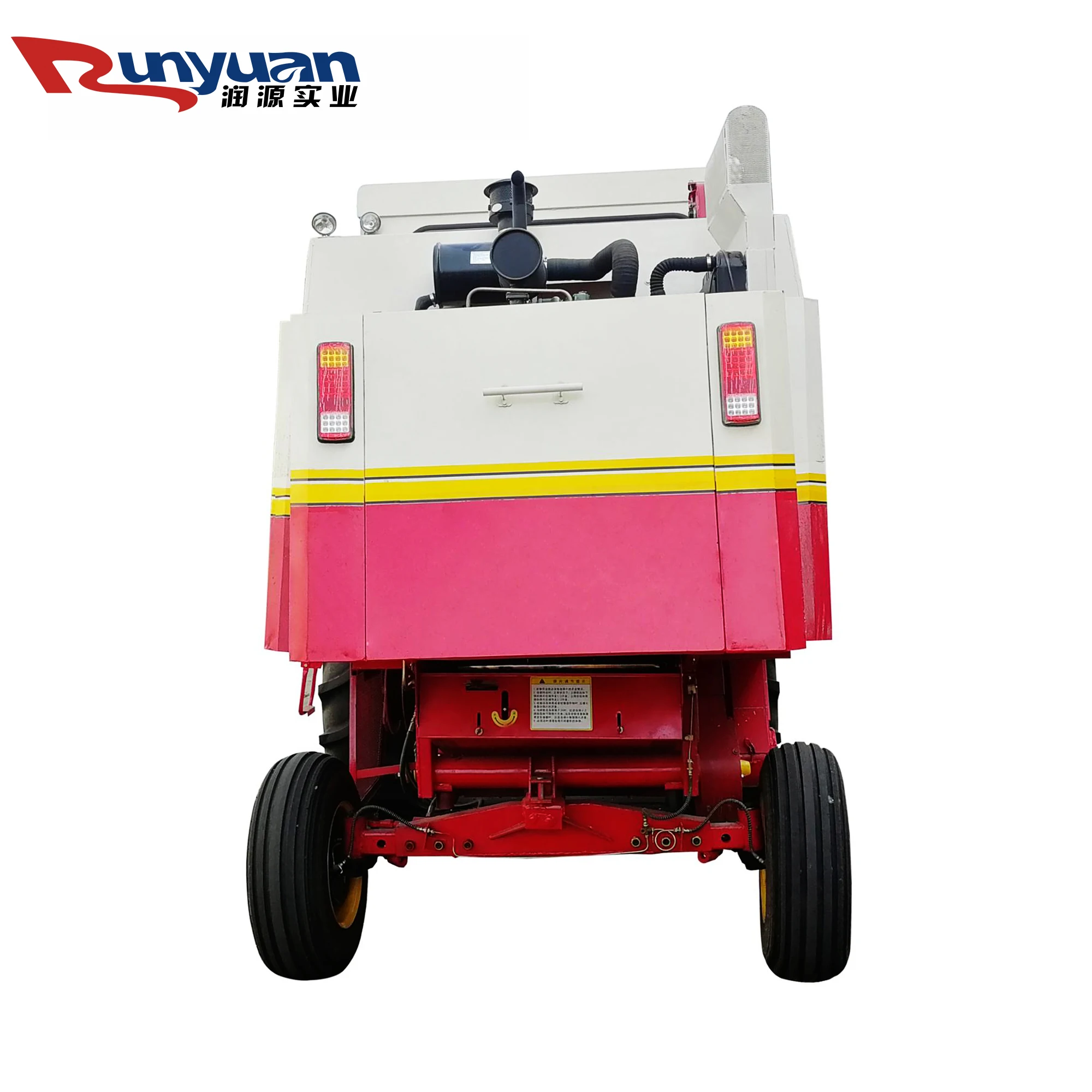

New rice wheat cutter small mini combine harvester price in pakistan india west bengal sri lanka usa thailand philippines
- Category: >>>
- Supplier: Shandong Runyuan Industry Co. Ltd.
Share on (1503127379):
Product Overview
Description
Related Products

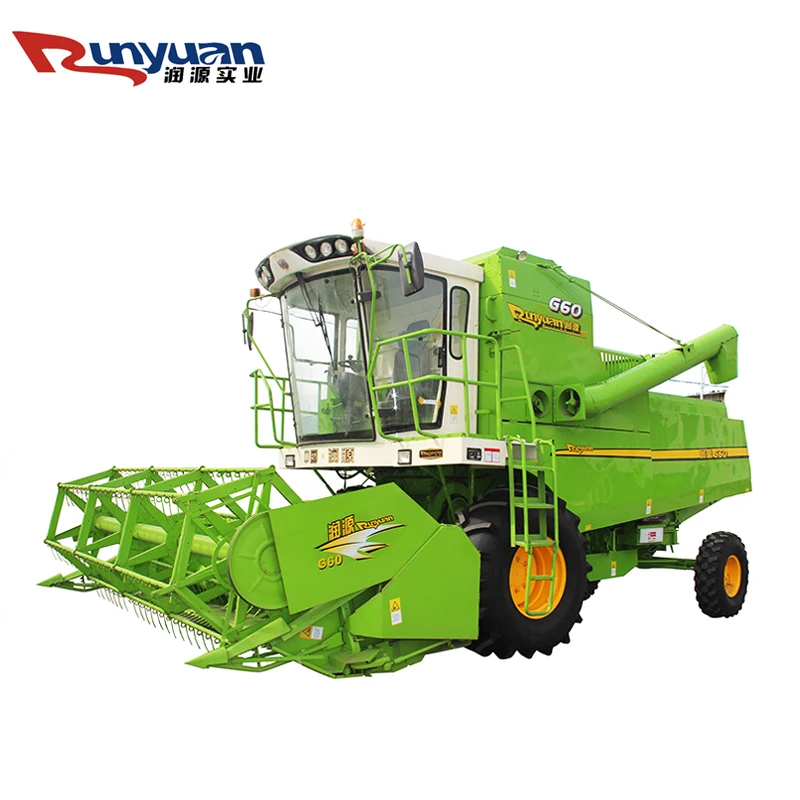

rice combine harvester

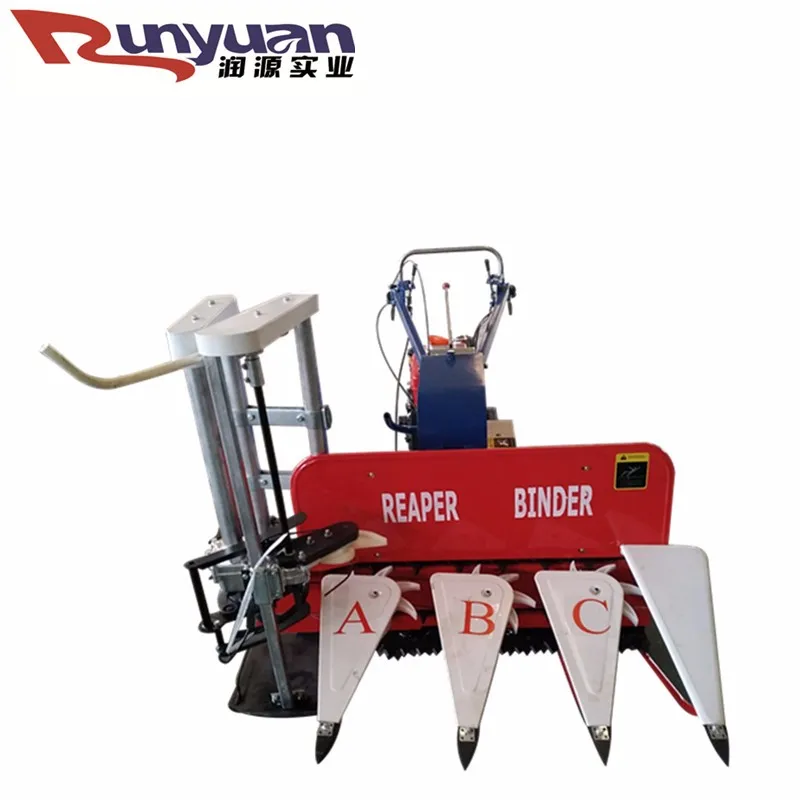

mini rice wheat reaper

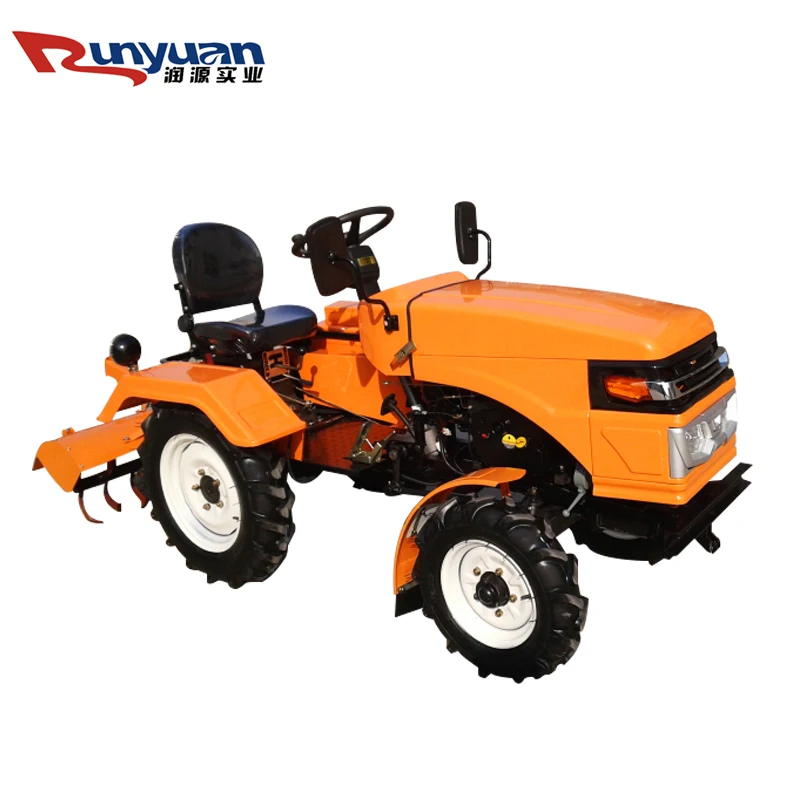

12hp 15hp 20hpmini tractor
Product Description
★ Latest cab, the layout in the cab is more reasonable and the operation is more convenient
★ Latest seat, comfortable and breathable
★ Latest streamlined arc cover, beautiful shape of the vehicle, easy to open
★ Optimize the cleaning system, adjust the structure of the jig plate, reduce the movement resistance, and make the performance more reliable; adjust the lifting speed and improve the grain lifting capacity
★ The fan uses a multi-blade fan to adjust the fan drive structure, the wind speed is uniform, and the cleaning effect is good
New vertical hydraulic unloading structure, high unloading grain, reliable performance.
★ Optimize the threshing system, adopt a new type of reinforced roller shaft, reduce the failure rate, and strengthen a type of agitation shaft to reduce the failure rate.
★ Configuration of a new centralized refueling device makes it more convenient to add fuel to each part of the bearing.
★ Optimize the electrical system, equipped with electronic throttle, more flexible and convenient to operate; using new combination meter, features more abundant.
★ The use of State III emission superior engines has strong power and reliable performance.
★ The use of a new type of left and right arrangement of tanks, cooling effect.
★ Configuration of new brakes, with rear brake, better braking effect.

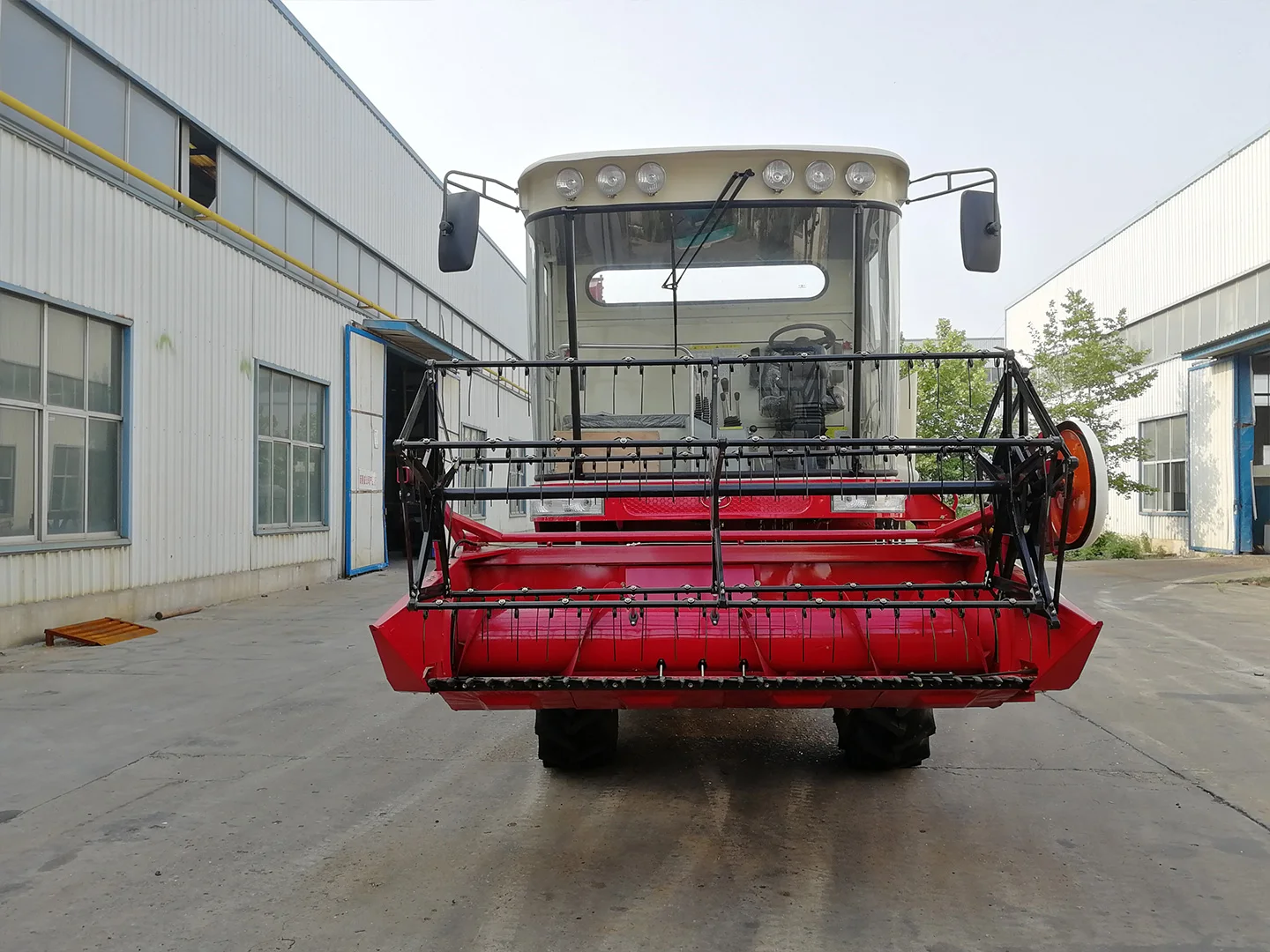

★ Optional 2.5 or 2.36 meters header, more efficient harvesting.
★ The new type of hooking header bridge, easy to install and remove.
★ After swapping special headers, corn and grains can be harvested.
★ Latest patented commutator.
| Item | Unit | 4LZ-2[2058] | |
| Structure | / | wheeled self-propelled full feeding | |
| Engine | Model No. | / | YC4A80T |
| Matched power | hp | 100hp | |
| Rated speed | r/min | 2200 | |
| Overall Dimension(L*W*H) | mm | 6740*2940*3260 | |
| Total weight | kg | 4520 | |
| Cutting width | mm | 2500 | |
| Feeding amount | kg/s | 2.5 | |
| Min ground clearance | mm | 250 | |
| Advancing speed during work | km/h | 3.43-7.61 | |
| Working efficiency | hm²/h | 0.5-0.9 | |
| Fuel consumption per unit area | kg/hm2 | ≦25 | |
| Reel | type | / | Eccentric Spring Toothed |
| diameter | mm | Φ1000 | |
| Quantity | pc | 1 | |
| Dimension of the threshing cylinder | diameter*length | mm | 550*1445 |
| Fan type | type | / | centrifugal |
| diameter | mm | Φ442 | |
| Quantity | pc | 1 | |
| Tyre Size | guide wheel | / | 10-15 |
| drive wheel | / | 15-24 | |
| Min. Turning radius | mm | 6100 | 6100 |
| 6200 | 6200 | ||
| Gearbox type | / | gear (3+1) | |
| Brake type | / | hydraulic | |
| Grain tank volume | m³ | 1.8 | |
| Loss ratio | % | wheat≤ 1.5 rice≤ 3.5 | |
| Crash ratio | % | ≤ 2.0 | |
| Impurity rate | % | ≤ 2.0 | |
| Unloading method | / | Screw mechanical self-unloadin | |

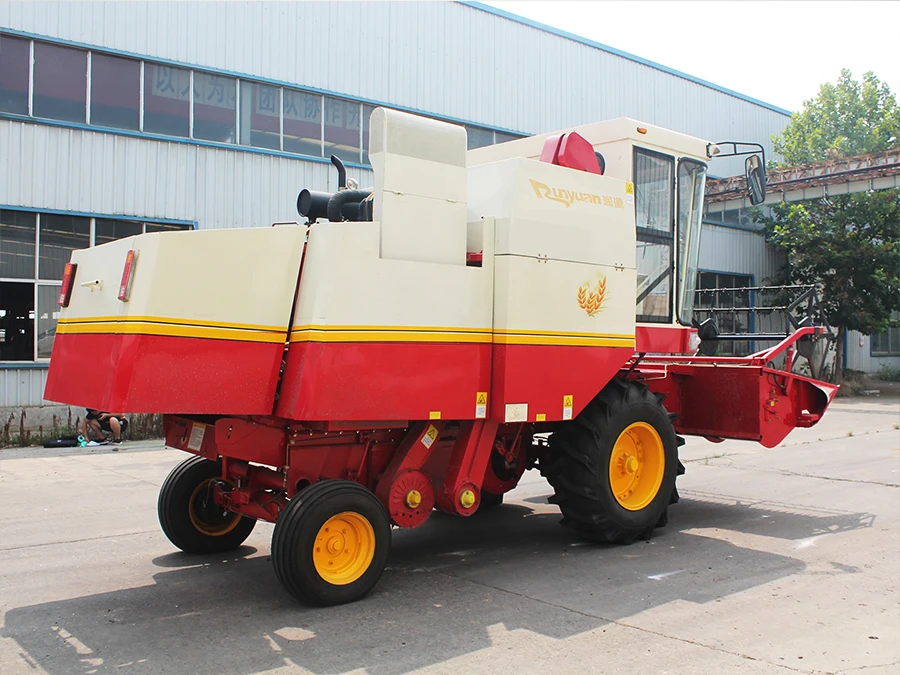

Detailed Images
New upgrade configuration
Optional synchronizer gearbox.
Widen the base frame, widen the screen box, widen the bottom case, and increase the cleaning system to make the selection more thorough

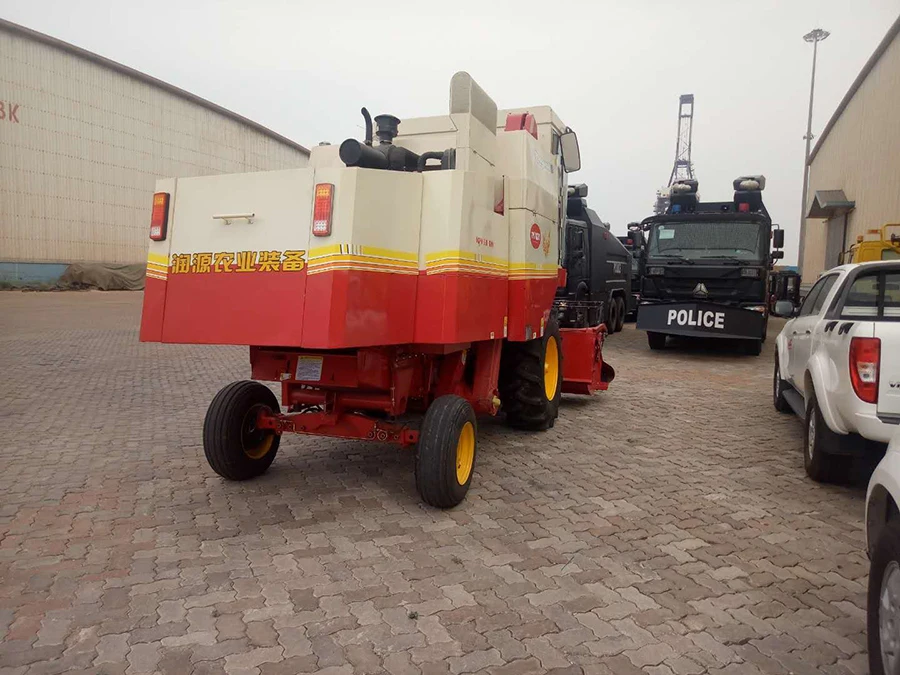

High position unloading grain
New vertical hydraulic unloading structure, high
unloading grain, reliable performance
Latest engine
Adopting national II emission engines with
powerful power and reliable performance
Water tank, brake, upgrade
Using a new type of left and right layout tanks, good cooling effect
New brake configuration, rear brake, better braking effect
Configure a new centralized refueling device, which is more convenient for oil filling in all parts

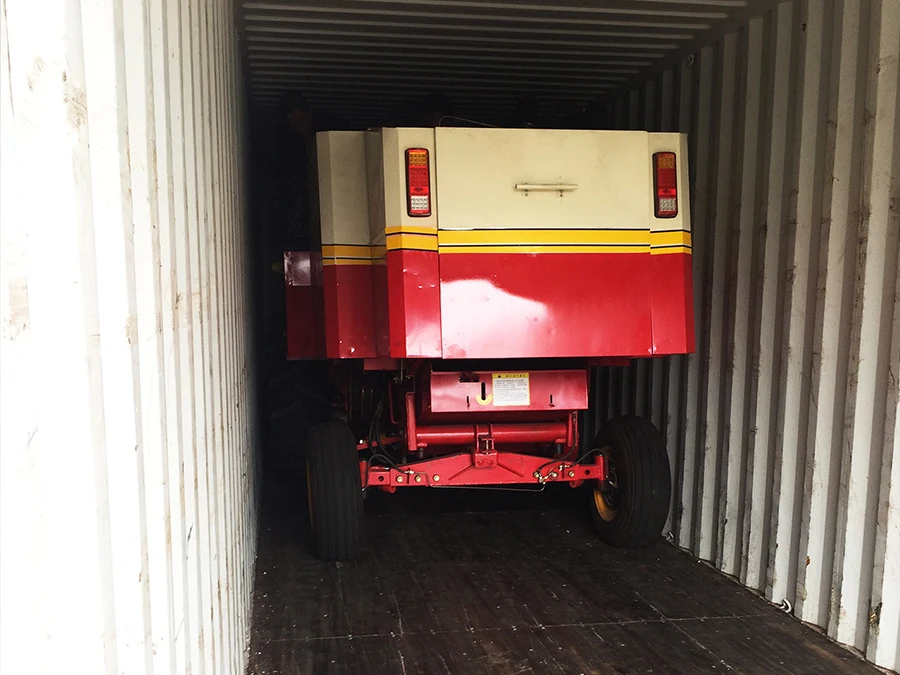

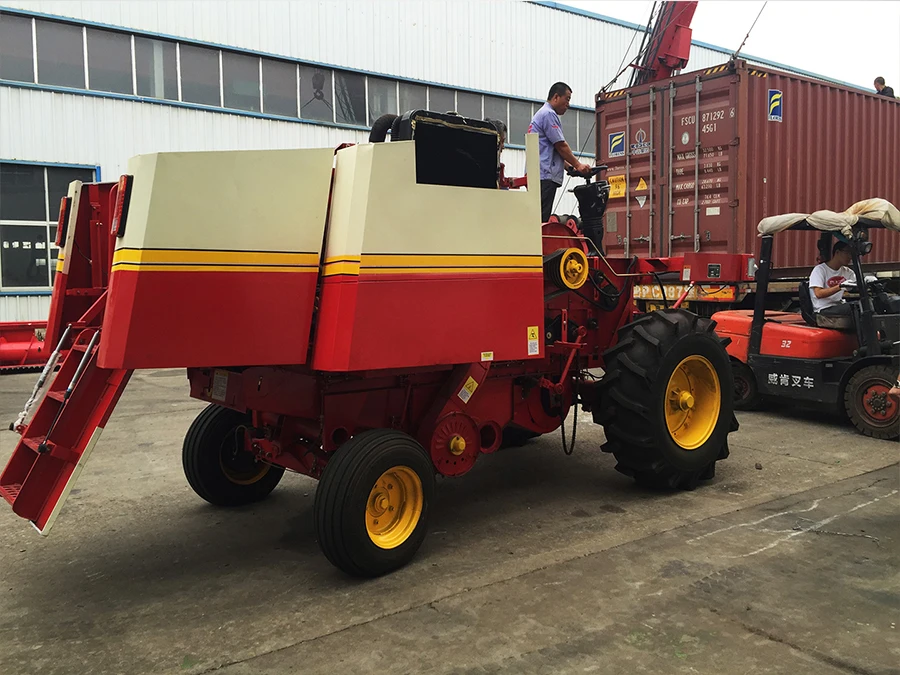

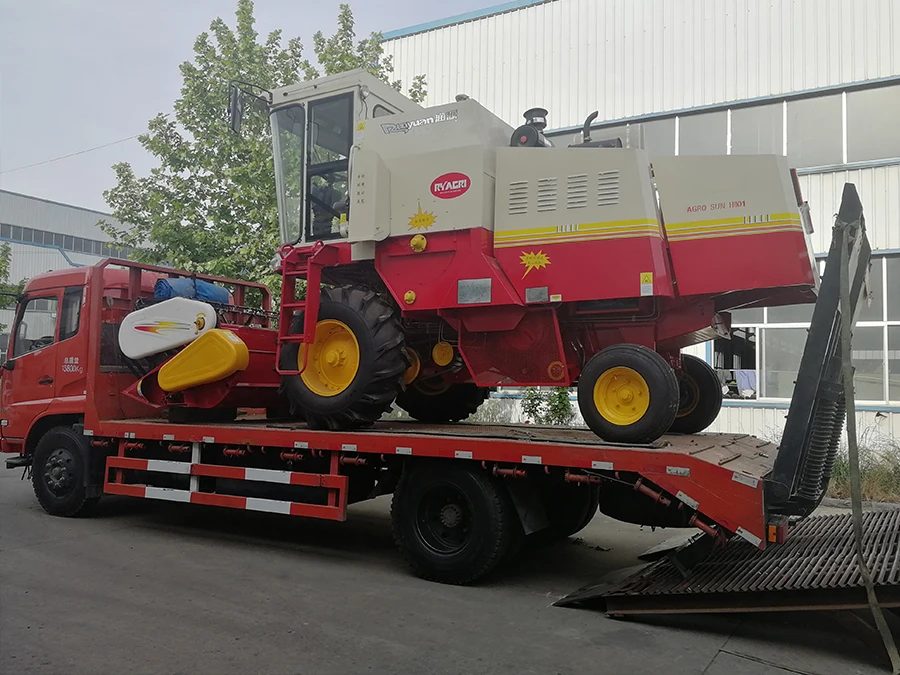

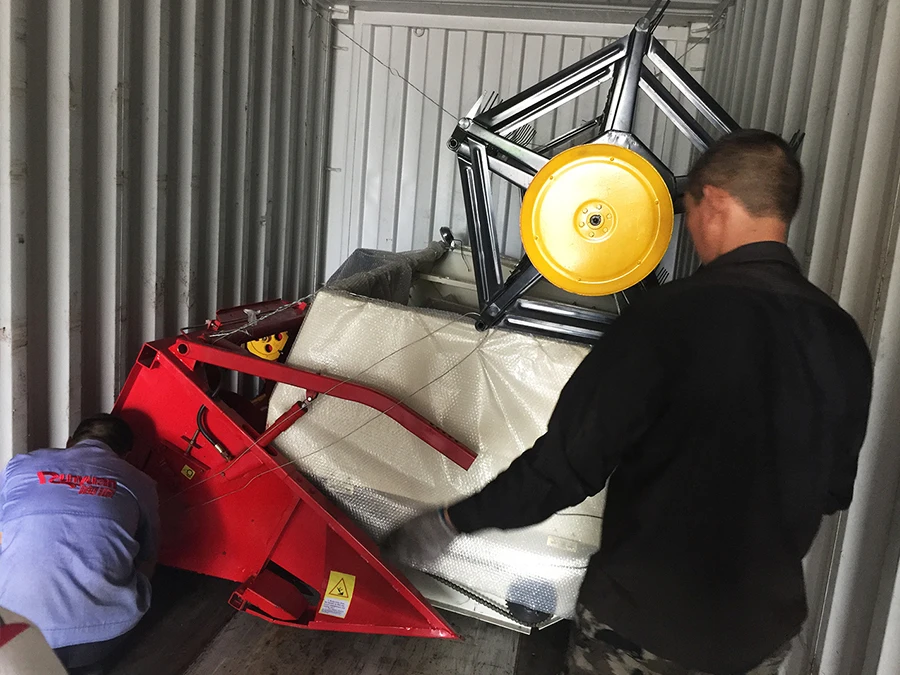

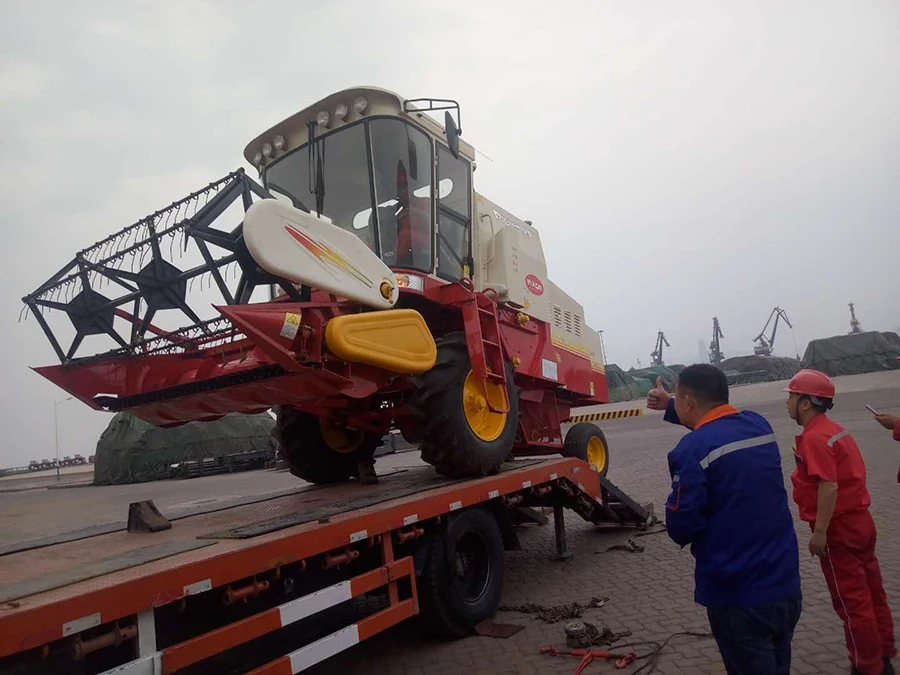

Packing & Delivery
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers
Product Workshop
Automated production line
Safe and authoritative quality inspection system
Our Company
@Established in 1986.
@ Passed ISO9001-2000 & 2008.
@ Supply OEM/ODM Manufacturing.
@ Our products such as Corn/wheat/rice combine harvester ,baler,seeder,tractor ,trailer,chaff cutter,water pump,spreader,sprayer,Mower,thresher.
Certifications
FAQ
1. How can we learn to drive this harvester?
Answer: You are welcome to our factory, and then we will supply room and board and train you free.
2.Do we have to buy quick-wear parts with the machine?
Answer: Yes and we will send you some parts free of charge.
3.Is there any discount?
Answer: Discount is according to the quantity you purchase.
4.How is the quality of the harvesrter?
Answer: We have been in this field for many years and can supply high quality harvester for you.
