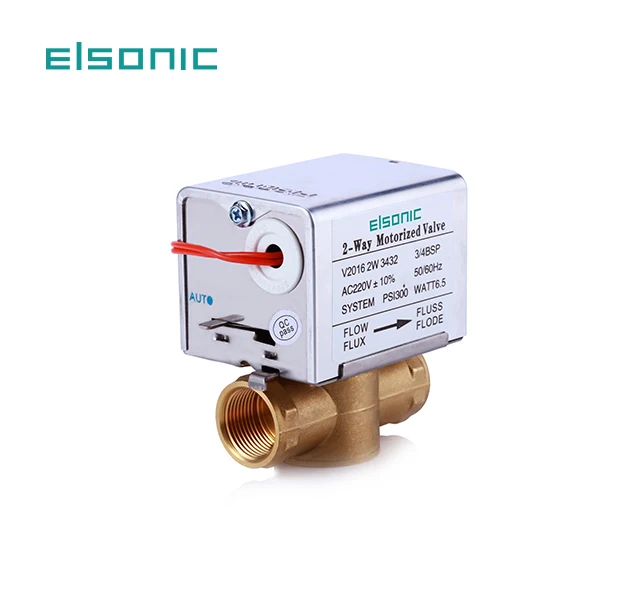

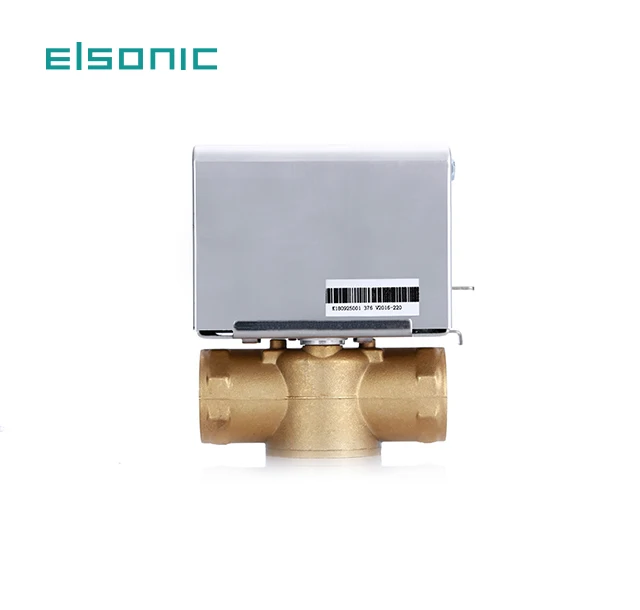

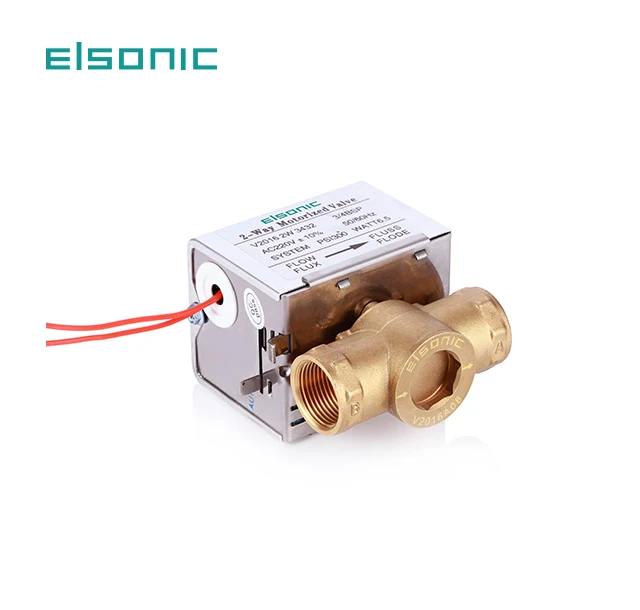

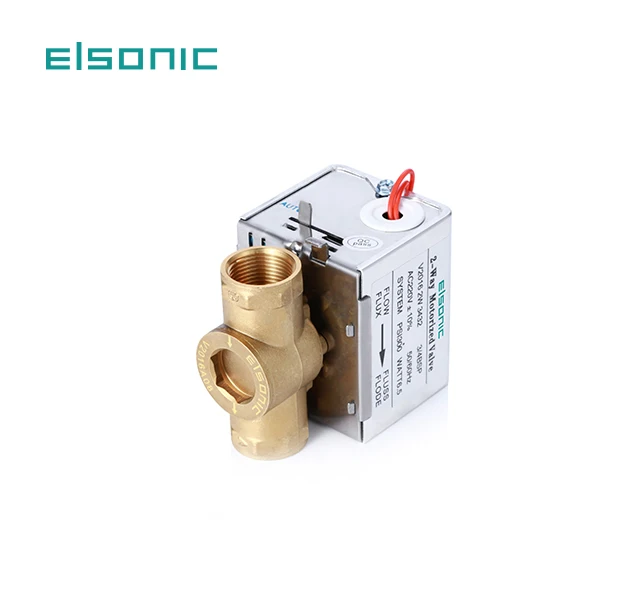

fan coil unit motor with spring return on off zone 3 way automatic control brass motorized zone valve
- Category: >>>
- Supplier: Fujian Yilin Instrument Co. Ltd.
Share on (1503219224):
Product Overview
Description
Motorised Valves are made up of Actuator and Valve Body.
Characteristics
V2016 Electric FCU Motorized Valves are smart,everlasting,less noise and able to work under high temperature environment.
The Valve is closed,configurations of valve body are closed off;the thermostat (NTC) transfers a signal to actuator that will connect to power,and then open valve,input hot water or freezed water to fan coil unit;if the room temperature reaches to set-point,thermostat transfers a signal to actuator to cut off the power,and spring switch returns,valve is closed,and the hot or freezed water is block to fan coil unit.Therefore,the room temperature could be controlled in the set-point through valve opened or closed.
Material
Actuator | Stainless steel plate,Aluminum cover |

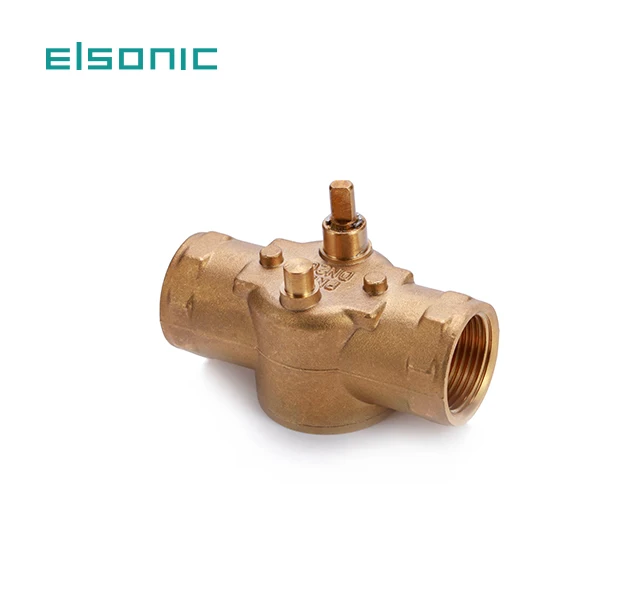

Valve Body | Forged Brass |
Stem | Brass/Stainless steel |
Seat | Brass |
Paddle | Nitrile-butadiene rubber(NBR) |
Data
Model:V20162w1220 | Config.:normally closed two-way |
V20162w1232 | diverting three-way |
V20163w1243 | normally closed two-wa y |
V20162w3420 | normally closed two-way |
V20162w3432 | normally closed two-way |
V20163w3446 | diverting three-way |
V20162w1168 | normally closed two-way |
V20163w1157 | diverting three-way |
Connection type:G1/2 Kv:2.0 | Differential pressure(MPa):0.20 |
G1/2 3.2 | 0.15 |
G1/2 4.3 | 0.15 |
G3/4 2.0 | 0.20 |
G3/4 3.2 | 0.15 |
G3/4 4.6 | 0.15 |
G1 5.7 | 0.10 |
G1 6.8 | 0.10 |
Medium;Hot water | |
Liquid temperature:2-95 | |
Pressure:(MPa):2.5 | |
Ambient temperature:<40 | |
Power Supply:220V(±10%);50-60HZ | |
Storage temperature:-40+70 | |
Function
Used to controll the flow of hot water,freezed water in heating, cooling or air-conditioning applications,so as to control room temperature indirectly. |
