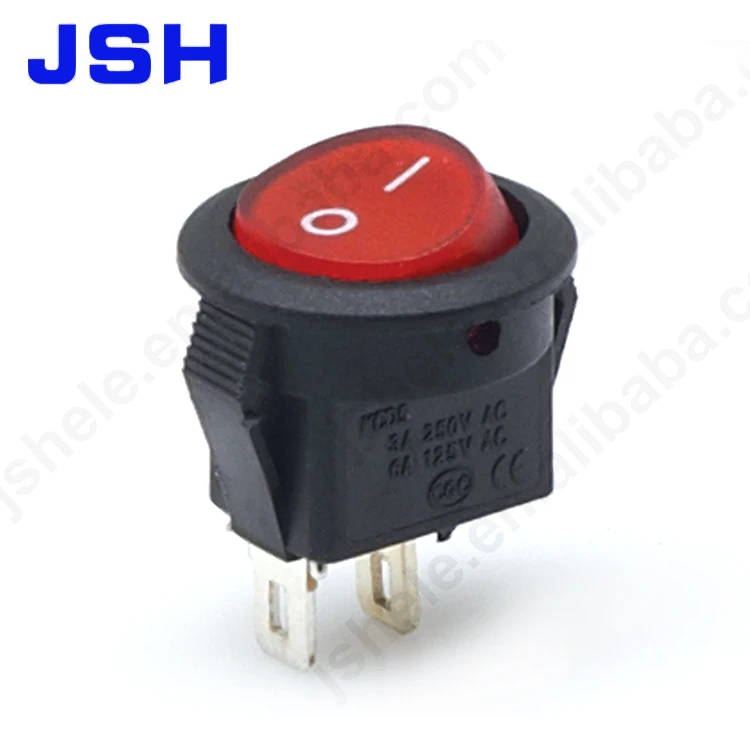

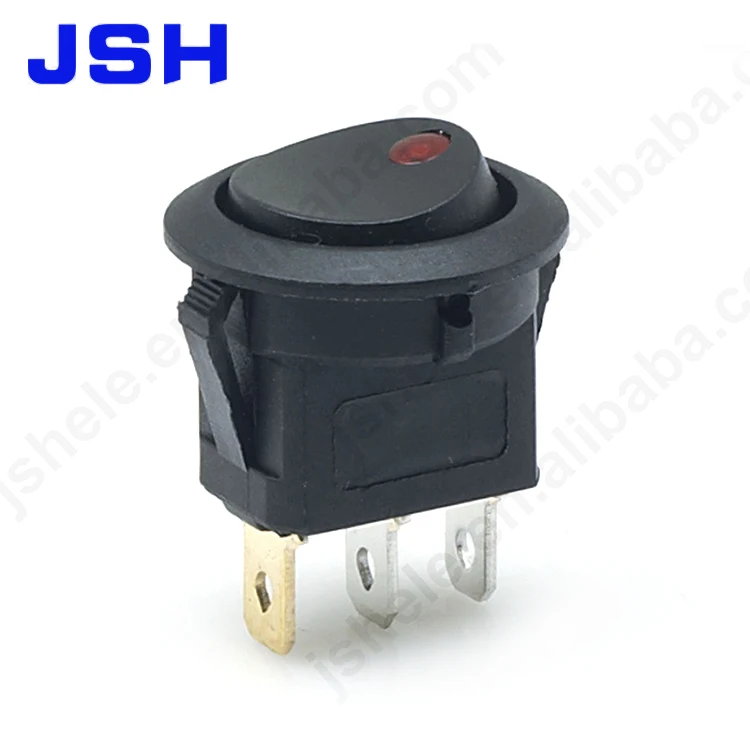

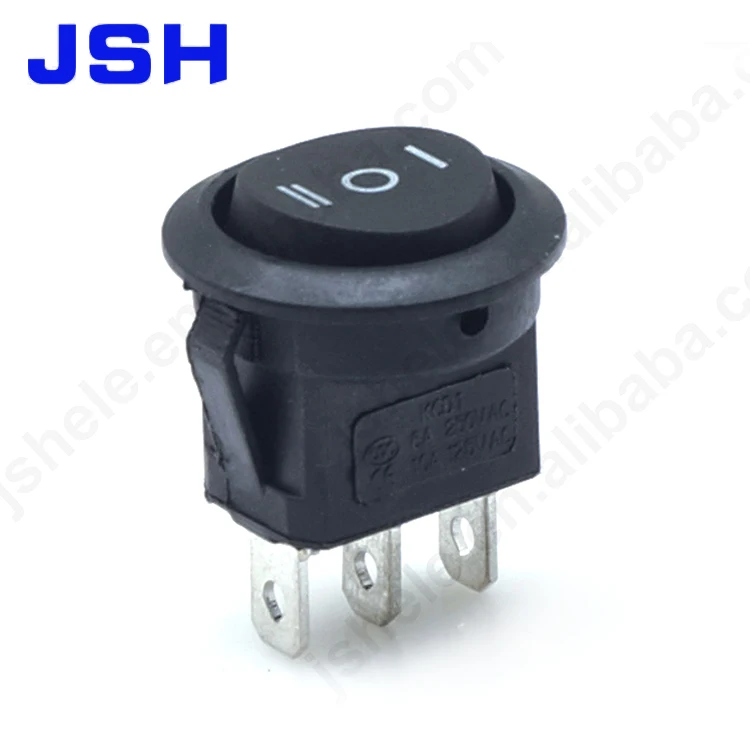

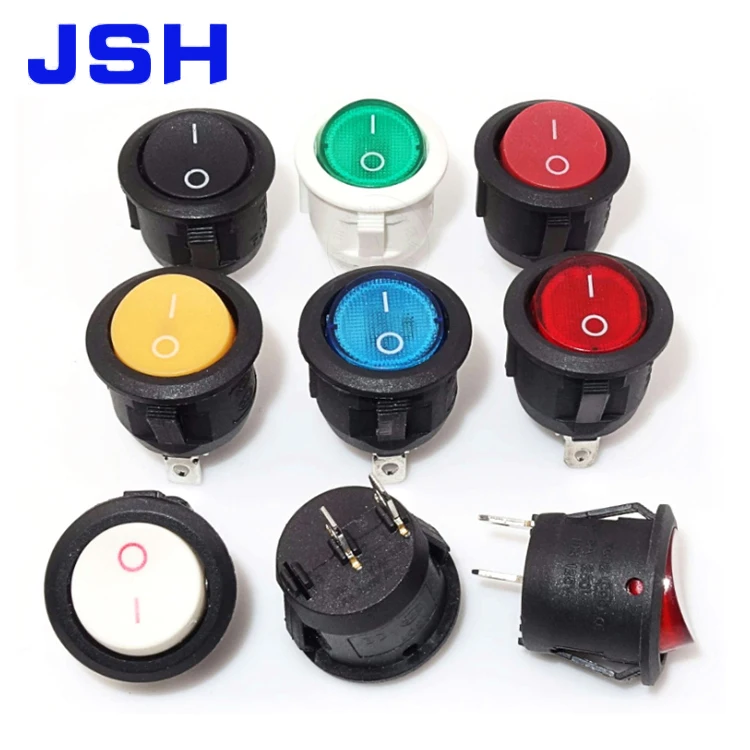

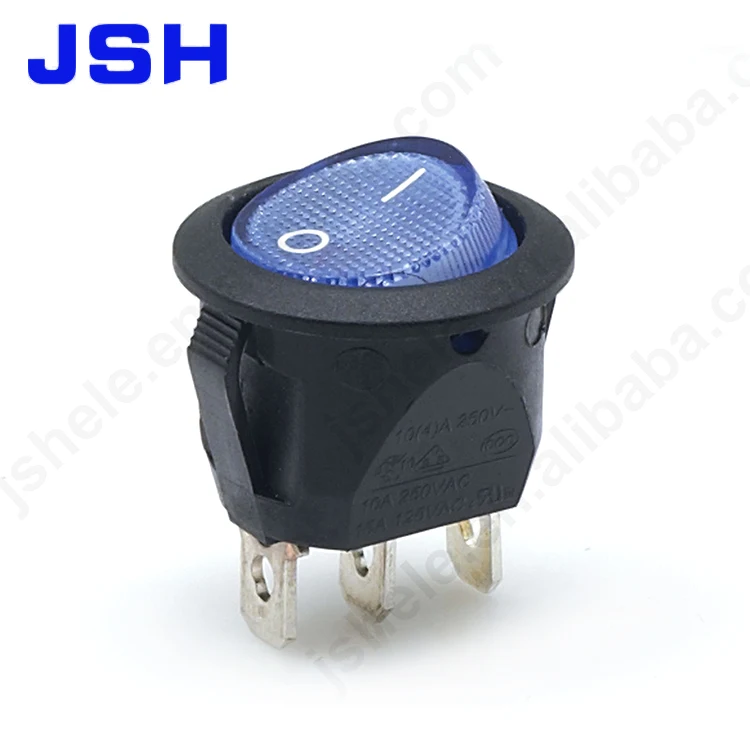

Round Car On/Off Rocker Switches Car Audio Toggle 12V Amp Install Lights

Product Overview

Description



SPECIFICATION

1.CE CQC TUV  approved.;



2.6A 250VAC;10A 125VAC;16A 20A 25A



3.function: on-off,on-on, On-off-on or on/off with  light .2 or 3 PINS;



4.Material:Base plastic---Nylon 66;Button plastic---PC or Nylon 66;
                 Copper parts such as terminal----Copper H62;
                 Terminal surface treatment----- tin plating;
                 Contact----silver on copper ;
                 Spring----Tungsten steel;
                 Waterproof cap----PVC (It has waterproof cap if required. )



5. Material:Silver Contact,PC,PA66;



6.The appliance switches are widely used in household electrical equipments and office facility , the multimedia products and the electromotional instruments field etc.



RATING:	15A 250VAC;20A 125VAC;30A 12VDC
MECHANICAL LIFE:	>50000 CYCLES
ELECTRICAL LIFE	>10000 CYCLES
CONTACT RESISTANCE	< 50MΩ
INSULATION RESISTANCE	>1000MΩ
WITHSTAND VOLTAGE	>1500V/MINUTE
AMBIENT TEMPERATURE	-10°C~+85°C
STORAGE TEMPERATURE	-25°C~+85°C
