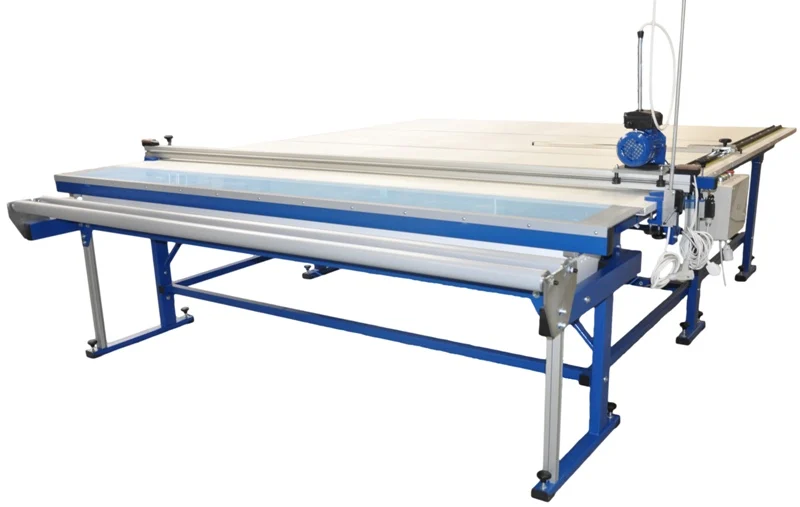

CUTTING TABLE FOR ROLLER BLINDS UK 1 MAX (WITH TABLETOP ILLUMINATION)

Product Overview

Description

The equipment includes:

- Cutting table 3600 mm length, 2500 mm width.
- End-cutting knife.
- Pneumatic clamping line.
- Tabletop illumination zone.
- Material feed device.

You can watch video here: //www.youtube.com/watch?v=S4NSQmFMAFk (copy it and past to empty tab of your browser).



On this table you can cut:

- Fabric for the production of roller blinds;
- Different solid, thick tissues, felt;
- All kinds of textile products: carpets, rugs, runners, mats, floor coverings.

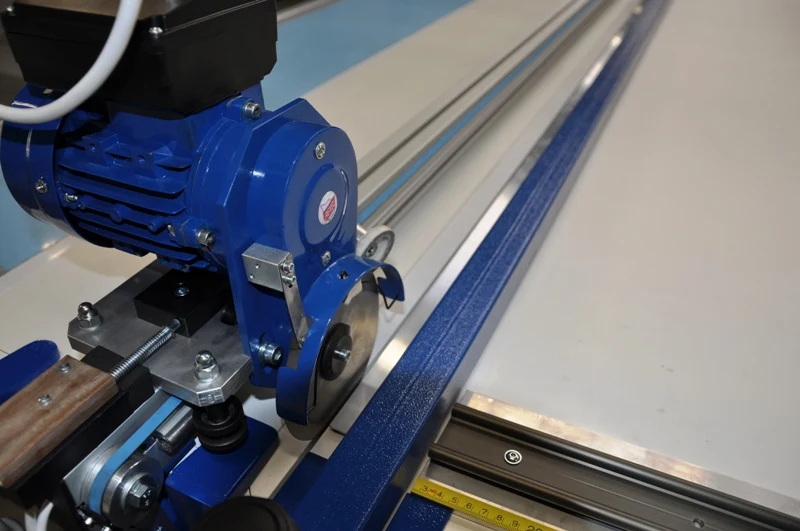

Cutting table for roller blinds consists of very rigid steel structures made of closed steel profiles. The working table top is made of laminated 25 mm chipboard. The table is protected by white powder coated aluminum on the perimeter. With the help of special screws you can adjust the height of the table and align the table horizontally. The end-cutter knife is attached to the working table top. The advantage of this end-cutter is that while cutting through the thick material goes just a thin blade, not the leg of cutting knife.
Pay attention to the energy consumption of this machine: the motor that drives the circular blade is used for moving the cut-off device on the bus (1 engine performs two functions). Another advantage is the absence of idle, (process of cutting takes place in two directions). Pressing a button on the control box at any time you can stop end-cutter e.g. to change the direction and continue cutting.

The kit includes pneumatic clamping line, which will provide a strong and stable fixation of the cut material. You can adjust the clamping line by using the joystick. Working air pressure for the clamping line is 3-5 atmospheres.
ATTENTION! This equipment is not available at once. It may be ordered after a thorough discussion of the customer's needs. Time of production of the table is 7-30 days.
