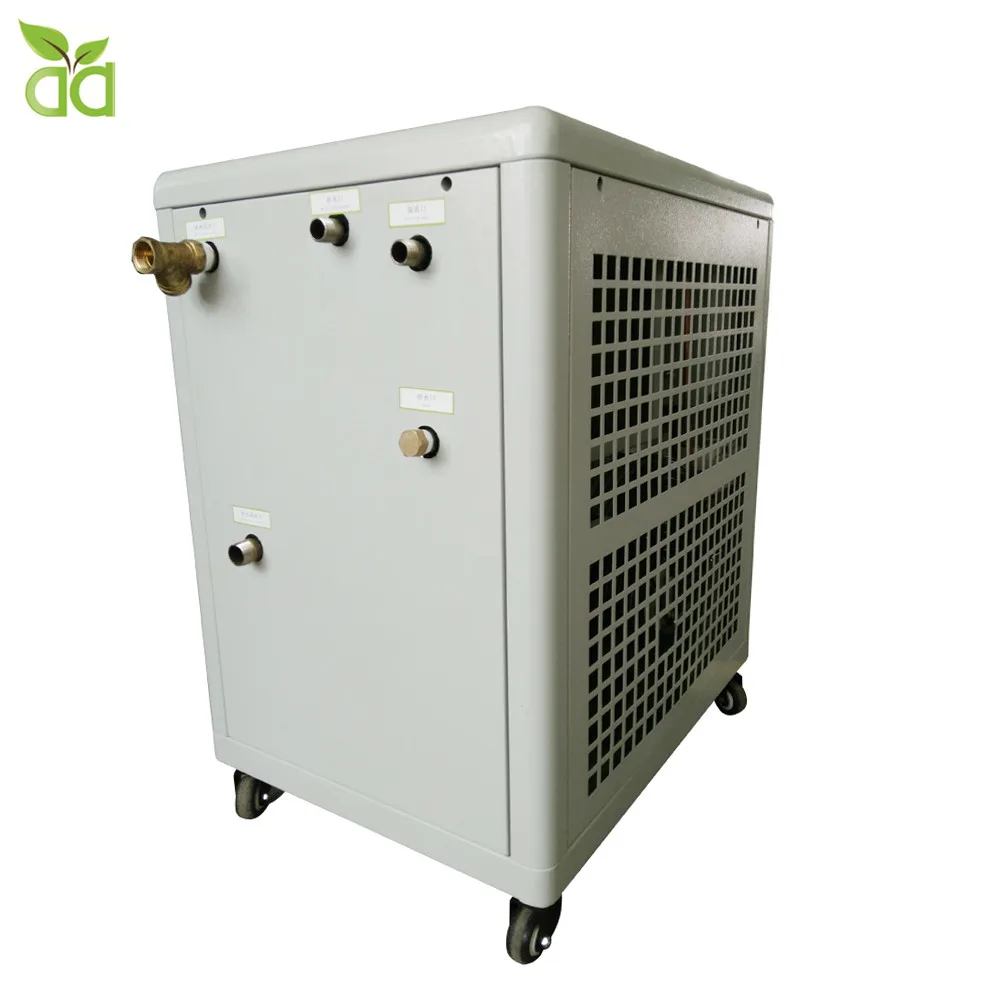

2500Kcal Industrial Cooling System Air Water Chiller

Product Overview

Description

Air Cooled Chiller With Features:

1. Air-cooled Chiller has a metal burning painted frame work, which is rustproof, anti-vibration, low noise, high effective heat exchange materials and EER.


2. Air-cooled Chiller imported the compressor with a famous brand. Having a built-in large flow pump, equipped with 304 stainless expansion tank and installed automatic watering device. Having excellent throttling technology combined copper-fin condenser with shell-tube evaporator. So the unit is extraordinary perfection.


3. Air-cooled Chiller  Easy to install, easy to clean, flexible to movement, which help the customers to save time and improve the working efficiency.


4. Air-cooled Chiller adopted operation interface with the humanized touch, which is intelligent control, flexible and safety.


5. Air-cooled Chiller has a field of application: Laser, Chemical, Plating and oxidation, Precision Instruments, Printing, Ink, Paper, Metal, Casting, Blowing, Injection Plastic Industry, Food Processing, Pharmaceutical Industry, Electronic Circuit Board, Wave Soldering Reflow, Interlayer Cooling.

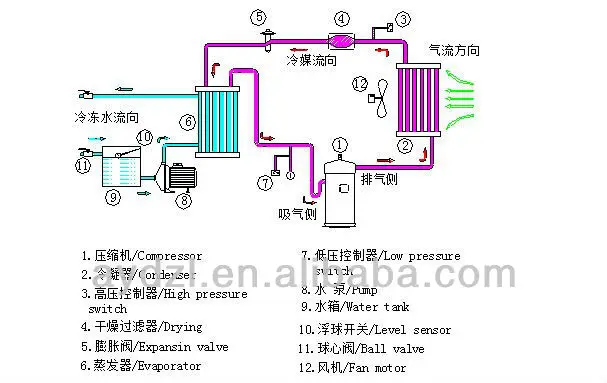

  Air-cooled chiller working diagram :









Air-cooled Chiller Configuration:



Item	origin—Brand
Compressor	USA—Copeland/Danfoss/Sanyo/Daikin
Electrical components	Korea—LS/Germany—Schneider
Phase protector	Taiwan—Pump
Air switch	China—Zhengtai
Evaporator	Shenzhen—Anyda
Condenser	Shenzhen—Anyda
Pressure controller	China—Heli
Oil pressure gauge(High)	Shenzhen—Anyda
Oil pressure gauge(Low)	Shenzhen—Anyda
Solenoid valve	USA—Emerson/Danmark—Danfoss
Drying filter	USA—Emerson/Danmark—Danfoss
Pump	Taiwan—Yuanli/Hangzhou—Nanfang
Water switch	China—Heli
Angle valve	China—Heli
Controller	Taiwan—Pump





 Air-cooled Chiller  Protector Device:



1. Lack of phase, reverse phase protector.

2. Motor overload protector.

3. High/low pressure protector.

4. Automatic alarm device for lacking of water.

5. Anti-freeze protector.

6. Coil verheated protector.

7. Water shortage protector.

8. Full-automatic temperature control system.
