 Humanity RPM-150S4ET 4E1 PDH mux optical solution



Humanity RPM-150S4ET 4E1 PDH mux optical solution is a point to point optical transmission device which is developed in VLSI basis. This

 series support optical redundancy (optical 1+1) and power redundancy (power 1+1) to ensure stable

performance. It is wi RPM-150S4ET Humanity 4E1 PDH mux optical solutions th complete alarm monitor function, high integration, low power consumption, stable

performance and easy to use.





Main Features

• Single board design with 1U 19inch
• 1+1 optical redundancy for stable performance with the rate of 150Mbps(option)
• ALS (Automatic Laser Shutdown) offered for safe installation(option)
• Comply with ITU-T G.703, G.742, G.823
• 4 Ethernet with VLAN ports available
• 2channel RS232 available
• Complete alarm function to monitor the remote equipment status
• Order wire phone available
• Full management monitor for easy maintenance
• 1+1 power redundancy for stable performance(option)

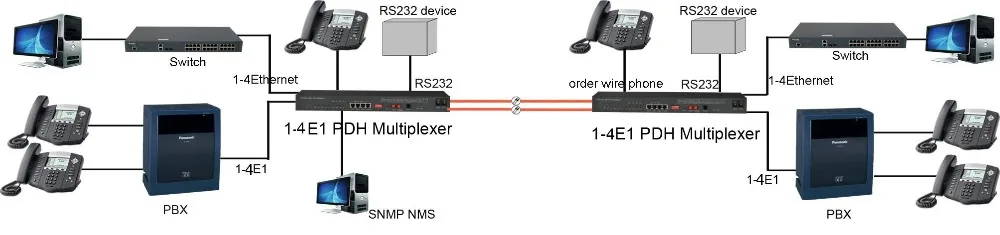

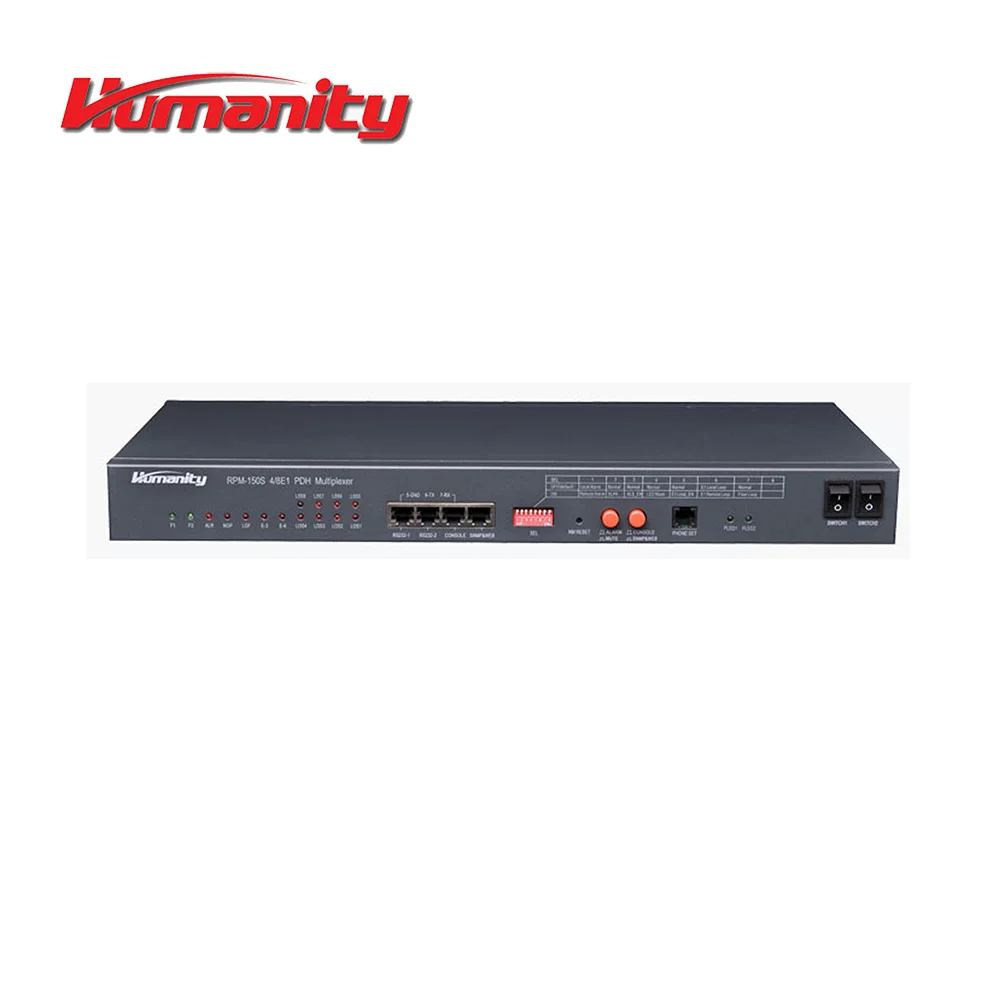

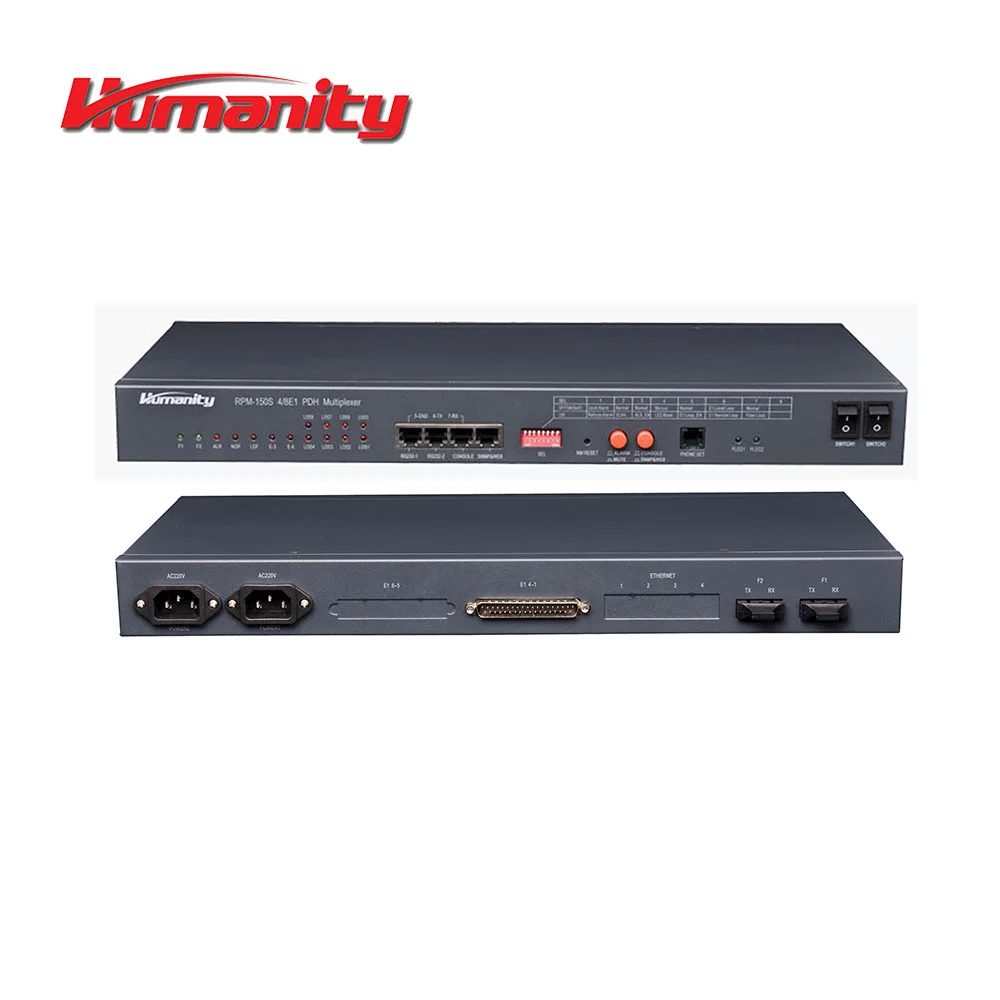

                                                                                Front Panel



                  A:  Indicators for monitor and easy maintenance.

                  B: 2ch RS232 + 1ch Console

                  C: SEL switch to control alarm, Ethernet, ALS and loop.

                  D: Alarm/Mute and Console/SNMP button.

                  E: Phone set interface.

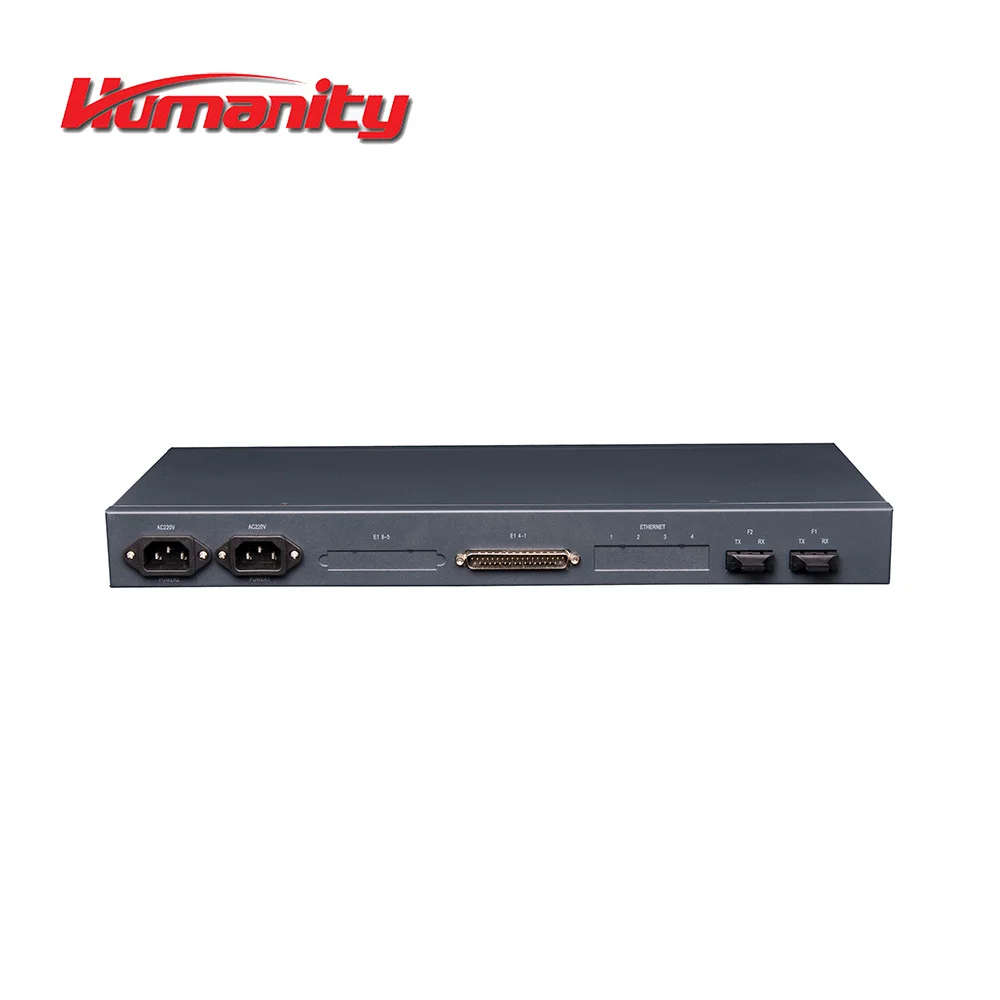

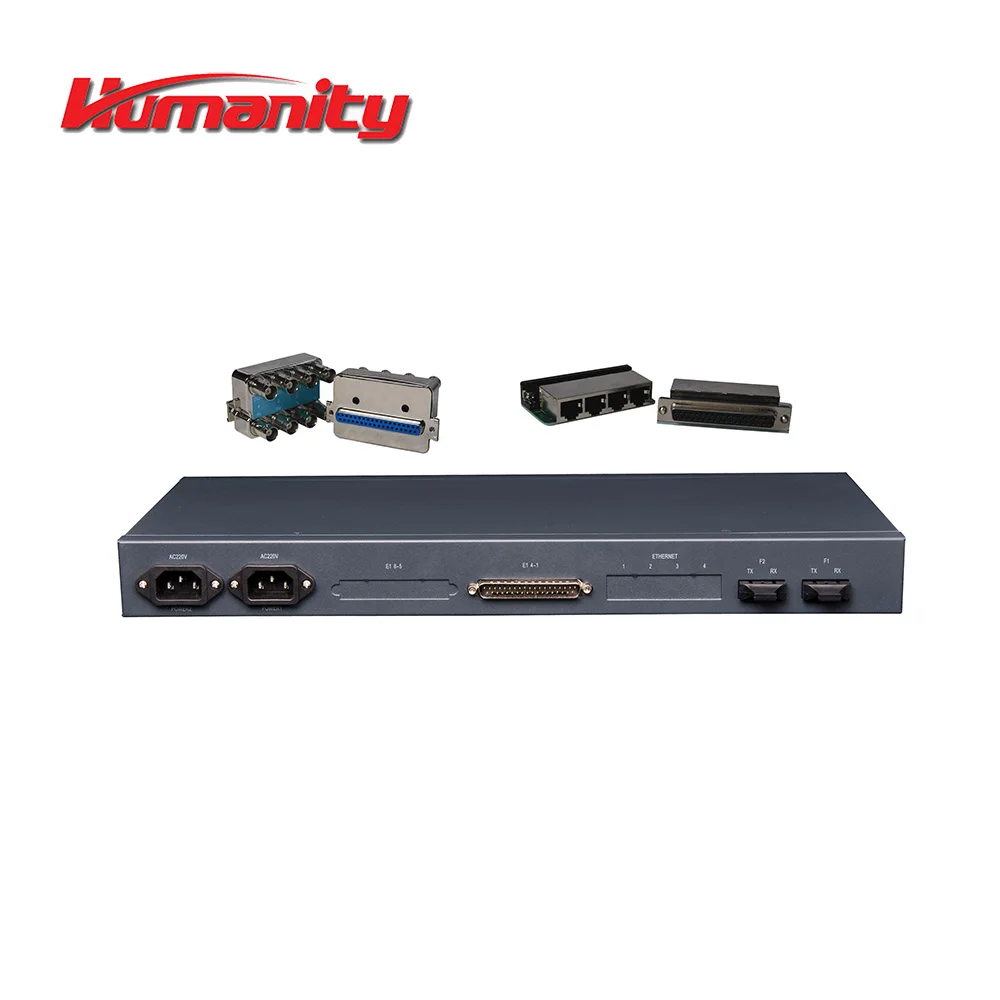

                                                                                                                          Rear Panel



                   F: Power interface. Redundancy available.

                  G: 4E1 interface.

                  H: 4Ethernet interface.

                   I: Optical interface. Redundancy available.



Technical Parameters

E1	Comply with ITU-T G.703, G.742 and G.823
	HDB3 coding
	Coding rate: 2048Kbps±50ppm
	120Ohm (RJ45) or 75Ohm (BNC)
Ethernet	Comply with IEEE 802.3
	Maximum 4Ethernet available with VLAN
	Auto adapt 10/100M, MDI/MDIX, full/half duplex
	Connector: RJ-45
	Frame length: 64kbps~1916kbps
	Support flow control
RS232	Connector: RJ45
	Maximum rate: 115.2Kbps
	Maximum 2 channel RS232 available
Order Wire Phone	Use standard 2-wire phone set
	Channel: 1
	Coding: PCM
	Bandwidth: 64Kbps
	Connector: RJ11
Optical	1+1 optical redundancy
	Single/multi mode
	Single/dual fiber
	Wavelength: 850nm/1310nm/1550nm
	Connector: FC/SC/ST
	Distance: 2km/40km/60km/120km
Management	Default with RS232 hyper terminal NMS
Power	1+1 power redundancy
	AC110/220V, DC-48V, AC+DC/AC+AC/DC+DC
Environment	Temperature: -10°C ~60°C
	Relative humidity: ≤95%, non-condensing
