CATV Amplifier with Philips Module



HT9341A

HT9341B

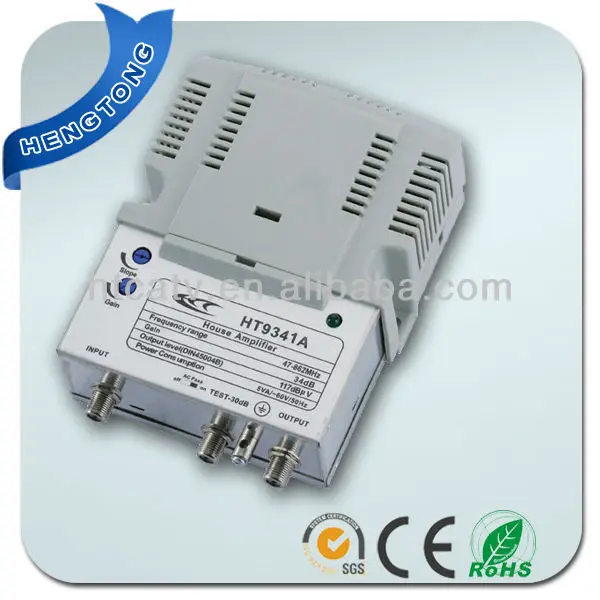

1 HT9341A

description

HT9341A: Indoor house amplifier, 47/87-862MHz, gain 34dB, output level 117dBuV, 7VA 198-250V 50Hz, reverse upgrade.

HT9341B: Indoor house amplifier, 47/87-862MHz, gain 34dB, output level 117dBuV, 5VA 24-65V 50Hz, reverse upgrade.

application

HENGTONG indoor house amplifiers HT9341A and HT9341B are intended for amplifying and distributing TV signals in cable TV netwroks.

advantage

Product:

1. Low power consumption

2. High output level

3. Parameter stable

4. Full customer satisfaction

5. Strong packing

Factory:

1. Strict quality control

2. Famous branded test equipment

3. Professional technical team

4. Low MOQ

5. On time delivery

6. Competitive price

7. OEM ODM accepted

specification

ParameterHT9341A-RHT9341B-R
Frequency rangeforward path47/87-862 MHz
return path5-30/65 MHz
Gainforward path34 dB*
return path with RPxx/RAxx20/-1.5dB
Frequency response± 0.5 dB*
Gain adjustment20 dB
Slope adjustment, typical18 dB
Maximal output level IMD3=60dB(DIN45004B)117 dBuV
Maximal output level IMD3=60dB(EN50083-3)111 dBuV
Maximal output level IMD2=60dB(EN50083-3)114 dBuV
Input and output return loss> 14 dB**
Noise figure< 6 dB
Test point attenuation-30 dB
Power consumptionmains powering7VA/~198-250V/50Hz-
remote powering-5 VA/~24-65 V/50Hz
AC pass current(through IN and OUT, switchable)-0.4 A max
Operating temperature-20°C~+50°C
Dimension/107x148x53mm/0.66kg107x148x53mm/0.43kg
Weight(packed)



  *  for amplifiers with return path -±0.7dB

 **  when f≥40MHz, return loss≥14dB(40MHz)-1.5dB/octave

optional parts

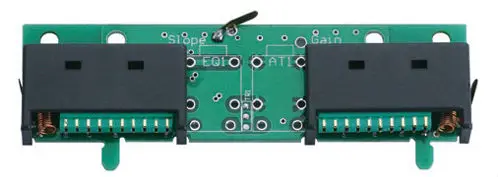

2010031908332799

RP30Passive return path module, 5-30MHz
RP65Passive return path module, 5-65MHz

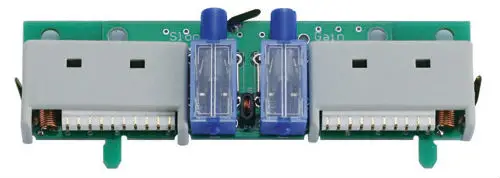

RA

RA30Active return path module, 5-30MHz
RA65Active return path module, 5-65MHz
