Small Machine Room High Speed Lift Energy Saving With Compact Structure

Product Overview

Description

Small Machine Room Passenger Elevator with Compactdesign and Energy Saving

Space-creating fulfills great splendors
Small machine room passenger elevator inherited the modern highly sophisticated technology,based on the improved elevator system reliability and flexibility to achieve a truly environmentally and energy-saving adbantages.
Small machine room passenger elevator is compared with the usual machine room, with a reasonable layout construction, making room area as large as the hoistwang reaches saves floor space, while reducing the apperaance of the engine room of the building-specific effects on the appearance. It can be adapted to the requirements of a particular building construction matter, not only reduces the cost of construction, but also help to stimulate architects inspired to create blocks of magnificent works of art.



Compact design

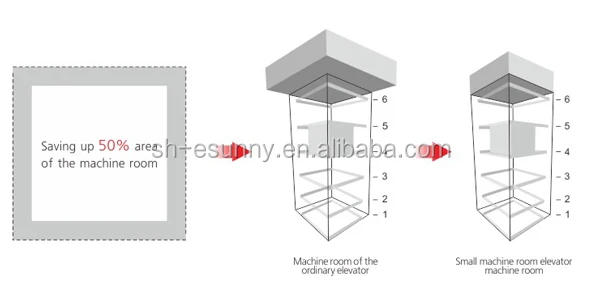

Small machine room passenger elevator is a kind of elevator with new concept, which is for improving the construction value. The area of machine room can be reduced by more than 50% than traditional elevator, so it saved construction space and increased useful space.
Energy saving
Small machine room passenger elevator use permanent magnetic synchronous gearless traction machine, featuring high effective and energy saving.It save by 33% energy than the gear traction machine for the same capacity. The best design comprising special designed control cabinet with samll size and the most advanced with lower loss makes the layout of the machine room perfect.

Passenger	Load	Speed	Car size	Door size	Shaft	Pit depth	Overhead height	Stops	Rise
	kg	m/s	WxDxH(mm)	WxH(mm)	WxD(mm)	P(mm)	K(mm)	Station	HQ(m)
6	450	1.0	1100x1200x2400	700x2100	1900x1900	1400	4200	20	50
8	630	1.0	1100x1400x2400	800x2100	1950x1950	1600	4200	20	50
		1.5	1100x1400x2400	800x2100	1950x1950	1600	4400	25	70
		1.75	1100x1400x2400	800x2100	1950x1950	1650	4400	30	90
10	800	1.0	1400x1350x2400	800x2100	1950x2000	1400	4200	20	50
		1.5	1400x1350x2400	800x2100	1950x2000	1600	4400	25	70
		1.75	1400x1350x2400	800x2100	1950x2000	1600	4400	30	90
		2.0	1400x1350x2400	800x2100	1950x2000	1650	4650	35	105
13	1000	1.0	1600x1500x2400	900x2100	2200x2150	1400	4200	20	50
		1.5	1600x1500x2400	900x2100	2200x2150	1600	4400	25	70
		1.75	1600x1500x2400	900x2100	2200x2150	1600	4400	30	90
		2.0	1600x1500x2500	900x2100	2200x2150	1650	4650	35	105
16	1350	1.0	1950x1500x2500	1100x2100	1100x2100	1500	4200	20	50
		1.5	1950x1500x2500	1100x2100	1100x2100	1600	4400	25	70
		1.75	1950x1500x2500	1100x2100	1100x2100	1700	4400	30	90
		2.0	1950x1500x2500	1100x2100	1100x2100	1750	4650	35	105

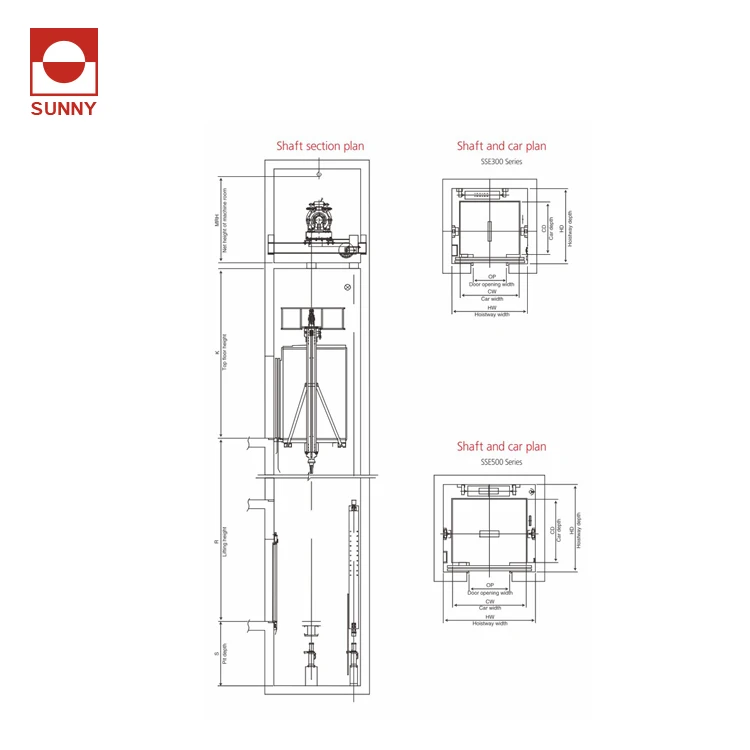

Small Machine Room Passenger Elevator Construction Layout Drawing

About us

Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 28-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
