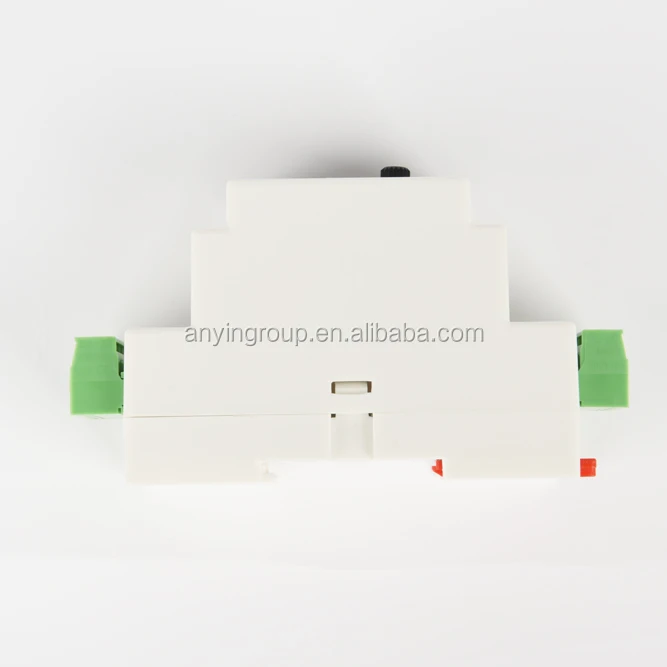

AnYing RS485 Output Water Leak Detection Device For Water Leak Sensor Alarm System
- Category: >>>
- Supplier: Shenzhen Anying Technology Co. Ltd.
Share on (1508140940):
Product Overview
Description
Product Overview
Non-locating Water Leak Detector With Sensor Cable 2 Pins Water Leak Cable Controller With RS485 Dry Contact System
A-LC1A linetype water leak sensor can monitor the dual-core leakage sensor cable up to 500 meters .
It can be used with the sensor cable , and also can be used with the other sensor probes .Once the sensor contacted the water , A-LC1A will produce sound and light alarm ,and drive relay .
The A-LC1A linetype water leak sensor using modbus RTU protocol controller programming ,and monitoring system to facilitate integration .
A-LC1A either as stand alone leak detection alarm can also be integrated with other network hosts collected using .
It can be used in the base stations ,warehouses ,libraries ,museums ,parking lots and industrial sites and other important places of real-time leak detection ,and more can be used for airhandling units ,chillers ,liquid containers ,pump tank and other equipment needed to monitor leakage
FEATURES AT A GLANCE
RS485 MODBUS OUTPUT
RELAY OUTPUT
REAL-TIME DETECTION
REMOTE WATER LEAK MONITORING
LEAKAGE METER REPORTING
EASY INSTALLATION

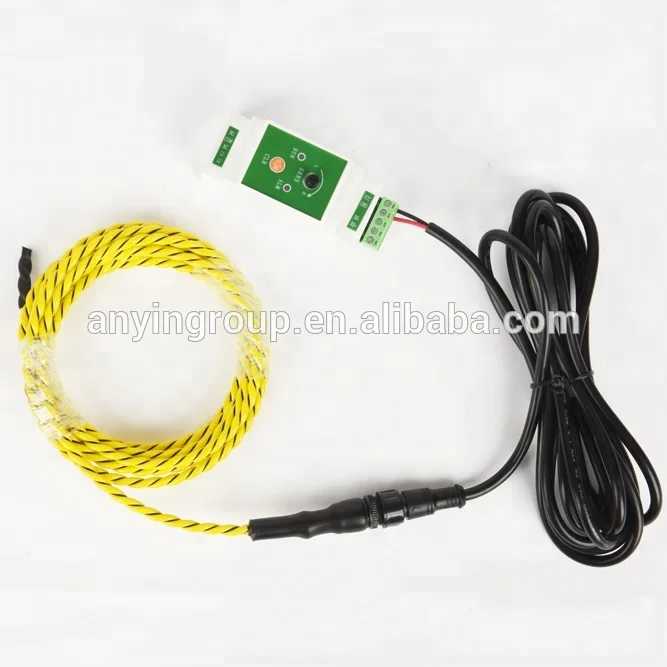

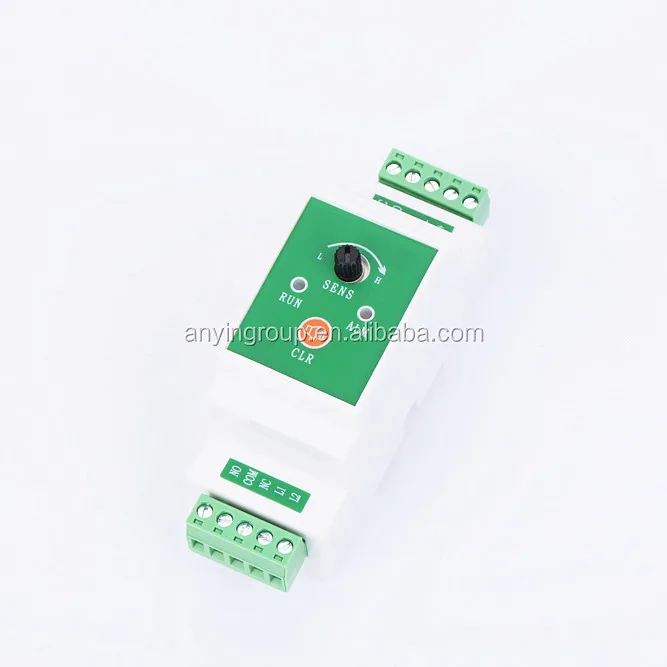

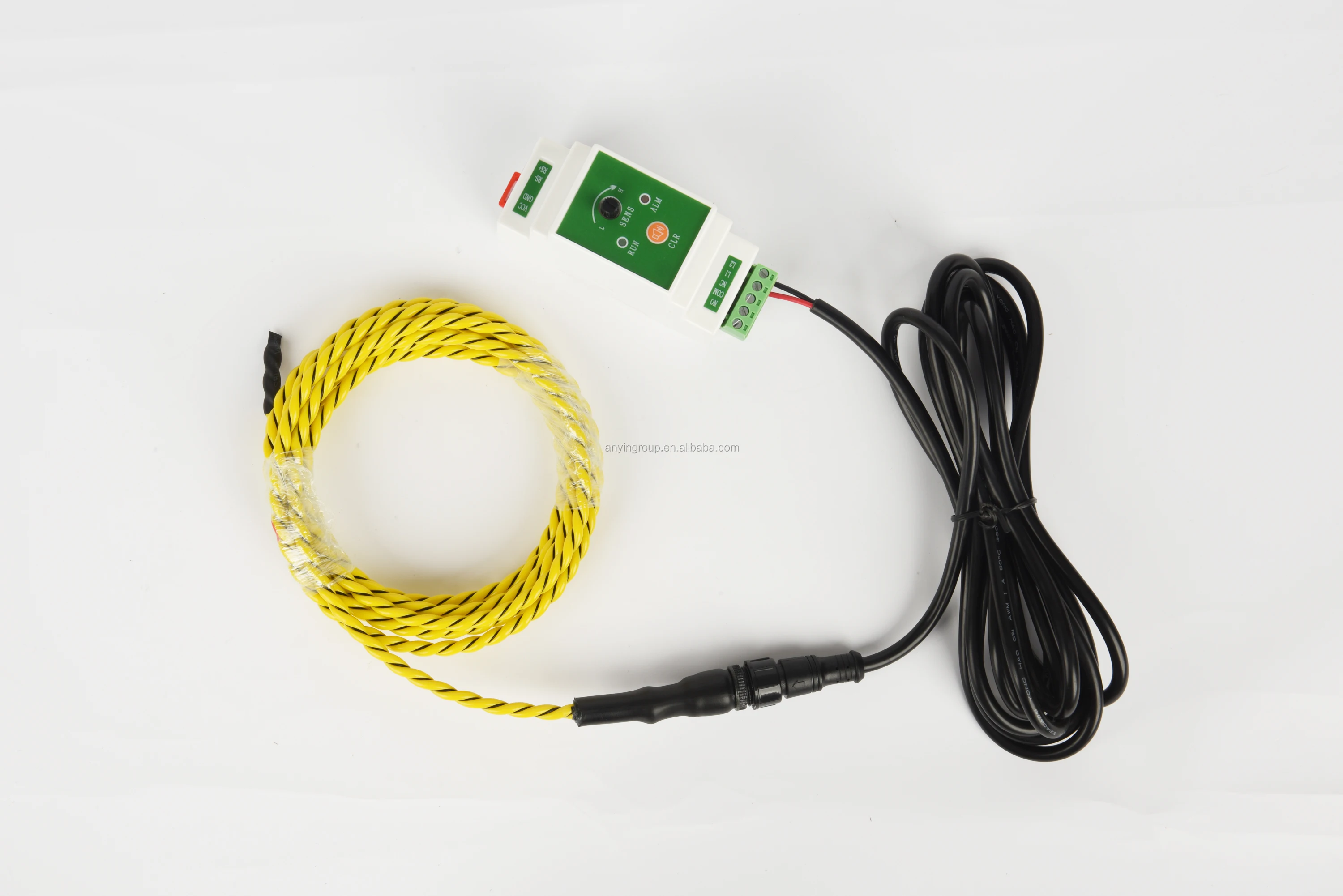

Locating Water Leak Controlelr A-LC1A
2Pins Leading Wire A-LLW68

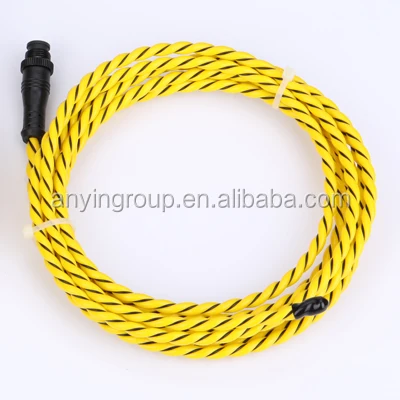

2Pins Water Sensor Cable A-LC1B
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | DC12~24V |
2 | Output | RS485/Relay |
3 | Operating Temperature | 0~50℃ |
4 | Max. Cable Length | 800meters |
5 | Cable Resistance | 13Ω/Meter |
6 | Detection Zone | Single Zone |
7 | Remote Monitoring | Supported |
8 | Certificate | CE/ROHS/REACH/ISO9001 |

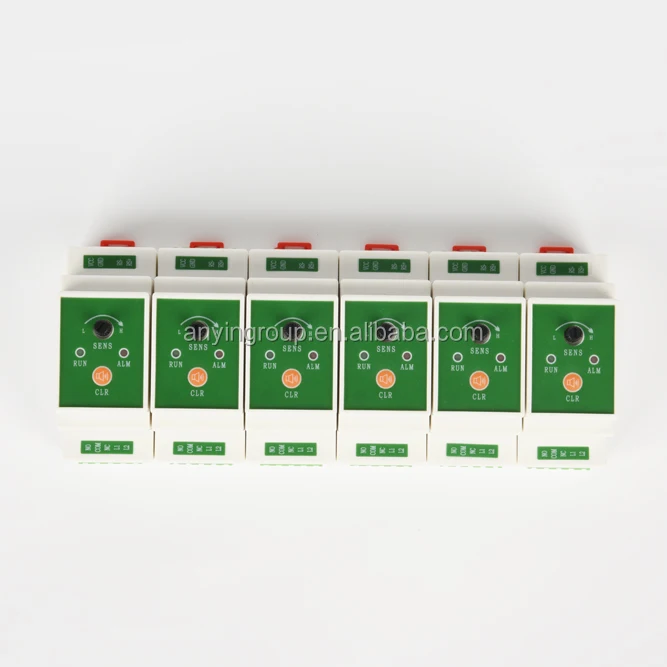

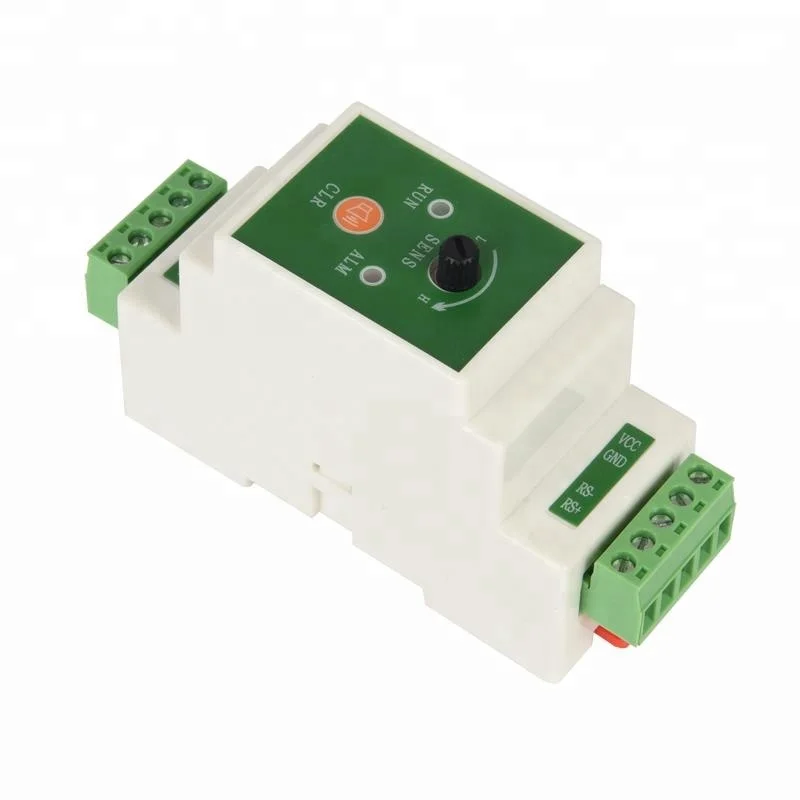

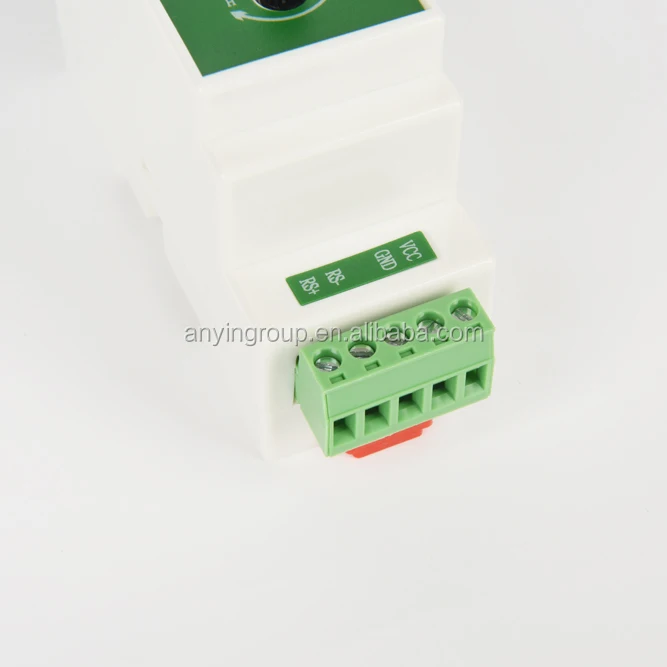

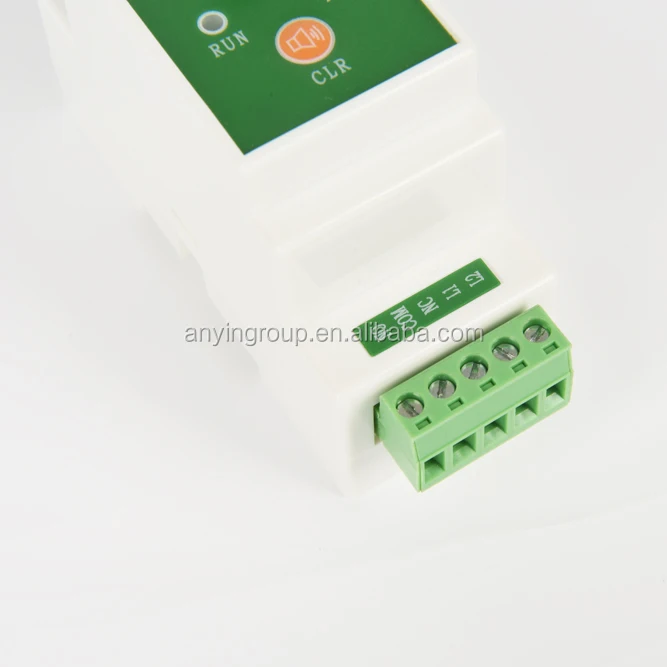

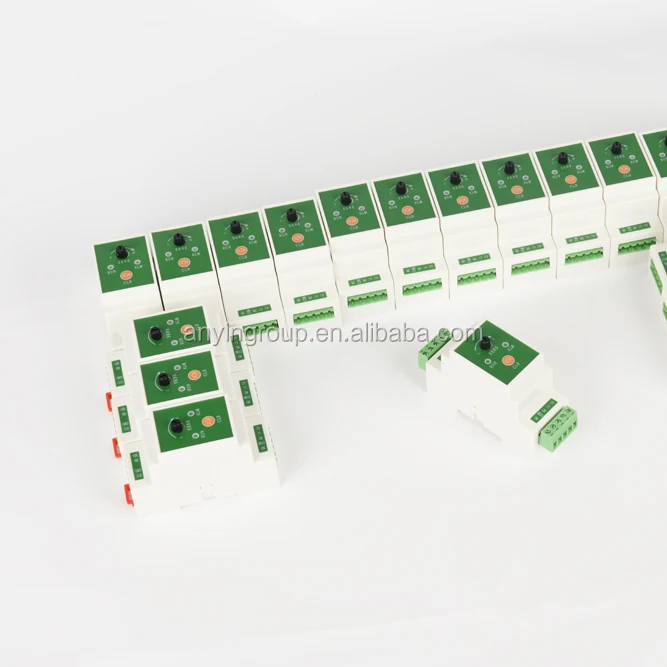

Details Images
Successful Project
For Medical Room Project
Project For Data Center
For Ware House Application
SIMILAR PRODUCTS
Certifications
FAQ
Q1：What is the Longest Length of Cable A-LLM1 can Monitor ?
A1：A-LLM1 can monitor 800m cable in total
Q2: What is the power supply for this water leak controller ?
A2: The power supply could be DC12~24V
Q3: Can we order the cable in rolls ?
A3: Yes, one complete roll length is 300 meters in total
Q4: What the protocol this leak sensor support ?
A4：A-LLM1 support RS485 MODBUS PROTOCOL.
