TPE Based Waterproof Joint and Corner Tape Non Woven Material for Waterproofing Projects

Product Overview

Description

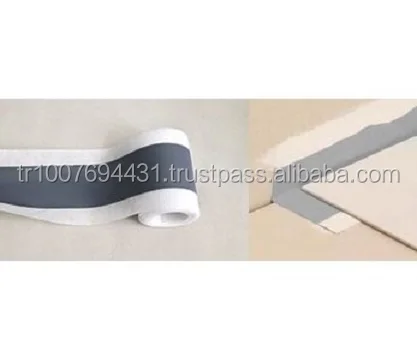

PH 127 K is a TPE based with special coated non-woven, waterproofing elastic tape to use on joints and corners: flexible in the crosswise, solid in the lengthwise and thermoplastic in the middle.

Substrate: Polypropylene non-woven, for perfect bonding to all kinds of adhesives and liquid sealings.

Coating: Thermoplastic elastomer, resistant to ageing.

§  Used in bathrooms, kitchens, toilets, terraces and balconies, under ceramic applications and wall/floor joints.

§  To repair cracks in pools, corner interactions and dilatations.

§  On reinforced concrete or corners of pre-cast roof gutters and joints.

§  To repair cracks in plaster and screed.

§  Easy to apply.

§  High water and thermal resistance.

§  Highly resistant to laceration.

§  Protects its elasticity in thermal differences.

Color Total Width / Coated Width Total Thickness (approx.) Product Weight (approx.) Heat Resistance Physical Properties Air Pressure (max.) Highest Tensile Strength (lengthwise)          (DIN EN ISO 527-3) Highest Tensile Strength (widthwise)          (DIN EN ISO 527-3) Extension break longitudinal Extension break lateral Power absorption at 25% Elasticity lateral Power absorption at 50% Elasticity lateral Resistance to water pressure UV-Resistance (minimum)                         Chemical Resistance Acid Salt (%3) Sulphuric Acid (%35) Citric Acid (100 g/lt) Lactic Acid (%5) Potassium Hydroxide (%3 / %20) Sodium Hypochlorite (0,3 g/lt) Salty Water (20g/lt sea water) HS Code

Grey 120 mm / 70 mm 0,68 mm 27 g/m min./max. -30°C/+90°C   4,0 bar 94 N / 15 mm   37 N / 15 mm   27% (DIN EN ISO 527-3) 122% (DIN EN ISO 527-3) 0,7 N/mm (DIN EN ISO 527-3) 1 N/mm (DIN EN ISO 527-3) >1,5 bar (DIN EN 1928) (Version B) 500 hours (DIN EN ISO 4892-2)     + + + + + / 0 + 5603.14.10.00.00

Application Method

After applying the waterproofing materials first coat PH 127 K’s side flanks placed on the surface while the surface is still wet. Tape lightly pressed with trowel or brush into waterproofing material. While applying second coat, tape should be covered up with waterproofing material. Avoid the contact of waterproofing material from tape’s rubber part.

Width: 120 mm

Length: 50 m/roll

24 months in original, unopened package.

Store in dry area and protect from heat, freezing and direct sunlight.
