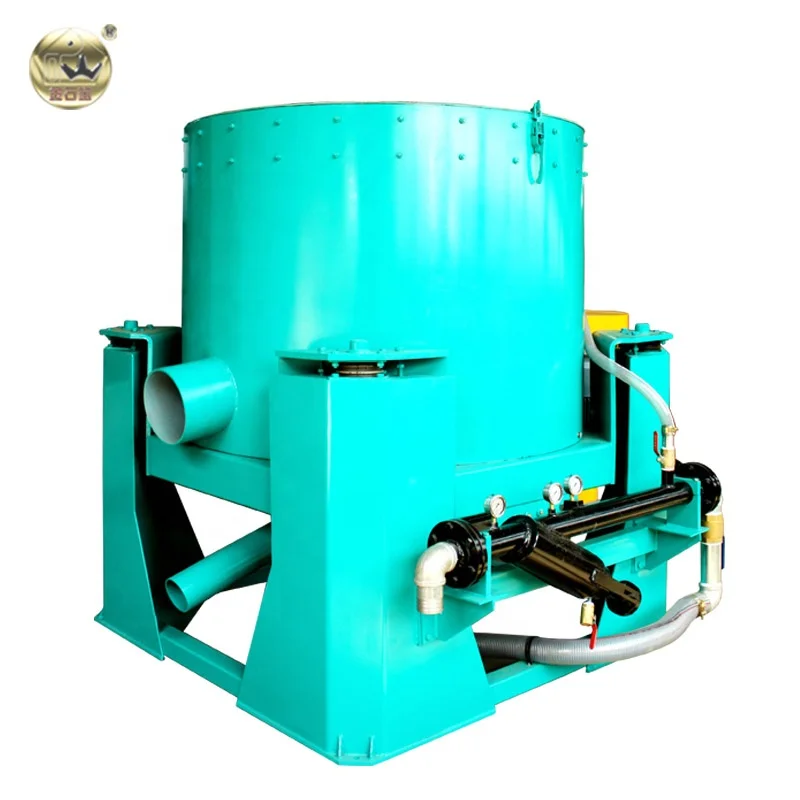

Technically Improved Gravimetric Falcon Gold Centrifugal Concentrator

Product Description

CC (Centrifugal Concentrator) is a new type of gravity concentration equipment for concentrating gold and other high density minerals. It gets many competitive advantages compared with other concentration machines which create high returns for the investors. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

As a gravity separation equipment, CC enlarges the specific gravity differences of different minerals with the help of centrifugal force, thus it has a much better separation efficiency than other traditional equipment.

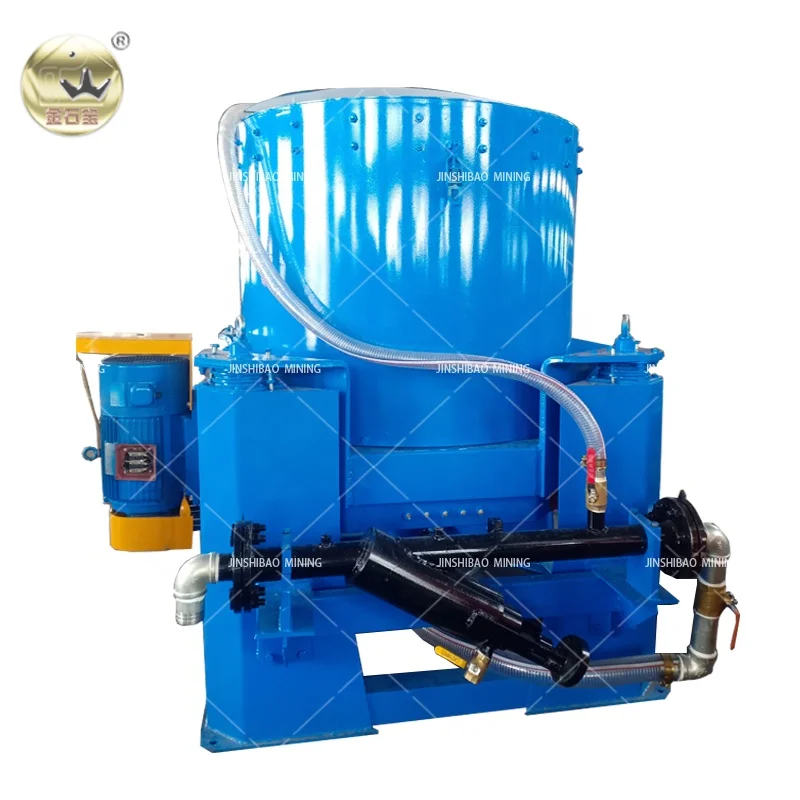

Here is the model D30 gold concentrator with PLC system which enable the concentrator to 100% automatically working.

D30 gold concentrator.jpg

Technical Parameter

Model	D20	D30	D60	D80	D100
Capacity (T/H)	1-3	2-7	15-30	30-70	60-100
Feeding size (mm)	0-3	0-3	0-5	0-5	0-6
Feeding density	<50%	<50%	<50%	<50%	<50%
Fluidization water(m3/H)	1-2	4-6	10-20	20-35	40-60
Concentrates weight(kg)	2-3	8-15	30-40	60-70	70-80
Water pressure(Mpa)	0.06-0.1	0.1-0.15	0.1-0.2	0.1-0.2	0.1-0.2
Motor power(kw)	0.75	1.5	4	11	18.5
Dimension(mm)	800×700×980	1050×900×1150	1600×1400×1800	2100×1800×2100	2300×2000×2200
Weight(kg)	270	420	1600	2400	3500

Gravity Gold Concentrator Gravity Gold Concentrator Gravity Gold Concentrator

Why choose us

In order to supply the best product to the customer, we are always dedicating to improving the centrifugal concentrator, including its efficiency, recovery rate, operation convenience, concentrates discharging time, and so on. In these years, our CC has been improved for several times. With the efforts of our technical team, our CC has been furtherly improved again.

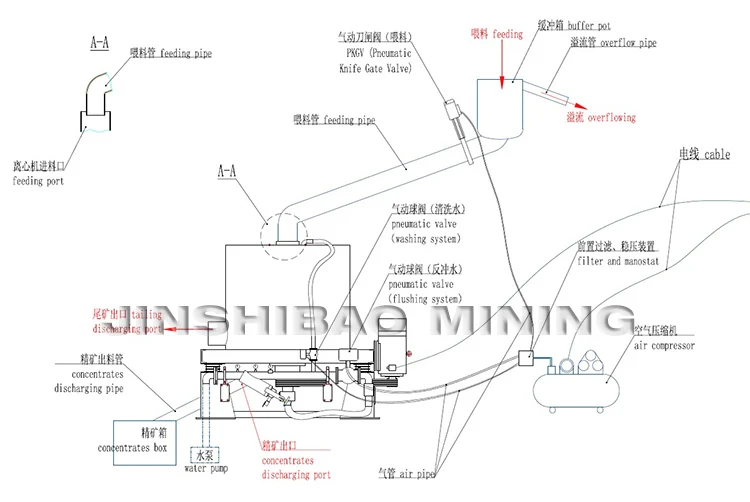

1. 100% FULL AUTOMATIC OPERATION is realized by adopting the PLC system, with achieving non-attended, remote control system

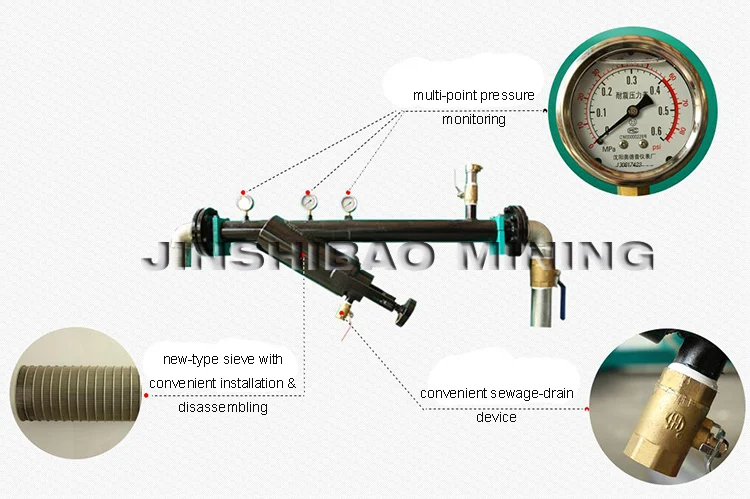

2. The complete new-type filter provides the machine with more stable performance and longer service life.

More photos

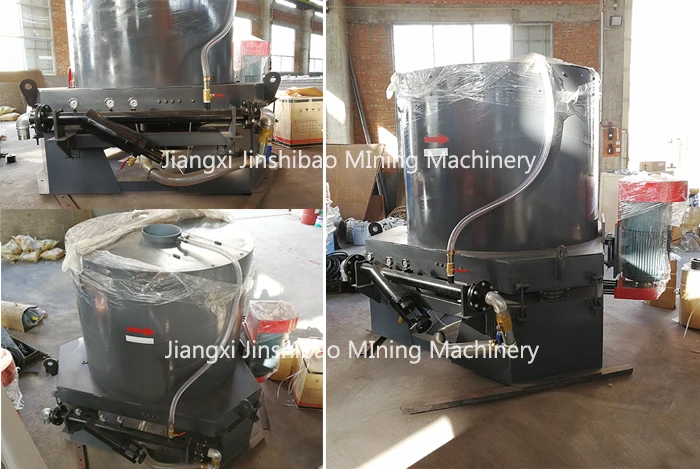

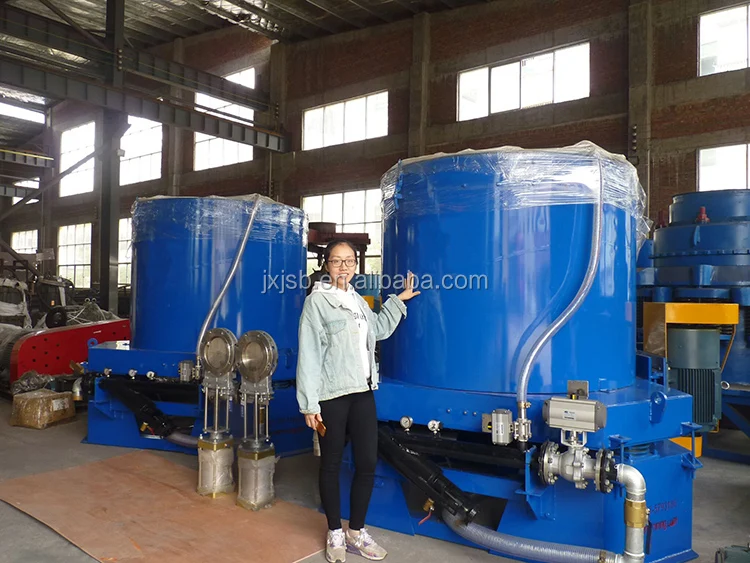

2 sets of D100 gold concentrator with PLC system sold to Malaysia:

centrifugal concentrator.jpg
