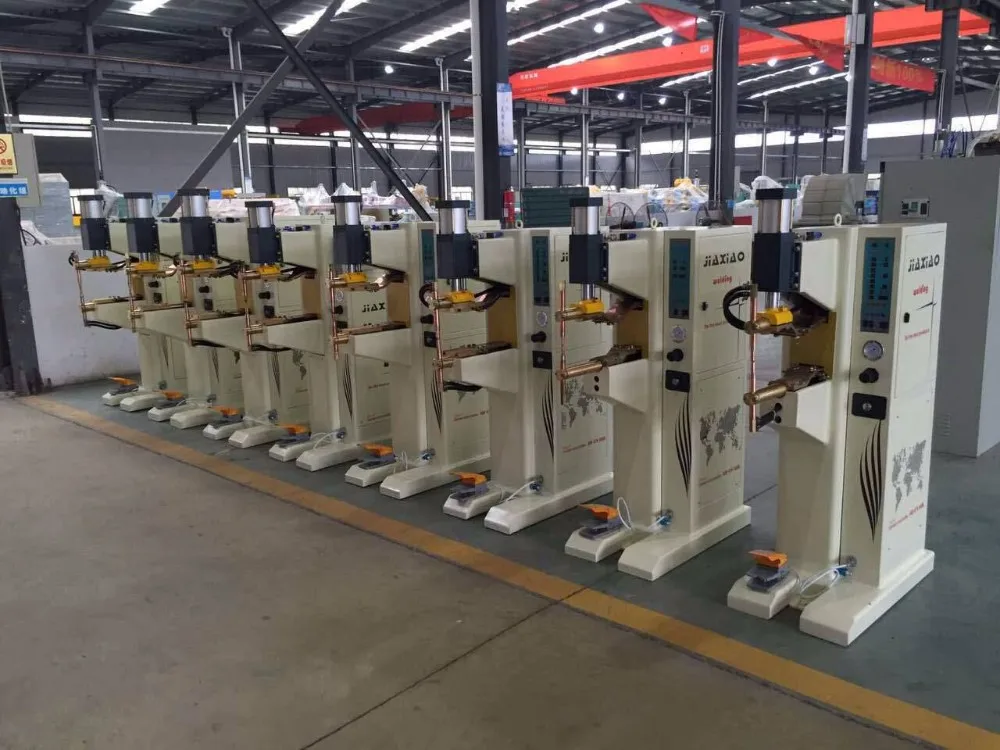

jiaxiao AC Spot Welder CE for welding nut

Product Overview

Description

jiaxiao AC Spot Welder  CE for welding nut



Main technology parameter:

Model	DN-35	DTN-63	DTN-100
rate capacity	35KVA	63KVA	100KVA
rate voltage input	380V	380V	380V
rate frequency	50HZ	50HZ	50HZ
Max.short-cut current	15KA	19KA	27KA
Max.welding input	79KVA	139KVA	207KVA
Duty cyclce	15%	15%	15%
Arm dimension	200*420mm	220*420mm	220*420MM
Max.pressing force	2500N	3900N	6100N
Cylinder stroke	60mm	60mm	60mm
Consumer of cooling water	≥3.0L/min	≥3.5L/min	≥4L/min
Electrode head	Φ13mm	Φ16mm	Φ20mm
Electrode holder	Φ20mm	Φ25mm	Φ30mm
Electrode arm	Φ44mm	Φ49mm	Φ59m
Platform size	/	110*130mm	120*130mm
Welding ability	2mm+2mm	3mm+3mm	4mm+4mm
Weight	215KG	265KG	337KG
Dimension	950*430*1450mm	960*460*1500mm	1020*490*1580mm







Benefits:

1.Transformer is made of copper and epoxy resins with cooling water and low resistance,low loss and high output, good seismic performance, high power factor, transformer can be replaced without charge in five yeas because of quality defects.



2.Microcomputer constant pressure/current controller, three sections discharging,can control each welding time and welding current accurately,easy to operate.



3.The upper and lower arms are entire plate and " C " structure, which make the machine body having good rigidity. The main axis of the cylinder is designed with big and small axis, fall down fast and reduce shock. These designd promise the high and steadily welding quality.



4. Reasonable secondary circuit structure, high quality conductive material, which reduces circuit impedance greatly and makes sure high efficiency and saving energy welding.



5.Air storage tank in the front and muffler in the back can reduce the room for installing air storage tank, make working pressure more steadily and reduce the noise of echausting gas.



6.The pressure regulator and pressure gauge in the front are convenient to operate and look more comfortable. Toolbox is designed by separating electrical box room to place file, sandpaper, and handle forunloading electrode conveniently.



7.The asymmetric body design is introduced firstly in China. It has the benefits of compact structure, convenient to transport, install, and maintain. The disign is more humanizing and industrialized.



8. It is widely used in hardware, electrical appliances, automotive, aerospace and other fields of high quality welding requirements.



 Use:

This type of welding machine widely used in hardware manufacturing, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
