GDP 2S Portable Digital Inclinometer For Drilling Borehole azimuth

Product Overview

Description

                           GDP-2S Portable Digital Inclinometer For Drilling Borehole inclinometro e azimuth





Main Applications and Features

GDP-2S Portable Digital Inclinometer For Drilling Borehole inclinometro e azimuth

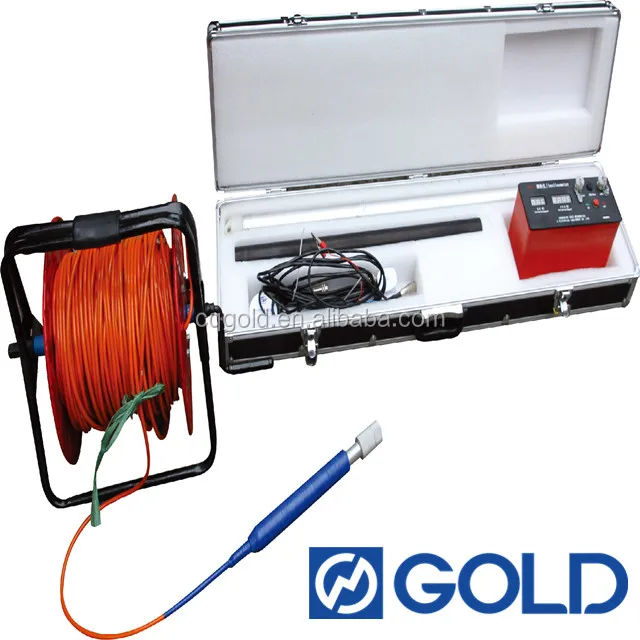

Digital inclinometer is a new high-precision inclinometer system which consists of ground instrument, probe, cable and other components. It is widely used in measurement of vertex and azimuth for various types of geological drilling.

• Widely used in measurement of vertex and azimuth for various types of geological drilling.


• Direct-reading of vertex and azimuth


• Digital display, point measurement or continuous measurement


• Simple, reliable operation,

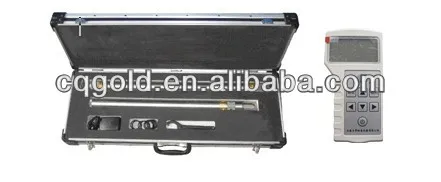

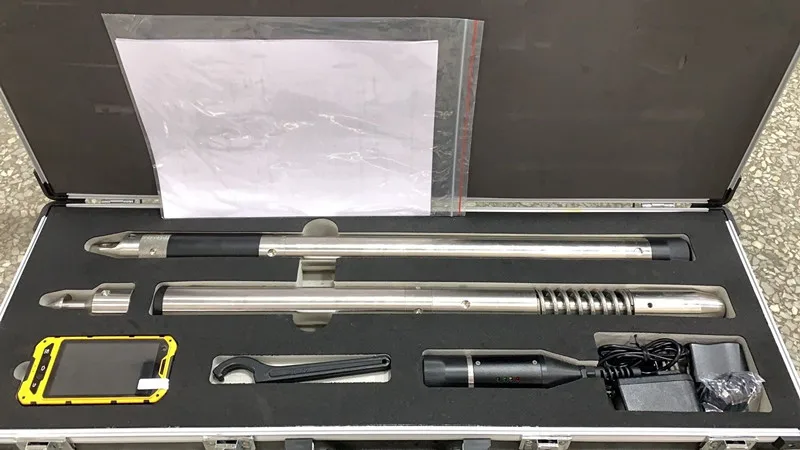

    GDP-2S Portable Digital Inclinometer



Main Specifications

GDP-2S Portable Digital Inclinometer For Drilling Borehole inclinometro e azimuth

1. Inclination range: -45°~45°    Accuracy : ±0.5°

2. Azimuth range: 0°~360°     Accuracy : ±4°

3. Endurable pressure: 15Mpa

4. Dimensions: 40mm×1230mm  Weight : 6 kg

5. Max work time: ≤120 mins

6. Work temperature -20°C ~ +85°C

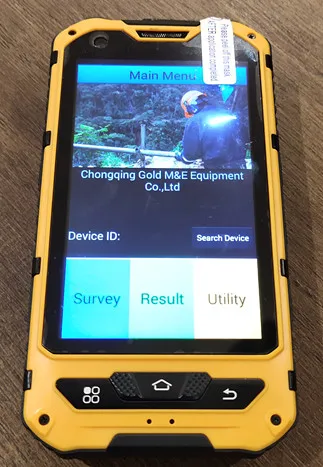

7. Voltage: DC 9V (inside the instrument)     Portable Controller : four AA batteries

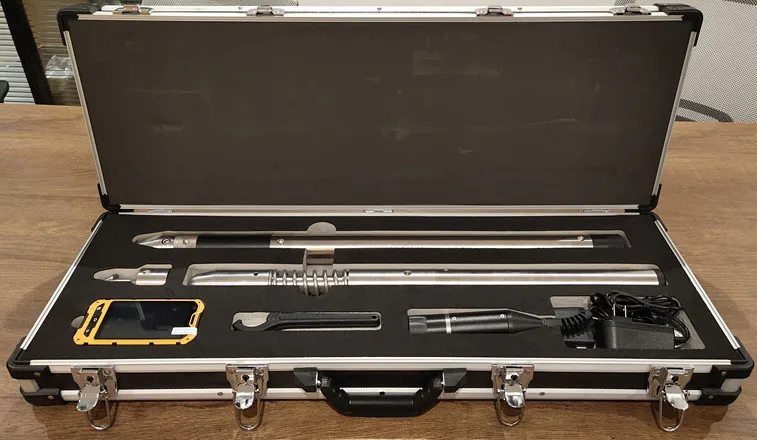

   GDP-2S Portable Digital Inclinometer
