Good quality Wave soldering machine for dip production line soldering machine
- Category: >>>
- Supplier: Shenzhen Leadsmt Technology Co. Ltd.
Share on (1514776092):
Product Overview
Description
Product Description

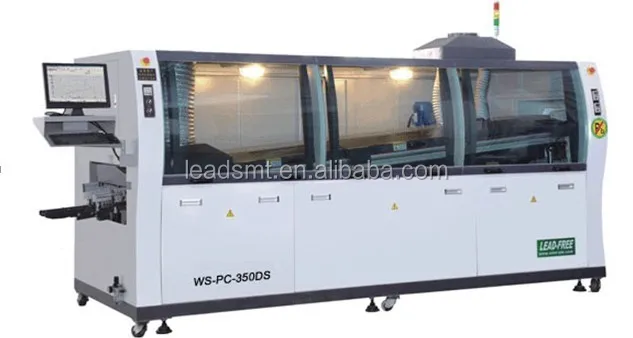

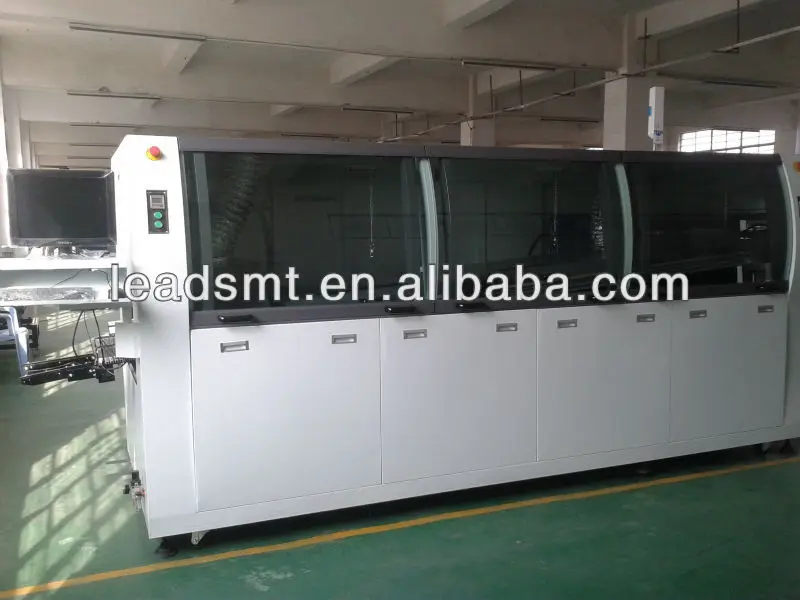

WS-350DS Wave Soldering Machine
Computer Lead-free Dual Wave Soldering Machine is a high performance lead-free wave soldering machine which special developed for medium and Big enterprise.
Windows 7 operation software with Chinese and English alternative available, whole machine under integration control can display the failure and save all production data for further analysis.
External streamline design and modularized design inside is not only nice-looking but also easy for maintenance.
Flux sprayer creates good atomization with low consumption of flux.
Turbo-fan exhausting with shielding curtain can prevent atomized flux spreading to the preheating zones and ensure the operation safety.
Modularized heaters in preheating convenient for maintenance; Heating under PID control achieves stable temperature and smooth profile, which can solve the difficulty during lead-free process.
Soldering pot employing high-strength and distortion-free cast iron produces super thermal efficiency. Wave spouts made of Titanium ensures little thermal distortion and low oxidation.
With automatic timing start-up and power-off of whole machine.
Machine Model No. | WS-PC-350 |
Dimensions | L4500*W1450*H1750mm |
Weight(Kg) | Approx: 1200Kg |
Startup Power | 25kw |
Run Power | 7.0kw |
Control Method | PC+ SIEMENS PLC Control |
Power | PC+ SIEMENS PLC Control 380V 50Hz/60Hz,3 Phrase |
Push type | Air cylinder |
Spray Pressure | 0.3-0.5MPa |
Spray wash | Auto Wash |
Flux control | 0-100ml |
Auto fill flux | Auto Fill |
Ducting Dimensions | D 200mm |
Exhaust | Up Exhaust |
Preheater Mode | Hot air or IR tube |
Preheater Zone number | 3 |
Preheater length | 1800mm |
Preheater Temperature | Room temperature~250°C |
Warm up time | Approx. 15min |
PCB width | 50-350mm |
Conveyor Direction | L-R |
Conveyor Speed | 0-2000mm/min |
Conveyor High | 750±20mm |
PCB High | Top 120mm Bottom 15mm |
Speed Control | Frequency |
Finger | Dual Hook Finger |
Conveyor Angle | 4°-7° |
Solder Wave Driver | Motor Drive |
Solder Pot Material | Titanium,316SUS |
Pot Power | 9kw |
High temperature | 350°C |
Pot Capacity | 300-400Kg |
Wave Motor Power | 1/2HPx2 3P,220VAC |
Solder Warm-up time | APPROX: 200min |
Cooling Method | Forced air |
Finger Cleaning System | Auto |
Packaging & Shipping
1.Packing Sizes : (L)446*(W)156*(H)195CM,13.57CBM
2. Packing Materials : Vacuum Bag + Plywood Case
3.Net Weight 1360 kgs, Gross Weight 1540 KGS .
Reference Picture :
Our Services
1.On site Installation Service can be negotiation . we have 18 years engineer for wave soldering machines manufacture, can provide solutions to fix all the problem of the wave soldering machine.
2.Online Service is free for full life of the machine .
3.Detail guidebooks with all steps for operation and introduction of the machine is provide before machine delivery .

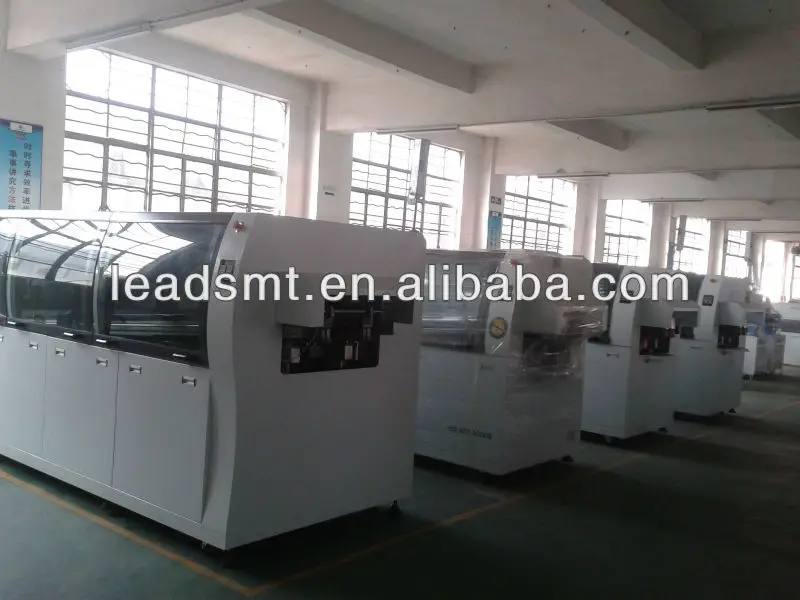

Company Information

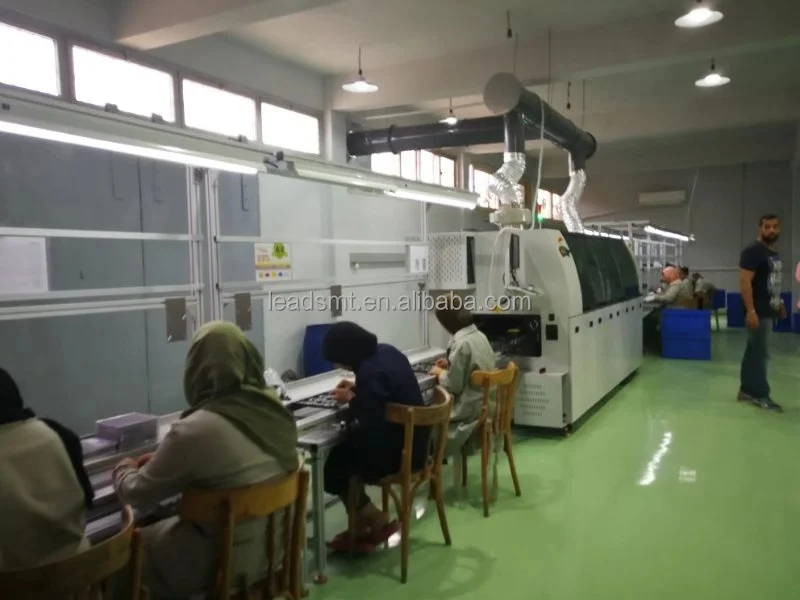

Shenzhen Leadsmt Technology Co.,Ltd is a real manufactory for wave soldering machines since 2003 . The wave soldering machines from Leadsmt has been application in different types of electronics manufacture in Mexico ,USA ,Egypt ,India ,Pakistan ,South Africa etc .
We Mainly have 4 models of wave soldering machines :

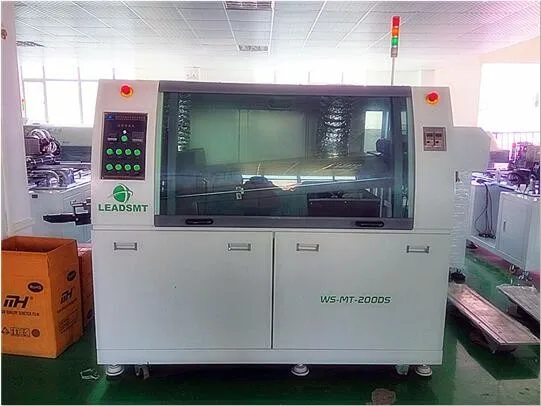

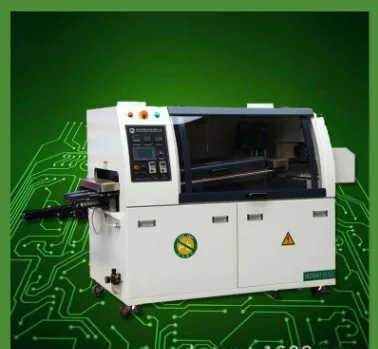

WS-GOT/MT-200DS Wave Soldering Machine
WS-GOT-300 DS Wave Soldering Machine

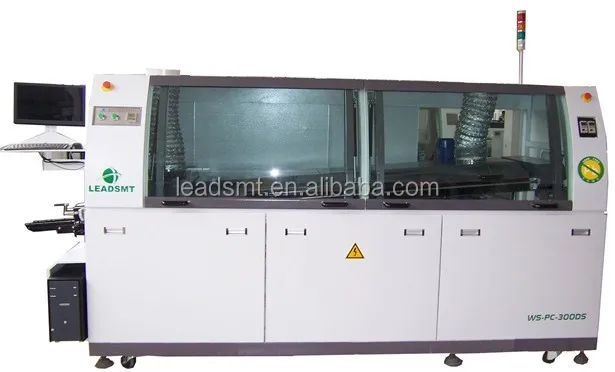

WS-PC-300DS Wave Soldering Machine
WS-PC-350DS Wave Soldering Machine
FAQ
Q1 : Does your wave soldering machine flux spray automatic or flux bath manually ?
A1. The Leadsmt wave soldering machine flux Spray automatically with spray nozzle .
Q2: What is the capacity value of solder to feed the solder Pot ?
A2: The GOT200- (180-210 KGS ), GOT/PC-300 - (280-310KGS) ,,PC-350-(330-380 KGS)
Q3: if i have more questions how to Contact you ?
A3.By whatspp or wechat : 008613610497541
