LX 2D Luxury environmental Auto painting booth/Car Paint Camera with CE

Spray Booth Allocation Table

Inside Size (mm)

8600*4000*3400mm(L*W*H)

Outside Size (mm)

8700*5630*4230mm(L*W*H)

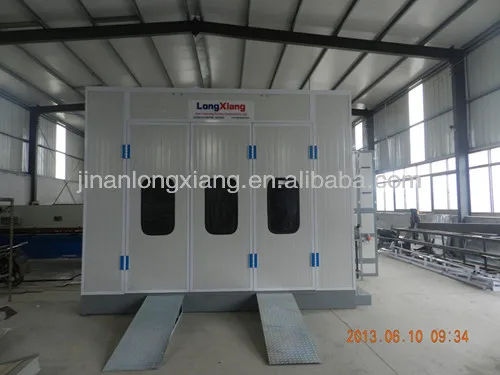

Main Door

 3-folds, tempered glass with each fold of door

Personal Door

1 fold, with pressure lock.

Cabin System

1.  Wallboard: EPS (epispastics polystyrene) Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove construction, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation.Rock wool wall panel could be a choice.

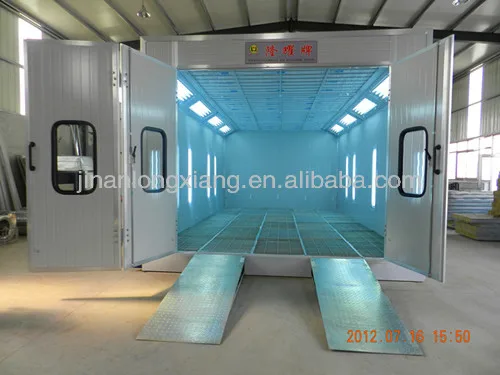

2.  Basement: Galvanized Steel Assemble, three rows of indented plate, two rows of grills, (full grid is available), two pieces of ramps.

Air Circulation System

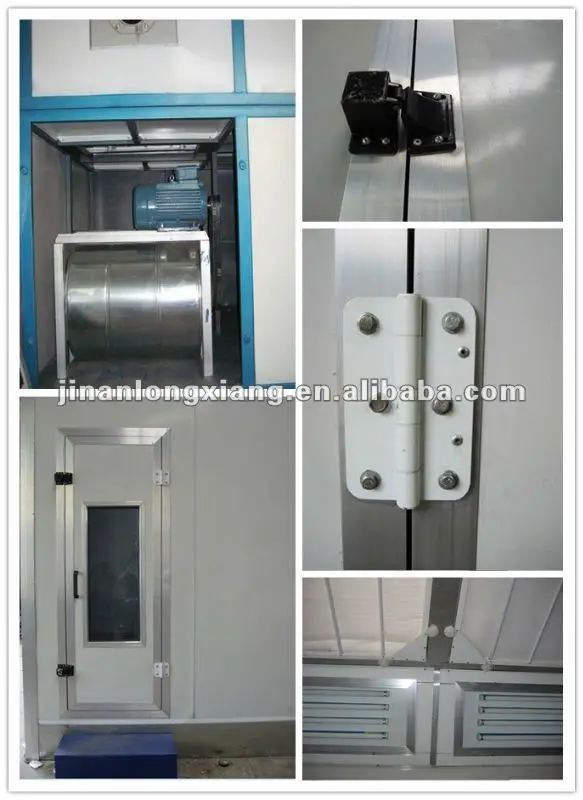

1. Inlet Fan:
Blower capacity: 30000m³/h;
Quantity: 1set.

Light System

Ceiling lights: 12units×4pcs×36w.

Generator setting type

side upper intake air, quadrate steel frame, coated steel.

Heating System

  1. Burner: RIELLO G20 oil burner, heating productivity: 200000 Kcal/h, 1 set.
  2. Heat Energy Converter: stainless steel heat exchanger, argon arc welding;
  3. Max Temp: 80°C.

Purification System

Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤1.2mg/m³

Controlling System

Domestic high quality material assembling, overload, overheating, and default phase protect. The machine stop working automatically when set baking time.

Total Power

11KW
