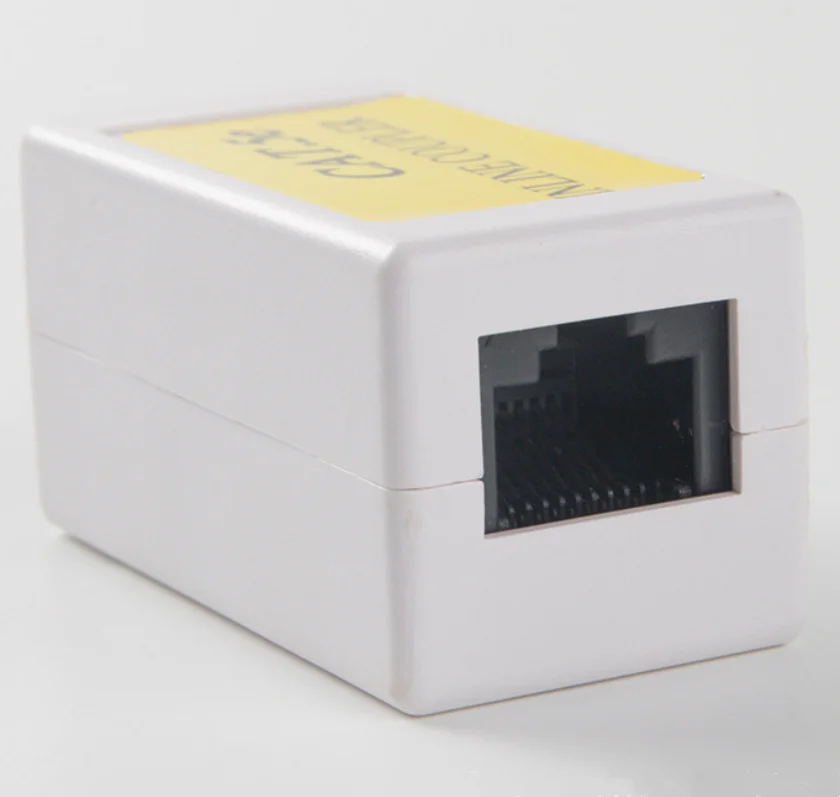

UTP Cat5E Network Cable Female Connector LAN Cable Extension RJ45 Coupler cat5e Network module

Product Overview

Description

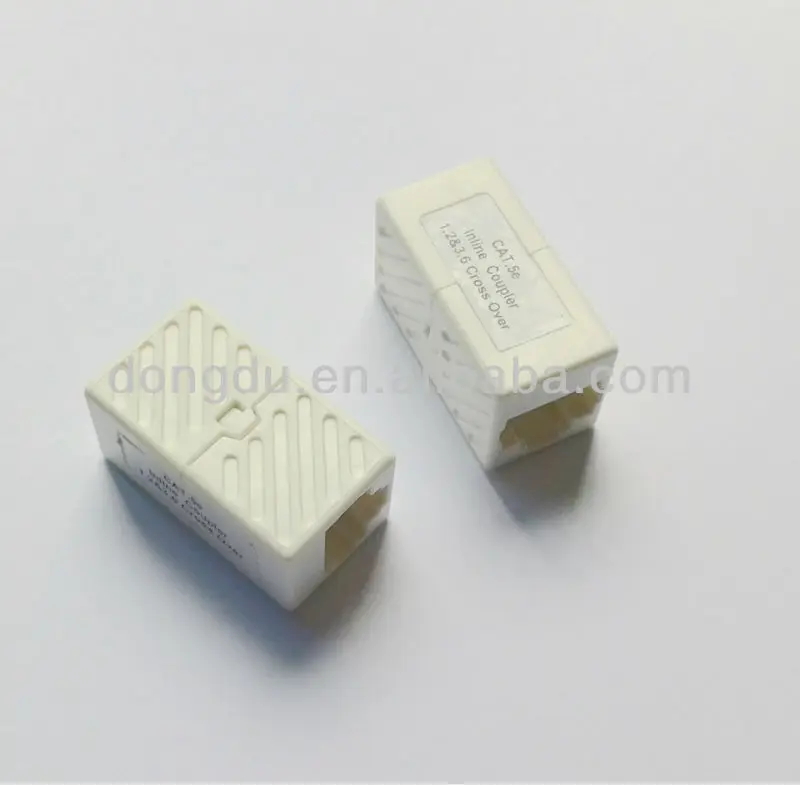

UTP Cat5e RJ45 cross over Coupler





UTP for network cabling,structured cabling and telecom.

1. RJ45 jack contact,phosphor bronze,nickel-plate with 50 micro-inch gold-plating.

2. Housing:ABS +PC,UL94V-0

3. Insertion force:900g for eight contacts.

4. Retention strength:7.7kg between jack and plug

5. Operation temperature:-40 to 80 degree celsuis

6. Durability:jack 750 cycles plug-jack mating and unmating test,insertion cycles at 20 cycles/minute maximum.

7. Contact resistance test per 100 cycles.

8. IDC:maximum 200 punching times.

9. Category 5E/6 performance is in compliance with the ANSI/TIA/EIA 568 B.2-1 standard.

10.VSPD:UTP connectors.

11.Wiring:CROSS-OVER
