manual color matching and mix machine with CE certificate

Product Overview

Description

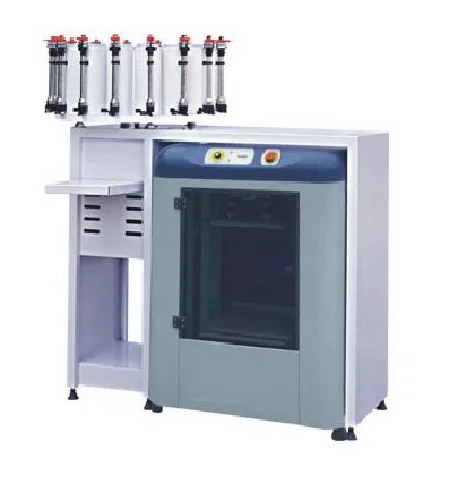

This model machine is a combined with manual  paint shaker and manual paint dispenser.

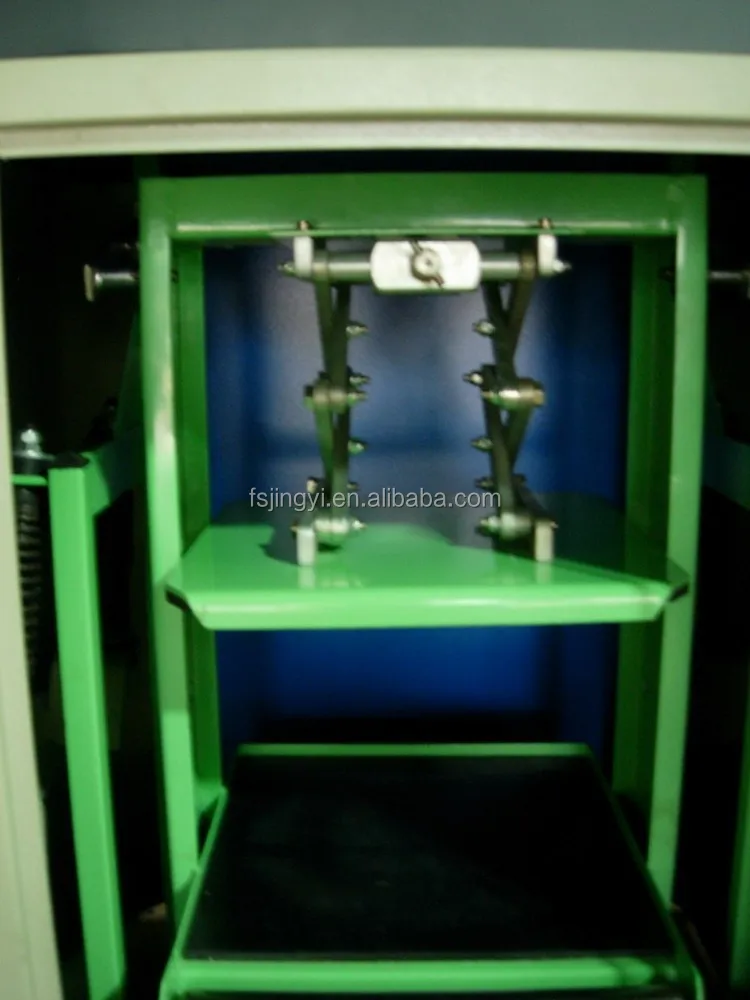

JY-40A manual paint shaker





Technical data:

. Applicable range: 0.5L-20L (paint in drum)

. Applicable height of drum range: 80mm-410mm

. Shaking frequency: 710t/min

. Working power: 220V 50HZ

. Power supply: 0.75kW

. Net weight: 210kg

. Gross weight: 240kg

. Case size: 1100(H) x 820(W) x 900(D)

. Packing size: 1170(H) x 810(W) x 900(D)



Features:

. High-speed thorough action mixes most paints in at most 30 seconds will accept 0.5L-20L drump

. Fully enclosed for silent operation ad added safety.

. Large door with front roller for easy can load.

. Safety interlock - Prevents the cabinet door from being opened while the machine is running.

. Accommodates all can shapes and sizes from 0.5L-20L.

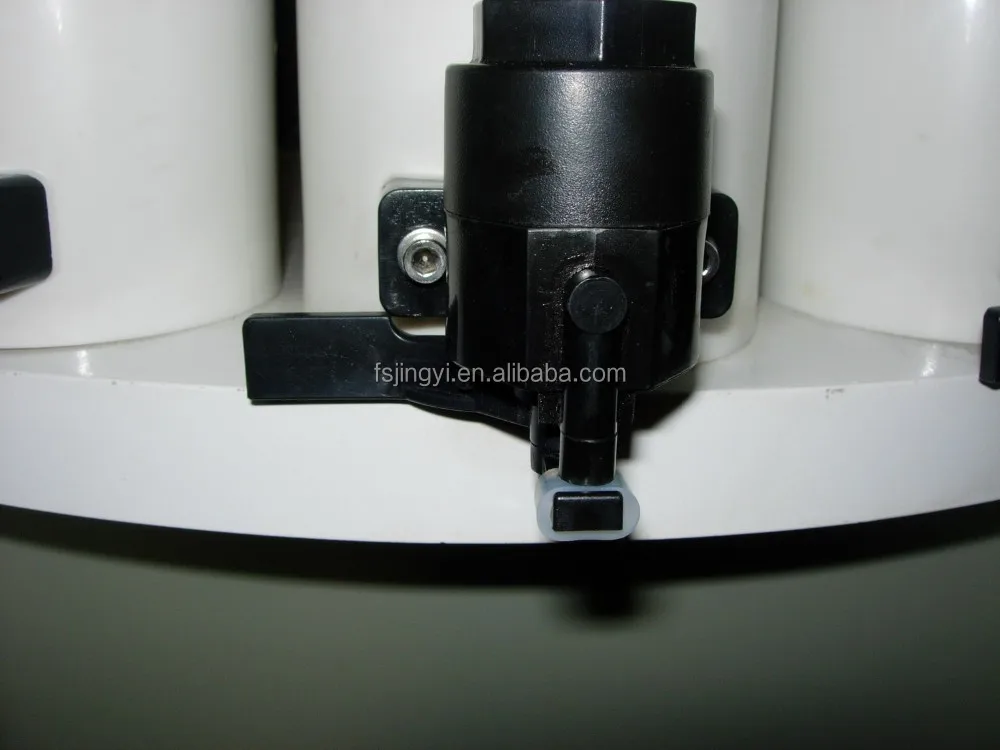

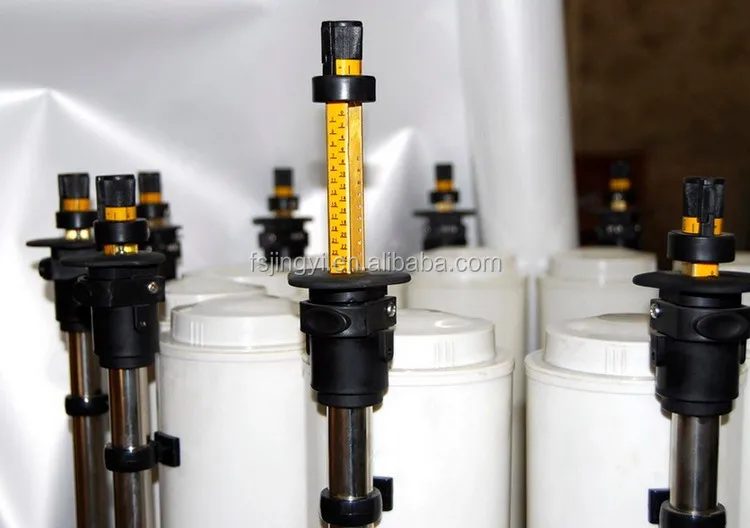

The JY-20B manual dispenser:





Technical data:

1) Application: Water or oil colorant (1 to 20types)

2) Canister: 2.3L plastic canisters or stainless steel canister (please tell us when ordering, they are different price)

3) Canisters quantity to choose: 12,14,16,20,24 (this will be 1.75L)

4)Max discharge per time: 2 fluid ounce

5) Accuracy: 1/192Y or 1/384Y or 1/256Y or 0.1ml or others

6) Working power: 220V or 110V; Frequency: 50/60 HZ; Power supply: 40W



Features:

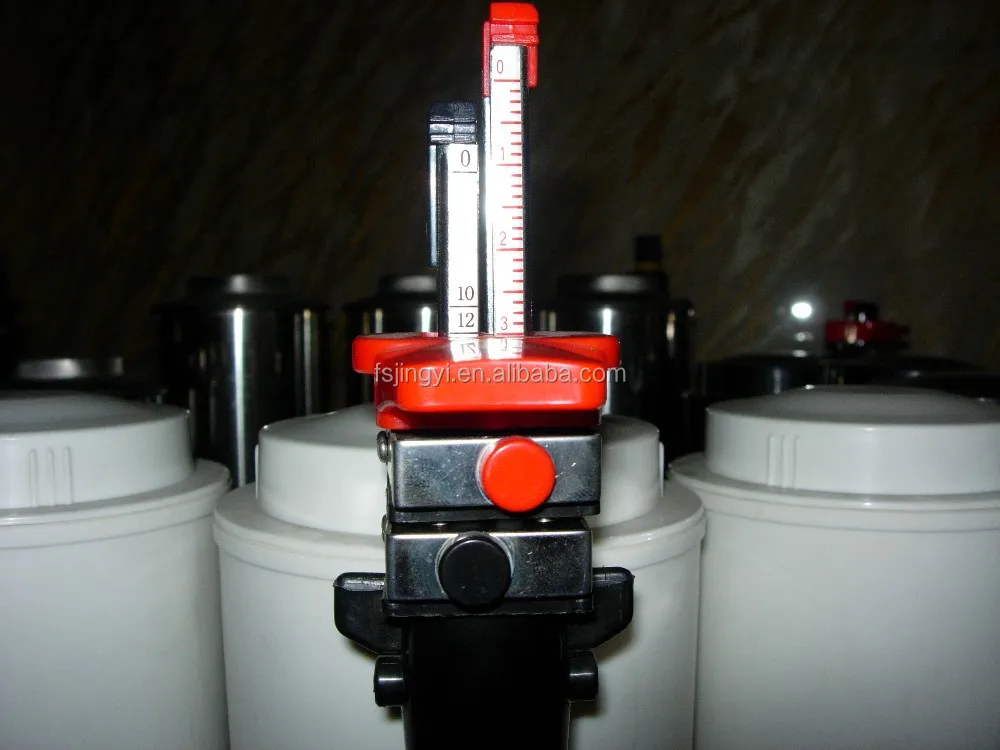

1) Double-pump and double-gauge ensures stability of accuracy and repeatability.

2) Automatic blending of rotating blades ensures equal distribution of colorant and has no deposition.

3) Colorant tray that can automatically rotate fix brings more convenience for operation.

4) Optional part:

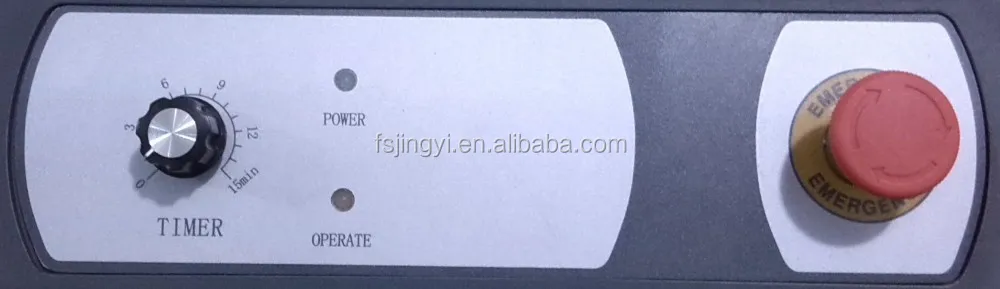

Timer---- after adding this timer, machine will mix the colorants for some time automatically every several hours

Spring on the discharging handle---with the spring on the handle will prevent the customer forget to close the discharging mouth, insure the colorants will not leak.
