Factory Price Heavy Duty Forging Axle Trailer Spindle
- Category: >>>
- Supplier: Guilin Pengyuan Trading Co. Ltd.
Share on (1519625131):
Product Overview
Description
Welcome to Guilin Pengyuan
Product Description

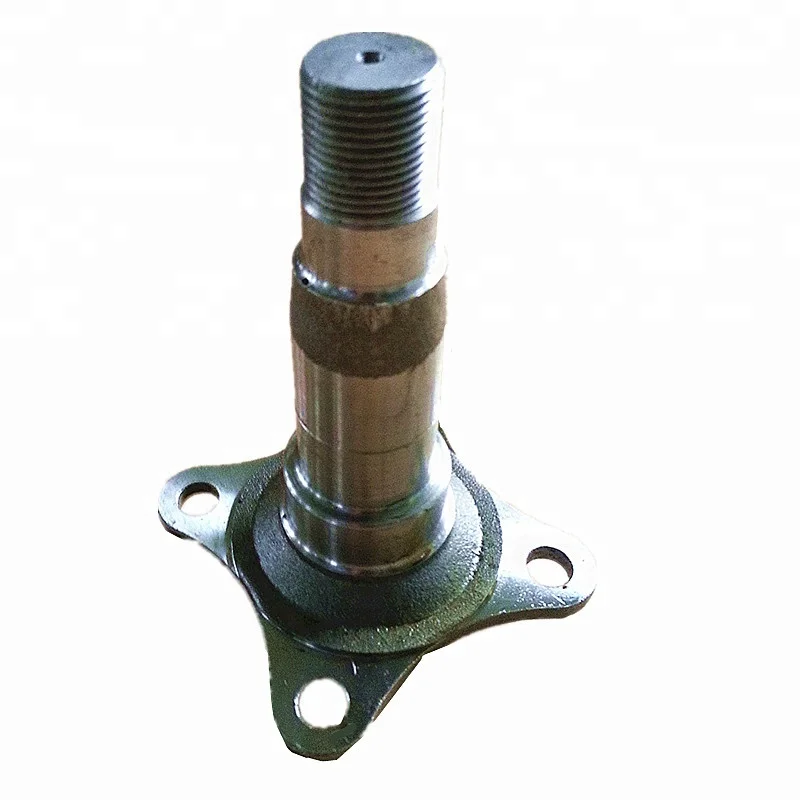

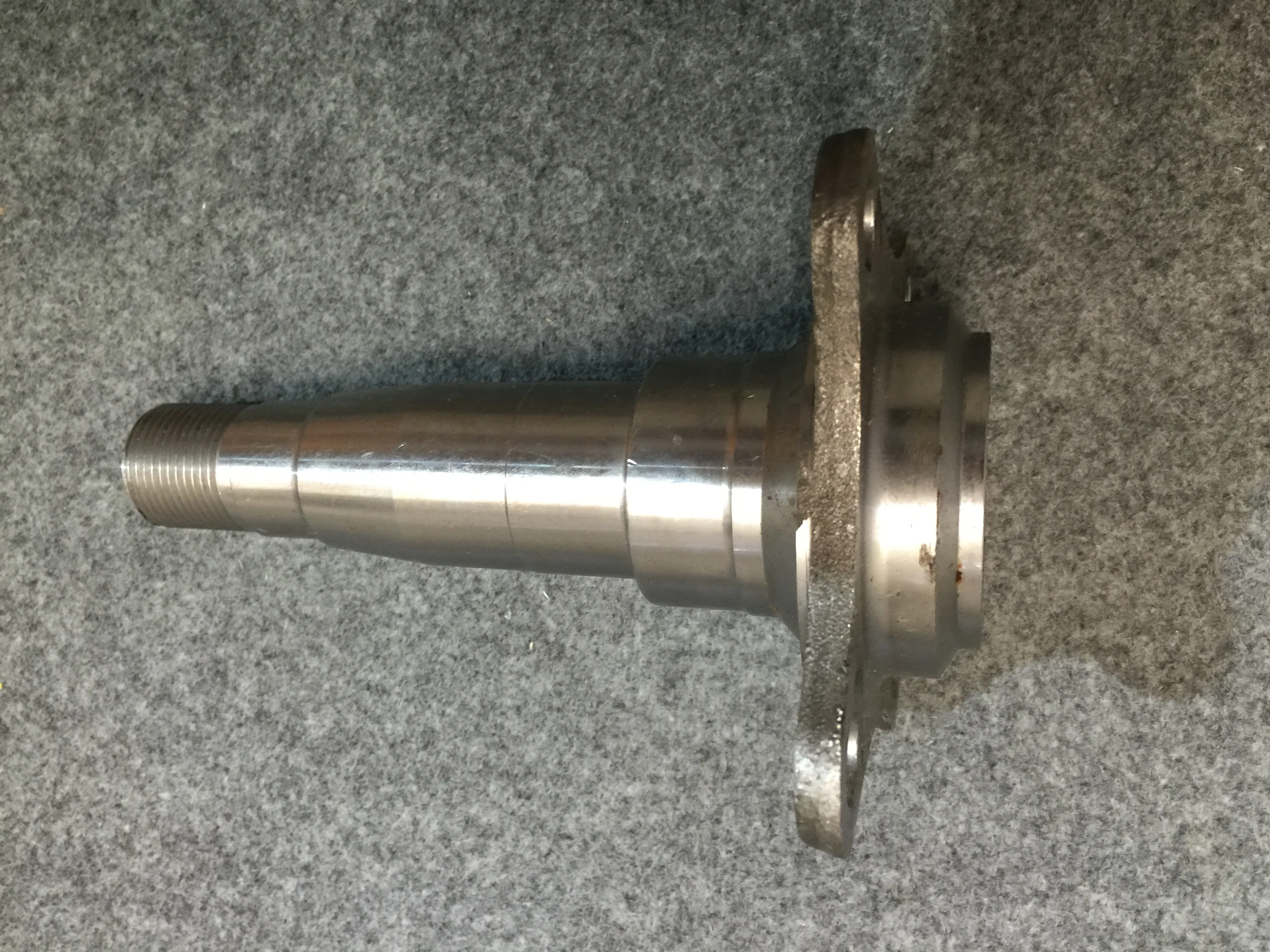

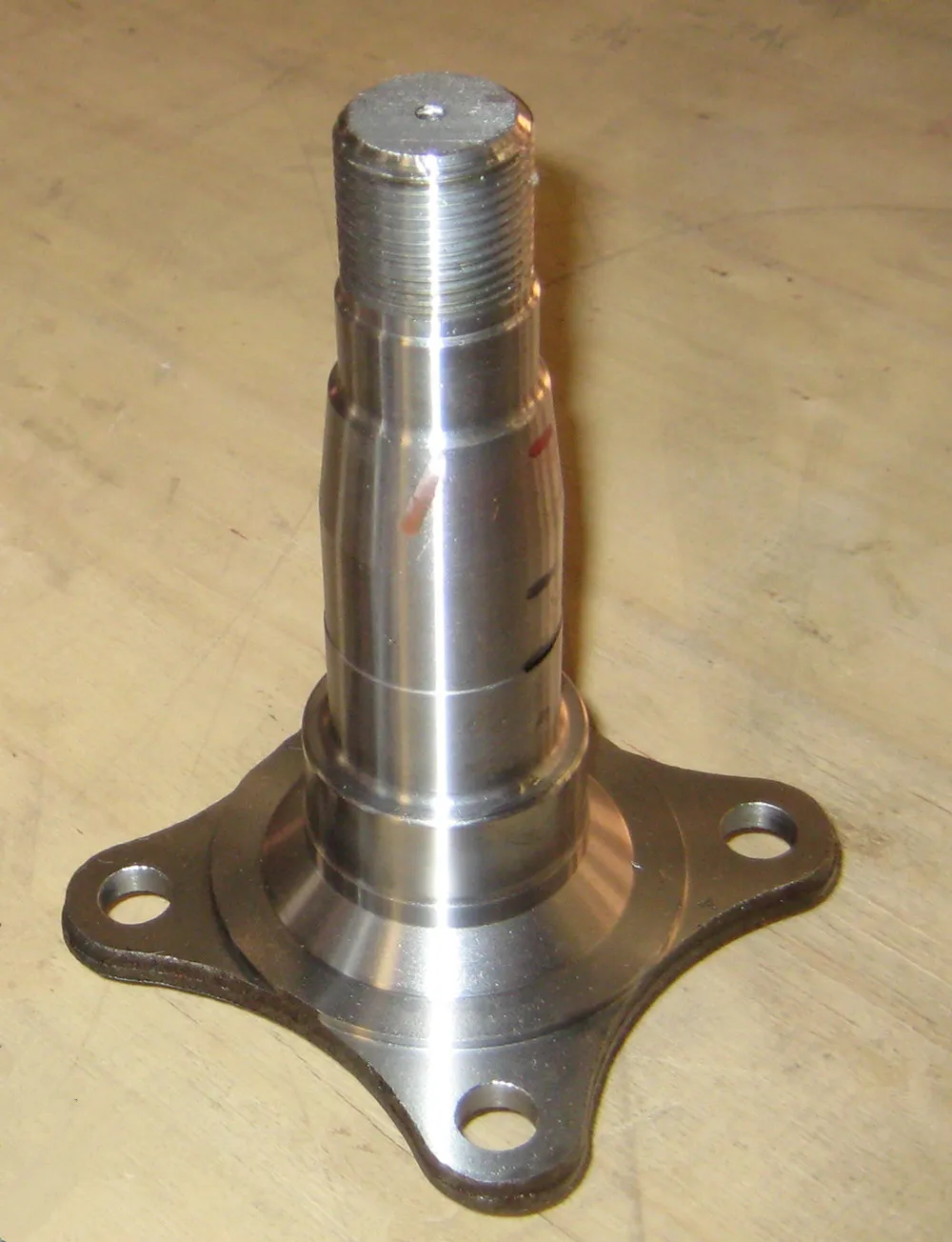

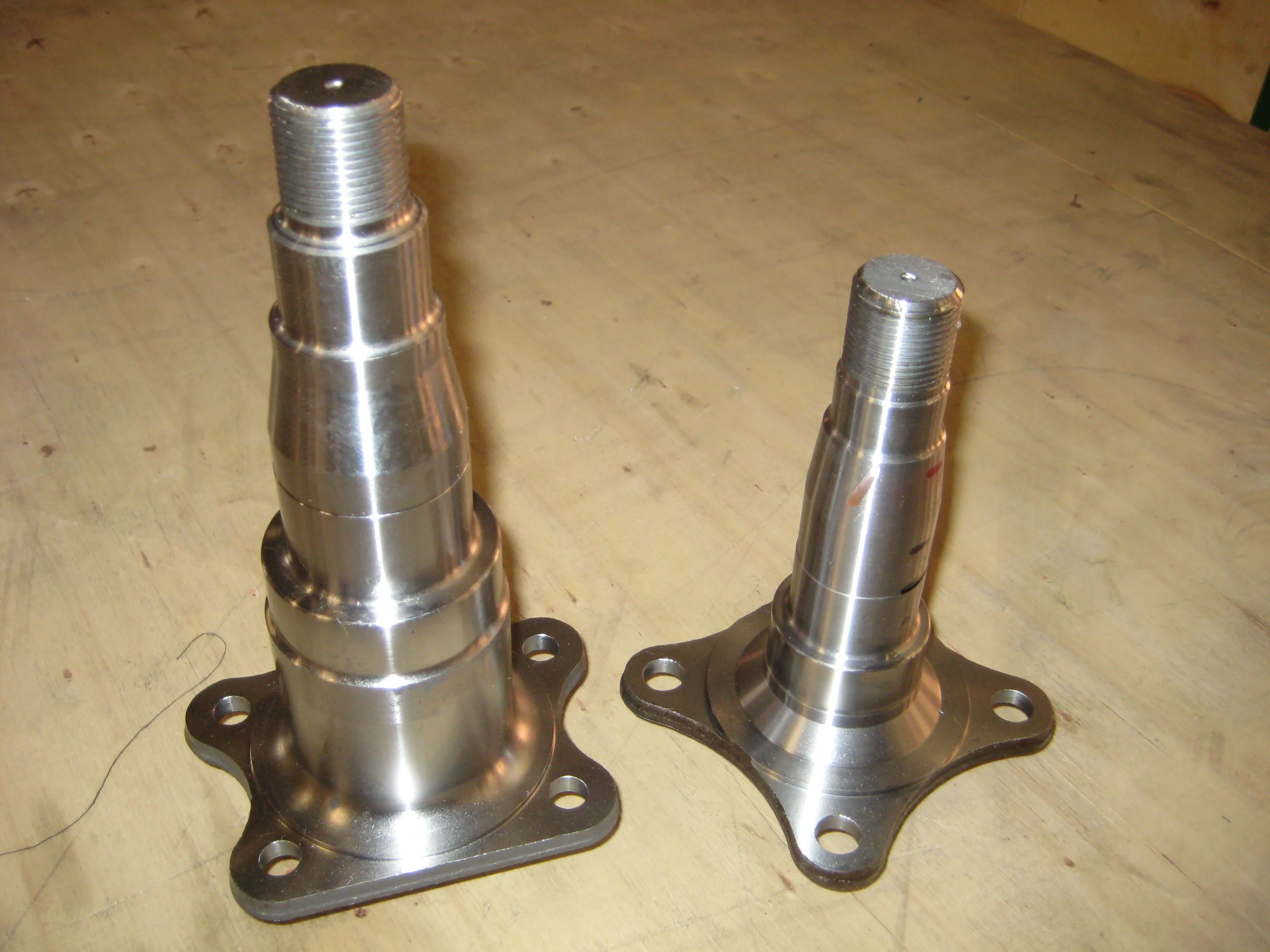

Factory Price Heavy Duty Forging Axle Trailer Spindle
Spindles, like most trailer parts, rarely receive much attention -- until they need to be replaced. On a trailer, the spindles are located at the very ends of the axles and they definitely do serve a purpose. When you're towing, spindles are the part of the trailer axle assembly that the wheel hubs (and wheels) rotate around. Trailer spindles provide a surface for the inner and outer wheel bearings to roll on -- or rather, to roll around. The inner and outer wheel bearings keep the wheel hub and the spindle from actually contacting one another. In other words, the spindles are literally at the center of it all.
Pengyuan offers a wide selection of hardened steel stock machined spindles that meet critical requirements of bearing and hub fit. Each spindle is turned from high tensile, cold rolled steel and 100% quality control checked for accuracy.
Spaecification of 3.5K Straight Spindle Sale for Trailers with Low Price:
Straight Spindles - Round Bar Stock:
DESCRIPTION | DIMENSIONS | |||||||
PART NO. | TYPE | CAPACITY | A | B | C | D | E | F |
53649 | Type-1 | 1000lb. | 8.250” | 1.250” | 3.375” | 1.230” | 0.999” | 0.999” |
53650 | Type-1 | 1250lb. | 8.250” | 1.250” | 3.375” | 1.230” | 1.062” | 1.062” |
53652 | Type-1 | 1000lb. | 8.250” | 1.500” | 3.375” | 1.250” | 0.999” | 0.999” |
53655 | Type-1 | 1250lb. | 8.250” | 1.500” | 3.375” | 1.480” | 1.062” | 1.062” |
53657 | Type-2 | 1750lb. | 8.250” | 1.750” | 3.375” | 1.720” | 1.376” | 1.062” |
53659 | Type-2 | 1750lb. | 8.250” | 2.000” | 3.375” | 1.720” | 1.376” | 1.062” |
53660 | Type-2 | 4000lb. | 11.000” | 2.250” | 6.000” | 2.230” | 1.749” | 1.249” |
Straight Spindles - Buttweld Style:
DESCRIPTION | DIMENSIONS | ||||||||
PART NO. | TYPE | CAPACITY | A | B | C | D | E | F | H |
53838 | Type-3 | 1000lb. | 6.680” | 1.310” | 1.630” | 1.250” | 0.999” | 0.999” | 1.900” |
53840 | Type-3 | 1250lb. | 6.680” | 1.350” | 1.630” | 1.500” | 1.062” | 1.062” | 1.900” |
53842 | Type-4 | 1750lb. | 6.350” | 1.950” | 2.265” | 1.720” | 1.376” | 1.062” | 2.450” |
53844 | Type-4 | 1750lb. | 6.050” | 1.950” | 2.265” | 1.720” | 1.376” | 1.062” | 2.340” |
53846 | Type-4 | 1750lb. | 6.350” | 2.550” | 2.265” | 1.720” | 1.376” | 1.062” | 3.000” |
53847 | Type-4 | 3500lb. | 8.250” | 2.450” | 2.740” | 2.129” | 1.749” | 1.249” | 3.000” |
53648 | Type-4 | 4000lb. | 8.610” | 2.930” | 2.740” | 2.250” | 1.749” | 1.249” | 3.500” |
- All spindles are machined to 1"-14 UNS-2A Thread(G) with 0.190" cotter pin hole.
- Welding of brake flange is available upon request; please add "F" to the end of the part number.
- Drilling for lubrication is available upon request; please add "G" to the end of the part number.
- Machining of D-Flat is
- Custom machining available upon request.
- available upon request; please add "D" to the end of the part number.
- Above dimensions are for reference only.
- Custom machining available upon request.
Related Products
Company Information
Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupying an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,
As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.
We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.
Production workshop and equipment:
Pengyuan is well-equipped with all kinds of trailer parts.
We has 487 sets of physical performance, chemical analysis,
metallographic inspection and other testing equipment.
Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit
Exhibition Style
Packing&Shipping
As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.
FAQ
1: Could you please make us an offer as soon as possible?
In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.
2: Could you please provide us with the specifications of the products?
Sure, please confirm the product code you need before that.
3: How can you guarantee the quality of your products?
Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.
4: How to solve the problems in the later stage?
We are confident in our products. We pack them well to make sure they are well protected.
