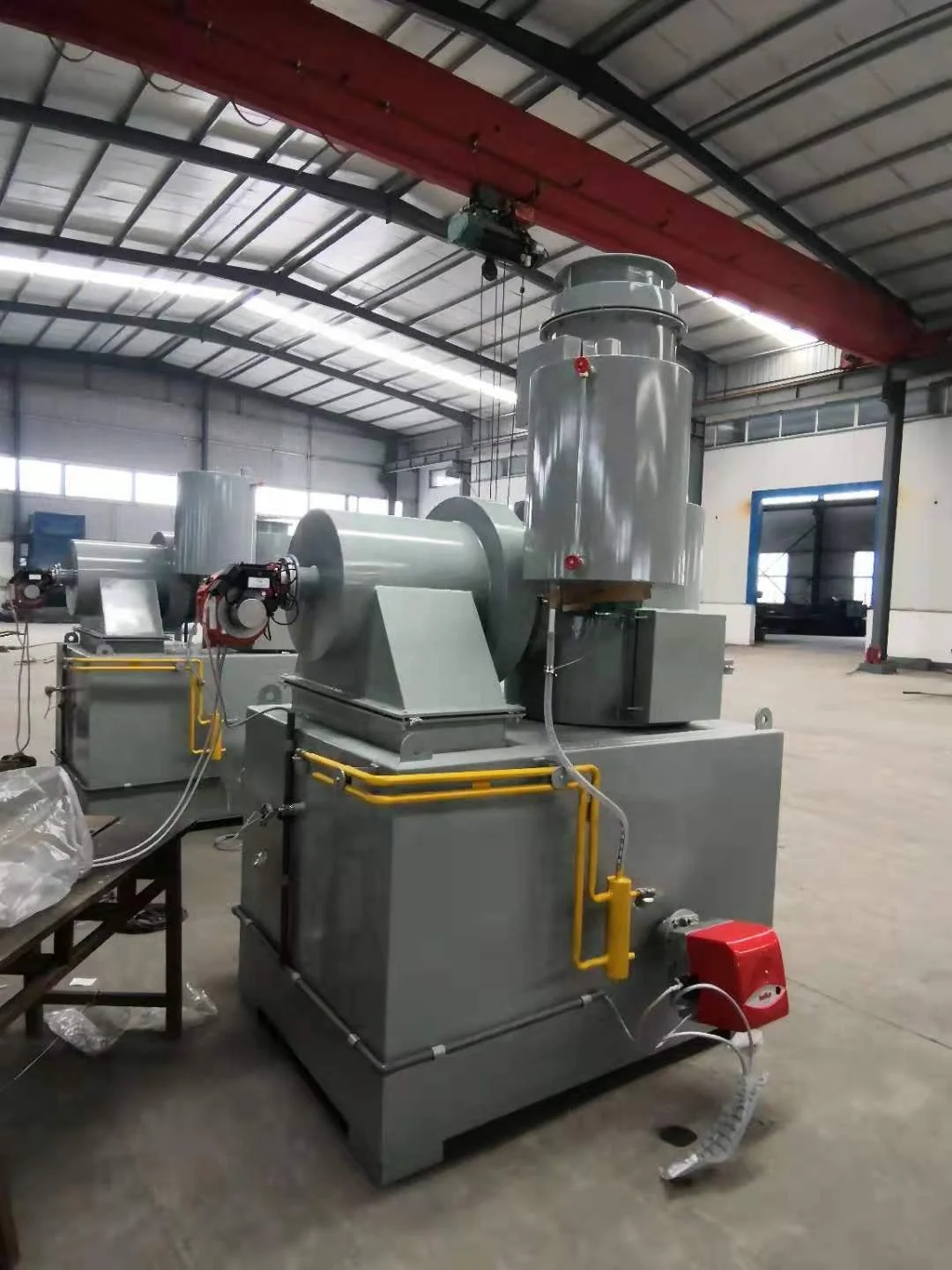

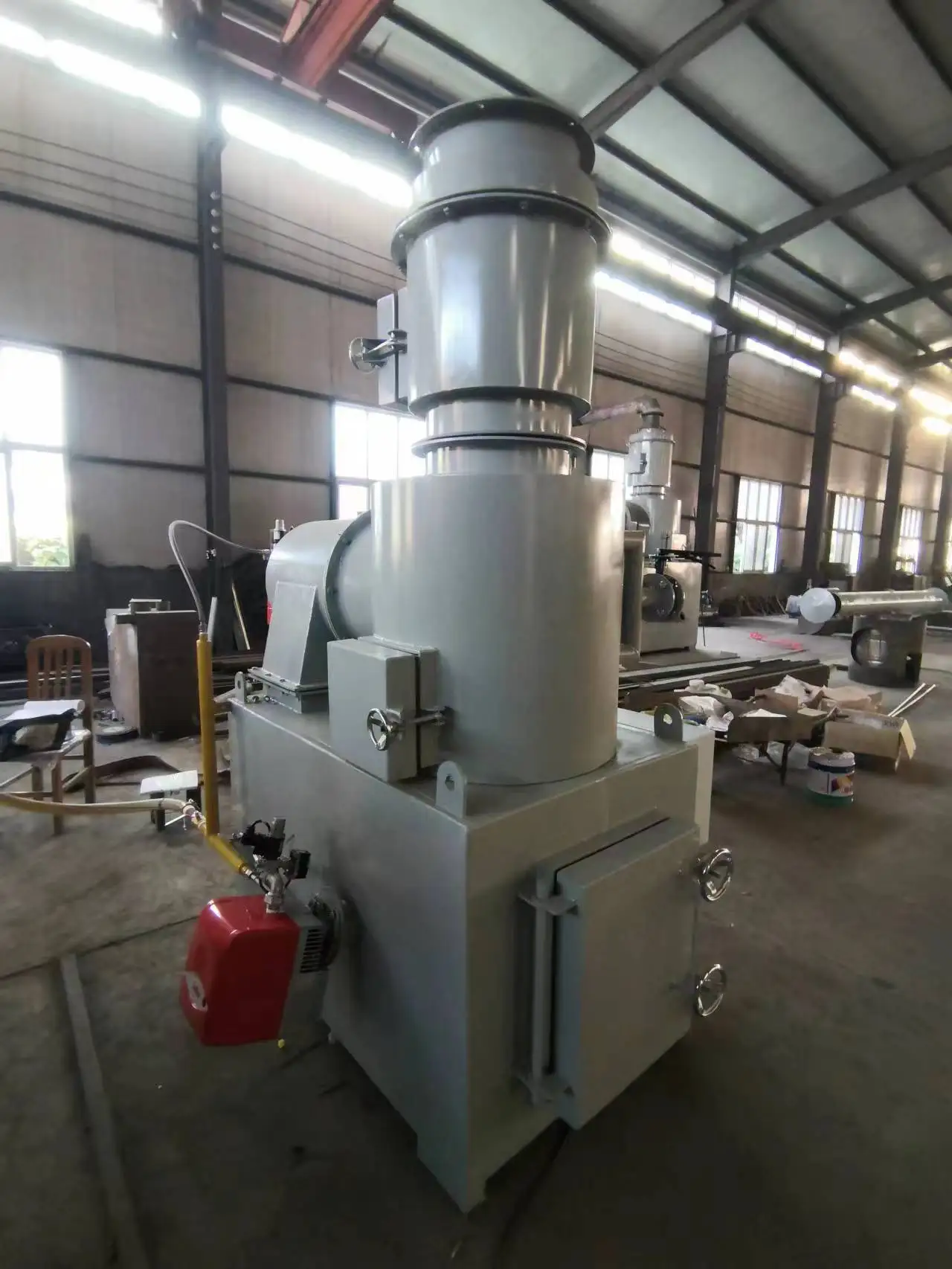

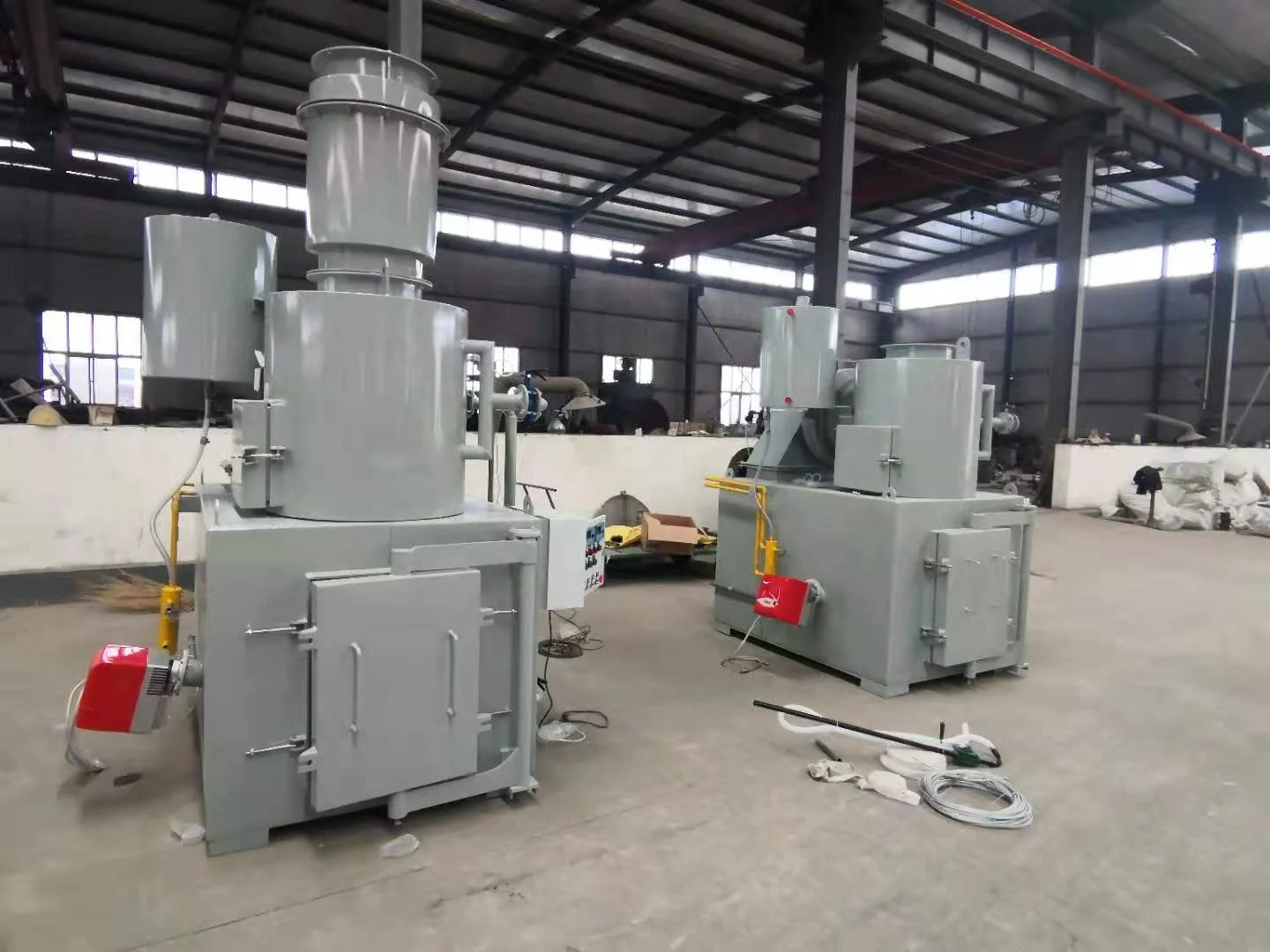

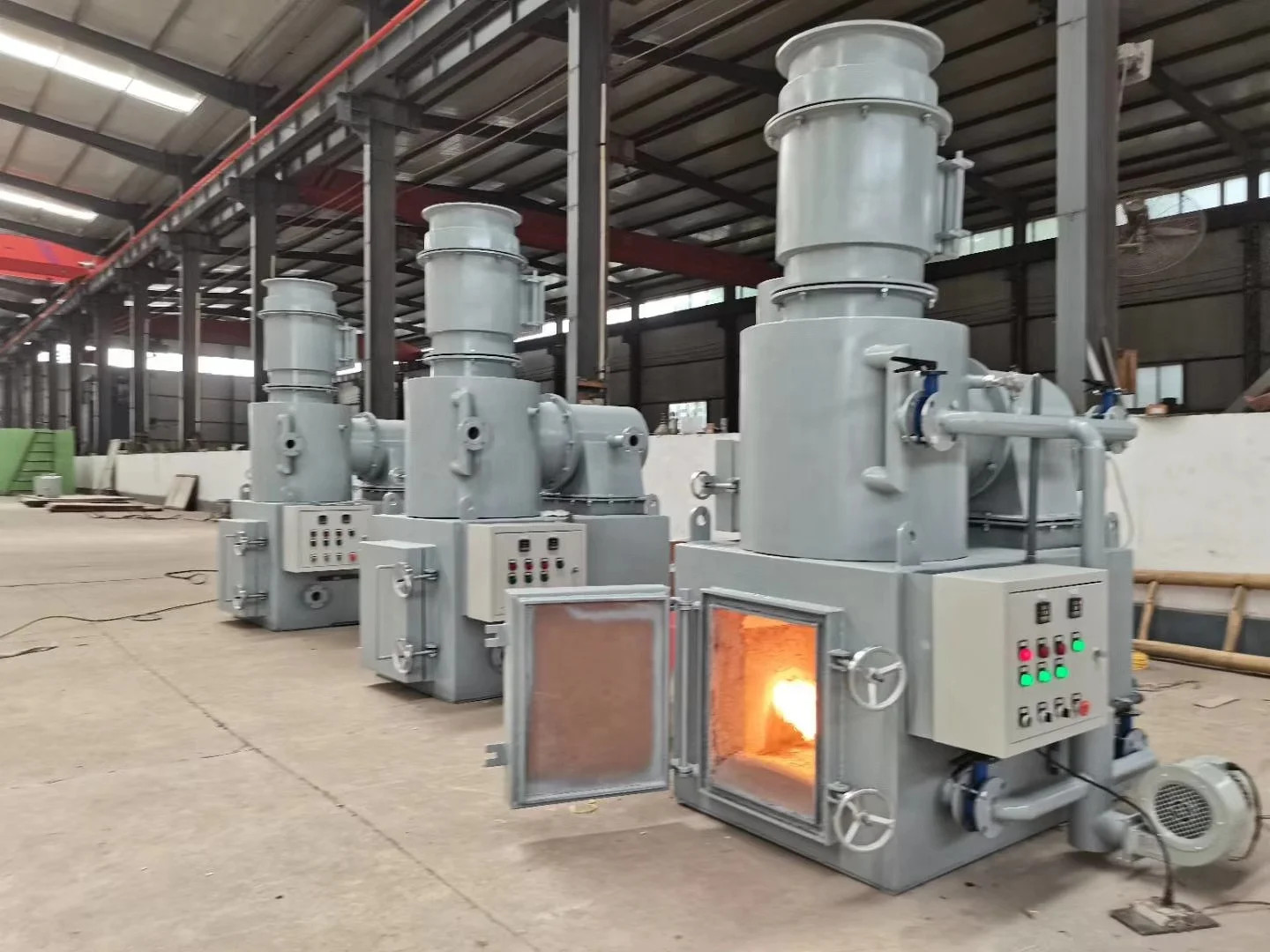

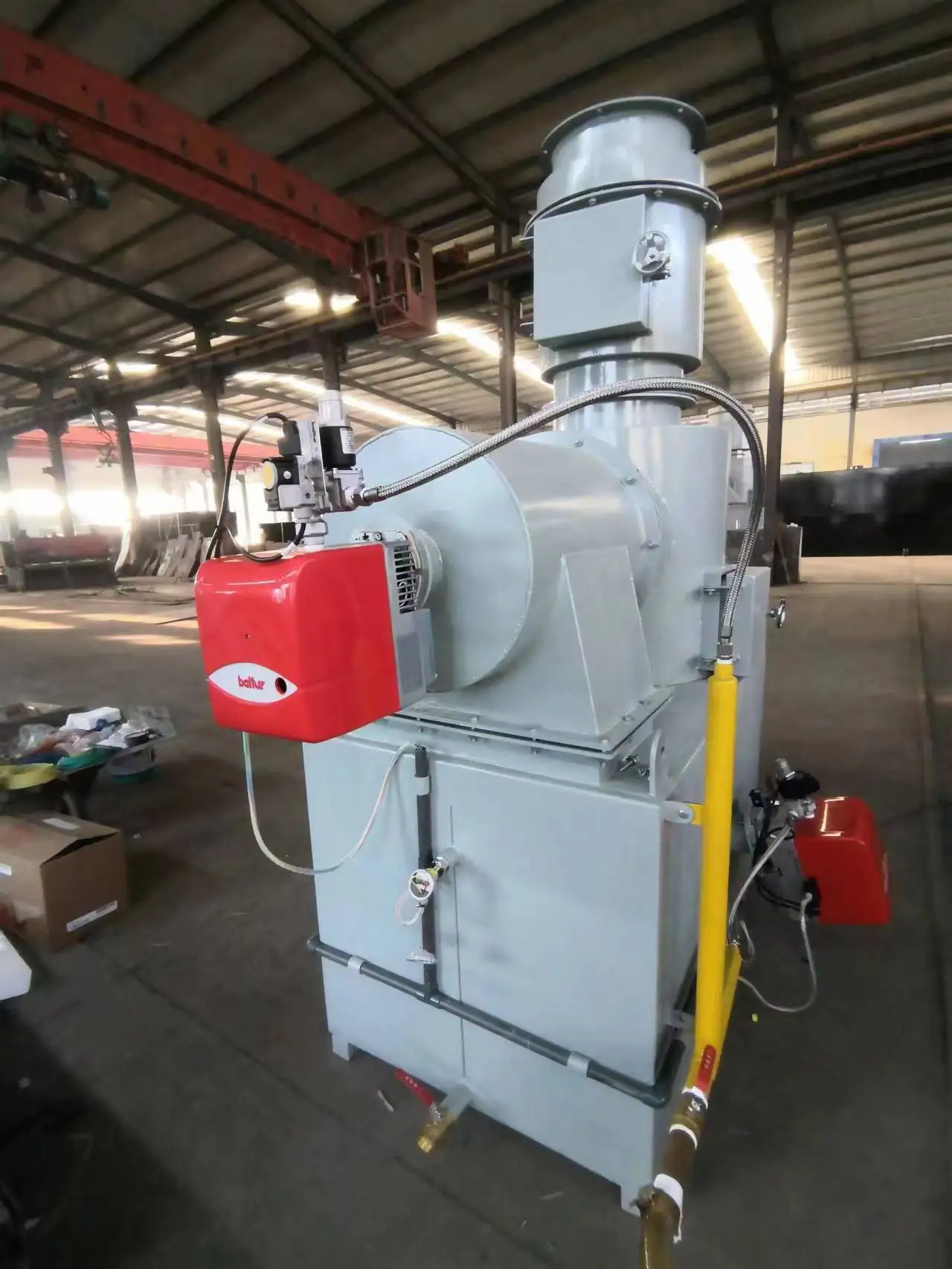

hot sale LPG waste Incinerator

Product Overview

Description

LDF series medical solid waste incinerator

LDF series medical waste incineration installation with the characteristic of small size, high efficiency and reasonable incineration, leading technology, higher harmless degree, is the ideal garbage treatment facilities apply to all kinds of hospital, hotel, station.

Main features:

1. The gasifying incineration technology to be applied to the incineration injector, feeding container and other medical equipment as well as different paper slash, bandage, cotton column, different kinds of medical pollutants and various wastes discharged by hospitals and medical organization.

2. The gasifying incineration way is utilized and the rubbished produced each day is able to handle the one-off incineration treatment.

3. The gasifying incineration, mixed incineration, burn-out treatment and other technologies are used to make the content of the smog exhaust and dust lower than the discharge standard regulated by the nation.

4. Fully seal operation is adopted to be applied to dealing with the infectious medical waste and avoid the secondary pollution.

5. Small volume and site area.

6. The series of incinerator are divided into the fuel and gas kind which can be selected according to the different needs of the users.



technical parameter:

Model item	LDF-20	LDF-30	LDF-50	LDF-150	LDF-300	LDF-500
Burning Capacity	10-20KG/time 3-6 times per day	20-30kg/time (3-6 times per day)	30-50kg/ time (3-6 times per day)	100-150kg/ time (3-6 times per day)	200-300kg/ time (3-6 times per day)	300-400kg/ time (3-6 times per day)
Size of the Burner (m)(L*H*B)		1.45*0.9*1.75	1.8*1.15*3	2*1.4*3.5	2.2*1.4*3.8	3*2*4.8
Size of the filling entrance (mm)	380*480	480*600	620*800	760*960	900*1100	1080*1280
Chimney(mm)	Ø280(OD)	Ø280(OD)	Ø280(OD)	Ø300(OD)	Ø400(OD)	Ø460(OD)
Air-blower	0.25kw	0.37kw	0.37kw	0.5kw	1.1kw	1.1kw 0.55kw
Auxiliary machine	Power 0.11kw oil consumption 4-6kg/h	Power 0.11kw Oil consumption 4-6kg/h	Power 0.11kw Oil consumption 4-10kg/h	Power 0.11kw Oil consumption 4-10kg/h	Power 0.22kw Oil consumption 7-14kg/h	Power 0.22kw Oil consumption 7-14kg/h
Re-burning machine	Power 0.11kw oil consumption 4-6kg/h	Power 0.11kw Oil consumption 4-6kg/h	Power 0.11kw Oil consumption 4-10kg/h	Power 0.22kw Oil consumption 7-14kg/h	Power 0.37kw Oil consumption 10-20kg/h	Power 0.37kw Oil consumption 15-26kg/h
Running voltage	380V or 220V	380V or 220V	380V or 220V	380V or 220V	380V or 220V	380V or 220V
Weigh(kg)	1600	2800	4500	7600	8600	14500
