Product Overview

Description

All Types of Welding Electrodes AWS 6013 and AWS 7018

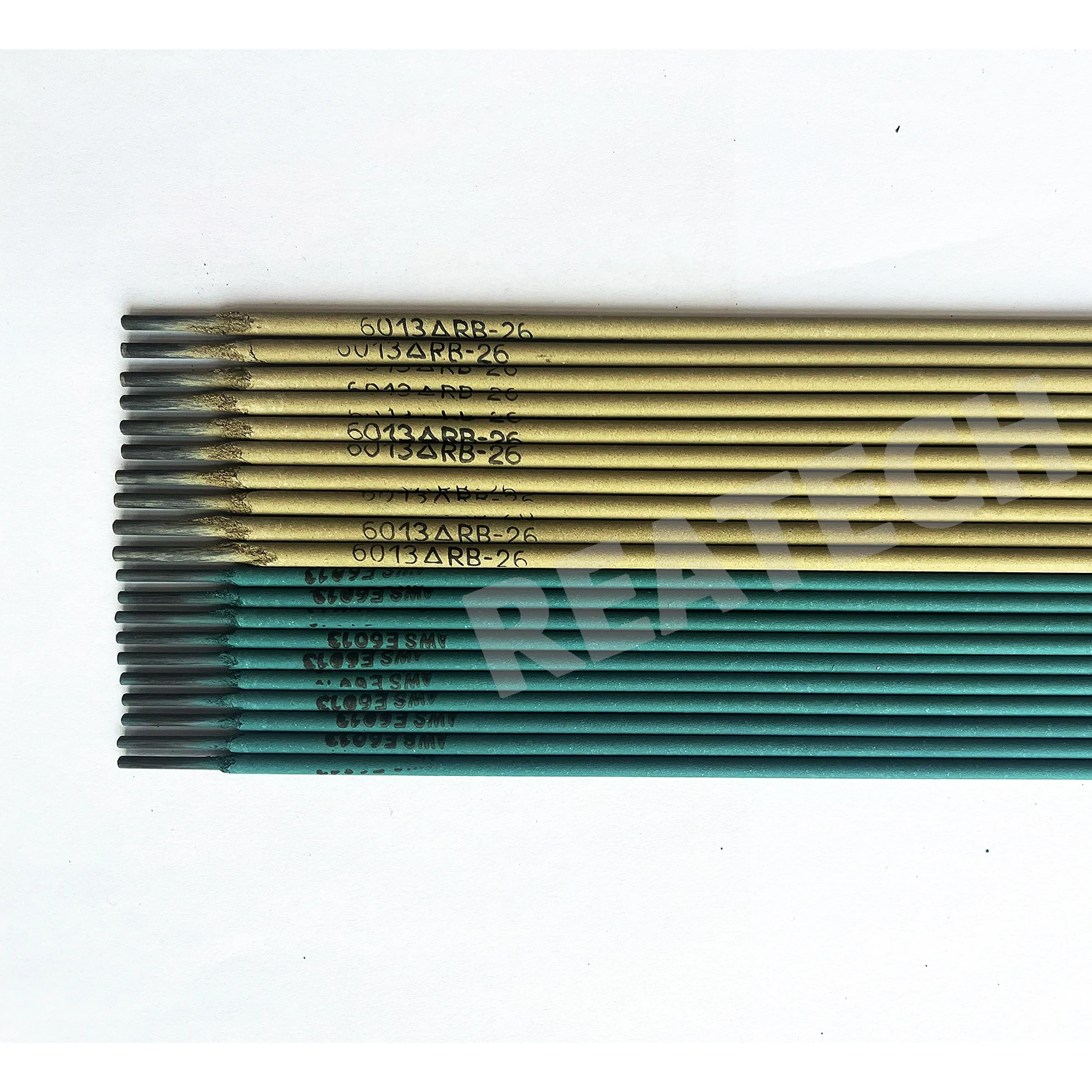

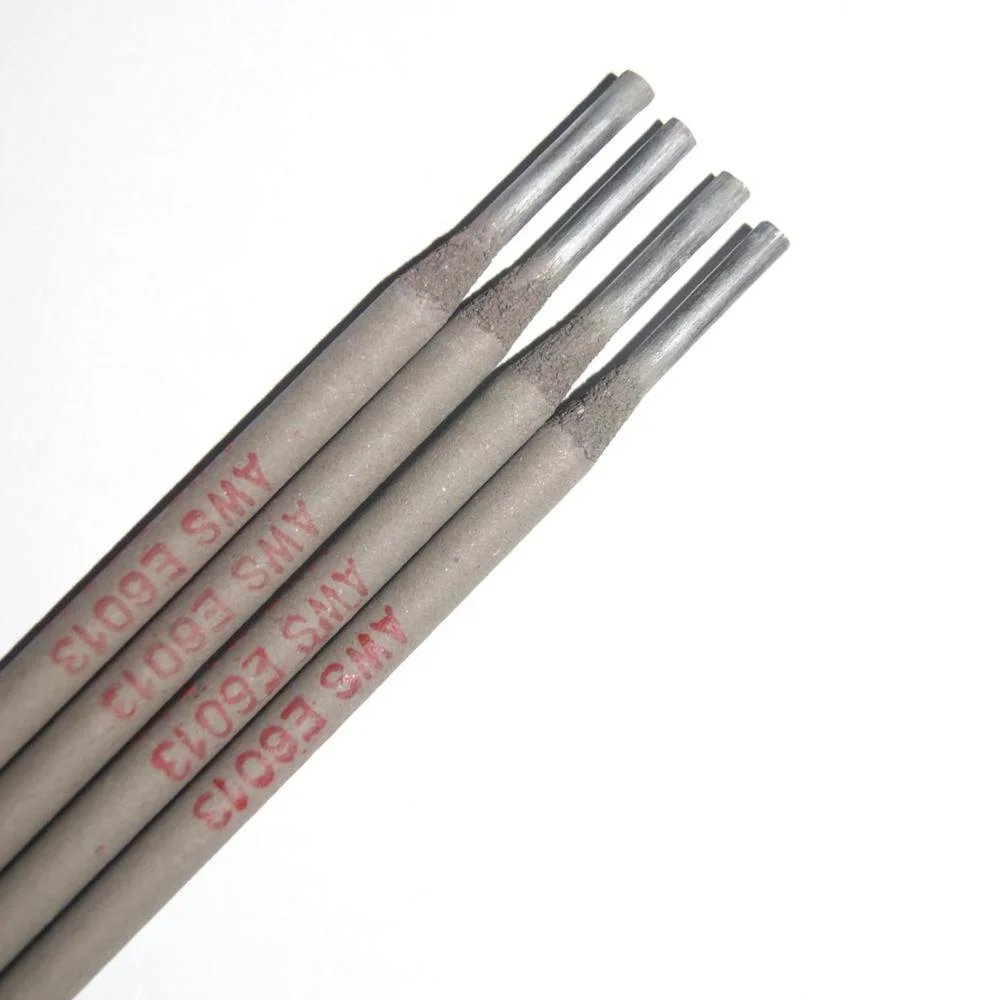

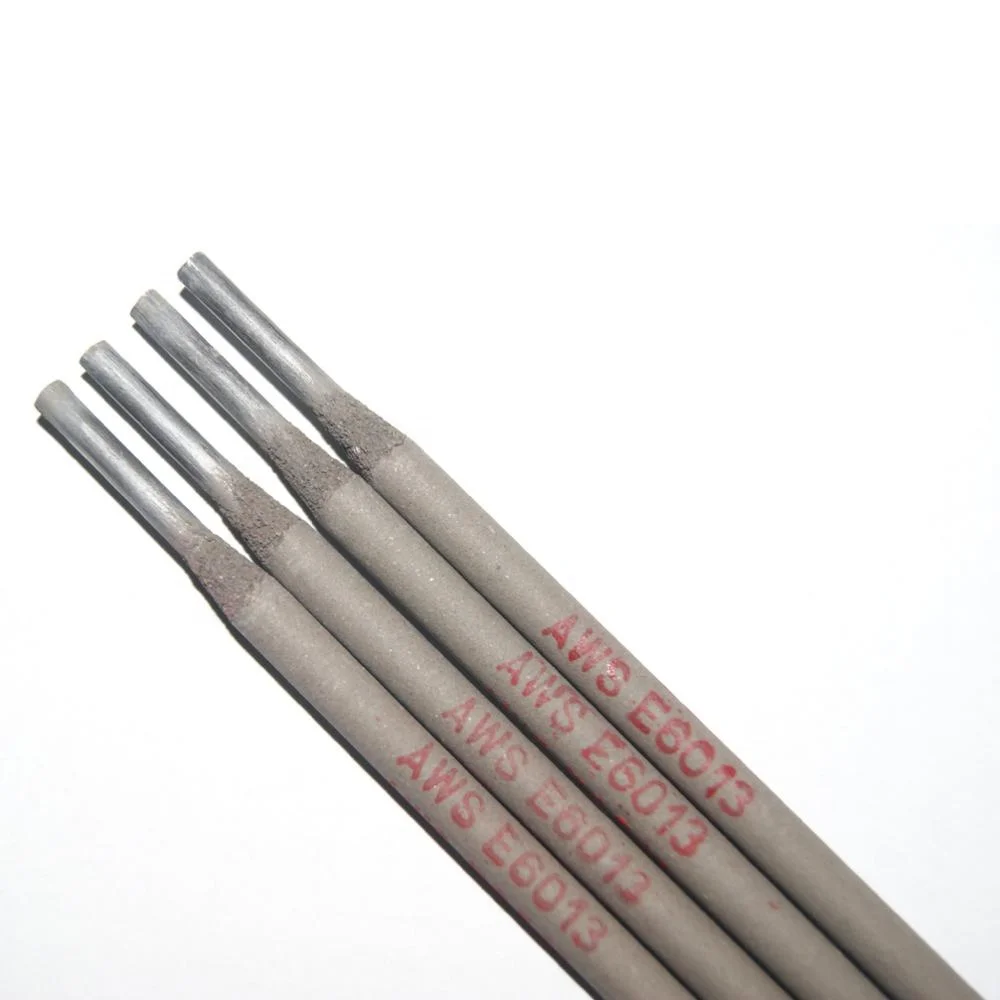

The most common used All Types of Welding Electrodes AWS 6013



1. Model No.: Welding Electrode AWSE6013(J421, J38.12)

2. Available size: 2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm

3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.

4. Delivery time: Within 15 days after confirmation

5. Application: The E6013 welding electrode are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery.



Details Specification for All Types of Welding Electrodes AWS 6013



Chemical Composition of Deposited Metal (%)

	C	Mn	Si	S	P
Guaranteed value	≤0.12	0.3~0.6	≤0.35	≤0.035	≤0.040
Typical value	0.07	0.4	0.25	0.019	0.025



Sizes, Length & Recommended Current (AC/DC)

Diameter (mm)	φ2.0	φ2.5	φ3.2	φ4.0	φ5.0
Length (mm)	300	300	350	400	400
Current (A)	40~70	50~90	90~130	130~210	170~230



Mechanical Properties of Deposited Metal

	Rm (Mpa)	ReL(Mpa)	A(%)	KV2(J)	KV2(J)
Guaranteed value	σb≥420	σs ≥ 330	δ5 ≥ 17	(normal temperature)	-(0°C)
Typical value	460~540	≥ 340	18~26	50-80	≥ 47

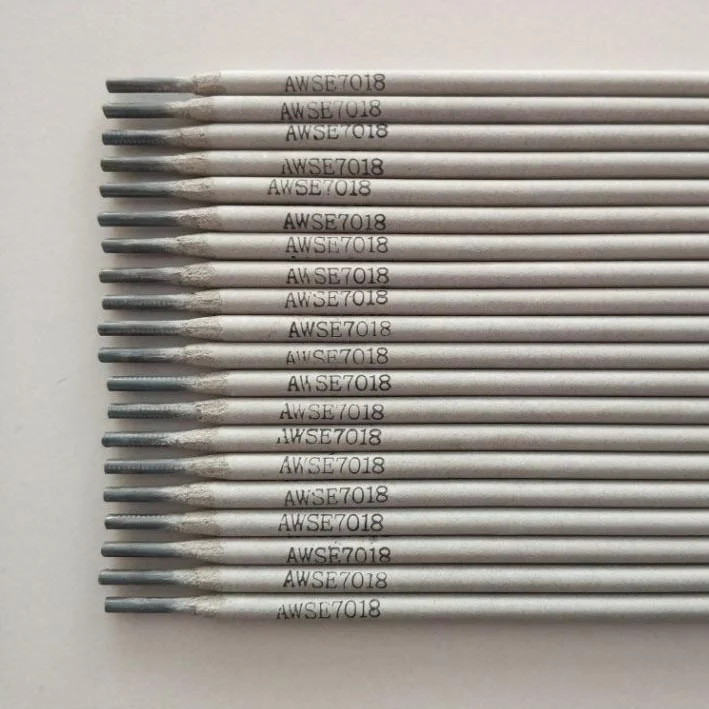

All Types of Welding Electrodes AWS 7018:



1. Model No.: Welding Electrode AWS E7018

2. Available size:2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm

3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.

4. Delivery time: Within 15 days after confirmation

5. Application: It is used on both AC and DC in
all position and suitable for welding important structures made of low alloy steel.

Detailed Specification for All Types of Welding Electrodes AWS 7018:



Mechanical Properties of Deposited Metal

Test Item	Rm(MPa)	ReL(Mpa)	A(%)	KV2(J)
Guarantee Value	≥490	≥400	≥22	≥27(-30°C)
General Result	520~580	≥410	24~30	80~200



Reference Current (AC, DC+)

Electrode Diameter(mm)	φ2.5	φ3.2	φ4.0	φ5.0
Welding Current (A)	60~100	80~140	110~210	160~230



Chemical Composition of Deposited Metal (%)

Chemical Composition	C	Mn	Si	S	P	Ni	Mo	Cr	V
Guarantee Value	≤0.12	≤1.60	≤0.75	≤0.035	≤0.040	≤0.30	≤0.30	≤0.20	≤0.08

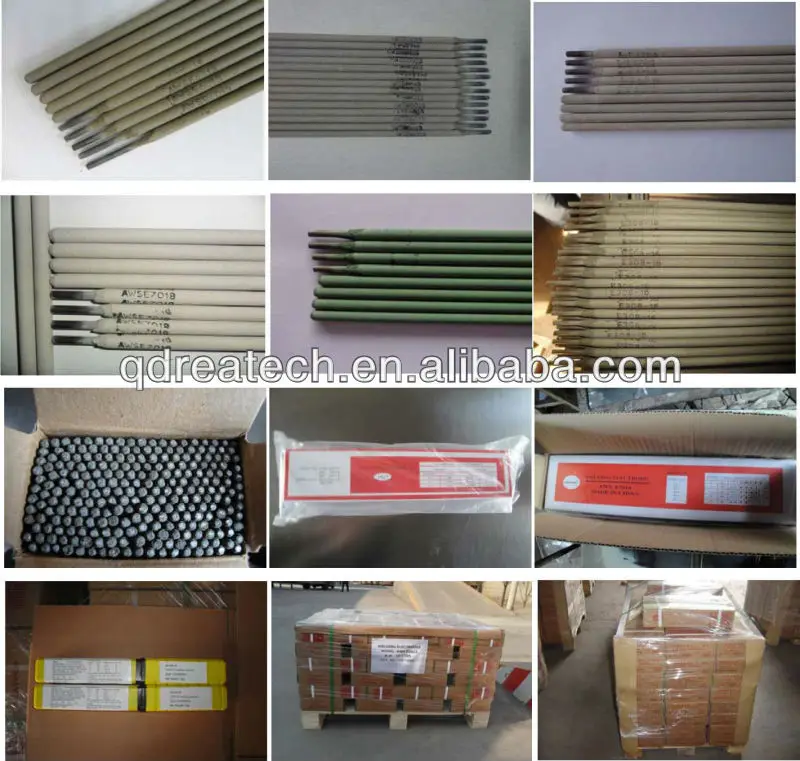

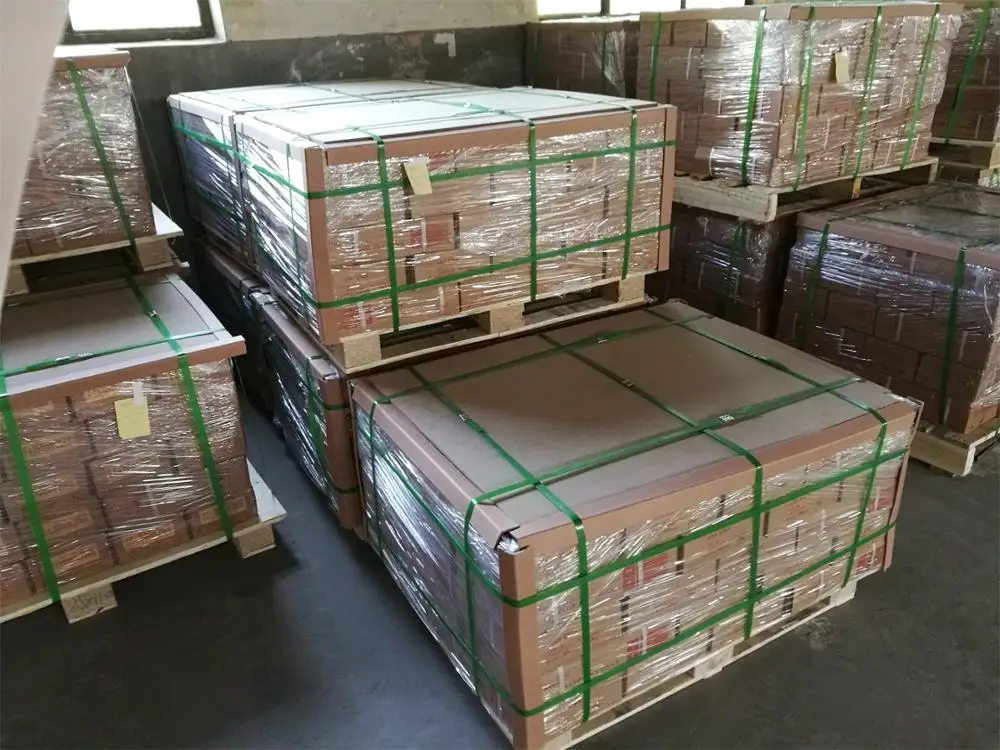

All Types of Welding Electrodes AWS 6013 and AWS 7018 Product and Packing Pictures
