Suntask Solar Thermal Water Heater Compact Pressurized System for Home Using Application DAC 150H

Product Overview

Description

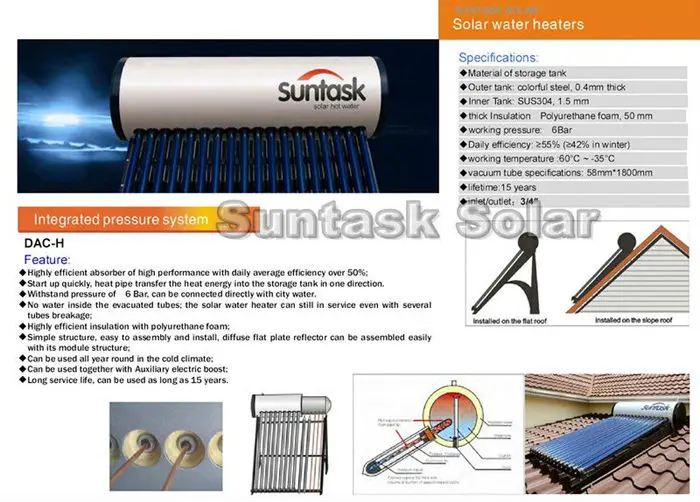

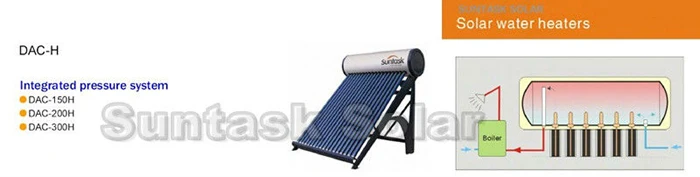

Suntask Solar Thermal Water Heater Compact Pressurized System for Home Using Application DAC-150H



Compact Solar Geyser, Pressurized Solar Geyser







Material of storage tank
Outer tank: colorful steel, 0.4mm thick

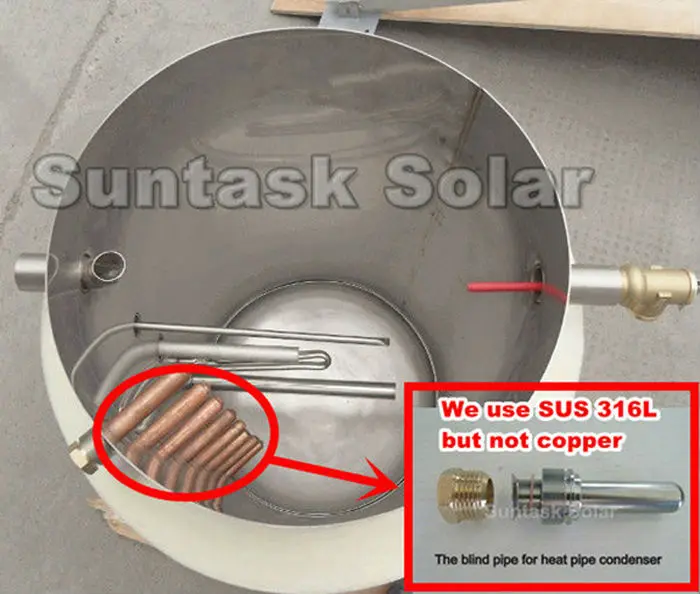

Inner Tank: SUS304, 1.5 mm
thick Insulation Polyurethane foam, 50 mm
working pressure: 6Bar
Daily efficiency: ≥55% (≥42% in winter)
working temperature :60°C ~ -35°C
vacuum tube specifications: 58mm*1800mm
lifetime:15 years
inlet/outlet:3/4″





Highly efficient absorber of high performance with daily average efficiency over 50%;

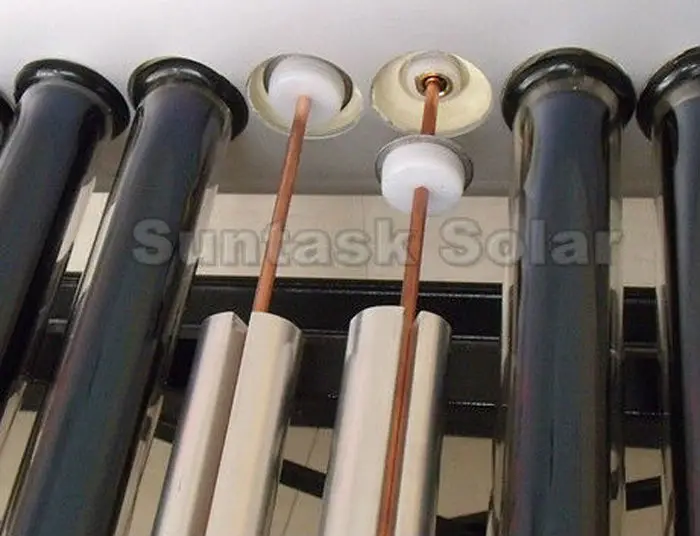

Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
Withstand pressure of 6 Bar, can be connected directly with city water.
No water inside the evacuated tubes; the solar water heater can still in service even with several tubes breakage;
Highly efficient insulation with polyurethane foam;
Simple structure, easy to assembly and install, diffuse flat plate reflector can be assembled easily with its module structure;
Can be used all year round in the cold climate;
Can be used together with Auxiliary electric boost;
Long service life, can be used as long as 15 years.



Solar keymark certificate types:

SCM12-58/1800

SCM15-58/1800

SCM20-58/1800

*************

New Solar Keymark certificate types:

SR10-58/1800

SR15-58/1800

SR20-58/1800

SR30-58/1800



SRCC certificate types:

SR10-58/1800

SR15-58/1800

SR20-58/1800

SR30-58/1800
