Carbon Steel Welding Electrodes AWS E6013

Product Overview

Description

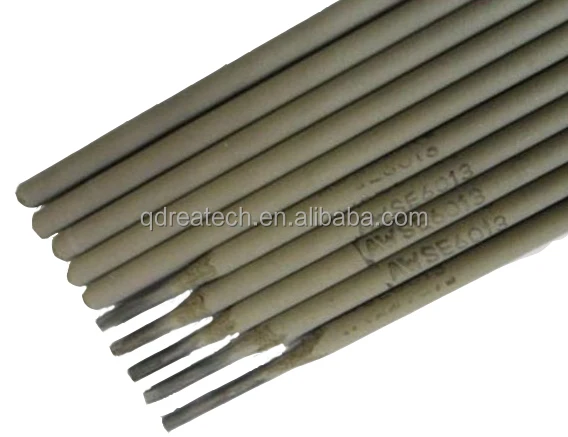

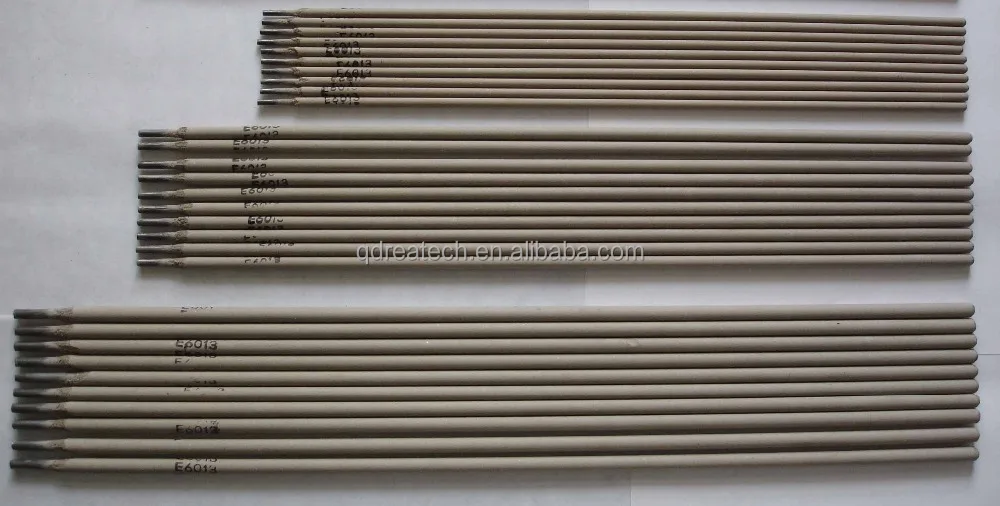

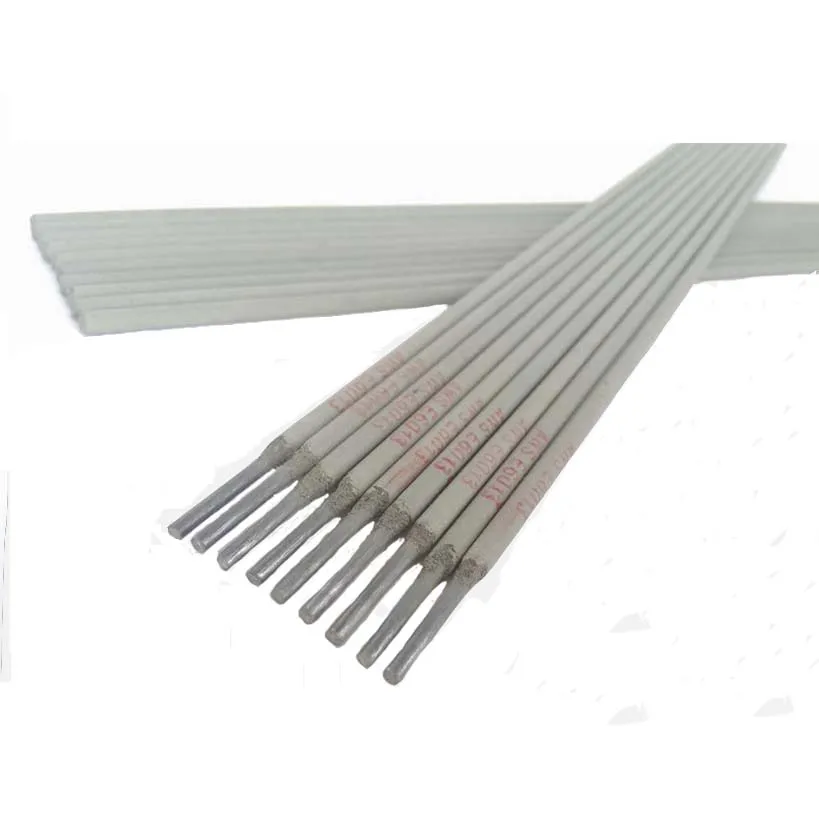

Carbon Steel Welding Electrodes AWS E6013



1. Model No.: Carbon Steel Welding Electrodes E6013(J421, J38.12)
2. Available size: 2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm

3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.

4. Delivery time: Within 20 days after confirmation

5. Application: The E6013 welding electrode are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery.





Details Specification for Carbon Steel Welding Electrodes AWS E6013:



Chemical Compossition of Deposited Metal (%)

	C	Mn	Si	S	P
Guaranteed value	≤0.12	0.3~0.6	≤0.35	≤0.035	≤0.040
Typical value	0.07	0.4	0.25	0.019	0.025



Sizes, Length & Recommended Current (AC/DC)

Diameter (mm)	φ2.0	φ2.5	φ3.2	φ4.0	φ5.0
Length (mm)	300	300	350	400	400
Current (A)	40~70	50~90	90~130	130~210	170~230



Mechanical Properties of Deposited Metal

	Rm (Mpa)	ReL(Mpa)	A(%)	KV2(J)	KV2(J)
Guaranteed value	σb≥420	σs ≥ 330	δ5 ≥ 17	(normal temperature)	-(0°C)
Typical value	460~540	≥ 340	18~26	50-80	≥ 47

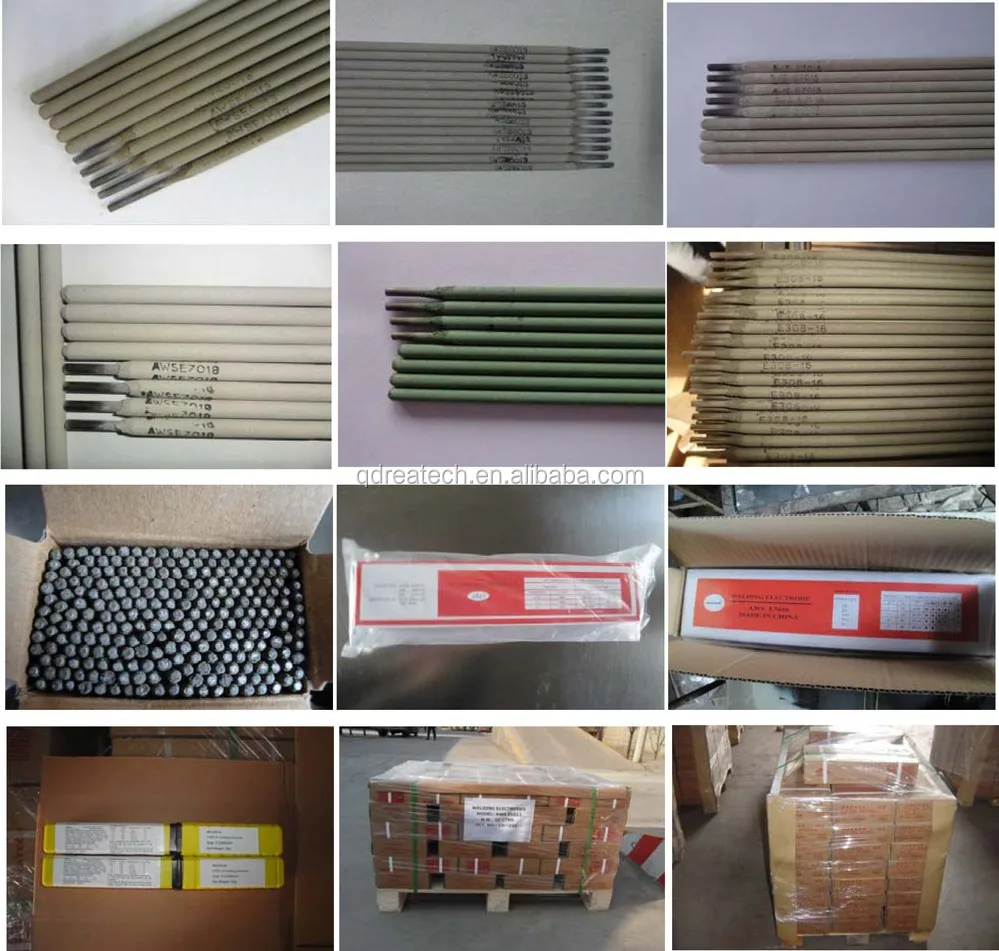

Carbon Steel Welding Electrodes AWS E6013 Packing Picture:
