cd60 capacitor for motor en60252

Product Overview

Description

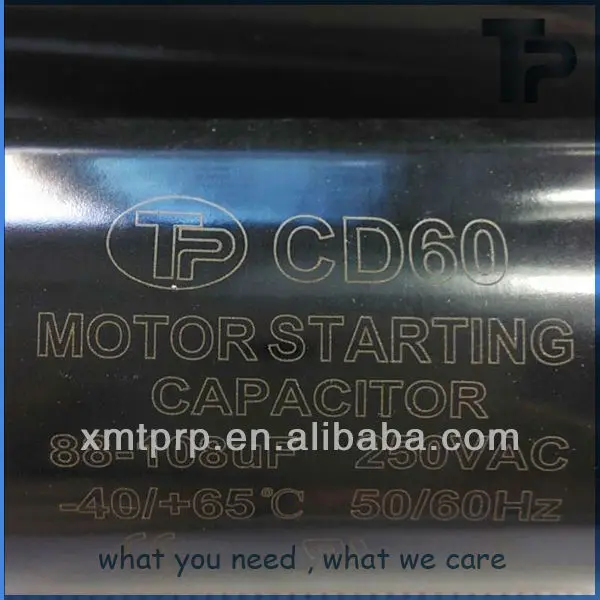

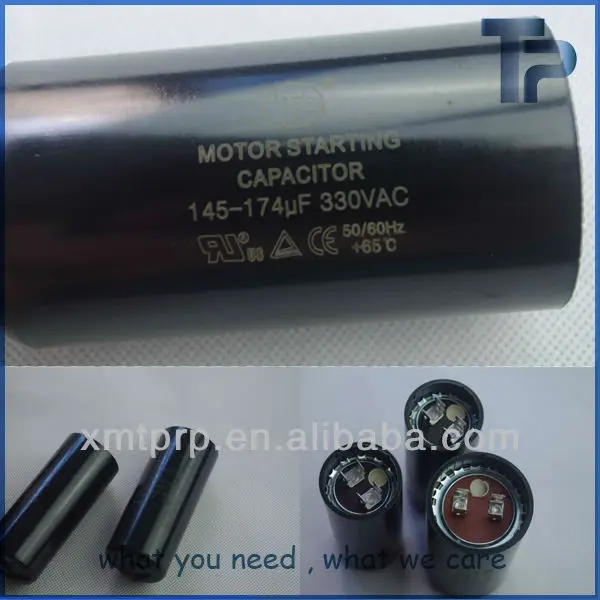

CD 60 capacitor for motor

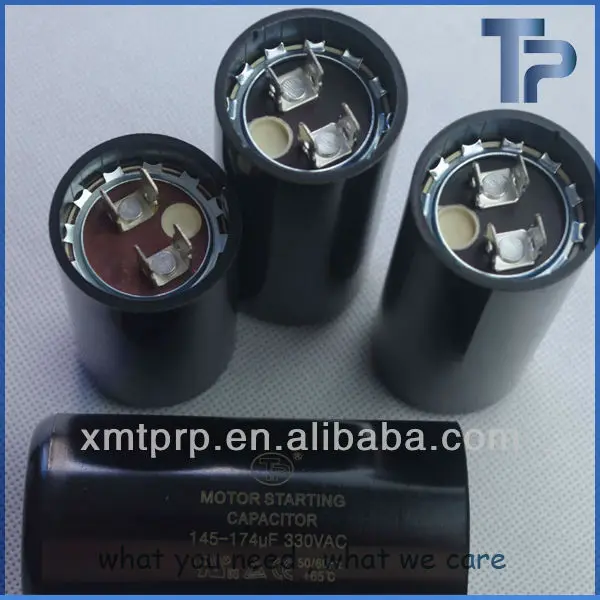

    This series products are made of the aluminium foil bar as the poles, alumina as dielectric, mushy state electrolyte and all of devices in one compact unit which can be sealed separately in aluminium case, Bakelite or the abs case. The connection types are of lug type and wire or cable type and non-polarized.

    The specific type of capacitors with high electrical characteristics are widely used in single phase ac motors with rated voltage of 110V-330V and the frequency of 50Hz-60Hz to get high rotary torque at low starting current and also can be used in the air-conditioner,refrigerator, freezer and water pumps for starting etc.











CD Series
Model		Size	Model		Size
CD60/100-110 V	72-88UF	36.5*70	CD60/200-220 V	130-156UF	46*86
	88-106UF	36.5*70		145-175UF	46*86
	108-130UF	36.5*70		161-193UF	46*86
	124-149UF	36.5*70		189-227UF	46*86
	130-156UF	36.5*70		216-259UF	46*86
	145-175UF	36.5*70		233-280UF	46*111
	161-193UF	36.5*70		243-292UF	46*111
	189-227UF	36.5*70		270-324UF	46*111
	233-280UF	36.5*70		324-389UF	46*111
	243-292UF	36.5*70		340-408UF	46*111
	270-324UF	36.5*70		400-480UF	46*111
	324-389UF	36.5*70		56-72UF	36.5*86
	340-408UF	36.5*86		43-53UF	36.5*70
	378-454UF	36.5*86		21-25UF	36.5*70
	404-480UF	36.5*86	CD60/300-330 V	88-108-C	46*86
	430-516UF	36.5*86		108-130-C	46*86
	460-552UF	36.5*86		124-149-C	46*86
	540-648UF	46*86		130-156-C	46*86
	590-708UF	46*86		145-175-C	46*111
	650-780UF	46*111		161-193-C	46*111
	708-850UF	46*111		189-227-C	46*111
	710-850UF	46*111		72-86-C	46*86
	720-864UF	46*111		56-67-C	46*86
	829-995UF	46*111		21-25-C	36.5*86
	108-130UF	46*86		216-259-C	46*111
	124-149UF	46*86		270-324-C	46*111
CD60/200-220 V	88-108UF	46*86	220-250V	SPP5	plastic bag
	108-130UF	46*86	220-250V	SPP6	plastic bag
	124-149UF	46*86
