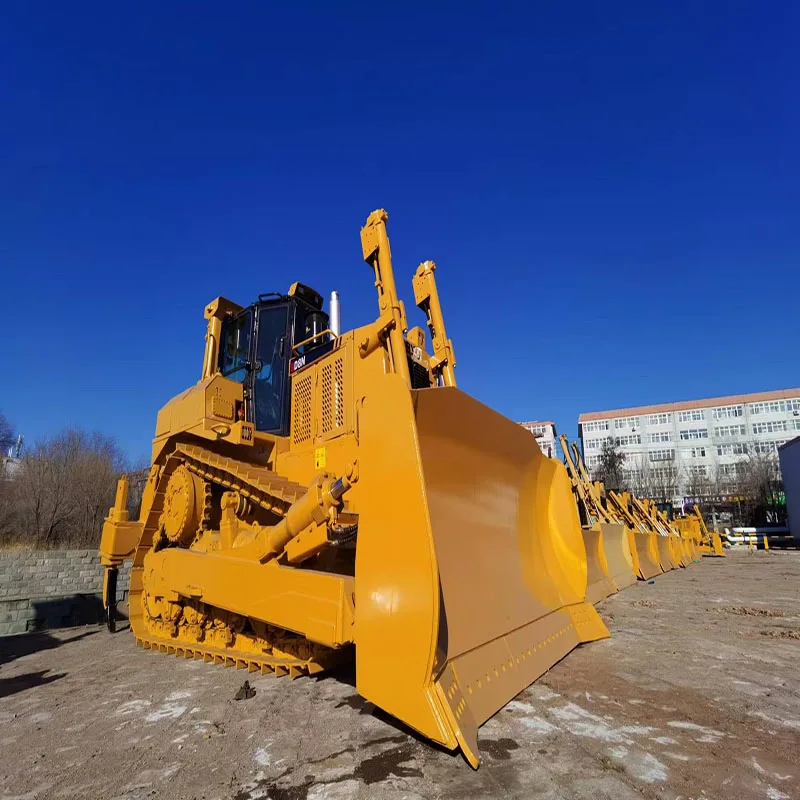

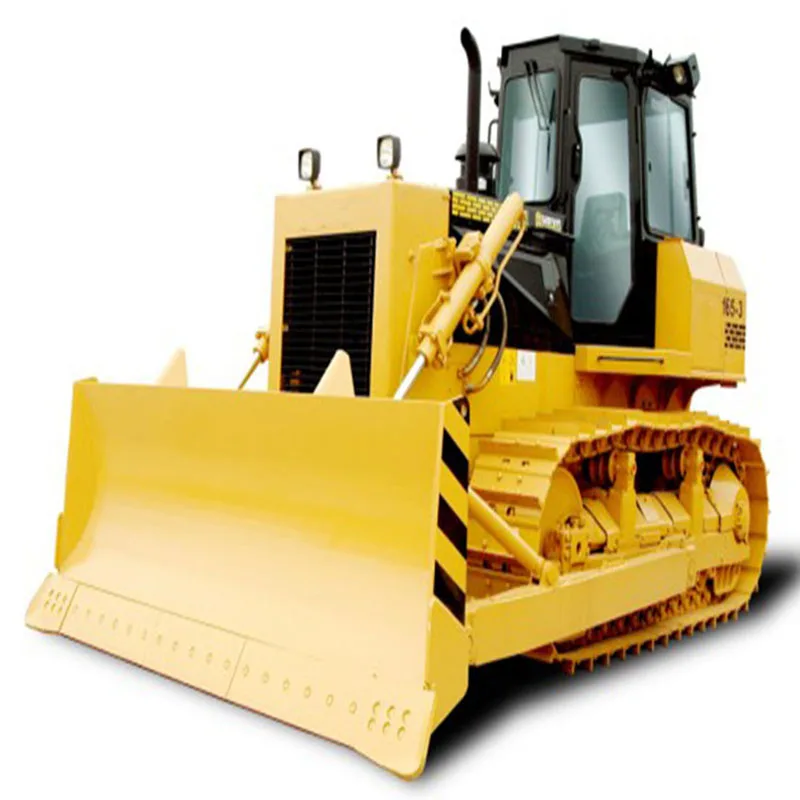

120 HP/100 HP Crawler Bulldozer small crawler bulldozer similar to CAT D3/D4

Product Overview

Description

120 HP/100 HP Crawler Bulldozer

1. The machine is installed with the DONGFANGHONG LR4 105ZG52 boosting engine, with high power, low noise, energy conservation and low consumption.


2. Gearbox is 4F+2R fixed-shaft mechanical gear shifting, applicable for varies environments.


3. Integral trolley traveling construction adopting rigid chassis and semi-rigid hanger.


4. Advanced operation control system, fully hydraulic aided steering, with flexible and labor-saving operation.


5. Driver cab is welded with profile steel, with high strength, resistant impact, and good protection safety.


6. Applicable for construction in narrow ground, with flexible working and high operation efficiency.


7. The complete machine has good economical power and high reliability, being an ideal machine for project construction.Specifications

Model		T120N	TS120(wide shoe)
Operating weight	kg	13500/13700(coal blade)	13700
Max. drawbar pull	kN	115	115
Engine Model		LR6105ZT56D	LR6105ZT56D
Rated output/rotation speed	kw/ r/min	88.2/2000	88.2/2000
Fuel consumption	g/km.h	≤235	≤235
Max. torque	N.m	526	526
Forward 1-4 speed	km/h	2.4~10.6	2.4~10.6
Backward 1-2 speed	km/h	3.8~7.0	3.8~7.0
Shoe width	mm	500	720
Ground pressure	kPa	51	37
Dimension (Length × Width × Height)	mm	4535×3135×2900 5081×3114×2900(coal blade)	4575×3435/×2900
Blade(Width × Height)	mm	3135×970 3114×1030(coal blade)	3450×1060
Max. lifting height	mm	894
Max. digging depth	mm	400

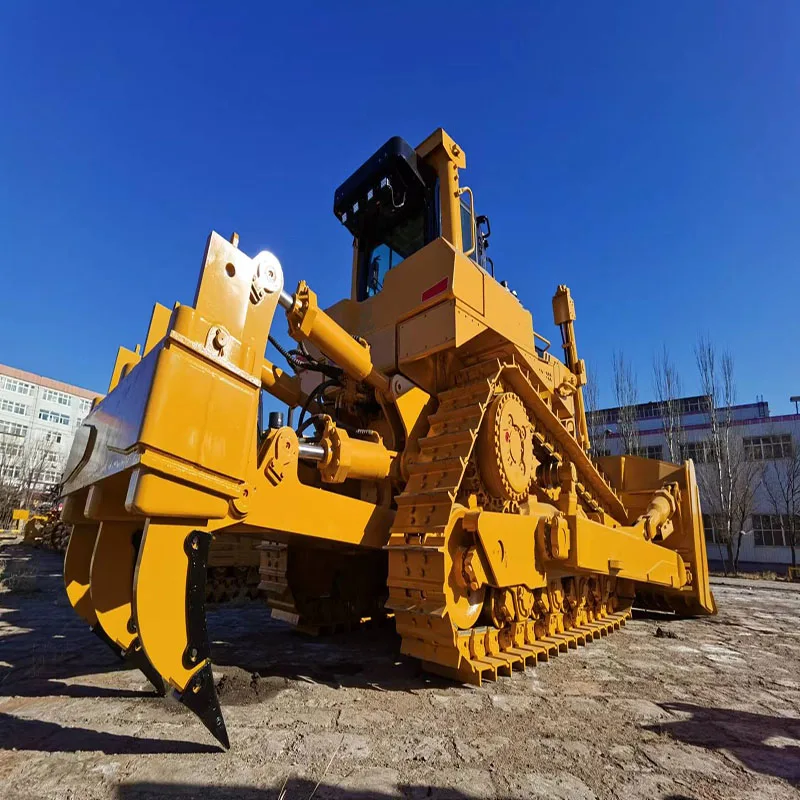

Ripper(optional)		Three-shank
