T 6732 IP Network Waterproof 2 Way Industry Office Hospital Hotel Intercom System
- Category: >>>
- Supplier: Guangzhou ITC Electronic Technology Limited
Share on (1532226345):
Product Overview
Description

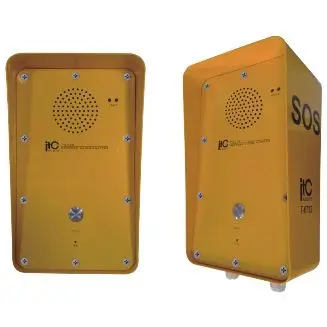

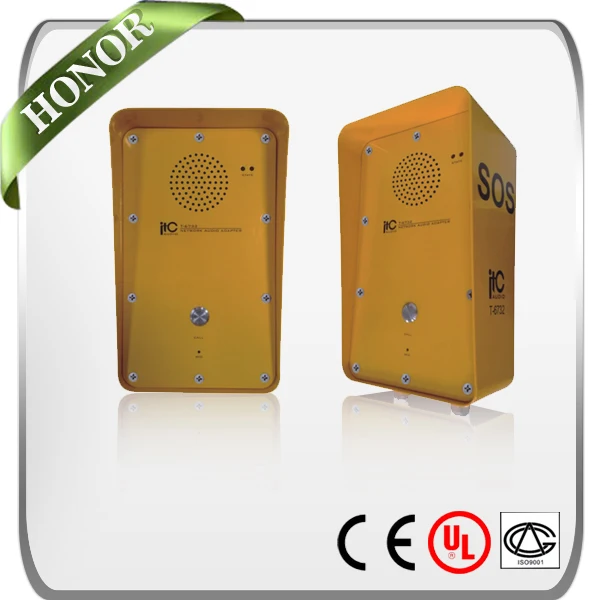

T-6732 IP Network Waterproof 2 Way Industry Hotel Office Hospital Intercom System
Feature
- Built-in 1 channel network audio decoding module; support protocol of TCP/IP, UDP, IGMP (Grouping Broadcast); realize network transmission of 16 bit CD level stereo audio signal.
- Built-in 5W Hi-Fi speaker so that the voice is loud and clear; built-in 30W digital amplifier to connect with external 30W 8Ω speaker.
- Built-in highly sensitive microphone, support hands-free call, custom answer-calling mode, long distance voice pick up and high restoring rate.
- Built-in monitor, support service level recording management, built-in auxiliary I/O to work with monitor system.

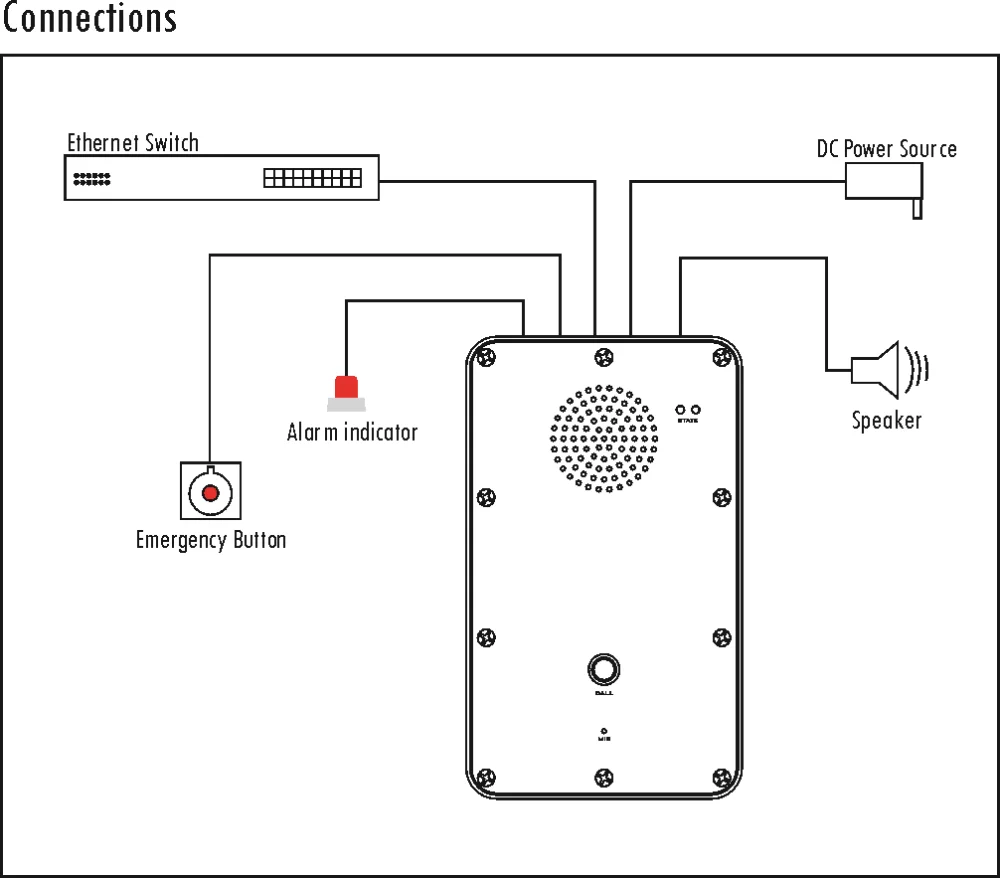

- With 1 short input and 1 short output; the input is used for the signal and data collection, and the output is for linkage with CCTV system.
- Custom calling target, 1-Key for business communication or for help.
- Multiple calling strategy, including waiting, forward, and no-answer reminding.
- Program could be called with mobile phone or remote controller via WiFi.
- Support DHCP, compatible to multiple network structure, such as router, switcher, bridges gateway, Modem, Internet, 2G, 3G, 4G, multicast, unicast, etc.
Specification
Model | T-6732 |
Network Interface | Standard RJ45 input |
Communication Protocol | TCP/IP, UDP, IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 10/100Mbps |
Frequency Response | 20-16KHz (+1dB, -3dB) |
T.H.D. | ≤0.3% |
S/N Ratio | >70dB |
Built-in Speaker Power & Impedance | 3W, 8Ω |
Speaker Output & Impedance | 30W, 8Ω |
Woking Temp | 5℃ ~40℃ |
Power Consumption | 20%~80% |
Power Consumption | ≤40W |
IP Rate | IP55 |
Power Supply | DC24V |
Dimensions | 300x180x130mm |
Weight | 3.5Kg |
Product Description

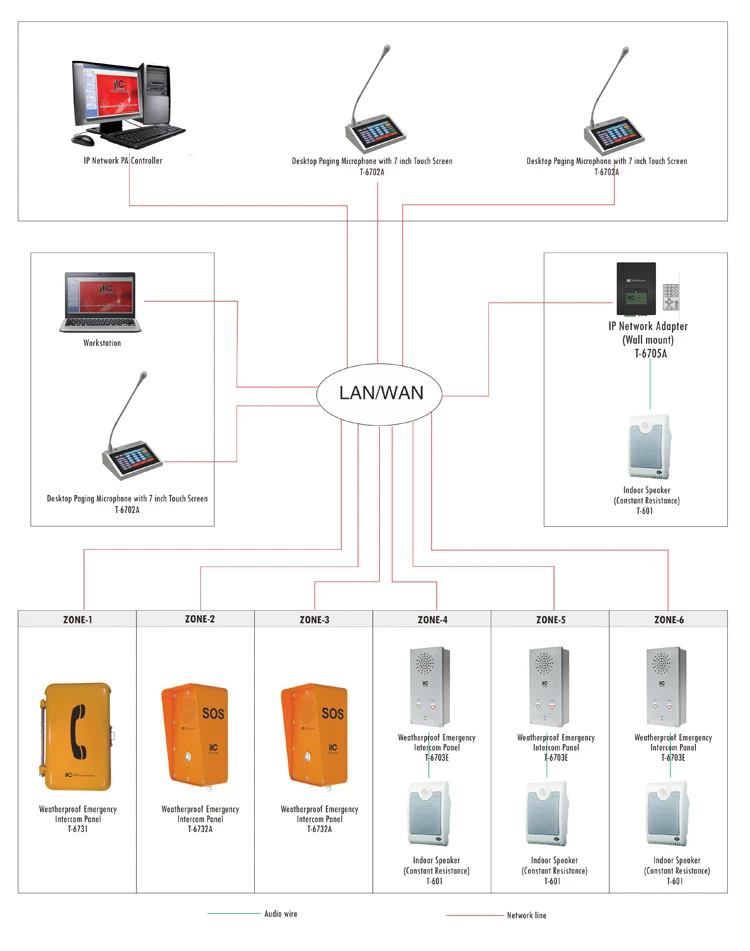

IP TCP Intercom System
Full Duplex Two Way Intercom Communication System
The intercom system is a full duplex system which adopt high advanced echo noise delete technology.
Digital Aux and Control Data Transmission
Built-in encoder to encode external sources or collect sources from sound card to transmit over
internet. Full digital transmission of very low bandwidth consumption to avoid signal loose and noise. Clear and smooth transmission without electromagnetic wave interference.Personalized Network Audio Adapter Several different design type all for different intercom applications.

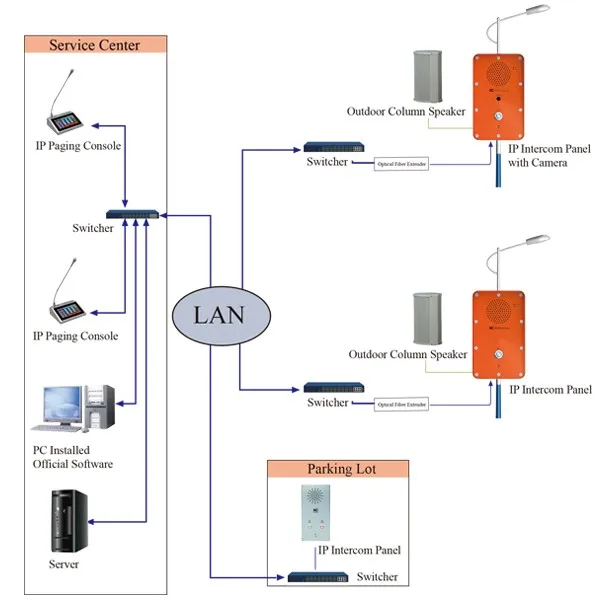

Network Intercom System
Full audio & paging & intercom communication over internet system, and system support LAN and WAN system, support communication across gateway or internet use.Flexible Compatibility
Easy inter-work with third party low voltage system, SDK design is also available
System Information Security
The encoding and decoding system is designed with encryption to avoid information disclosure.
Easy Expansion and Convenient Installation
The system could be built-up over any non-dedicated network system, system expansion no need
extra equipments but add network audio adapter. The system server could be shared with others system.

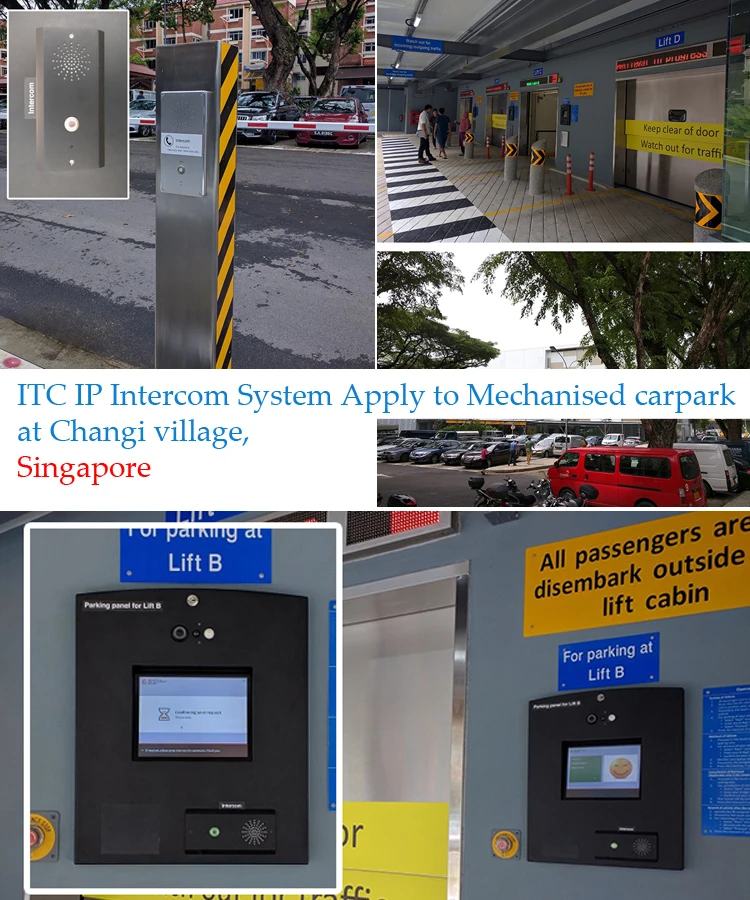

Successful Cases
Main Product
Company Information
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system, video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
FAQ
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
