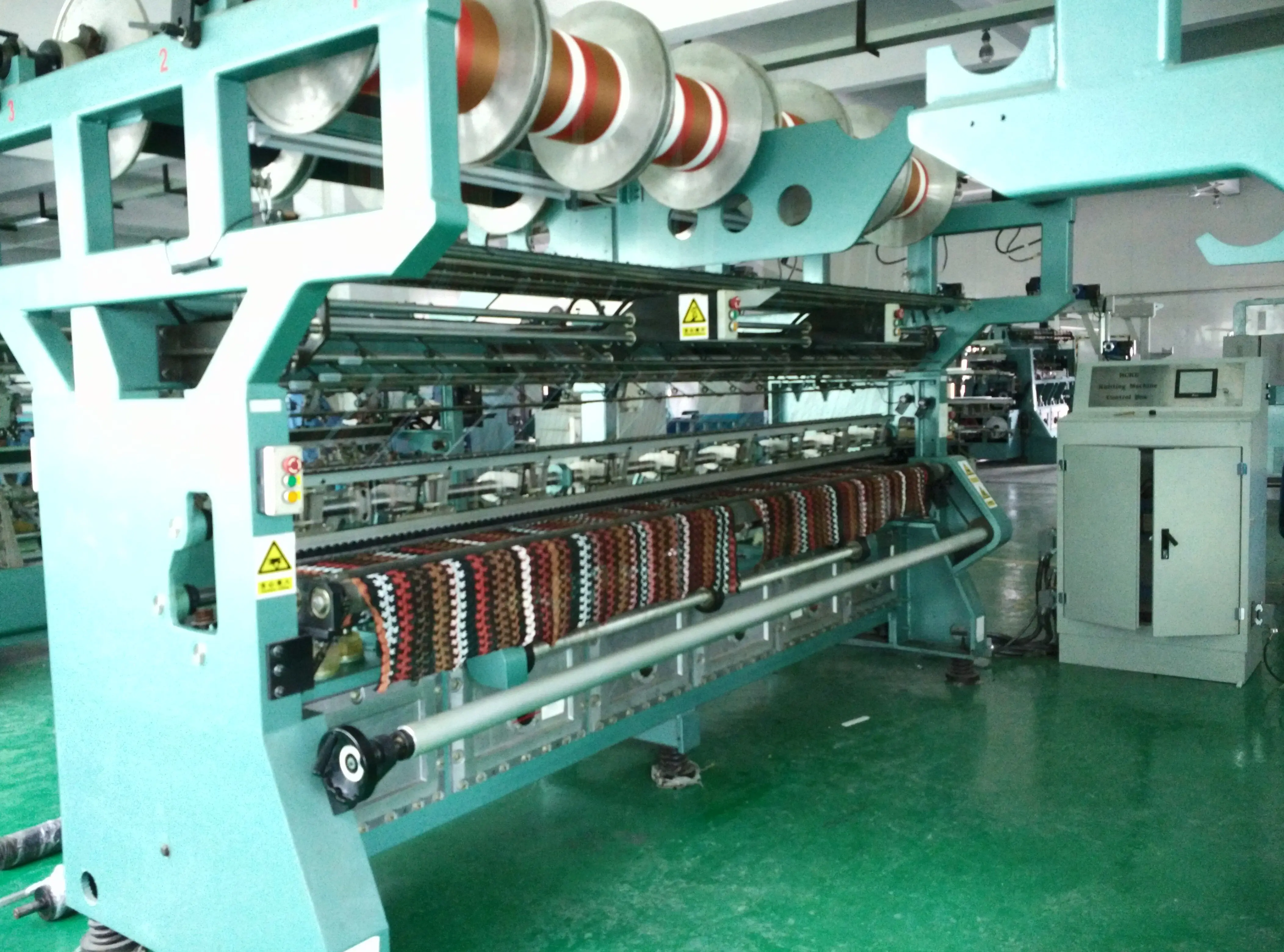

High Performance Tricot Cut Presser Warp Knitting Machine for Fashion Fabrics With EL System

Product Overview

Description

High Lights of tricot warp knitting machine with cut-presser bar for fashion fabrics

• 4 shafts E-positive yarn feeding system: Set the yarn feeding parameters through PC touch screen (equipped with the servo motors from Japanese brands)
• 3 guide bars EL: Pattern processes can be input through USB, active and saved with PLC (equipped with the servo motors from Japanese brands)
• Equipped with embedded needles
• Main motor frequency conversion, CVT
• Touch screen operation
• Standard: Q/HCZZ001-2007
• Suitable products: Fashion shell fabric, Mesh fabric

Technical Specification of tricot warp knitting machine for elastic articles EL

• Needle-type: Bearded needle
• Machine gauge: E12 E14
• Products width allowance: 2159 mm (85"),3234mm(132")
• Number of guide bars: 3
• Method of warp let-off: E-positive, customized beaming parameters (EBC)
• Beam size: 14”
• Flange Diameter: φ356
• Shaft Diameter: φ102
• Aperture: φ70
• Beam Width: 356
• Density tuning method: Digital controlled, PC touch screen operation (EBA)
• Braiding method: EL, digital controlled presser
• Main shaft speed: 700 RPM (frequency control)
• Main motor: 2.2 KW
• Yarn feeding motor: 0.5 KW×2 pieces
• Shogging motor: 0.75 KW×4 pieces
• Outline dimension:
• 132”: 4200mm (Length) x 2200 mm (wide) x 2600mm (height)
• 85”: 2900mm (Length) x 2000 mm (wide) x 2600mm (height)
• Total weight: Approximately 3500 Kg
