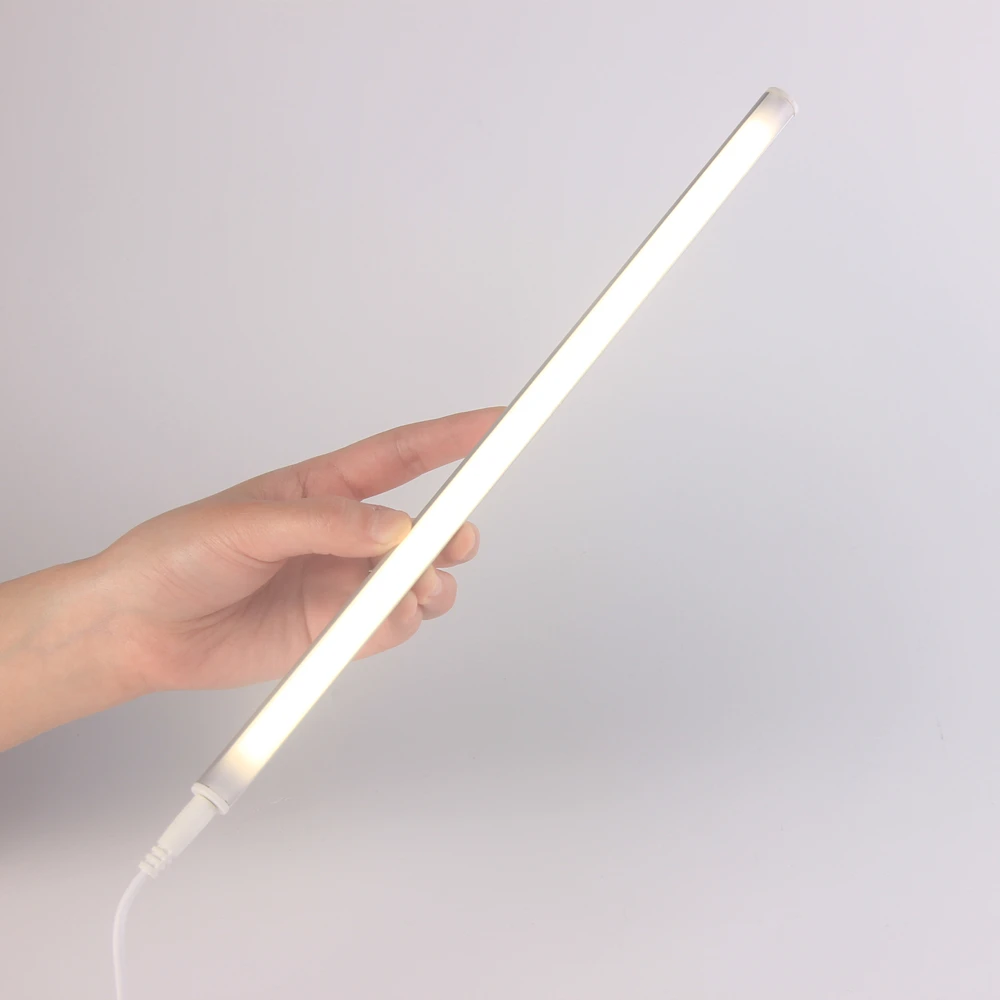

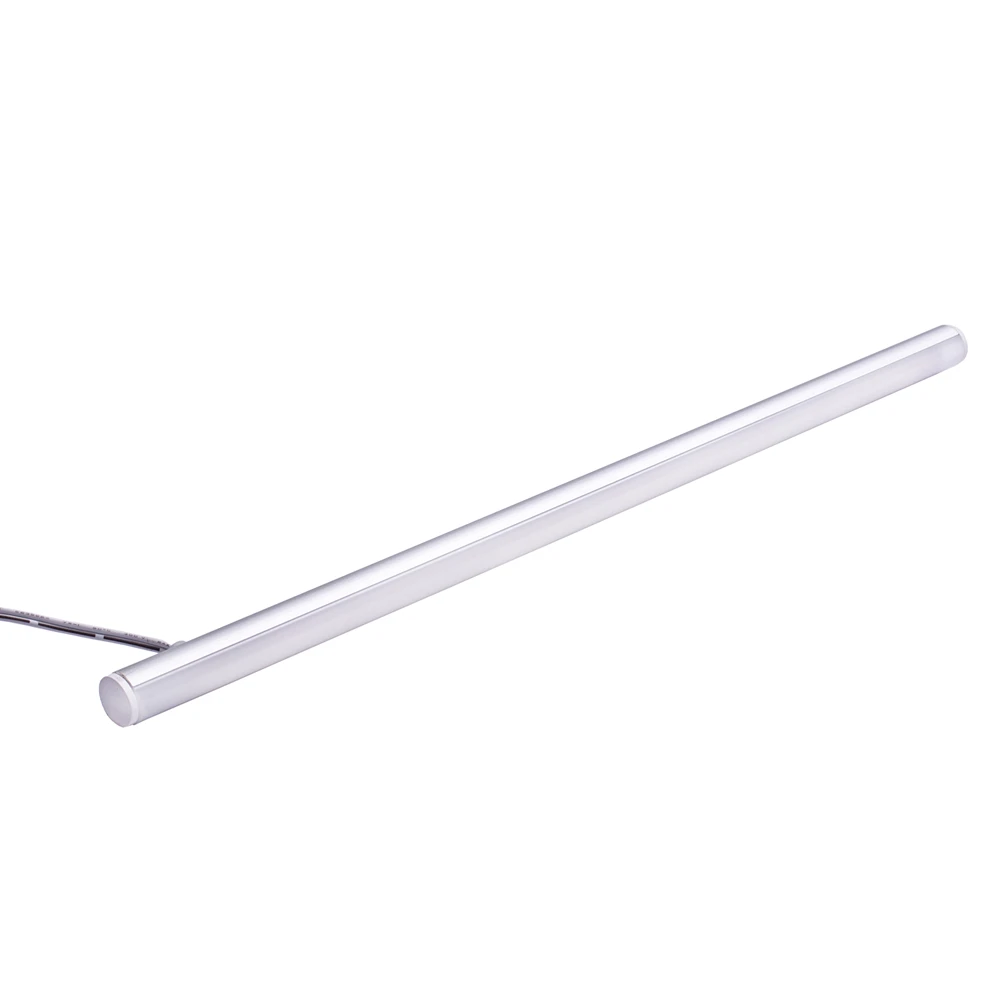

Epistar led tube 12V LS12 kitchen under cabinet led lighting
- Category: >>>
- Supplier: Ningbo Homer Electronics Lighting Co. Ltd.
Share on (1535237011):
Product Overview
Description
Product Description
Slim design
Aluminum housing
IR Sensor function
Aluminium house is good for heat dissipation
Detailed Images
Introduction of product advantages or application effect or application mode
IR Sensor function(LS12-01S Model): Sensor Switch、Dimmer、Memory Function.
1.The IR sensor detection distance is about 3-7cm.
2.The light won't turned on automatically when power connected.
3.Instant cover for switch on/off.
4.Cover the sensor and hold for dimming: 1st cover and hold to increase lumens, 2nd cover and hold to decrease lumens,3rd cover
and hold to increase lumens, it’s goes same way in circle.
5.The light will be kept same brightness when you turned it on again(after turned off or power failure).
2.The light won't turned on automatically when power connected.
3.Instant cover for switch on/off.
4.Cover the sensor and hold for dimming: 1st cover and hold to increase lumens, 2nd cover and hold to decrease lumens,3rd cover
and hold to increase lumens, it’s goes same way in circle.
5.The light will be kept same brightness when you turned it on again(after turned off or power failure).

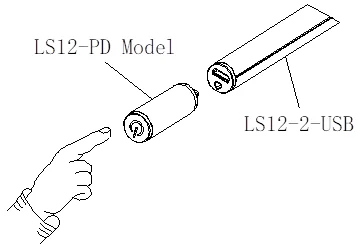

PD Sensor function(LS12-PD Model):
1.The light won't turned on automatically when power connected.
2.Instant touch, switch on/off.
3.Touch and hold for dimming:1st touch to increase lumens,2nd touch to decrease lumens,3rd touch to increase,it’s goes same way in
circle.
4.The light will be kept same brightness when you turned on again(after turned off or power failure).
2.Instant touch, switch on/off.
3.Touch and hold for dimming:1st touch to increase lumens,2nd touch to decrease lumens,3rd touch to increase,it’s goes same way in
circle.
4.The light will be kept same brightness when you turned on again(after turned off or power failure).

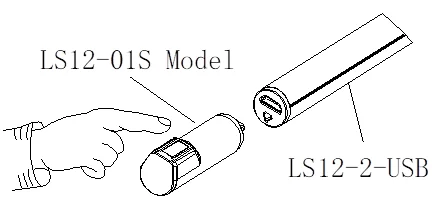

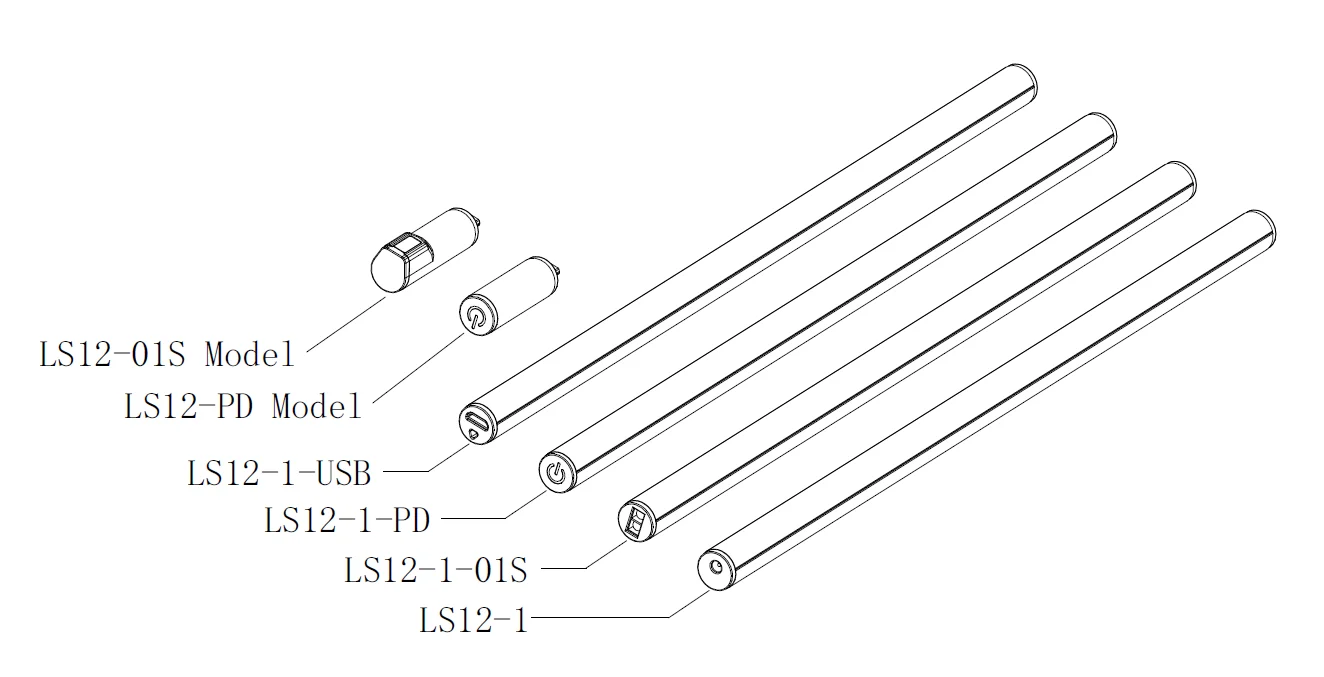

IR Sensor function(LS12-01S Model、LS12-1-01S): Sensor Switch、Dimmer、Memory Function.
Note:LS12-1-USB can replace functional modules: LS12-01S module or LS12-PD module.
PD Sensor function(LS12-PD Model、LS12-1-PD): Point Touch Switch、Dimmer、Memory Function.
Note:LS12-1-USB can replace functional modules: LS12-01S module or LS12-PD module.

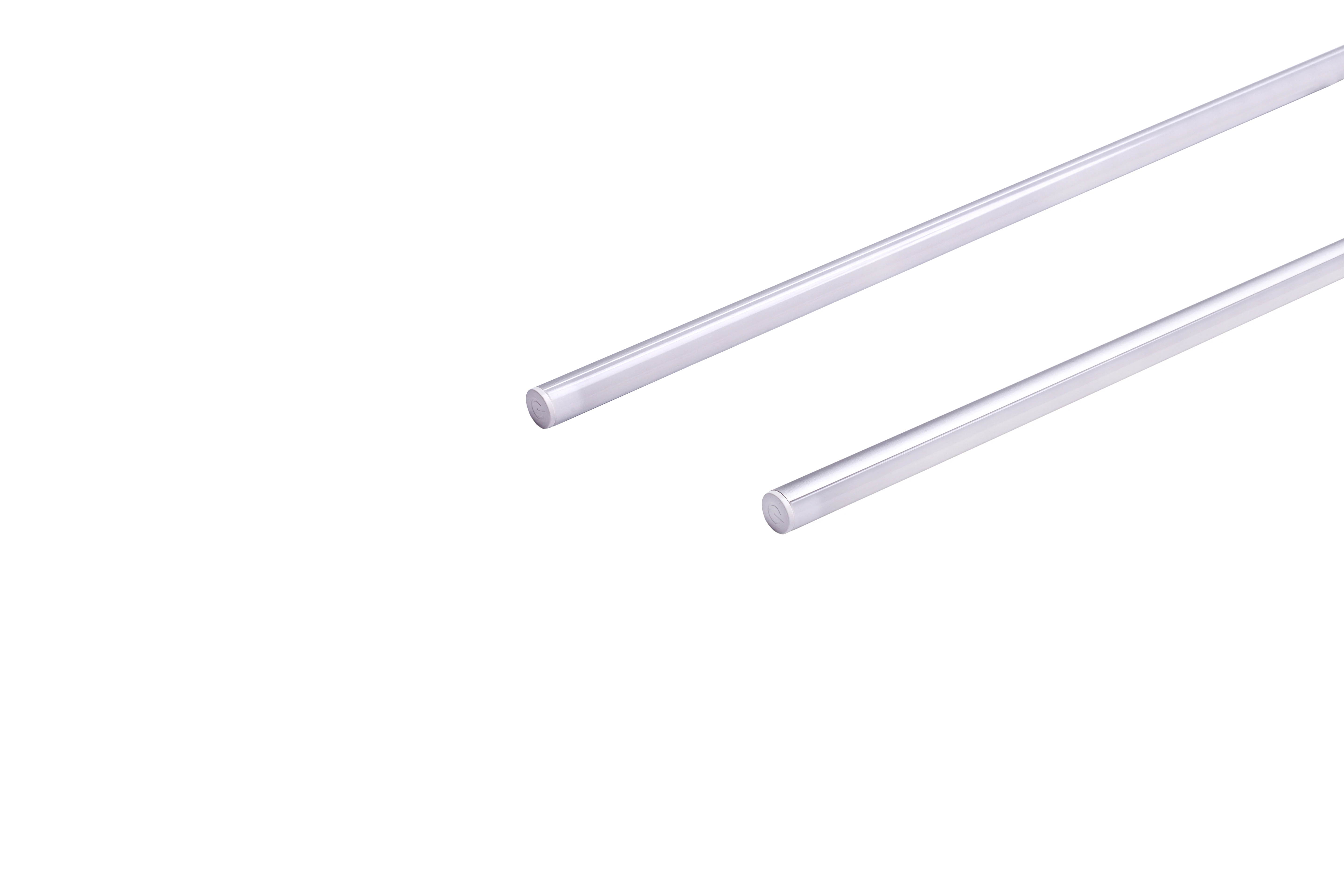

Aluminum housing
This under counter lighting is suited for an array of applications – sink, display, bookcase, hutch, workbench, pantry, under
closet, etc.
closet, etc.

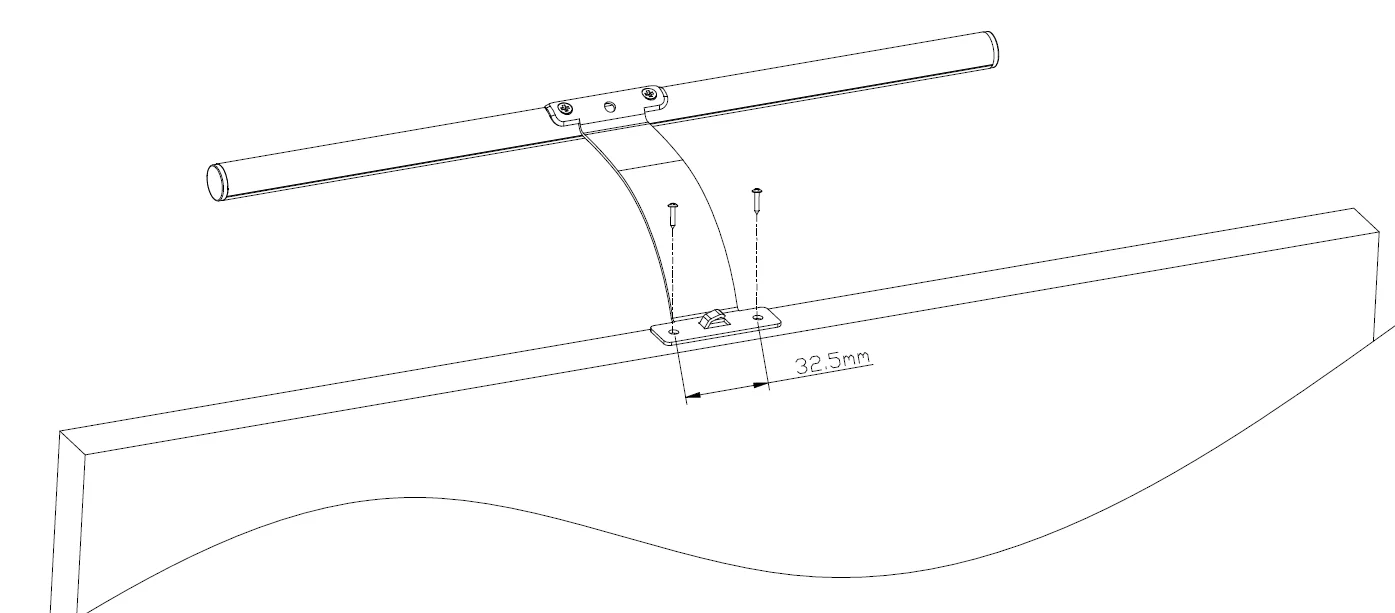

Easy installation
Installation is a snap – with all accessories provided. You can either use mounting clip or screws to do the mounting.
And, indeed, the item is backed by a 24-month warranty.
And, indeed, the item is backed by a 24-month warranty.
Product Presentation
Size introduction and size picture
Product specifications | |
Material | Aluminum + PC |
Parts | Screws |
Dimensions | 106 (W) x 46 (H) x“300/400/600/900mm(L)” |
Light Source: | High brightness SMD2835 LED |
Operating Temperature: | -20°C to 45°C - Indoors |
Warranty: | 2 years with proper installation |
Installation: | 2pcs M3 screws allows easy installation |
Ingress Protection Grade: | IP20 |
Technical - Electrical Data | L300S12-2 | L400S12-2 | L600S12-2 | L900S12-2 |
Rated wattage | 3.5W | 4.5W | 6W | 9W |
Rated lamp efficacy | 75lm/W | 75lm/W | 75lm/W | 75lm/W |
Led Current | 0.4A | 0.45A | 0.6A | 0.75A |
Rated voltage | 12VDC | 12VDC | 12VDC | 12VDC |
Led quantity | 57pcs | 75pcs | 114pcs | 171pcs |
Luminous Flux | 260lm | 335lm | 450lm | 675lm |
Color Temp | 2700-6500k | 2700-6500k | 2700-6500k | 2700-6500k |
Angle | 120° | 120° | 120° | 120° |
Lifespan | 30000H | 30000H | 30000H | 30000H |
