solid flat wire 2 cores copper wire PVC electric wire,professional Twin and earth cable
- Category: >>>
- Supplier: Zhejiang Permanent Cable Co. Ltd.
Share on (1535354183):
Product Overview
Description
Flat cable wire
| Item: | BVVB |
| Standard: | BS6004/ IEC60227 |
| Voltage: | 300/500 V |
| Conductor: | Cu/ CCC/ CCA |
| Material: | PVC/PVC |
| Section: | 2*0.75—3*6 mm2 |
Details

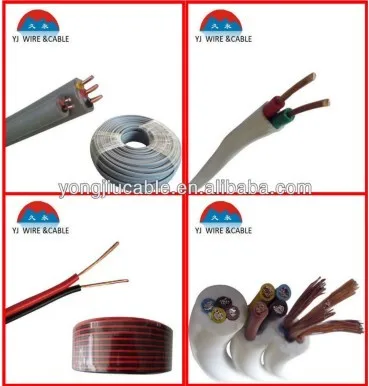

A) Copper (aluminum) conductor PVC insulated PVC sheathed round wires
B) Copper (aluminum) conductor PVC insulated PVC sheathed flat wires
C) Copper conductor PVC insulated flat flexible connectors
D) Copper conductor PVC insulated PVC sheathed round flexible connectors
Model | Name |
BV | Copper core PVC insulated power cable |
BLV | Aluminum core PVC insulated power cable |
BLR | Copper core PVC insulated flexible power cable |
BVV | Copper core PVC insulated PVC sheathed round power cable |
BVVB | Copper core PVC insulated PVC sheathed Flat power cable |
BLVVB | Aluminum core PVC insulated PVC sheathed flat power cable |
BV-90 | Copper core heat-resistance 90°C PVC insulation |
AWG Wire
| American Wire Gauge (AWG) | Diameter (inches) | Diameter (mm) | Cross Sectional Area (mm2) |
| 0000 | 0.46 | 11.68 | 107.16 |
| 000 | 0.4096 | 10.40 | 84.97 |
| 00 | 0.3648 | 9.27 | 67.40 |
| 0 | 0.3249 | 8.25 | 53.46 |
| 1 | 0.2893 | 7.35 | 42.39 |
| 2 | 0.2576 | 6.54 | 33.61 |
| 3 | 0.2294 | 5.83 | 26.65 |
| 4 | 0.2043 | 5.19 | 21.14 |
| 5 | 0.1819 | 4.62 | 16.76 |
| 6 | 0.162 | 4.11 | 13.29 |
| 7 | 0.1443 | 3.67 | 10.55 |
| 8 | 0.1285 | 3.26 | 8.36 |
| 9 | 0.1144 | 2.91 | 6.63 |
| 10 | 0.1019 | 2.59 | 5.26 |
| 11 | 0.0907 | 2.30 | 4.17 |
| 12 | 0.0808 | 2.05 | 3.31 |
| 13 | 0.072 | 1.83 | 2.63 |
| 14 | 0.0641 | 1.63 | 2.08 |
| 15 | 0.0571 | 1.45 | 1.65 |
| 16 | 0.0508 | 1.29 | 1.31 |
| 17 | 0.0453 | 1.15 | 1.04 |
| 18 | 0.0403 | 1.02 | 0.82 |
| 19 | 0.0359 | 0.91 | 0.65 |
| 20 | 0.032 | 0.81 | 0.52 |
| 21 | 0.0285 | 0.72 | 0.41 |
| 22 | 0.0254 | 0.65 | 0.33 |
| 23 | 0.0226 | 0.57 | 0.26 |
| 24 | 0.0201 | 0.51 | 0.20 |
| 25 | 0.0179 | 0.45 | 0.16 |
| 26 | 0.0159 | 0.40 | 0.13 |
Our Company&Workshop
Certifications
FAQ
(1).When can I get the price?
Quotation will send you in6 hours after receive your inquiry. Please call us or send our email directly if it's urgent for you.
(2).How can I get a sample to check your quality?
Free samples will send to you when we confirm the price.
(3).What about the lead time for mass production?
Generally 35days for the first order, and 25 days for the reorder.
(4).Does your company accept OEM production?
Yes, could printing your brand name.
(5).Is it convient to visit your factory?
2 hours from Shanghai airport or Hangzhou airport by car. We will pick up to you.
