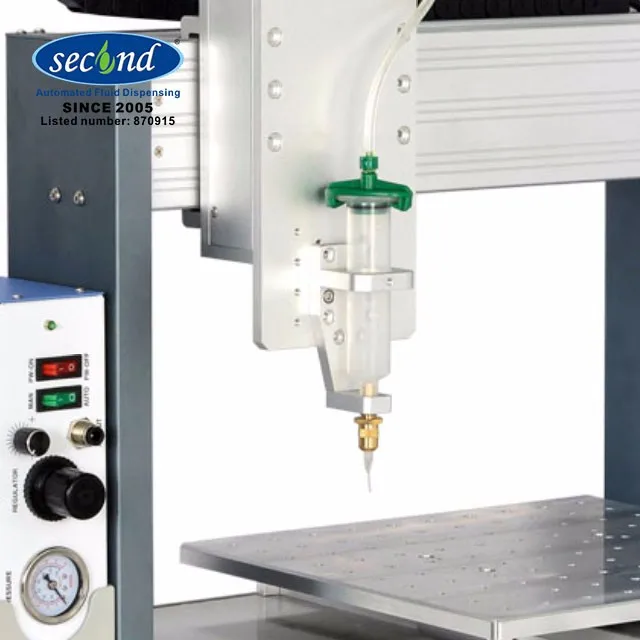

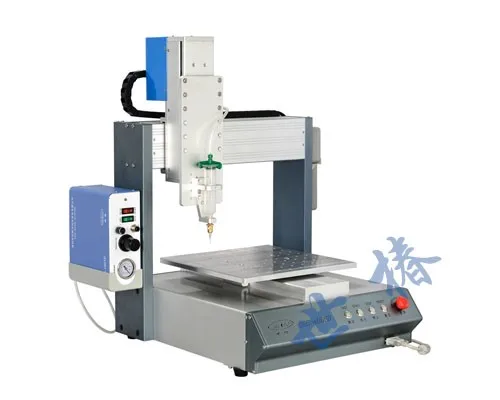

Easy Operation With Teach Pendant Desktop Epoxy Liquid Glue Dispenser Automatic Doming Sticker Dispensing Robot Machine
- Category: >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (1535455713):
Product Overview
Description
PRODUCT SPECIFICATIONS
Easy Operation With Teach Pendant Desktop Epoxy Liquid Glue Dispenser Automatic Doming Sticker Dispensing Robot Machine
Features:

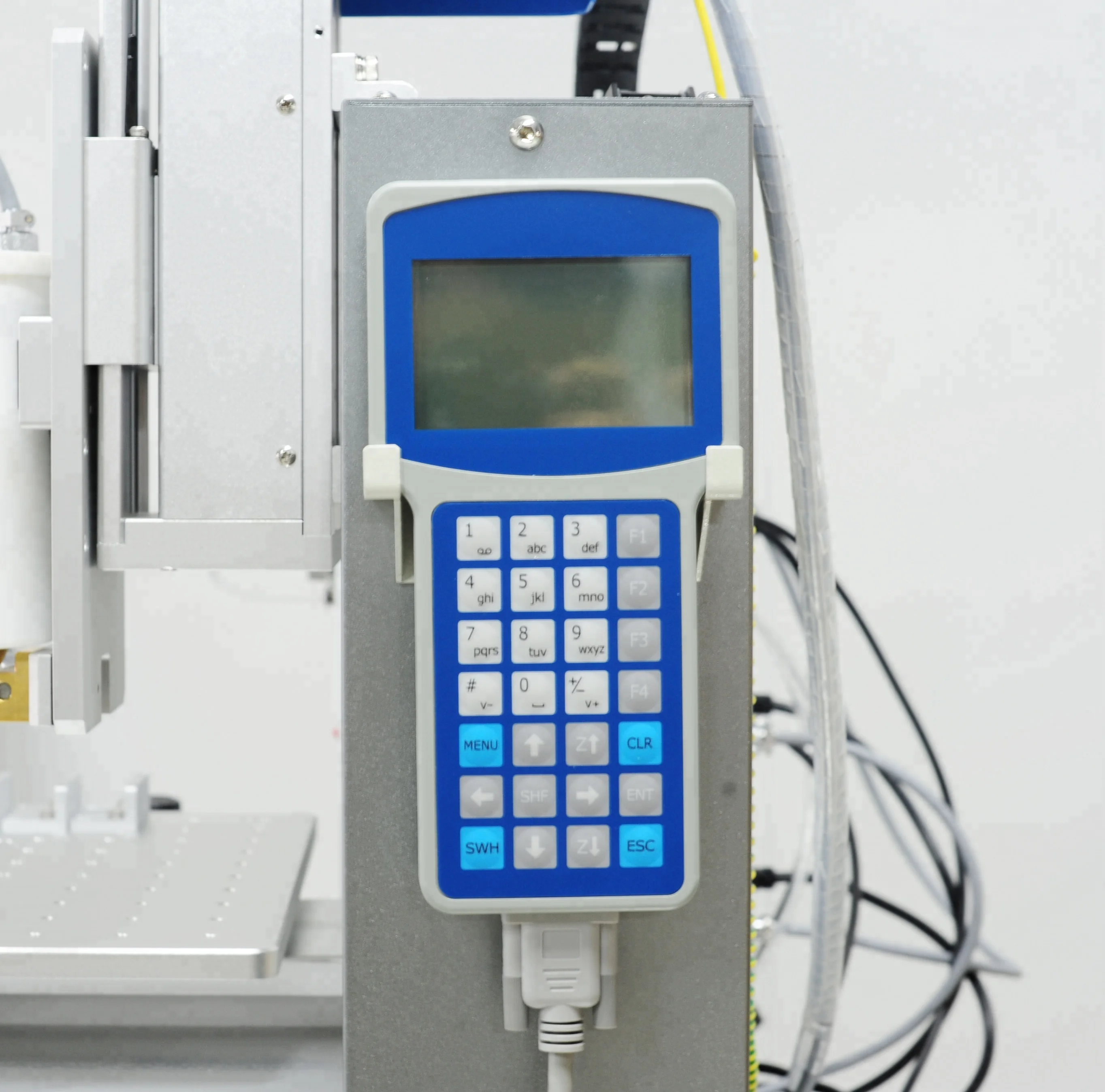

handheld LCD panel teach box, easy to program and learn
Functions of drawing points, lines, surfaces, arc, circle
Excellent teaching function to support array, three dimensional elliptic, etc.
2G storage capacity, can store 999 dispensing programming document
Size of glue,dispensing time, opening time can be set by parameters

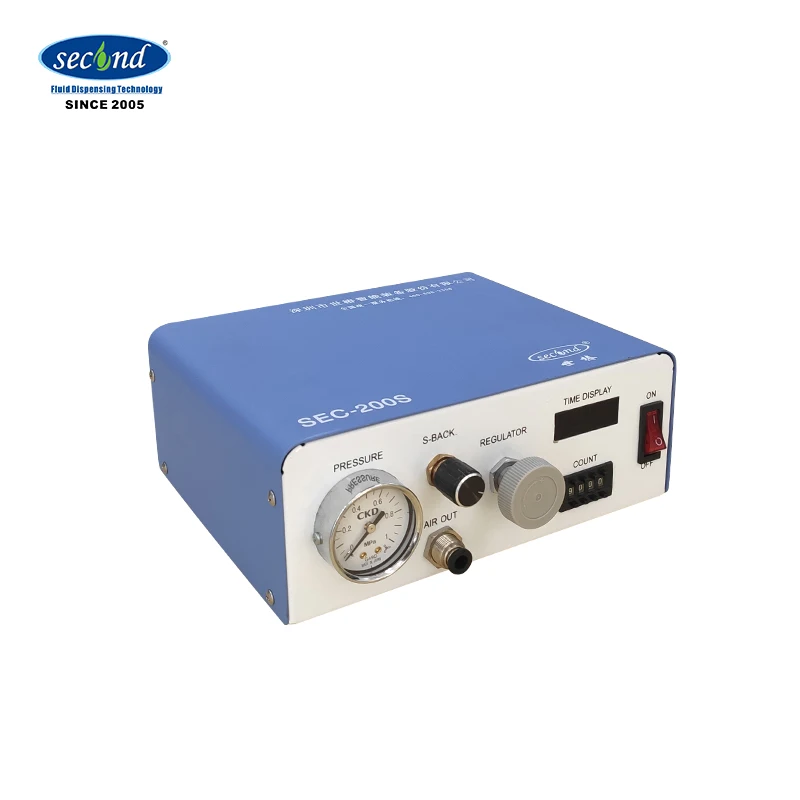

Second brand dispensing controller makes sure stable glue outflow, avoid leaking or dripping.
automatic gel prevention function can effectively prevent glue curing
Functions of drawing points, lines, surfaces, arc, circle
Excellent teaching function to support array, three dimensional elliptic, etc.
2G storage capacity, can store 999 dispensing programming document
Size of glue,dispensing time, opening time can be set by parameters
Second brand dispensing controller makes sure stable glue outflow, avoid leaking or dripping.
automatic gel prevention function can effectively prevent glue curing
Model | SEC-400EDN |
Work Area | 400(X)╳400(Y)╳100(Z)mm |
Size | 590(L)*628(W)*679(H)mm |
Y/Z(Max load) | 7kg/3kg |
Travel speed | 400mm/sec(XY)/200mm/sec(Z) |
Drive mode | Stepping motor + belt + precise linear guide rail |
XYZ Repeatability | ±0.025mm |
Resolution | 0.01mm |
Program capacity | 999 parameter files, 65535 points per file |
Operation system | LCD panel /Teach pendant |
Motor | Japan micro stepping motor |
Movement pattern | 3 axis point to point, continuous line, arc |
I/O Signal ports | 4 inputs/4 outputs |
Power supply | AC220V 50/60Hz 0.5kw |
Work condition | Temperature 0-40℃;relative humidity 20-90% |
Weight | About 45KG |
Our Advantages
1. Patent technology
2. Manufacurer
3. OEM service provided
4. CE Approved
5. Excellent performance 6.Competitive in the market
Product packaging
Strong wooden cases suitable for a long distance shipment.
package weight :about 96kg
package size: about 80(L)*80(W)*92(H) CM
package weight :about 96kg
package size: about 80(L)*80(W)*92(H) CM
Company Profile
Shenzhen Second Intelligent Equipment Co., Ltd., it was founded in 2005. It is awarded and certified as a national high-tech enterprise. The company provides integrated fluid dispensing, potting, and coating solutions from research, development, production, pre-sales, and after sales services. The products includes various types of precise automatic fluid dispensing, potting, two components potting, and coating machines in the form of desktop, freestanding, inline, or cobot combined systems. Also the company is capable of producing custom design machines for customers.

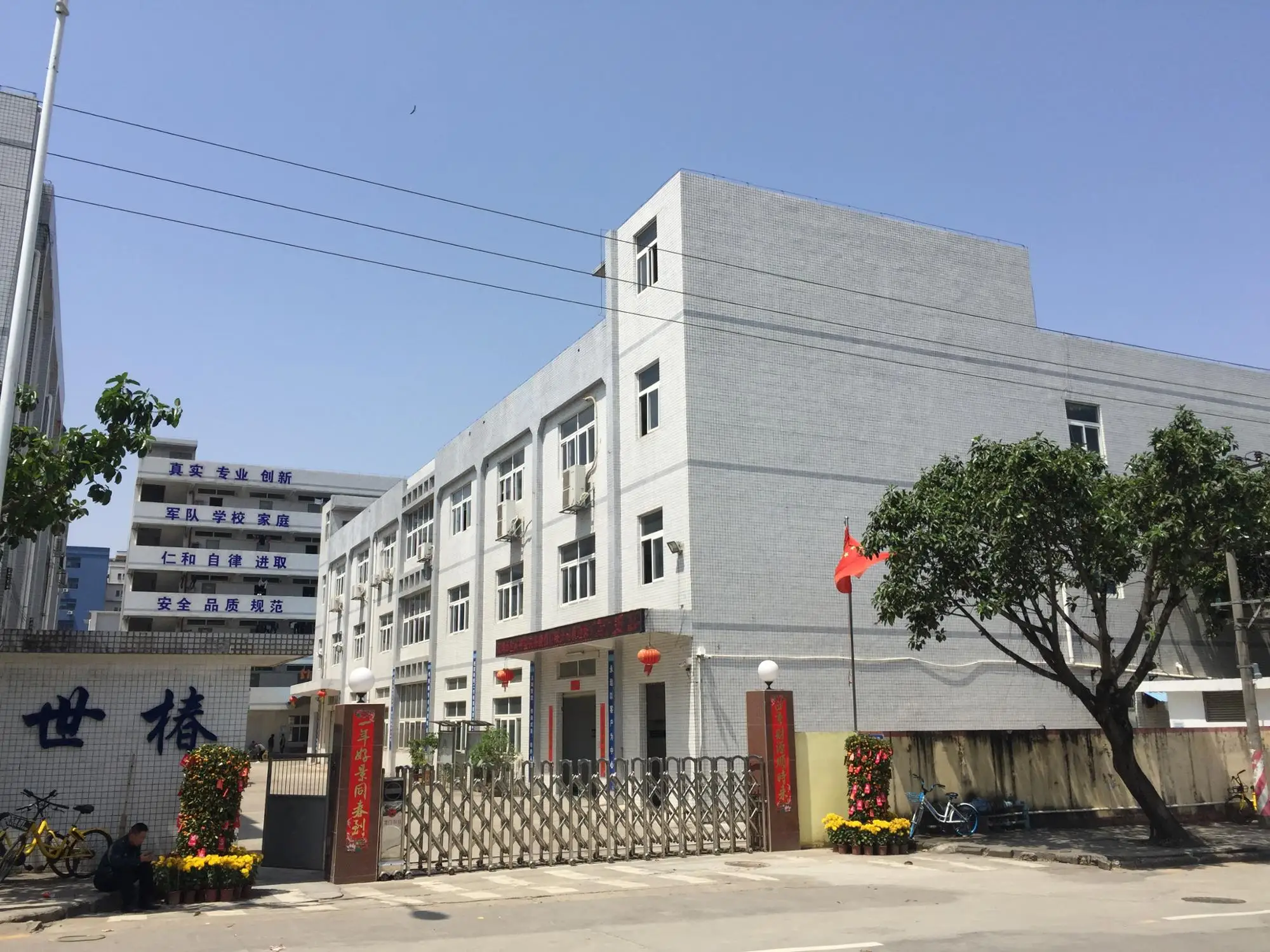

Second Intelligent Factory View, our factory located in Songgang Shenzhen, we are welcoming your visit from all the around world!
Second Intelligent Factory View, our factory located in Songgang Shenzhen, we are welcoming your visit from all the around world!
Second Intelligent Global Exhibitions to seek more worldwide opportunities.
FAQ
Dear Customer,
Greetings from Second Intelligent!
As below Q&A to let you know more about Second Intelligent:
1 Are you factory or trade company?
We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.
2 How long is your machine warranty?
12 months
3 What is your lead time?
For standard specification machine, we have inventory and could prepare the machine within 7 working days. For custom request, desktop machine 7-10 days, freestanding machine 10-15 days, RO roller machine 20-40 days.
4 Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.

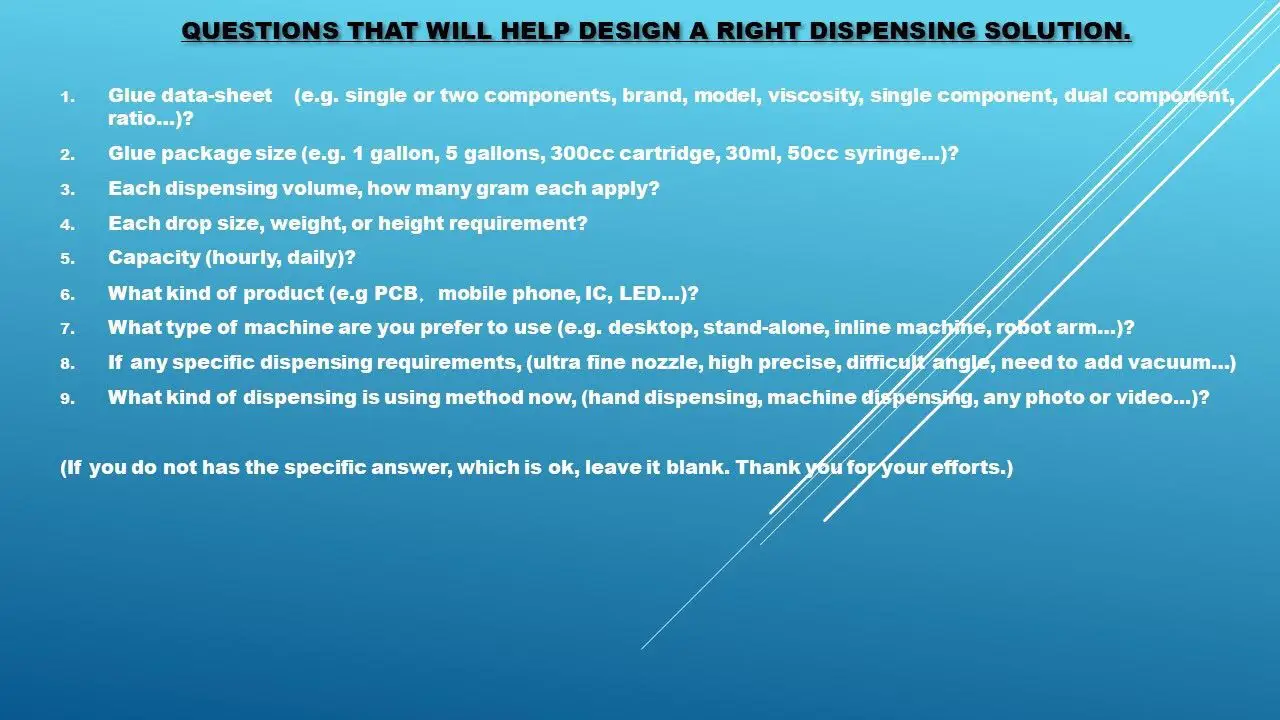

In order to recommend more suitable machine, please let us know the following information:
1 Glue type: please give us the data sheet if you have
2 Glue is easy caking? A Yes, need vacuum tank B No, no special request
3 Glue package please send us picture A Cartridge B Barrel C Pour into our machine tank directly
4 Glue package amount
5 Need vacuum system when pouring glue into our tank A Yes B No
We could provide vacuum system for 300ML,3600ML and 25KG barrel glue package
Greetings from Second Intelligent!
As below Q&A to let you know more about Second Intelligent:
1 Are you factory or trade company?
We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.
2 How long is your machine warranty?
12 months
3 What is your lead time?
For standard specification machine, we have inventory and could prepare the machine within 7 working days. For custom request, desktop machine 7-10 days, freestanding machine 10-15 days, RO roller machine 20-40 days.
4 Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
In order to recommend more suitable machine, please let us know the following information:
1 Glue type: please give us the data sheet if you have
2 Glue is easy caking? A Yes, need vacuum tank B No, no special request
3 Glue package please send us picture A Cartridge B Barrel C Pour into our machine tank directly
4 Glue package amount
5 Need vacuum system when pouring glue into our tank A Yes B No
We could provide vacuum system for 300ML,3600ML and 25KG barrel glue package
