injection molding companies, hot runner controller

Product Overview

Description

   injection molding companies             , hot runner controller



IBS DXC-TC Hot runner temperature controller product features:

1, Technical patent

1. A.          Heater short protection
2. B.          Male position of heater and thermocouple
3. C.          380V input protection

2, Auot-turning+phase angle fire wiring, to control precisely.

3, Soft start function for smoothly start-ups

4,Mold doctor(troubleshoot hot runner mold)

5, all standard size design, 1-12 zones cabinet are available.

2. IBS DXC-TC Hot runner temperature controllers specification:

Power input	220VAC + 20%
Output power	3600W,15A/240V
Power consumption	3W single card
Input resistance	33MΩ
Temperature testing range	0~535°C,32~999°F
Working temperature range	0~50°C
Testing accuracy	±0.2% SPAN
Control accuracy	±0.2% SPAN
Operate humidity	10~80%RH
Sensor Type	J / K
Output drive component	SCR
SCR touch way	Auto-tuning phase angle
Control arithmetic	FUZZY+PID
Fuse testing function	Yes
T/C OPEN and reverse testing	Yes
Heater open testing	Yes
Manual output function	Yes
External cooling compensation	Yes
soft start dehumidify function	Yes
T/C short testing	Yes
Non touch transfer	Yes
Inner testing circuit temperature compensation	Yes
SCR short testing	Yes
Currency timing detecting	Yes
Pasic reverse protection	Yes
Apposition of T/C and heater	Yes
Heater short testing	Yes
temperature record function	No
Control ZONES	1-60 Zones
Temperature display way	Double 4 digit Ron
Cool way	internal radiator + cooling fan

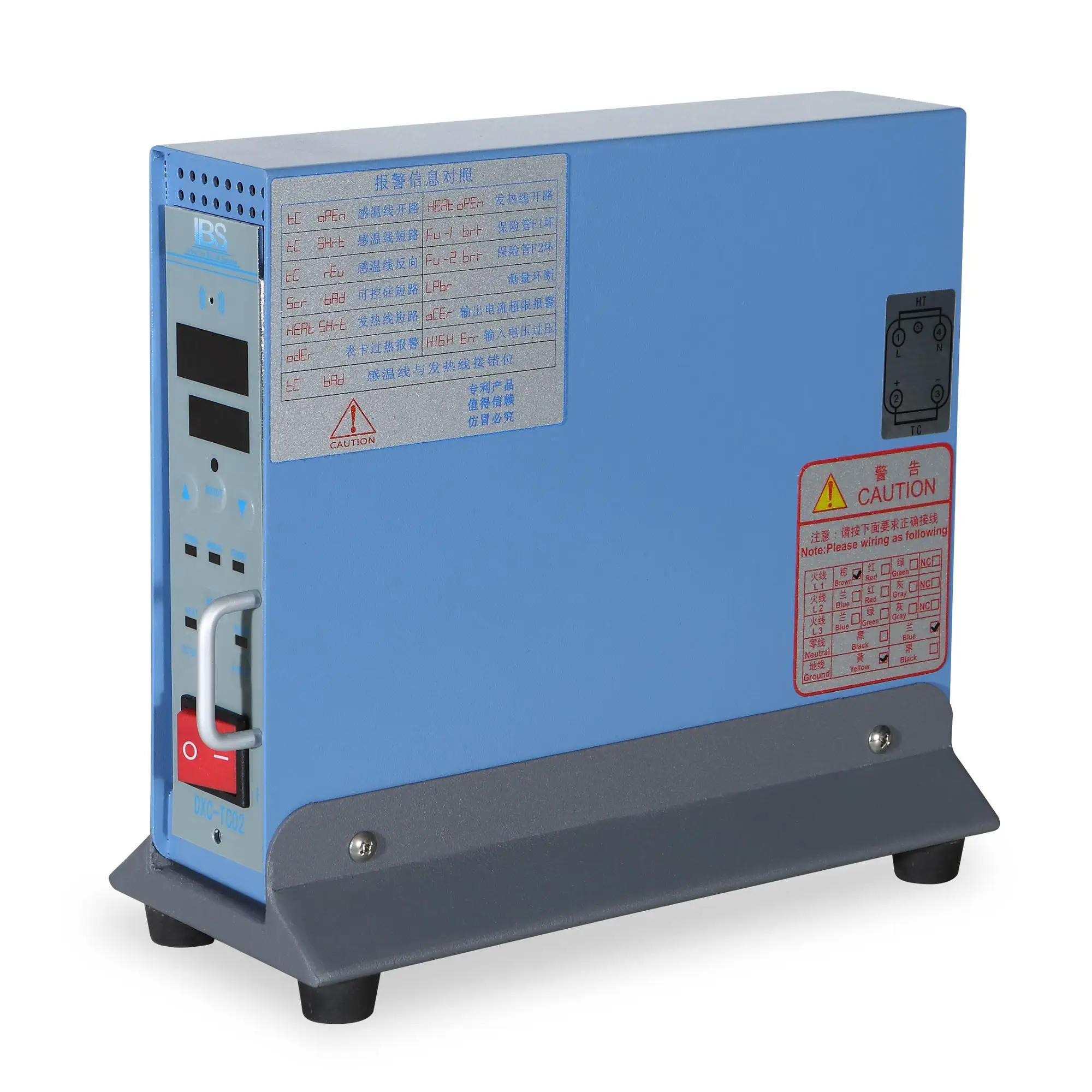

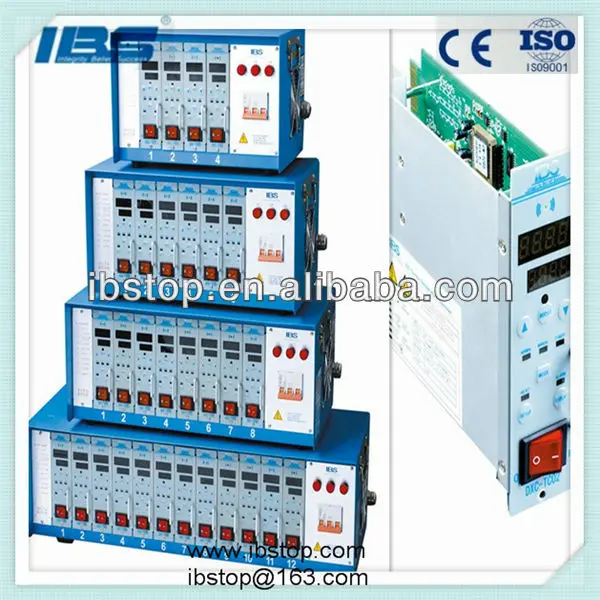

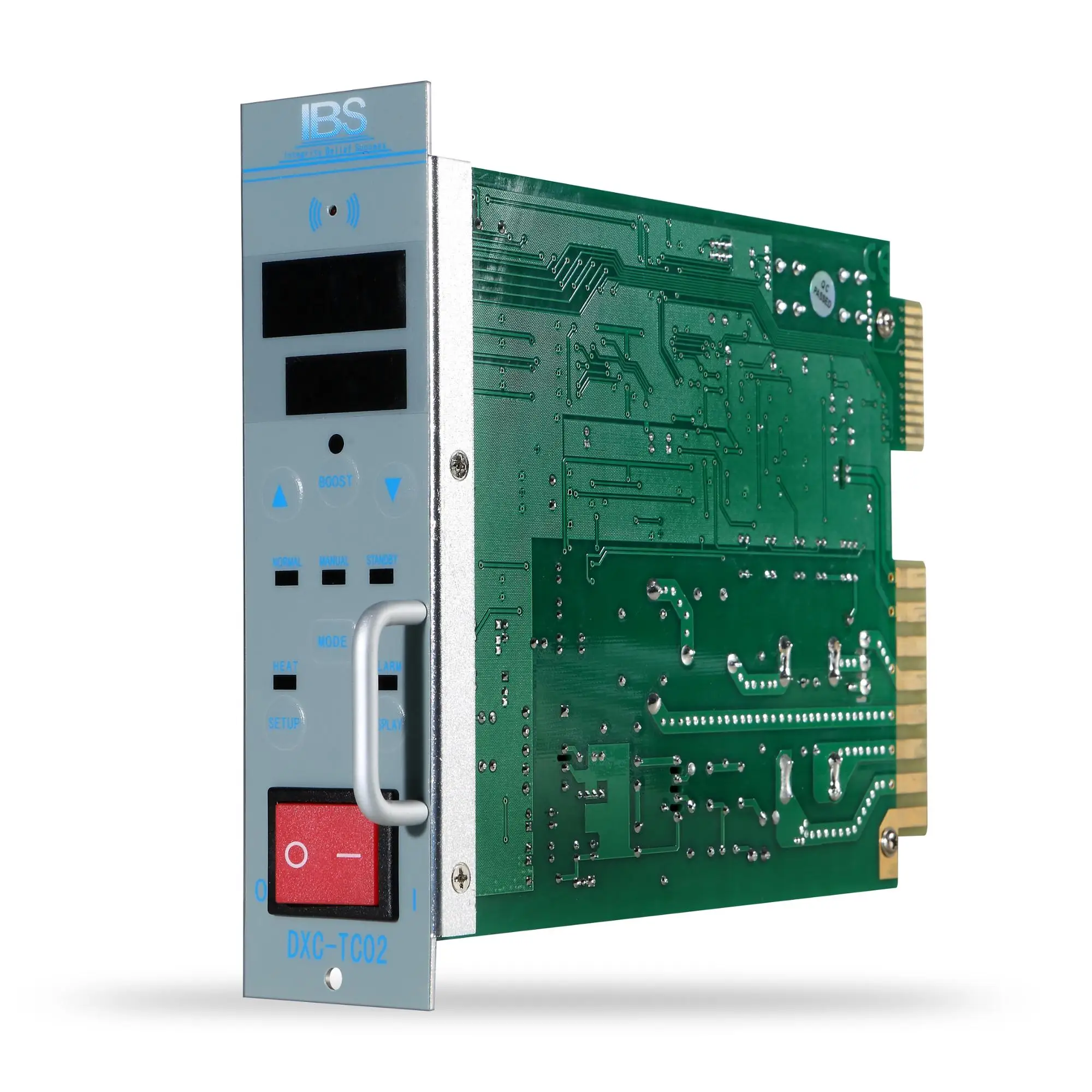

3. IBS DXC-TC Hot runner temperature controllers picture:

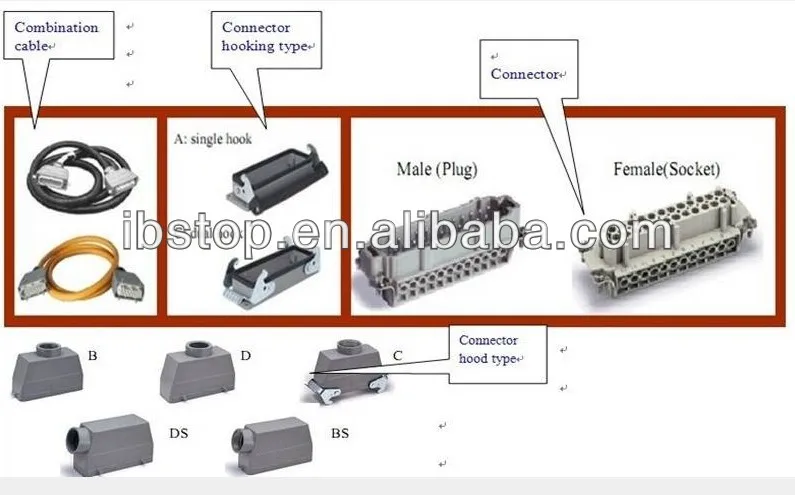

4. IBS DXC-TC Hot runner temperature controllers Accessories:

5. IBS DXC-TC Hot runner temperature controllers Packing details:

6.  IBS Certificate:



7, Our sales team:

Chinaplas Fair

8. Our service;

1: 24 online service, email will get back in 24 hours.

2: After sale service available.

3:Have professional R&D group, all your technical requirement will be customized.

4, Research and develop state of the art hot runner controllers.

Welcome to contact us, we’re sure any of your inquiry will get prompt reply
