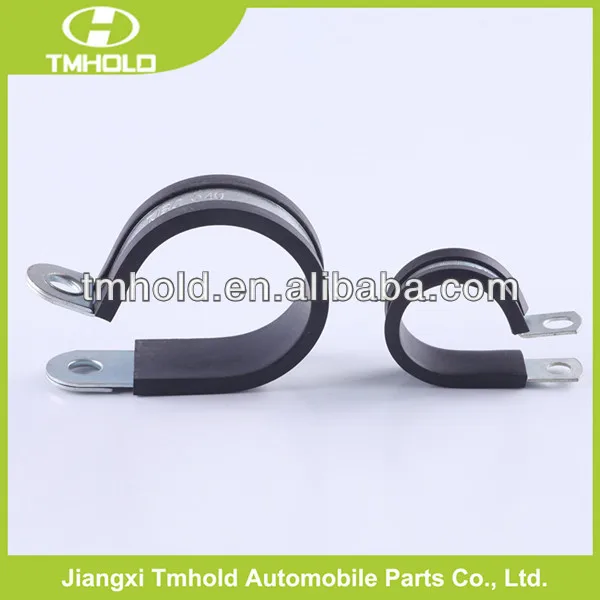

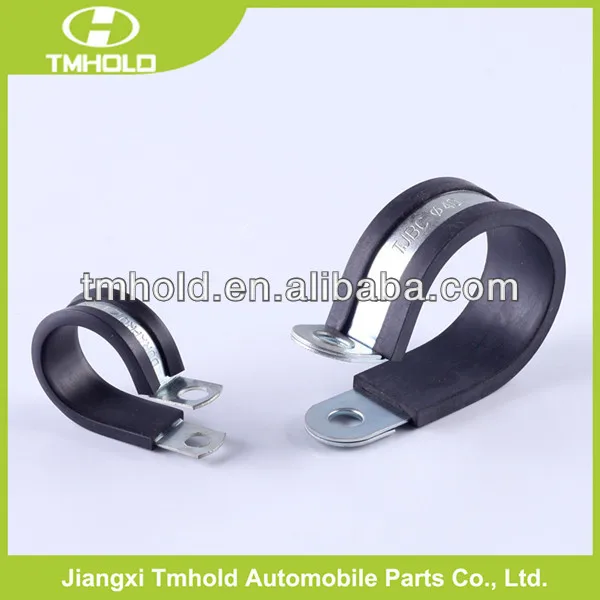

Locking P type standard pipe clamp with Rubber rope cable clamp for cars

Product Overview

Description

Locking P type standard pipe clamp with Rubber rope cable clamp for cars



Pipe retaining clips are the ideal retaining elements for pipes, cables

cable hardness,cable protection pipes, hoses and other applications

Feature:



Material as below table;

Bandwidth	Material
9mm	W1,W4
12mm	W1,W4
15mm	W1,W4
20mm	W1,W4
25mm	W1,W4



Form Fitting and adjustable band, ease of assembly, safe attachment

Reinforced band ends, prevent the clip from tearing or loosening in

cases where there is a high mechanical loadOptionally supplied with

EPDM profile, vibration damping& protection against seepage water

sound insulation, clip fits tight on object



S/N	SPEC	bore diameter	Thickness	Net tweight	Bandwidth
TH862 0130	13	8.4	1.3		20
TH862 0140	14	8.4	1.3		20
TH862 0150	15	8.4	1.3		20
TH862 0160	16	8.4	1.3		20
TH862 0170	17	8.4	1.3		20
TH862 0180	18	8.4	1.3	20.6g	20
TH862 0190	19	8.4	1.3		20
TH862 0200	20	8.4	1.3		20
TH862 0210	21	8.4	1.3		20
TH862 0220	22	8.4	1.3	27.8g	20
TH862 0230	23	8.4	1.3		20
TH862 0240	24	8.4	1.3		20
TH862 0250	25	8.4	1.3		20
TH862 0260	26	8.4	1.3		20
TH862 0270	27	8.4	1.3		20
TH862 0280	28	8.4	1.3		20
TH862 0290	29	8.4	1.3		20
TH862 0300	30	8.4	1.3		20
