Product Overview
Description

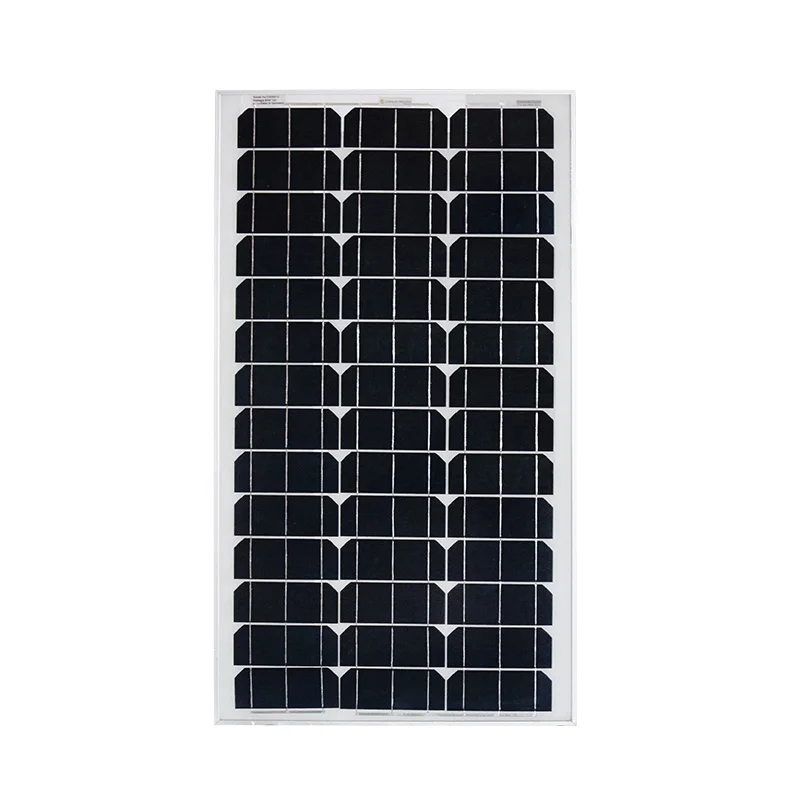

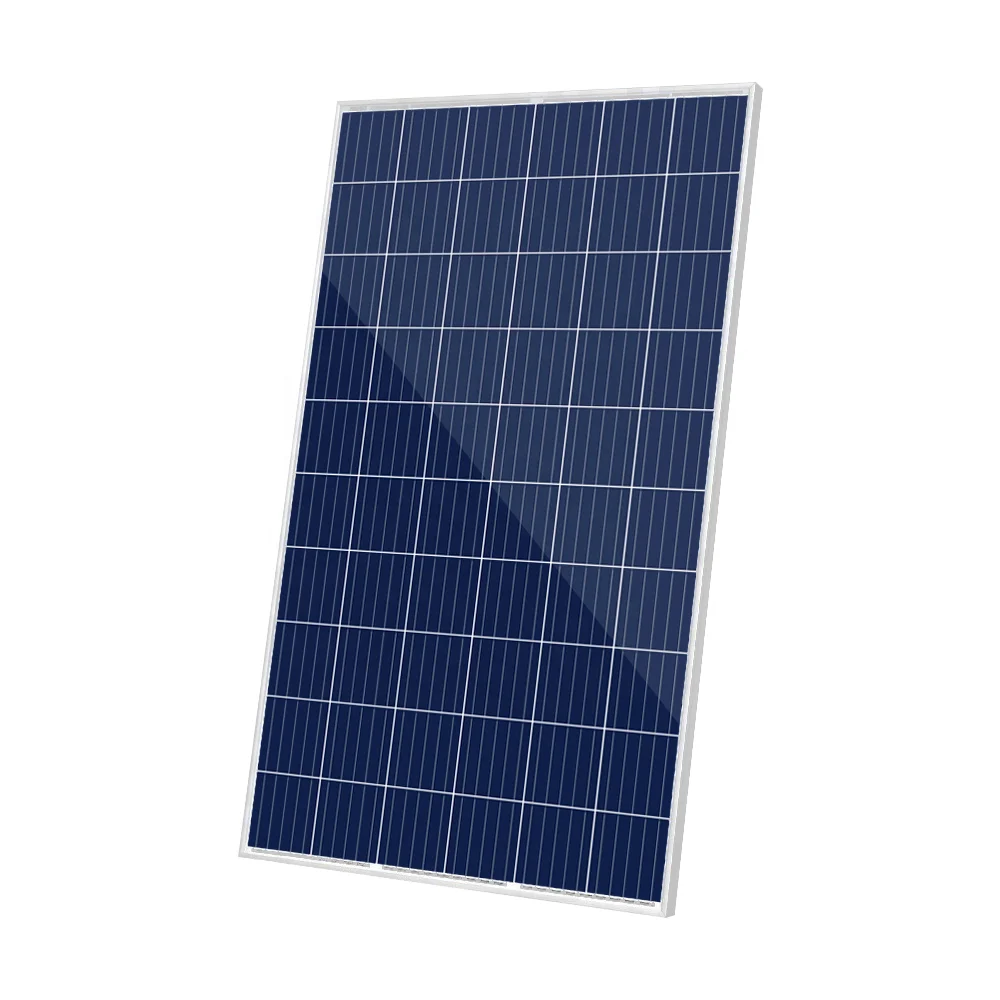

popular 150 watt solar power plates
| Module Type | OLPV150W | OLPV160W | OLPV170W | OLPV180W | OLPV190W |
| Size | 1480*680*35mm | ||||
| Maximum power | 150 W | 160 W | 170 W | 180 W | 190 W |
| Max power voltage | 17.90 V | 18.10 V | 17.40 V | 16.90 V | 16.90 V |
| Max power current | 8.38 A | 8.84 A | 9.44 A | 9.96 A | 11.16 A |
| Open circuit voltage | 21.90 V | 22.10 V | 22.10 V | 22.30 V | 22.30 V |
| Short circuit current | 9.01 A | 9.53 A | 10.13 A | 10.74 A | 11.84 A |
| Module Efficiency | 16.15% | 17.16% | 19.67% | 21.16% | 22.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
