High Strength Plastic FRP Channel profiles from China manufacturer

Product Overview

Description

High Strength Plastic FRP Channel profile

The pultrusion process

During the pultrusion process,the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into a performer that roughly forms the package into the appropriate shape to enter the heated die for curing. the die is the exact shape of the final part desired. upon exiting the die, the part is over 90% cured and solid. the length of the part required is pulled through the cutoff saw and the process is complete.



FRP Channel introduction

Product Name	FRP channel / GRP  channel / Fiberglass channel
Materials	Thermosetting resin, E-glass fiber, pigment etc.
Process	Fiberglass pultrusions
Properties	*High strength *Light weight *Anti-corrosion *Electrical and thermal insulation *Flame retardant *Electro-magnetic transparency *Low coefficient of thermal expansion *Low temperature capabilities *Anti-age *Free to design *Good appearance
Certificate	ISO 9001:2008,

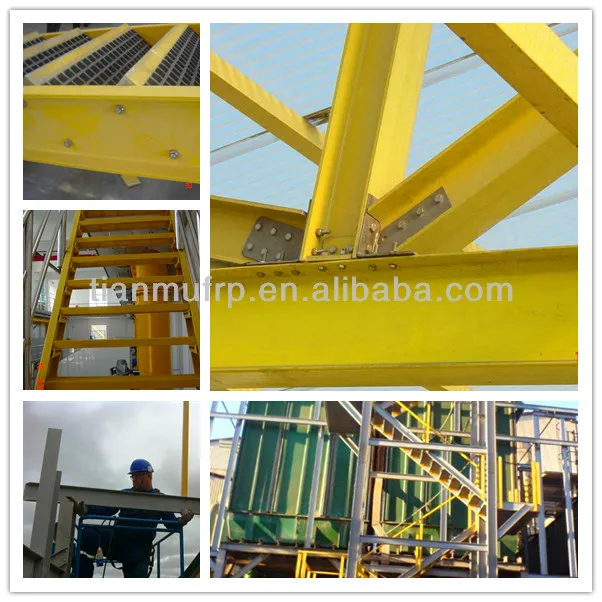

Application example display

1. Frp channel profiles are widely used as structure in the chemical and corrosion resistance industry,cooling tower,parking lots,sidewalk of bridge,farming shed and so on.

2. Frp channel profiles are used in different ares for platforms,ladders,handrails,support profiles and other load structures
